TIRE PRESSURE SENSOR WAKE UP OPERATION

WT-23

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE SENSOR WAKE UP OPERATION

Description

INFOID:0000000009949853

This procedure must be done after replacement of a tire pressure sensor, BCM, or rotation of wheels.

Work Procedure

INFOID:0000000009949854

1.

TIRE PRESSURE SENSOR WAKE-UP PROCEDURE

1.

Turn the ignition switch ON.

CAUTION:

Never start the engine.
NOTE:

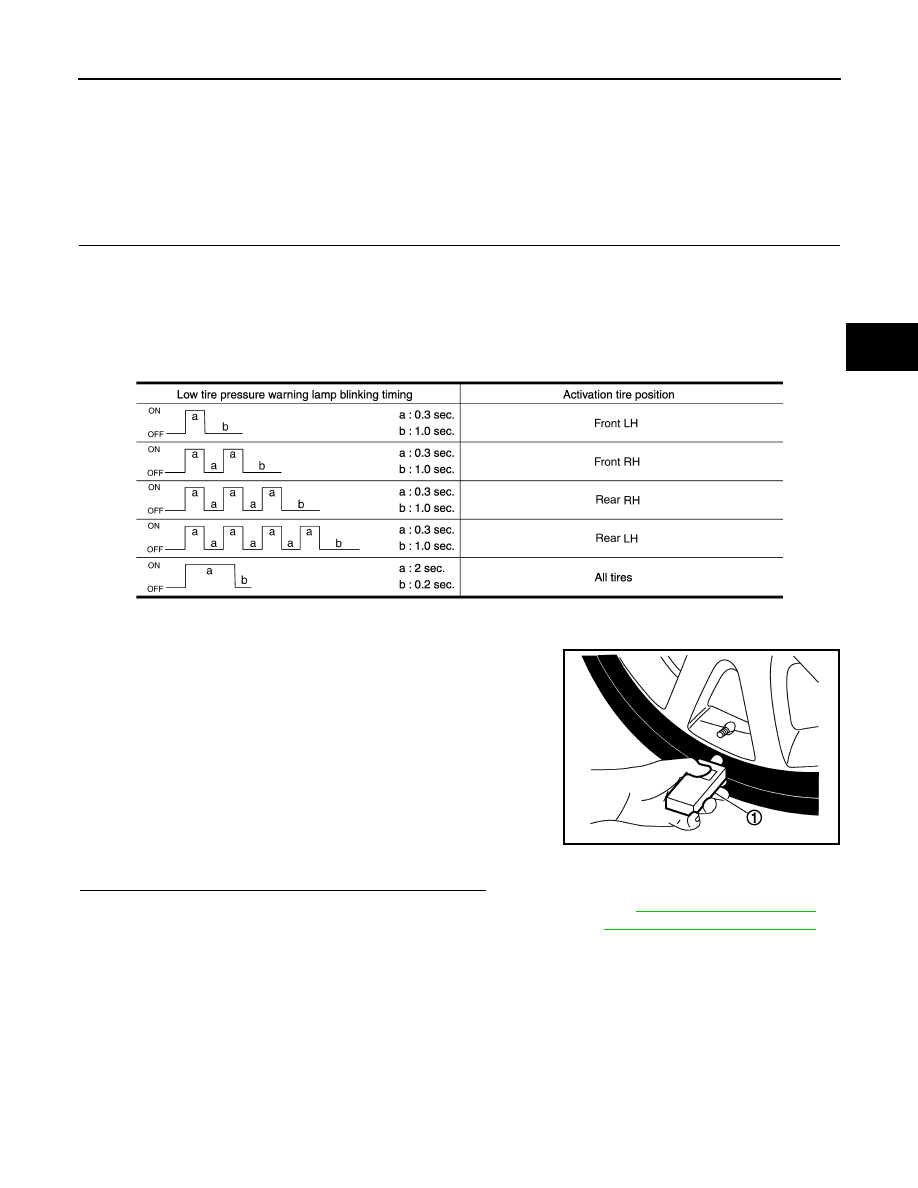

The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low
tire pressure warning lamp.

2.

Contact the tire pressure sensor activation tool (J-45295) (1) to
the side of the tire at the location to the tire pressure sensor.

3.

Press and hold the tire pressure sensor activation tool button
while pushing the tool to the tire surface. (approximately for 5
seconds)

CAUTION:

Perform the wake-up procedure starting from the vehicle
front left wheel, then repeat the procedure in the order of
the front right wheel, rear right wheel, and rear left wheel.

4.

Check that the turn signal lamps blink twice when the tire pres-
sure sensor wake-up procedure for all wheels is completed.

5.

Check that the low tire pressure warning lamp turns OFF, after
the tire pressure sensor wake-up procedure is completed for all wheels and turns OFF.

Is the tire pressure sensor wake-up procedure completed?

YES

>> Perform the tire pressure sensor ID registration procedure. Refer to

WT-24, "Work Procedure"

NO

>> Perform trouble diagnosis for the tire pressure sensor. Refer to

WT-28, "Diagnosis Procedure"

JPEIC0089GB

NNEIC0020ZZ

WT-24

< BASIC INSPECTION >

ID REGISTRATION PROCEDURE

ID REGISTRATION PROCEDURE

Description

INFOID:0000000009949855

This procedure must be done after replacing or rotating wheels, replacing tire pressure sensor or BCM.

Work Procedure

INFOID:0000000009949856

1.

TIRE PRESSURE SENSOR ID REGISTRATION PROCEDURE

CAUTION:

To perform ID registration, observe the following points:

• Never register ID in a place where radio waves are interfered (e.g. radio tower).
• Never register ID in a place close to vehicles including TPMS.

With CONSULT

Display the “WORK SUPPORT” screen and select “ID REGIST”.
Is the tire pressure sensor activation tool (J-45295) used for the tire pressure sensor ID registration proce-
dure?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

TIRE PRESSURE SENSOR ID REGISTRATION PROCEDURE (WITH TIRE PRESSURE SENSOR ACTI-

VATION TOOL)

1.

Turn the ignition switch ON.

2.

Select the start button on the “ID REGIST” screen.

3.

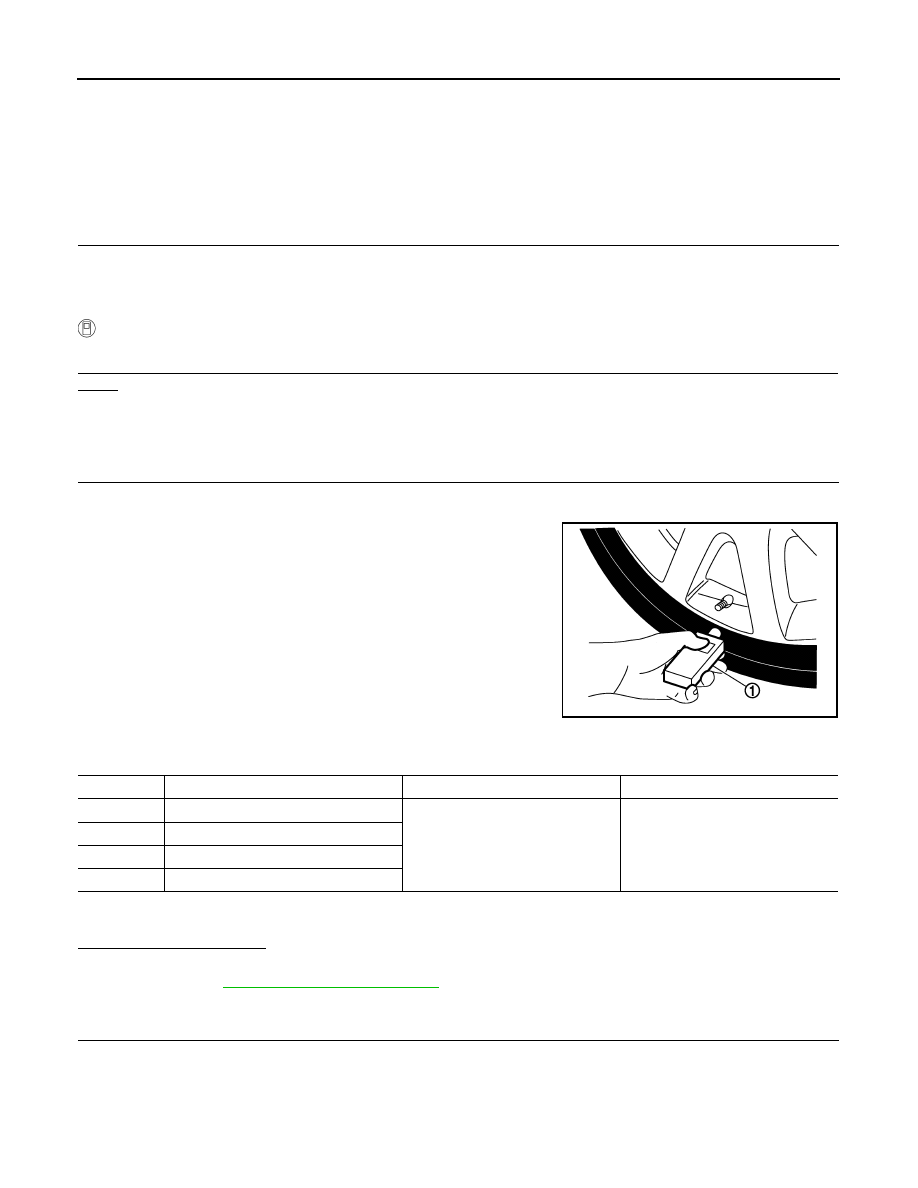

Contact the tire pressure sensor activation tool (J-45295) (1) to
the side of the tire at the location to the tire pressure sensor.

4.

Press and hold the tire pressure sensor activation tool button
while pushing the tool to the tire surface. (approximately for 5
seconds)

CAUTION:

Perform the ID registration procedure starting from the
vehicle front left wheel, then repeat the procedure in the
order of the front right wheel, rear right wheel, and rear left
wheel.

5.

When ID registration is completed, check the following pattern at each wheel.

6.

After the ID registration procedure for all wheels is completed, press “END” to end ID registration, and
check that ID registration for all wheels is completed.

Is the check result normal?

YES

>> ID registration END.

NO

>> Refer to

WT-42, "Diagnosis Procedure"

.

3.

TIRE PRESSURE SENSOR ID REGISTRATION PROCEDURE (WITHOUT TIRE PRESSURE SENSOR

ACTIVATION TOOL)

1.

Adjust the tire pressure for all wheels to match the list below.

NNEIC0020ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front left wheel

2 blinks

“Red”

“Green”

2

Front right wheel

3

Rear right wheel

4

Rear  left  wheel

ID REGISTRATION PROCEDURE

WT-25

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

2.

Drive the vehicle at a speed at more than 40 km/h (25 MPH) for 3 minutes or more, then perform the tire
pressure sensor ID registration procedure.

3.

After ID registration for all wheels is completed, press “END” to end ID registration.

4.

Adjust the tire pressures for all wheels to the specified value. Refer to

WT-54, "Tire Air Pressure"

Is ID registrations for all wheels completed?

YES

>> ID registration END.

NO

>> Performs trouble-diagnosis of the Tire Pressure Monitoring System (TPMS). Refer to

BCS-82,

"DTC Index"

 (With intelligent key system),

BCS-150, "DTC Index"

 (Without intelligent key sys-

tem).

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

240 (2.4, 35)

Front RH

220 (2.2, 32)

Rear RH

200 (2.0, 29)

Rear LH

180 (1.8, 26)

ID registration position

CONSULT

Front LH

“Red”

“Green”

Front RH

Rear RH

Rear LH

WT-26

< DTC/CIRCUIT DIAGNOSIS >

C1704, C1705, C1706, C1707 LOW TIRE PRESSURE

DTC/CIRCUIT DIAGNOSIS

C1704, C1705, C1706, C1707 LOW TIRE PRESSURE

Description

INFOID:0000000009949857

When the tire pressure monitoring system detects low inflation pressure, the low tire pressure warning lamps
in the combination meter comes on.

DTC Logic

INFOID:0000000009949858

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC REPRODUCTION PROCEDURE

With CONSULT

1.

Turn the ignition switch ON.

CAUTION:

Never start the engine.

2.

Check the tire pressure for all wheels and adjust to the specified value. Refer to

WT-54, "Tire Air Pres-

sure"

3.

Perform “SELF-DIAG RESULTS” in “AIR PRESSURE MONITOR” of “BCM”.

Is DTC “C1704”, “C1705”, “C1706”, “C1707” detected?

YES

>> Perform trouble diagnosis. Refer to

WT-26, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009949859

1.

CHECK TIRE PRESSURE

Check the internal pressure of all wheels. Refer to

WT-54, "Tire Air Pressure"

Is the inspection result normal?

YES

>> Replace the DTC-detected malfunctioning tire pressure sensor. Refer to

WT-48, "WITH INTELLI-

GENT KEY : Removal and Installation"

 (With intelligent key system),

WT-51, "WITHOUT INTELLI-

GENT KEY : Removal and Installation"

 (Without intelligent key system).

NO

>> After adjusting the air pressure, GO TO 2.

2.

CHECK TIRE PRESSURE SIGNAL

With CONSULT

1.

Drive for 3 minutes at a speed of 40 km/h (25 MPH) or more, then drive normally for 10 minutes.

2.

Perform “DATA MONITOR” in “AIR PRESSURE MONITOR” of “BCM”.

3.

Select “BCM” in “DATA MONITOR”, and check that the tire pressures match the standard value.

DTC

Display item

Malfunction detected condition

Possible cause

C1704

LOW PRESSURE FL

Front LH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

[NOTE]

• Low tire pressure
• Tire pressure sen-

sor malfunction

C1705

LOW PRESSURE FR

Front RH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

[NOTE]

C1706

LOW PRESSURE RR

Rear RH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

[NOTE]

C1707

LOW PRESSURE RL

Rear LH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

[NOTE]
