BCS

COMBINATION SWITCH SYSTEM SYMPTOMS

BCS-153

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYMPTOM DIAGNOSIS

COMBINATION SWITCH SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009949801

1.

Perform “Data Monitor” of CONSULT to check for any malfunctioning item.

2.

Check the malfunction combinations.

Malfunction item:

×

3.

Identify the malfunctioning part from the agreed combination and repair or replace the part.

Data monitor item

Malfunction

combination

FR WI

PER HI

FR WIP

ER LOW

F

R

 W

A

SH

ER

 S

W

FR WI

PER INT

RR

 WIPE

R

 O

N

RR WIP

E

R INT

RR W

ASHER

SW

INT VOL

U

ME

TURN SIG

NAL R

TURN SIGNAL L

T

A

IL

 LA

MP

SW

H

I BEAM SW

HEAD LAMP SW

1

HEAD LAMP SW

2

P

ASSI

N

G

 SW

×

×

×

×

A

×

×

×

×

B

×

×

×

×

C

×

×

×

D

×

×

E

×

×

×

F

×

×

×

×

G

×

×

H

×

×

×

I

×

×

×

×

J

All Items

K

If only one item is detected or the item is not applicable to the combinations A to K

L

Malfunction

combination

Malfunctioning part

Repair or replace

A

Combination switch OUTPUT 1 circuit

Inspect the combination switch output circuit applicable to the malfunction-
ing part. Refer to

BCS-124, "Diagnosis Procedure"

.

B

Combination switch OUTPUT 2 circuit

C

Combination switch OUTPUT 3 circuit

D

Combination switch OUTPUT 4 circuit

E

Combination switch OUTPUT 5 circuit

F

Combination switch INPUT 1 circuit

Inspect the combination switch input circuit applicable to the malfunctioning
part. Refer to

BCS-126, "Diagnosis Procedure"

.

G

Combination switch INPUT 2 circuit

H

Combination switch INPUT 3 circuit

I

Combination switch INPUT 4 circuit

J

Combination switch INPUT 5 circuit

K

BCM

Replace BCM. Refer to

BCS-155, "Removal and Installation"

.

L

Combination switch

Replace combination switch.

BCS-154

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000009949802

SHIPPING MODE

• Shipping mode inhibits battery power consumption during transportation or storage of the vehicle. Vehicle is

set to shipping mode before being shipped from the factory.

• When ignition switch is OFF, BCM operates shipping mode.
• BCM control functions are limited in shipping mode. The limited items that are not operated during the ship-

ping mode are as follows.

- Door lock and unlock switch function
- Remote keyless entry function
- Theft warning alarm function
- Lighting & turn signal switch function
- Interior room lamp timer control function
• For shipping mode cancel operation, refer to

BCS-93, "Description"

.

NOTE:
Do not cancel shipping mode during storage of the vehicle. Always cancel shipping mode before delivery of
the vehicle to customer.

BCS

BCM (BODY CONTROL MODULE)

BCS-155

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

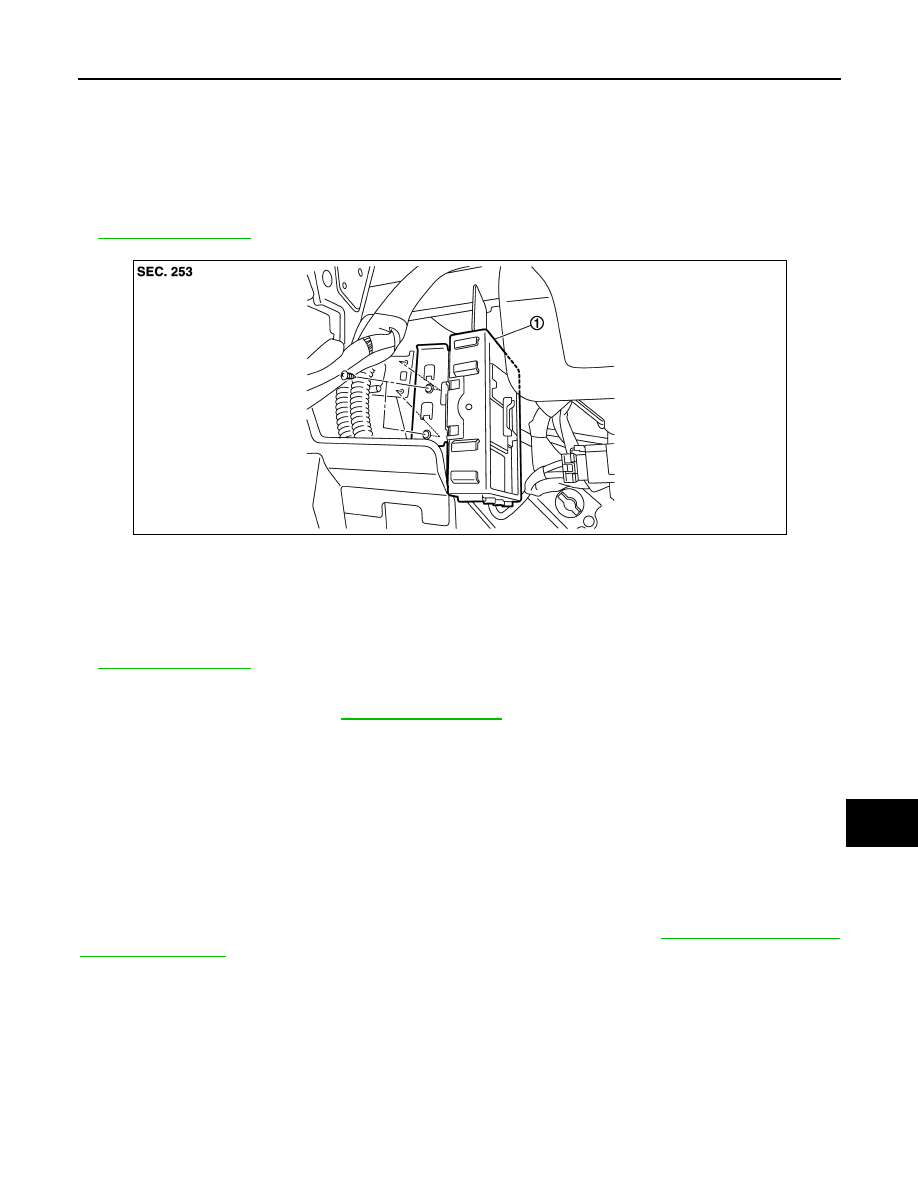

Exploded View

INFOID:0000000009949803

NOTE:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer
to

BCS-90, "Description"

.

Removal and Installation

INFOID:0000000009949804

NOTE:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer
to

BCS-90, "Description"

.

REMOVAL

1.

Remove knee protector. Refer to

IP-13, "Exploded View"

.

2.

Remove fuse block (J/B).

3.

Remove harness clip.

4.

Remove screws.

5.

Remove BCM and disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform “WRITE CONFIGURATION” when replacing BCM. Or not doing so, BCM control
function does not operate normally.
NOTE:
Be sure to perform the system initialization (NATS) when replacing BCM. Refer to

SEC-178, "ECM : Special

Repair Requirement"

.

1.

BCM

JPMIA1515ZZ

BCS-156

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMBINATION SWITCH

COMBINATION SWITCH

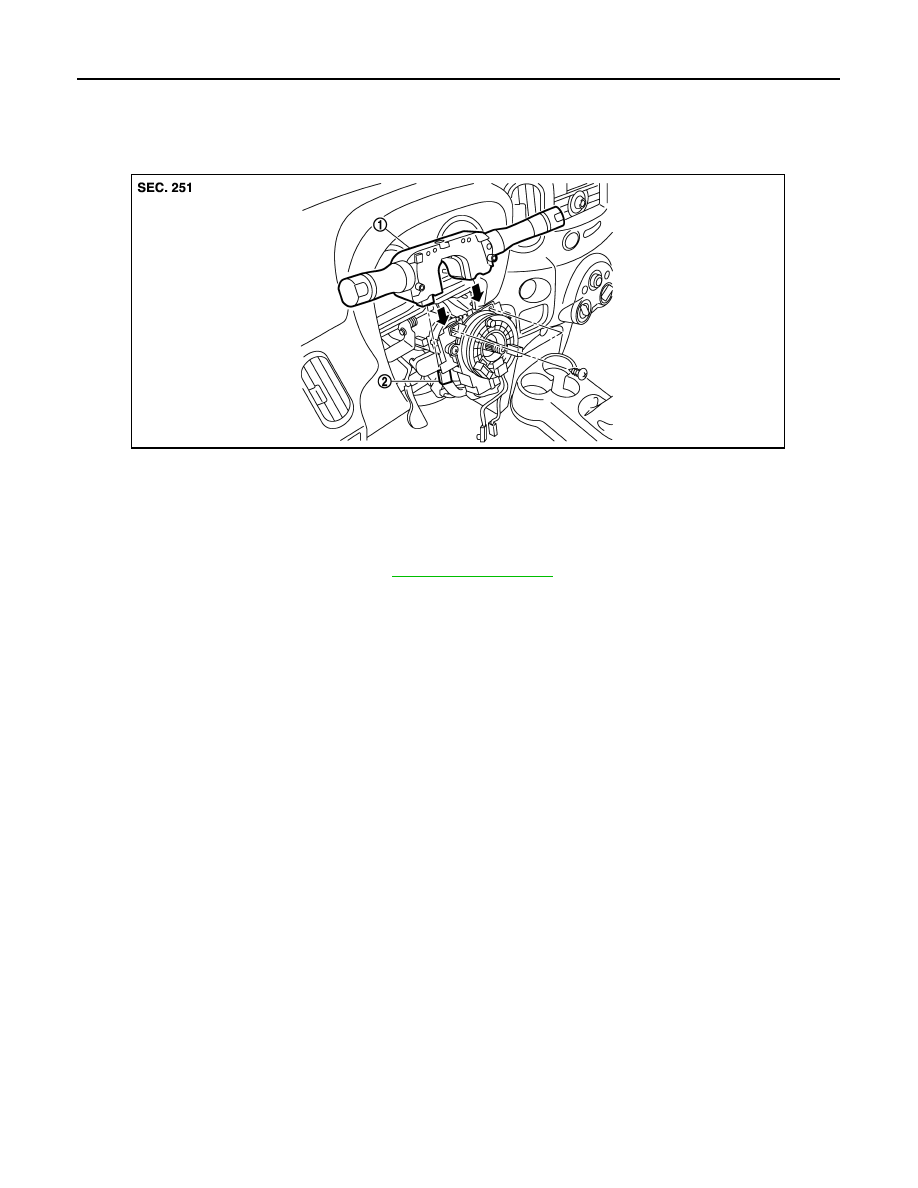

Exploded View

INFOID:0000000009949805

Removal and Installation

INFOID:0000000009949806

REMOVAL

1.

Remove steering column cover. Refer to

IP-13, "Exploded View"

.

2.

Remove screws.

3.

Disconnect the connector.

4.

Pull up the combination switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Combination switch

2.

Combination switch connector

JPMIA1517ZZ
