Nissan Cube. Manual - part 49





BCS

COMBINATION SWITCH OUTPUT CIRCUIT

BCS-45

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH OUTPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000009949735

1.

CHECK OUTPUT 1 - 5 CIRCUIT FOR OPEN

1.

Turn ignition switch OFF.

2.

Disconnect BCM and combination switch connectors.

3.

Check continuity between BCM harness connector and combination switch harness connector.

Does continuity exist?

YES

>> GO TO 2.

NO

>> Repair harnesses or connectors.

2.

CHECK OUTPUT 1 - 5 CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair harnesses or connectors.

NO

>> GO TO 3.

3.

CHECK BCM OUTPUT VOLTAGE

1.

Connect BCM connector.

2.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

OUTPUT 1

M68

36

M27

11

Existed

OUTPUT 2

35

9

OUTPUT 3

34

7

OUTPUT 4

33

10

OUTPUT 5

32

13

System

BCM

Ground

Continuity

Connector

Terminal

OUTPUT 1

M68

36

Not existed

OUTPUT 2

35

OUTPUT 3

34

OUTPUT 4

33

OUTPUT 5

32

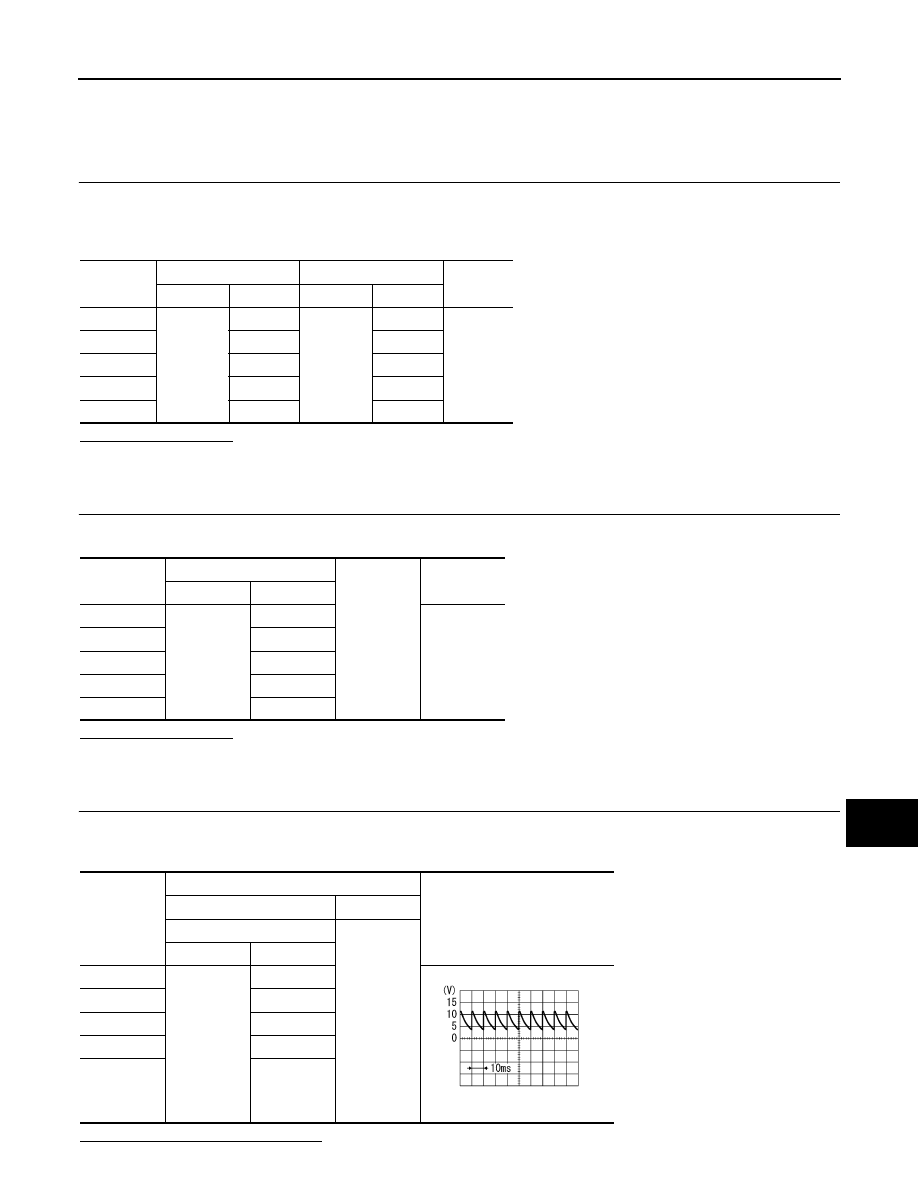

System

Terminals

Voltage

(Approx.)

(+)

(

)

BCM

Ground

Connector

Terminal

OUTPUT 1

M68

36

7.0 - 8.0 V

OUTPUT 2

35

OUTPUT 3

34

OUTPUT 4

33

OUTPUT 5

32

PKIB4960J

BCS-46

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

COMBINATION SWITCH OUTPUT CIRCUIT

YES

>> Replace combination switch.

NO

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

.

BCS

COMBINATION SWITCH INPUT CIRCUIT

BCS-47

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH INPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000009949736

1.

CHECK INPUT 1 - 5 CIRCUIT FOR OPEN

1.

Turn ignition switch OFF.

2.

Disconnect BCM and combination switch connectors.

3.

Check continuity between BCM harness connector and combination switch harness connector.

Does continuity exist?

YES

>> GO TO 2.

NO

>> Repair harnesses or connectors.

2.

CHECK INPUT 1 - 5 CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair harnesses or connectors.

NO

>> GO TO 3.

3.

CHECK BCM INPUT SIGNAL

1.

Connect BCM and combination switch connectors.

2.

Turn ON any switch in the system that is malfunction.

3.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

Yes

>> Replace BCM. Refer to

BCS-88, "Removal and Installation"

.

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

INPUT 1

M68

6

M27

12

Existed

INPUT 2

5

14

INPUT 3

4

5

INPUT 4

3

2

INPUT 5

2

8

System

BCM

Ground

Continuity

Connector

Terminal

INPUT 1

M68

6

Not existed

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2

System

Terminals

Voltage

(Approx.)

(+)

(

)

BCM

Ground

Connector

Terminal

INPUT 1

M68

6

Refer to

BCS-

49, "Refer-

ence Value"

.

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2

BCS-48

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

COMBINATION SWITCH INPUT CIRCUIT

No

>> Replace combination switch.
