TEL ADAPTER UNIT

AV-37

< ECU DIAGNOSIS INFORMATION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

29

(R)

Ground

Microphone power supply

Output

Ignition

switch

ON

—

5.0  V

33

—

TEL antenna signal

Input

—

Not connected to TEL an-
tenna connector.

5.0 V

34

—

Shield

—

—

—

—

35

(SB)

—

AV communication signal
(H)

Input/

Output

—

—

—

36

(LG)

—

AV communication signal
(L)

Input/

Output

—

—

—

39

(Y/R)

—

Date line

—

—

—

—

40

(Y/R)

—

Date line

—

—

—

—

41

(SB)

—

Date line

—

—

—

—

42

(SB)

—

Date line

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

AV-38

< ECU DIAGNOSIS INFORMATION >

[AUDIO WITHOUT NAVIGATION]

IPOD ADAPTER

IPOD ADAPTER

Reference Value

INFOID:0000000009949569

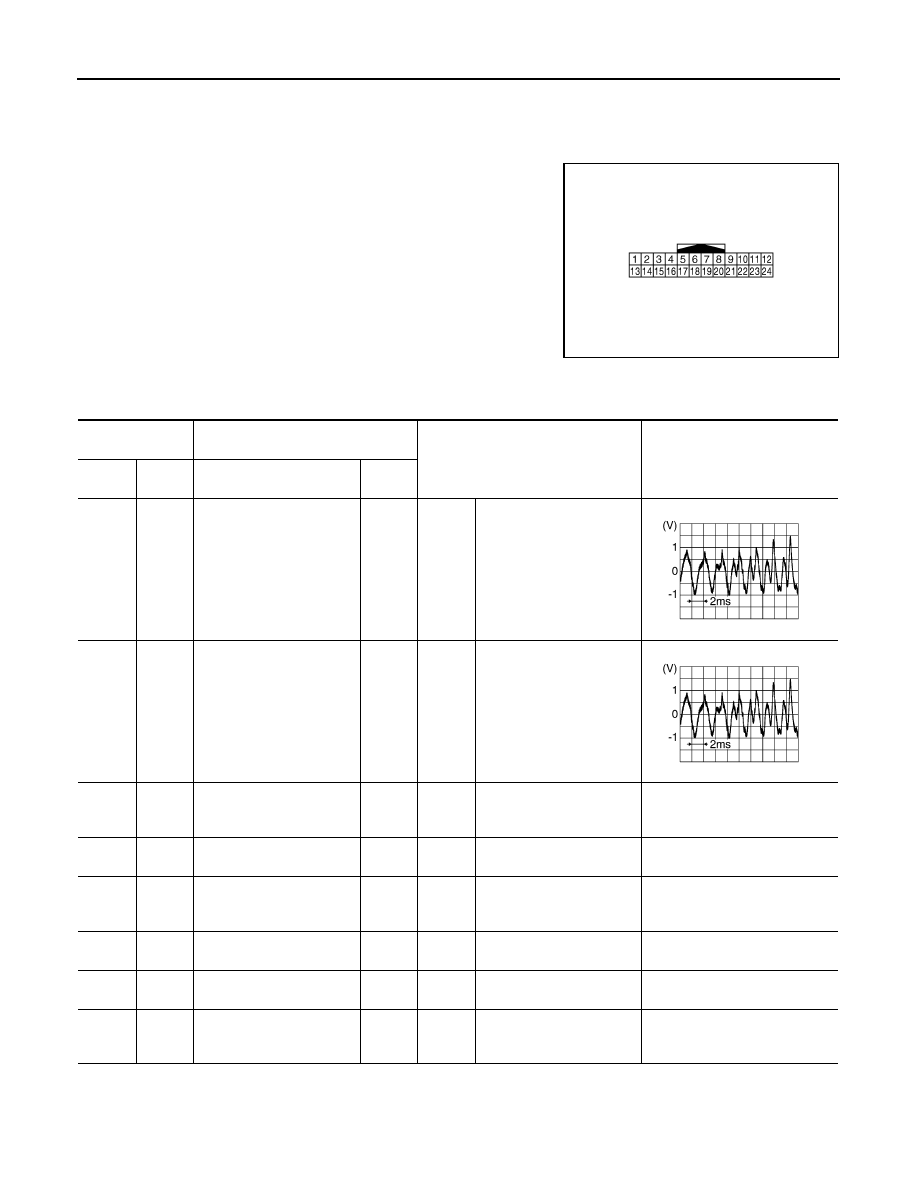

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0618ZZ

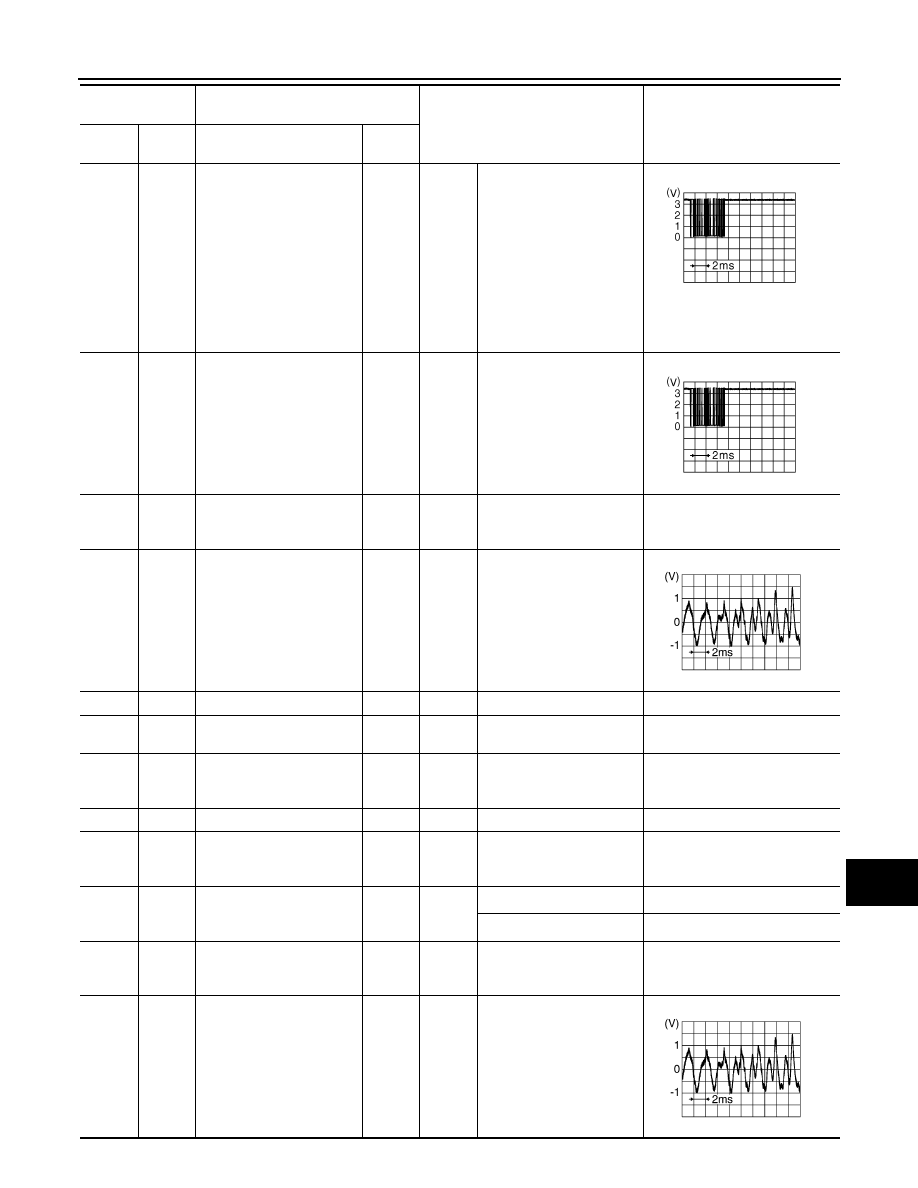

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

13

(W)

iPod sound signal LH

Output

Ignition

switch

ON

When iPod mode is select-
ed.

2

(B)

14

(G)

iPod sound signal RH

Output

Ignition

switch

ON

When iPod mode is select-
ed.

3

(L/Y)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

4

(LG)

—

AV communication signal
(L)

Input/

Output

—

—

—

5

(L)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

6

(GR)

—

USB D+ signal

—

—

—

—

7

(LG)

—

USB D

−

 signal

—

—

—

—

8

(LG)

Ground

iPod battery charge 12 V

Output

Ignition

switch

ON

Connected to iPod

®

12.0 V

SKIB3609E

SKIB3609E

AV

IPOD ADAPTER

AV-39

< ECU DIAGNOSIS INFORMATION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

9

(P)

Ground

Communication signal

(iPod adapter

→

iPod

®

)

Output

Ignition

switch

ON

The wave pattern is dis-
played just after iPod con-
nection.

NOTE:
After the wave pattern display,
the value continues Approx 3.3 V

10

(L)

Ground

Communication signal

(iPod

®

→

iPod adapter)

Input

Ignition

switch

ON

Connected to iPod

®

11

(O)

Ground

ACCESSORY-IDENTIFY

—

Ignition

switch

ON

Connected to iPod

®

0 V

12

(G/R)

23

(G/Y)

iPod sound signal RH

Input

Ignition

switch

ON

When iPod mode is select-
ed.

15

—

Shield

—

—

—

—

16

(SB)

—

AV communication signal
(H)

Input/

Output

—

—

—

17

(B)

Ground

Ground

—

Ignition

switch

ON

—



0  V

19

—

Shield

—

—

—

—

20

(BR)

Ground

iPod battery charge 5 V

Output

Ignition

switch

ON

Connected to iPod

®

5.0 V

21

(W/B)

Ground

iPod connection recogni-
tion signal

Input

Ignition

switch

ON

Not connected to iPod

®

4.0 V

Connected to iPod

®

0 V

22

(G/O)

Ground

ACCESSORY-DETECT

—

Ignition

switch

ON

Connected to iPod

®

0 V

24

(G/O)

23

(G/Y)

iPod sound signal LH

Input

Ignition

switch

ON

When iPod mode is select-
ed.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JPNIA0462GB

JPNIA0462GB

SKIB3609E

SKIB3609E

AV-40

< WIRING DIAGRAM >

[AUDIO WITHOUT NAVIGATION]

AUDIO WITHOUT NAVIGATION

WIRING DIAGRAM

AUDIO WITHOUT NAVIGATION

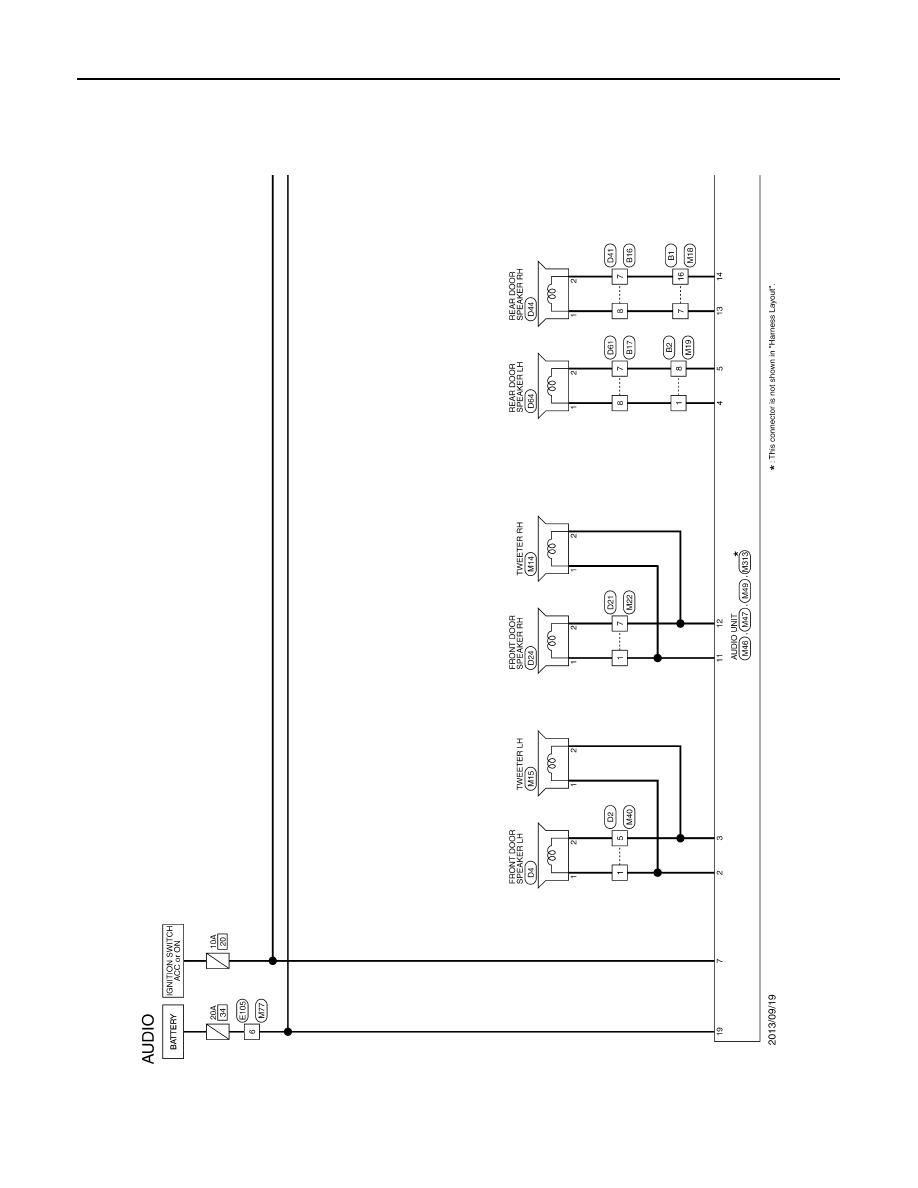

Wiring Diagram

INFOID:0000000009949570

JRNWD0574GB
