Nissan Cube. Manual - part 8

AV

STEERING SWITCH SIGNAL B CIRCUIT (STEERING SWITCH TO TEL ADAPT-

ER UNIT)

AV-25

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH SIGNAL B CIRCUIT (STEERING SWITCH TO TEL
ADAPTER UNIT)

Description

INFOID:0000000009949555

• Transmits the steering switch signal to TEL adapter unit.
• Transmits the steering switch signal to audio unit through TEL adapter unit.

Diagnosis Procedure

INFOID:0000000009949556

1.

CHECK STEERING SWITCH SIGNAL B (STEERING SWITCH TO TEL ADAPTER UNIT) CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TEL adapter unit connector and spiral cable connector.

3.

Check continuity between TEL adapter unit harness connector and spiral cable harness connector.

4.

Check continuity between TEL adapter unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-14, "Exploded View"

.

3.

CHECK TEL ADAPTER UNIT VOLTAGE

1.

Connect TEL adapter unit connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check voltage between TEL adapter unit harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace TEL adapter unit. Refer to

AV-66, "Exploded View"

.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-26, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-68, "Exploded View"

.

TEL adapter unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

B54

13

M33

31

Existed

TEL adapter unit

Ground

Continuity

Connector

Terminal

B54

13

Not existed

(+)

(

−

)

Voltage

(Approx.)

TEL adapter unit

Connector

Terminal

Connector

Terminal

B54

13

B54

14

5.0  V

AV-26

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

STEERING SWITCH SIGNAL B CIRCUIT (STEERING SWITCH TO TEL ADAPT-

ER UNIT)

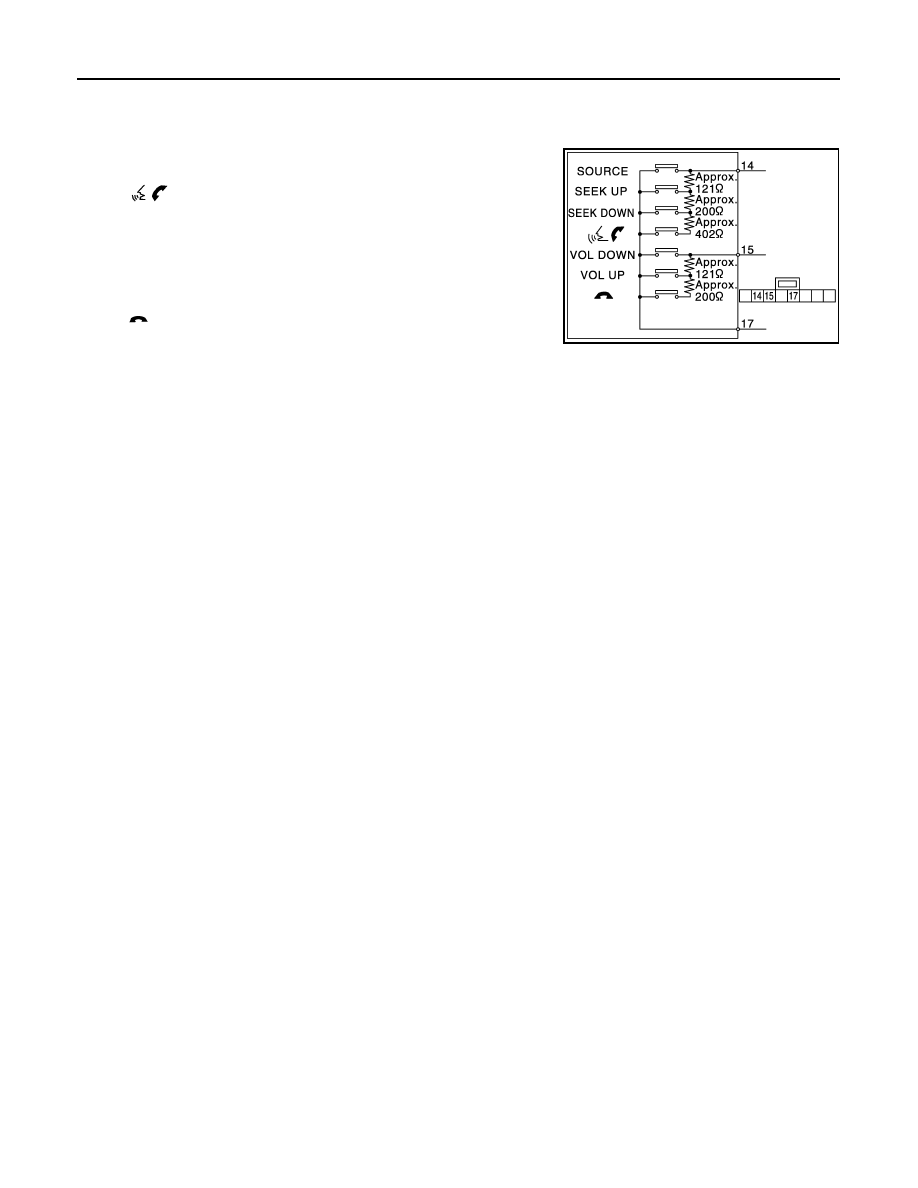

Component Inspection

INFOID:0000000009949557

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

Standard

Between terminals 14 and 17



 switch ON

: Approx. 709 – 737

Ω

SEEK DOWN switch ON

: Approx. 315 – 327

Ω

SEEK UP switch ON

: Approx. 119 – 123

Ω

SOURCE switch ON

: Approx. 0

Ω

Between terminals 15 and 17

 switch ON

: Approx. 315 – 327

Ω

VOL UP switch ON

: Approx. 119 – 123

Ω

VOL DOWN switch ON

: Approx. 0

Ω

JSNIA2808GB

AV

STEERING SWITCH SIGNAL GND CIRCUIT (STEERING SWITCH TO TEL

ADAPTER UNIT)

AV-27

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH SIGNAL GND CIRCUIT (STEERING SWITCH TO TEL
ADAPTER UNIT)

Description

INFOID:0000000009949558

• Transmits the steering switch signal to TEL adapter unit.
• Transmits the steering switch signal to audio unit through TEL adapter unit.

Diagnosis Procedure

INFOID:0000000009949559

1.

CHECK STEERING SWITCH SIGNAL GROUND CIRCUIT (STEERING SWITCH TO TEL ADAPTER UNIT)

1.

Turn ignition switch OFF.

2.

Disconnect TEL adapter unit connector and spiral cable connector.

3.

Check continuity between TEL adapter unit harness connector and spiral cable harness connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-14, "Exploded View"

.

3.

CHECK GROUND CIRCUIT

1.

Connect TEL adapter unit connector.

2.

Check continuity between TEL adapter unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace TEL adapter unit. Refer to

AV-66, "Exploded View"

.

4.

CHECK STEERING SWITCH

Check steering switch. Refer to

AV-27, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-68, "Exploded View"

.

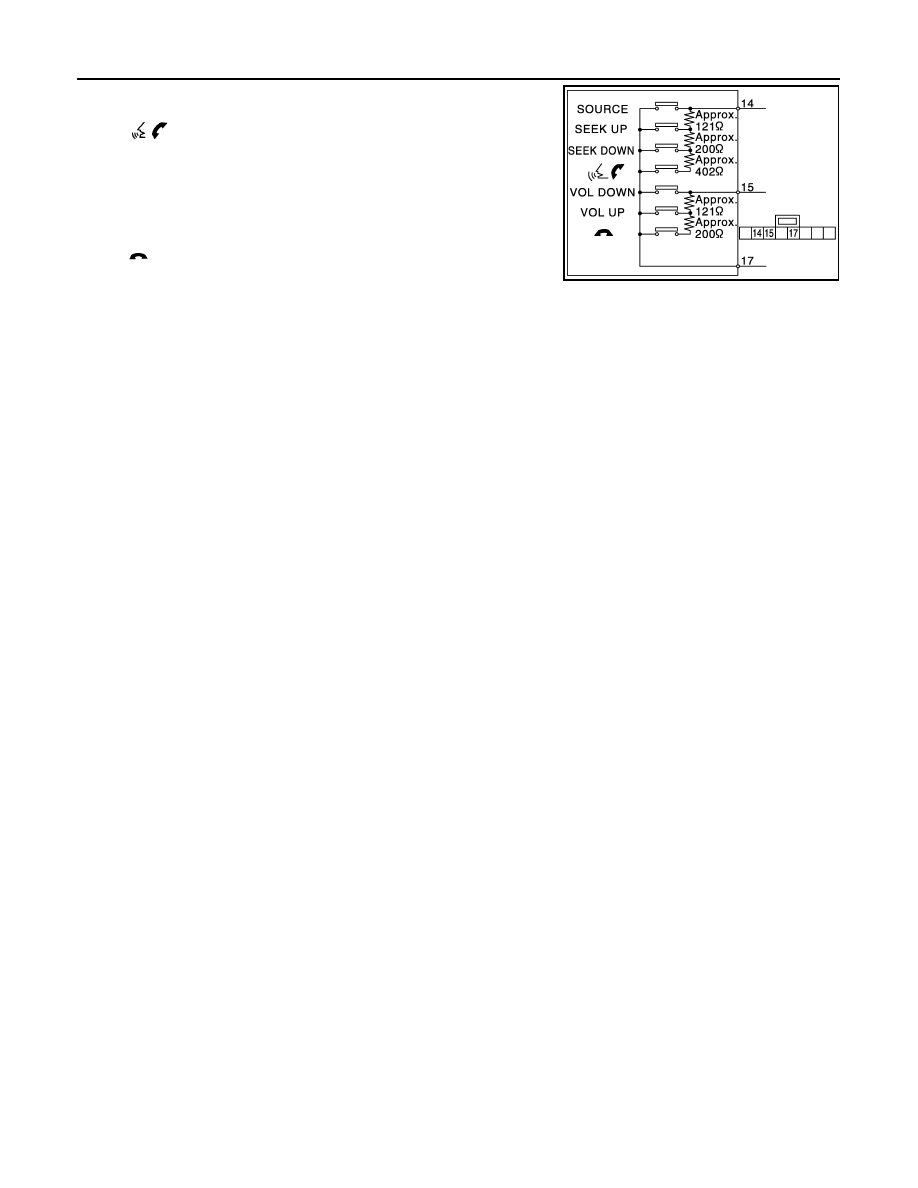

Component Inspection

INFOID:0000000009949560

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

TEL adapter unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

B54

14

M33

33

Existed

TEL adapter unit

Ground

Continuity

Connector

Terminal

B54

14

Existed

AV-28

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO WITHOUT NAVIGATION]

STEERING SWITCH SIGNAL GND CIRCUIT (STEERING SWITCH TO TEL

ADAPTER UNIT)

Standard

Between terminals 14 and 17



 switch ON

: Approx. 709 – 737

Ω

SEEK DOWN switch ON

: Approx. 315 – 327

Ω

SEEK UP switch ON

: Approx. 119 – 123

Ω

SOURCE switch ON

: Approx. 0

Ω

Between terminals 15 and 17

 switch ON

: Approx. 315 – 327

Ω

VOL UP switch ON

: Approx. 119 – 123

Ω

VOL DOWN switch ON

: Approx. 0

Ω

JSNIA2808GB
