AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-13

< SYSTEM DESCRIPTION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

6.

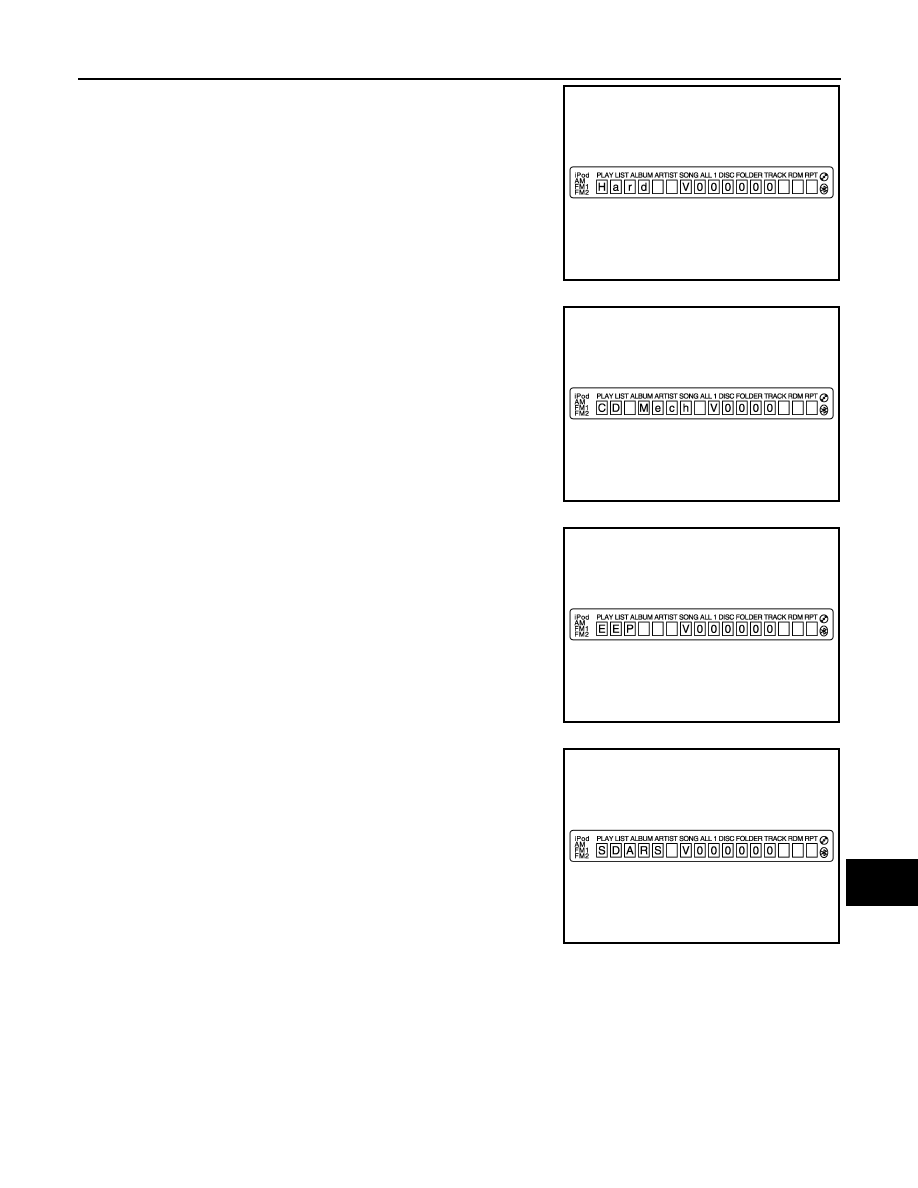

Press the “DISP TEXT” switch again to display the “Hard” (audio
hardware version).

7.

Press the “DISP TEXT” switch again to display the “CD Mech”
(CD mechanism version).

8.

Press the “DISP TEXT” switch again to display the “EEP” (audio
unit EEPROM version).

9.

Press the “DISP TEXT” switch again to display the “SDARS”
(satellite radio version).

JPNIA1653ZZ

JPNIA1654ZZ

JPNIA1655ZZ

JPNIA1656ZZ

AV-14

< SYSTEM DESCRIPTION >

[AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AUDIO UNIT)

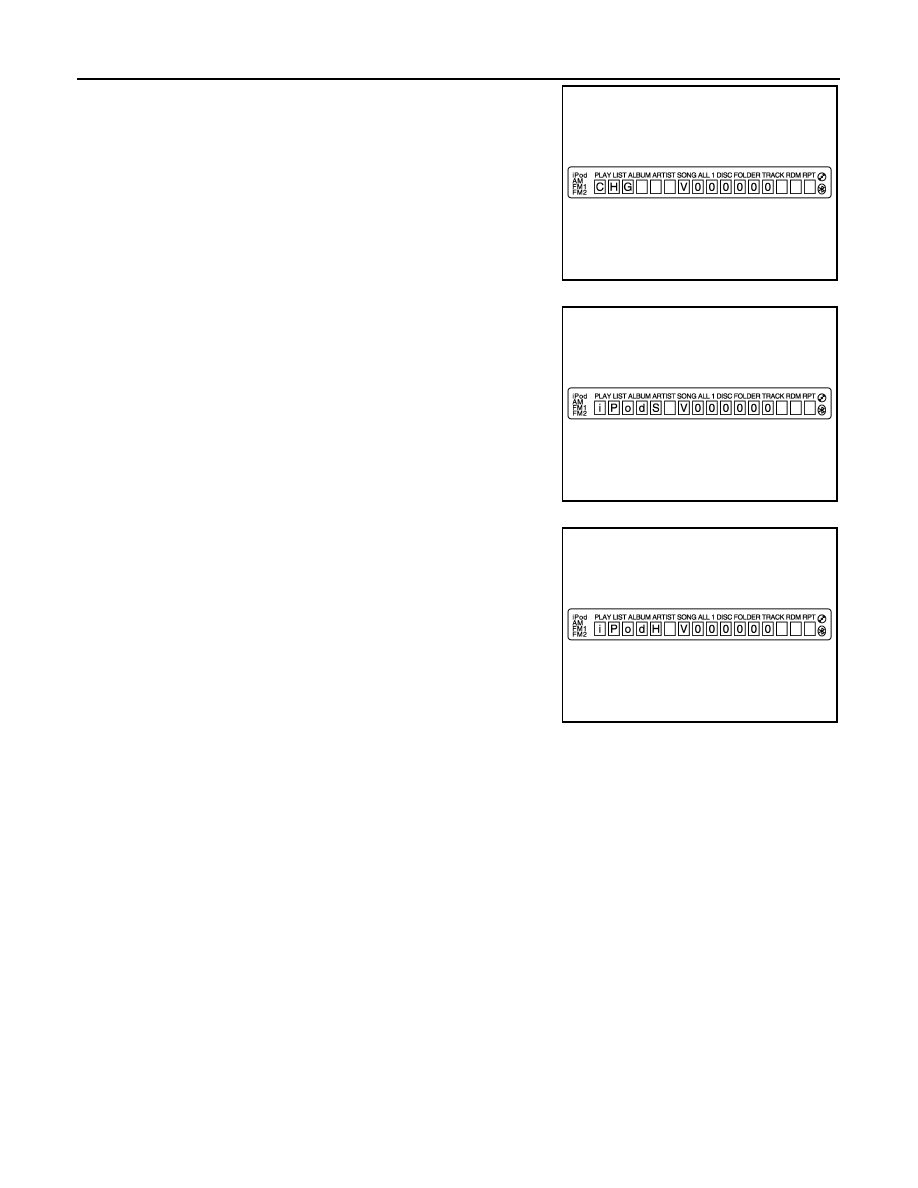

10. Press the “DISP TEXT” switch again to display the “CHG” (audio

CD changer version). If audio CD changer is not connected,
“FFFFFF” is displayed.

11. Press the “DISP TEXT” switch again to display the “iPodS” (iPod

software version). “FFFFFF” is displayed when communication
signals between the audio unit and iPod adapter include a mal-
function.

12. Press the “DISP TEXT” switch again to display the “iPodH” (iPod

hardware version). “FFFFFF” is displayed when communication
signals between the audio unit and iPod adapter include a mal-
function.

Finishing Self-diagnosis Mode

Self-diagnosis Mode is canceled when turning ignition switch OFF.

JPNIA1657ZZ

JPNIA1658ZZ

JPNIA1659ZZ

AV

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

AV-15

< SYSTEM DESCRIPTION >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

Diagnosis Description

INFOID:0000000009949542

HANDS-FREE PHONE SYSTEM ON BOARD DIAGNOSIS

During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of the steering
switch and performs the diagnosis when ignition switch ACC.

ON BOARD DIAGNOSIS ITEM

The on board diagnosis has 3 modes: the self-diagnosis mode that performs the trouble diagnosis, the
speaker adaptation data deleting mode and the hands-free phone system initialization mode.

CAUTION:

• Perform the diagnosis with the vehicle stopped.
• Perform STEP2 if necessary.

SELF-DIAGNOSIS RESULTS

Self-diagnosis mode reads out the self-diagnosis results and indicates DTC on the audio screen.
NOTE:
• Error count is read out simultaneously when reading out the DTC name.
• The errors are read out continuously when some errors occur at the same time. The DTC displays are com-

bined and displayed. For example, DTC 01100 is displayed when DTC 01000 and DTC 00100 are indicated
at the same time.

Self-diagnosis results

The Details of Error Count

The error count guides “0” when the error occurs. The next time it counts up “1” if it is normal with the ignition
switch ON. It continues the count up unless the initialization of hands-free phone system is performed.

STEP

MODE

Description

STEP 1

Self-diagnosis

The self-diagnosis mode performs the microphone test and
the diagnosis of TEL adapter unit, TEL antenna and steering
switch, and then reads out the results with the sound and in-
dicates them on the audio screen.

STEP 2

Hands-free phone system initialization

Hands-free phone system initialization mode can perform
the initialization of hands-free phone system.

Speaker adaptation data deleting

The speaker adaptation data deleting mode can delete the
speaker adaptation data.

DTC

(Audio screen)

Failure massage

Possible causes

DTC 10000

Internal failure

TEL adapter unit

DTC 01000

Bluetooth antenna open

TEL antenna

DTC 00100

Bluetooth antenna shorted

DTC 00010

Button ladder A is stuck

Steering switch

DTC 00001

Button ladder B is stuck

DTC 00000

There are no failure records to report

—

AV-16

< SYSTEM DESCRIPTION >

[AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

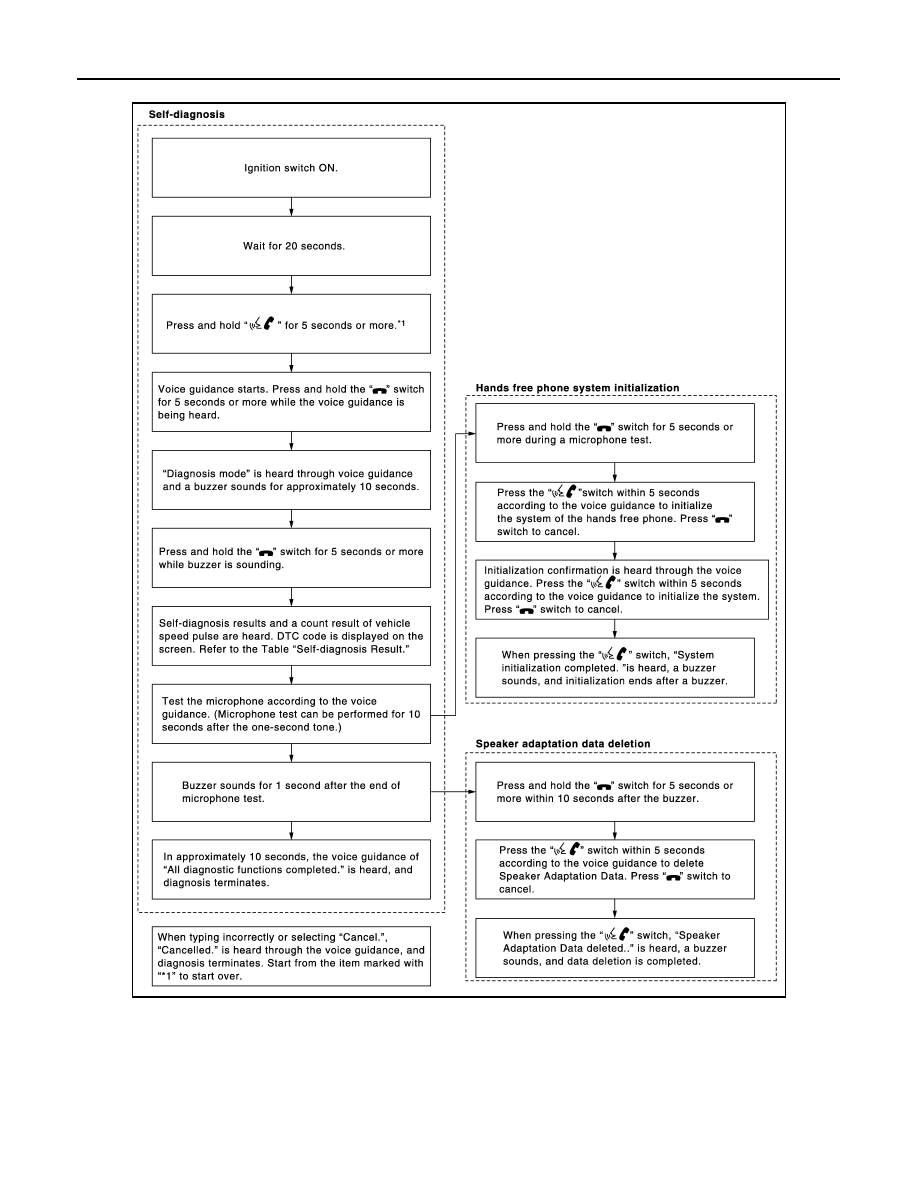

FLOW CHART OF TROUBLE DIAGNOSIS

JSNIA2498GB
