WASHER MOTOR CIRCUIT

WW-47

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER MOTOR CIRCUIT

Diagnosis Procedure

INFOID:0000000009643032

Regarding Wiring Diagram information, refer to

WW-26, "Wiring Diagram"

,

WW-32, "Wiring Diagram"

.

1.

 CHECK FRONT AND REAR WASHER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuse is not blown.

Is the fuse blown?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 2.

2.

 CHECK FRONT AND REAR WASHER MOTOR POWER SUPPLY

1. Disconnect front and rear washer motor.

2. Turn ignition switch ON.

3. Check voltage between front and rear washer motor harness connector and ground.

Front washer operation

Rear washer operation

Is the inspection result normal?

YES

>> Replace front and rear washer motor. Refer to

WW-63, "Removal and Installation"

.

NO

>> GO TO 3.

3.

 CHECK WASHER SWITCH

Check washer switch. Refer to

WW-48, "Component Inspection"

.

Is the inspection result normal?

YES

>> Repair harness between front and rear washer motor and washer switch.

NO

>> Replace washer switch. Refer to

BCS-71, "Removal and Installation"

 (with Intelligent Key) or

BCS-128, "Removal and Installation"

 (without Intelligent Key).

Component

Capacity

Fuse No.

Location

Front and rear washer motor

10A

6

Fuse block (J/B)

Front and rear washer motor

Ground

Washer switch

Voltage

(Approx.)

Connector

Terminal

OFF

0

E2

1

ON

Battery voltage

Front and rear washer motor

Ground

Washer switch

Voltage

(Approx.)

Connector

Terminal

OFF

0

E2

2

ON

Battery voltage

WW-48

< DTC/CIRCUIT DIAGNOSIS >

WASHER SWITCH

WASHER SWITCH

Description

INFOID:0000000009643033

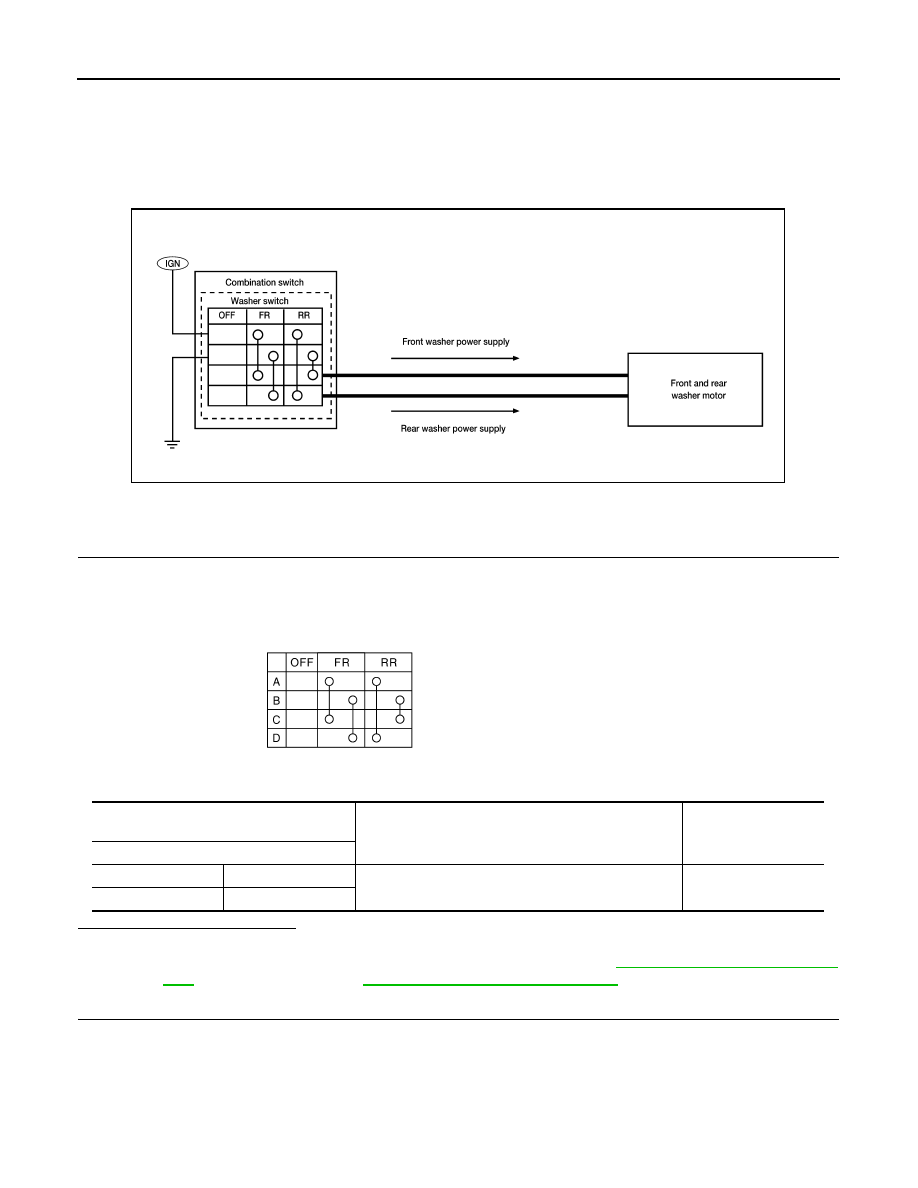

• Washer switch is integrated with the combination switch.

• Combination switch (wiper and washer switch) switches polarity between front washer operating and rear

washer operating to supply power and ground to the front and rear washer motor.

Component Inspection

INFOID:0000000009643034

1.

 CHECK FRONT WASHER SWITCH

1. Turn the ignition switch OFF.

2. Disconnect combination switch (wiper and washer switch).

3. Check continuity between the combination switch (wiper and washer switch) terminals.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace combination switch (wiper and washer switch). Refer to

BCS-71, "Removal and Installa-

tion"

 (with Intelligent Key) or

BCS-128, "Removal and Installation"

 (without Intelligent Key).

2.

 CHECK REAR WASHER SWITCH

1. Check continuity between the combination switch (wiper and washer switch) terminals.

ALLIA0350GB

A: Terminal 4
B: Terminal 6
C: Terminal 3

D: Terminal 1

JPLIA0164GB

Combination switch (wiper and washer

switch)

Condition

Continuity

Terminal

1

6

Front washer switch ON

Yes

3

4

WASHER SWITCH

WW-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Is the inspection result normal?

YES

>> Wiper and washer switch is normal.

NO

>> Replace combination switch (wiper and washer switch). Refer to

BCS-71, "Removal and Installa-

tion"

 (with Intelligent Key) or

BCS-128, "Removal and Installation"

 (without Intelligent Key).

A: Terminal 4
B: Terminal 6
C: Terminal 3

D: Terminal 1

JPLIA0164GB

Combination switch (wiper and washer

switch)

Condition

Continuity

Terminal

1

4

Rear washer switch ON

Yes

6

3

WW-50

< DTC/CIRCUIT DIAGNOSIS >

REAR WIPER MOTOR CIRCUIT

REAR WIPER MOTOR CIRCUIT

Component Function Check

INFOID:0000000009643035

1.

 CHECK REAR WIPER ON OPERATION

CONSULT ACTIVE TEST

1. Select "RR WIPER" of BCM active test item.

2. While operating the test item, check rear wiper operation.

Is rear wiper operation normal?

YES

>> Rear wiper motor circuit is normal.

NO

>> Refer to

WW-50, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009643036

Regarding Wiring Diagram information, refer to

WW-32, "Wiring Diagram"

.

1.

 CHECK REAR WIPER MOTOR OUTPUT VOLTAGE

CONSULT ACTIVE TEST

1. Turn the ignition switch OFF.

2. Disconnect rear wiper motor.

3. Turn the ignition switch ON.

4. Select RR WIPER of BCM active test item.

5. While operating the test item, check voltage between BCM harness connector and ground.

With Intelligent Key

Without Intelligent Key

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

 CHECK REAR WIPER MOTOR GROUND CIRCUIT

1. Turn the ignition switch OFF.

2. Check continuity between rear wiper motor harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear wiper motor. Refer to

WW-77, "Removal and Installation"

.

NO

>> Repair or replace harness.

ON

: Rear wiper ON operation

OFF

: Stop the rear wiper.

BCM

Ground

Test item

Voltage

(Approx.)

Connector

Terminal

REAR WIPER

M100

54

ON

Battery voltage

OFF

0V

BCM

Ground

Test item

Voltage

(Approx.)

Connector

Terminal

REAR WIPER

M20

68

ON

Battery voltage

OFF

0V

Rear wiper motor

Ground

Continuity

Connector

Terminal

D502

4

Yes
