WHEEL AND TIRE

WT-45

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

REMOVAL AND INSTALLATION

WHEEL AND TIRE

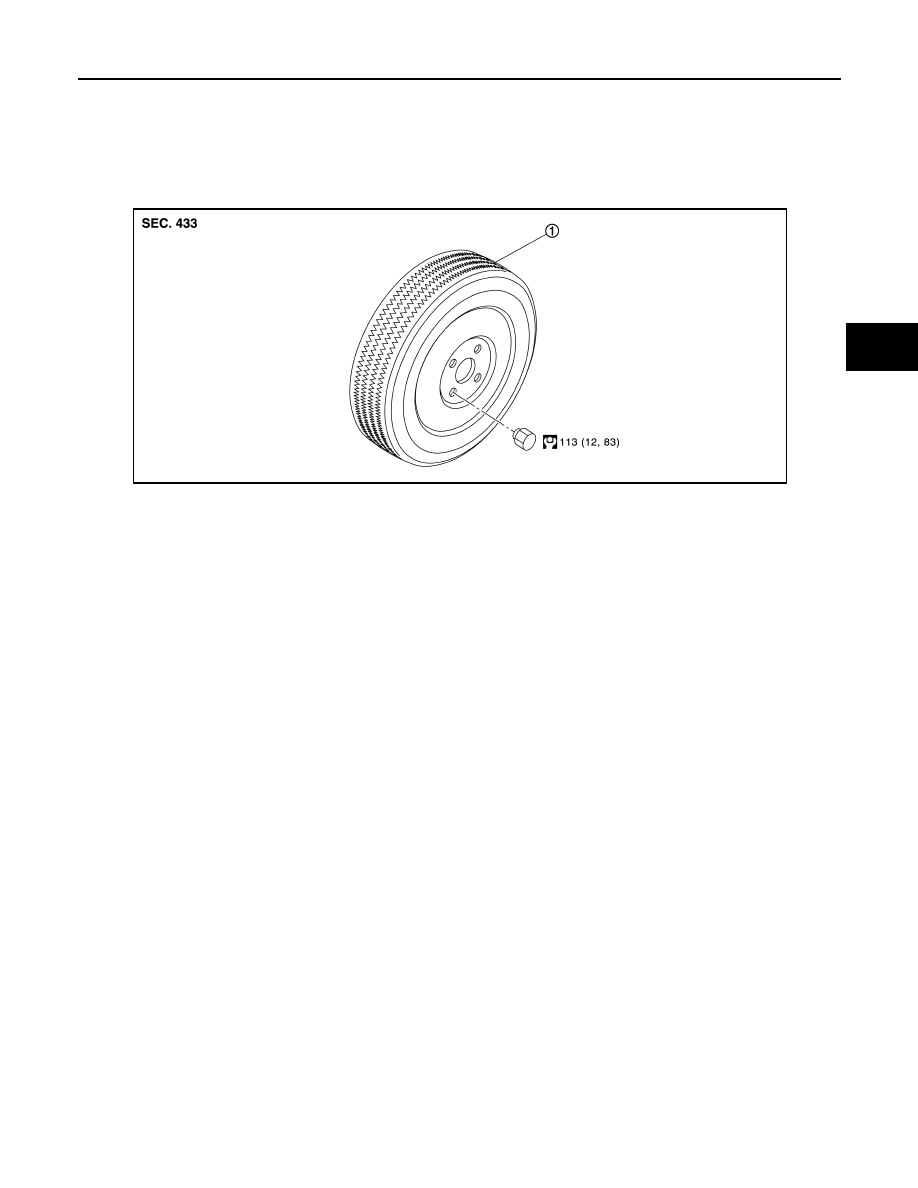

Exploded View

INFOID:0000000009446780

Removal and Installation

INFOID:0000000009446781

REMOVAL

1. Remove wheel nuts using power tool.
2. Remove wheel and tire.

INSTALLATION

Installation is in the reverse order of removal.

1.

Wheel and tire

JSGIA0969GB

WT-46

< REMOVAL AND INSTALLATION >

TRANSMITTER

TRANSMITTER

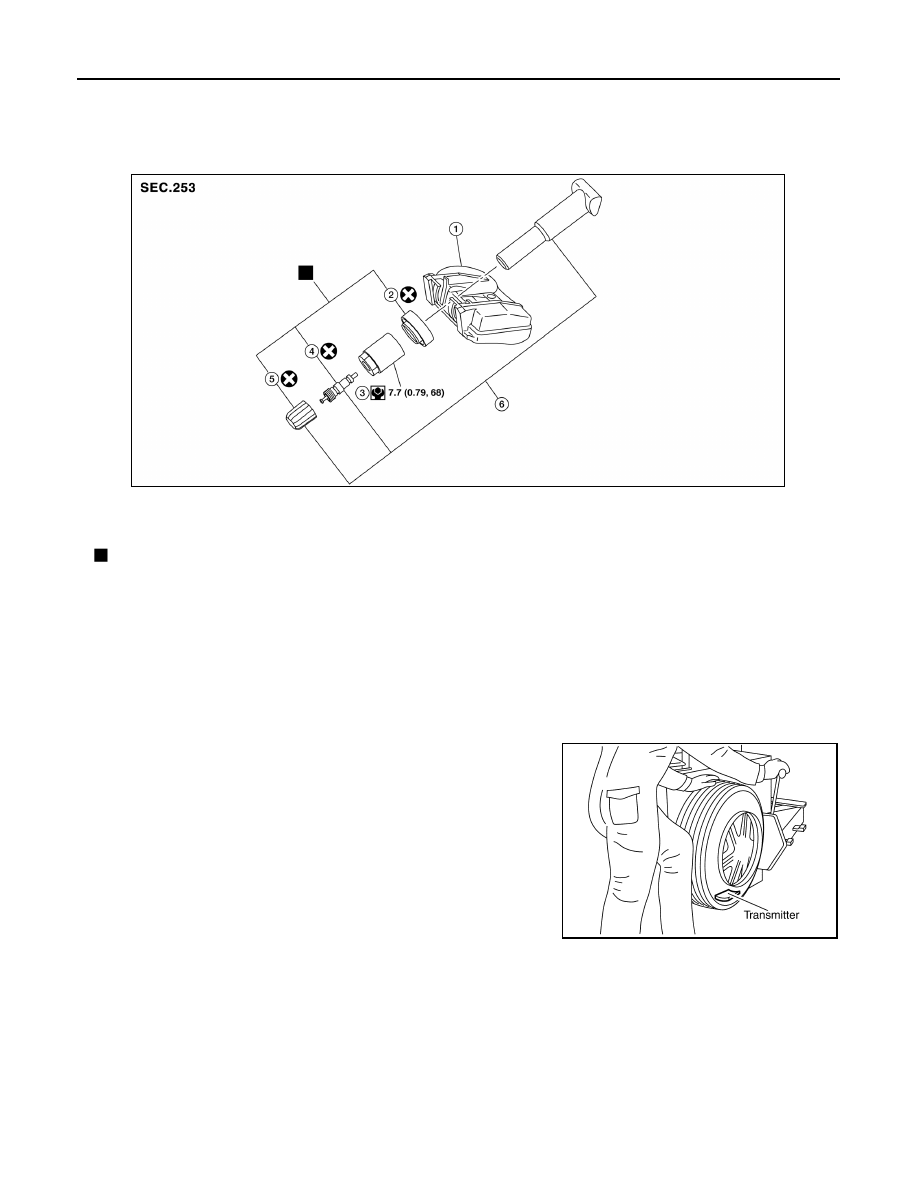

Exploded View

INFOID:0000000009443195

Removal and Installation

INFOID:0000000009443196

REMOVAL

1. Remove wheel and tire using power tool.
2. Remove valve cap and valve core to deflate the tire.

NOTE:

If the tire is to be reused, apply a matching mark on the tire in line with the position of the valve stem

assembly for the purpose of wheel and tire balance adjustment after installation.

3. Remove the valve stem nut and allow transmitter to fall into tire.

4. Lubricate the tire outside bead well with a suitable non-silicone lubricant, and remove outside of tire from

the wheel. Reach inside the tire and remove the transmitter.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the wheel and tire.

• Be sure not to damage the wheel or transmitter.

• Do not allow lubricant to make contact with transmitter.

5. Lubricate the tire inside bead well with a suitable non-silicone lubricant, and remove inside of tire from the

wheel.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

1.

Transmitter (tire pressure sensor)

2.

O-ring

3.

Valve stem nut

4.

Valve core

5.

Valve cap

6.

Valve stem assembly

:

Parts that are replaced as a set when the tire is replaced.

AWEIA0212GB

SEIA0047E

TRANSMITTER

WT-47

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

• Be sure not to damage the wheel.

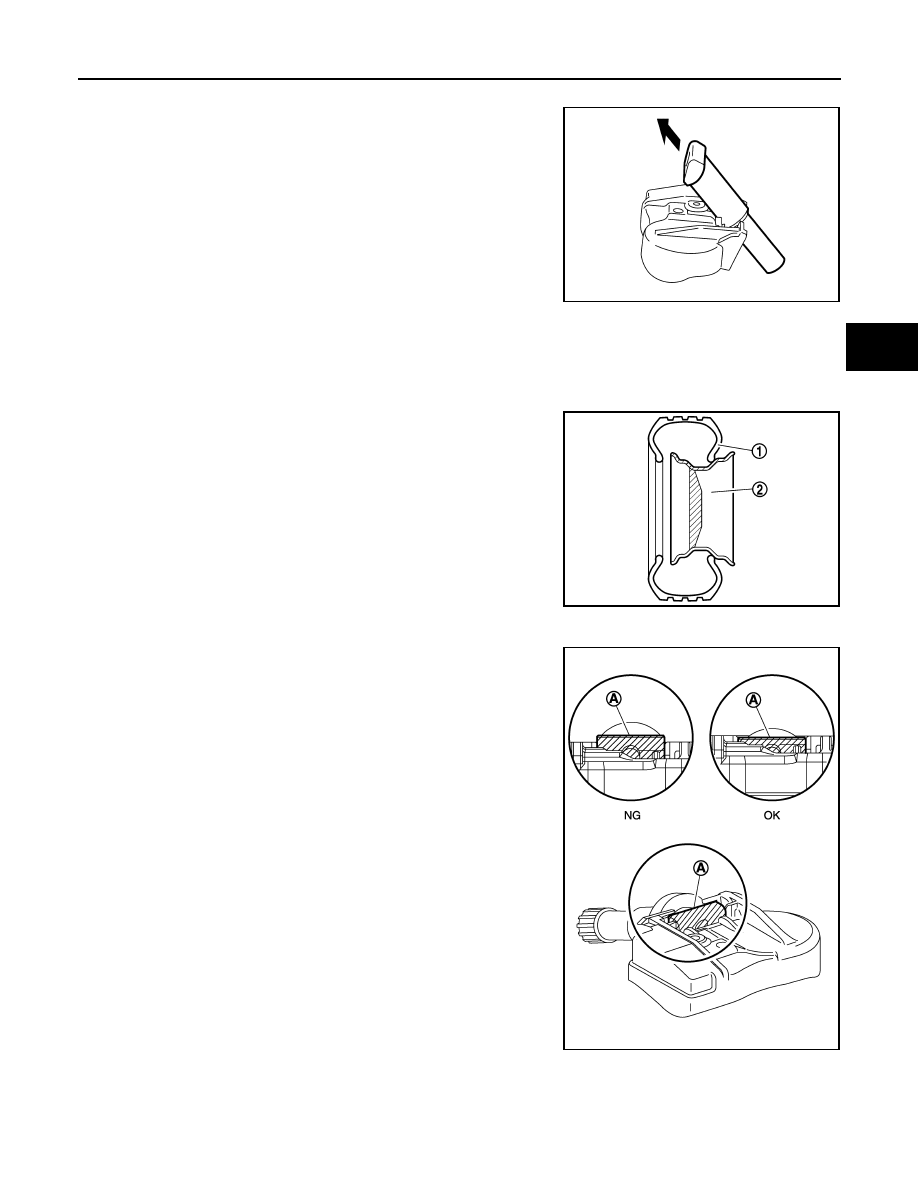

6. Remove the valve stem from the transmitter as shown.

INSTALLATION

1. Apply a suitable non-silicone lubricant to the tire inside bead.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

• Do not drop or strike the transmitter. Replace the transmitter if it has sustained an impact.

2. Install the tire inside bead (1) onto the wheel (2) in the position

shown.

3. Install the valve stem to the transmitter.
4. Install the O-ring to the transmitter.

CAUTION:

• Do not reuse O-ring.

• Insert O-ring to the base of the transmitter.

• The base of the valve stem (A) must be positioned in the

groove of the metal plate as shown.

JSEIA0378ZZ

JPEIC0105ZZ

JSEIA0376GB

WT-48

< REMOVAL AND INSTALLATION >

TRANSMITTER

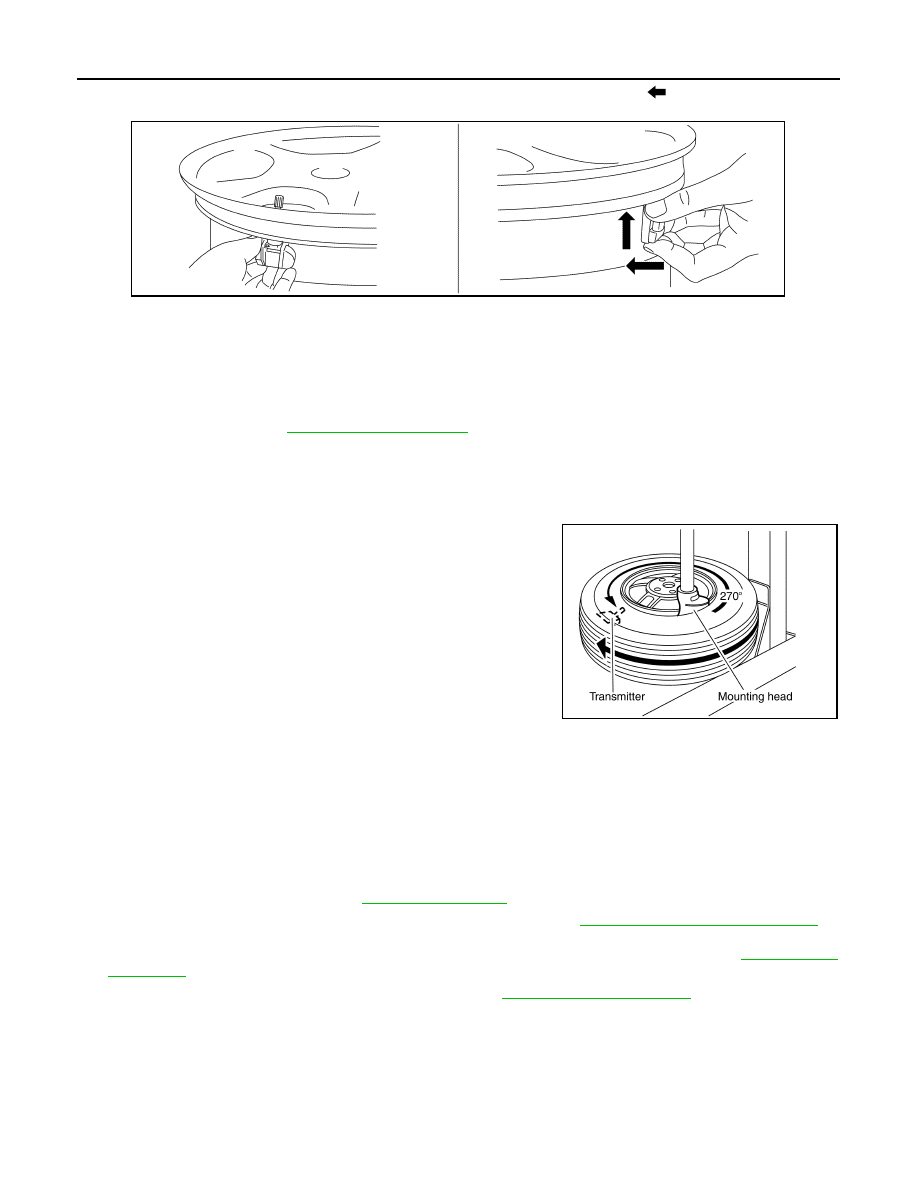

5. Hold the tire pressure sensor as shown, and press the sensor in the direction (

) as shown to bring it into

absolute contact with wheel. After this, tighten valve stem nut to the specified torque.

CAUTION:

• Check that O-ring contacts horizontally with wheel.

• Check that the base of the valve stem is positioned in the groove of the metal plate.

• Be sure that no burrs exist in the valve stem hole of the wheel.

6. Install and tighten the valve stem nut to the specified torque.

CAUTION:

Do not use power tool for installation.

7. Place wheel on turntable of tire machine. Ensure that transmitter

is 270 degrees from mounting/dismounting head.

NOTE:

Do not touch transmitter with mounting head.

8. Apply a suitable non-silicone lubricant to the tire outside bead.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

• Do not allow lubricant to make contact with transmitter.

9. Install the tire outside bead onto the wheel as normal.

NOTE:

If the tire is being reused, align the matching mark applied on

the tire with the position of the valve stem assembly for the purpose of wheel and tire balance adjustment

after installation. Make sure that the tire does not rotate relative to wheel.

10. Install the valve core and inflate tire.

CAUTION:

Do not reuse valve core.

11. Install the valve cap.

CAUTION:

Do not reuse valve cap.

12. Balance the wheel and tire. Refer to

WT-42, "Adjustment"

.

13. Install wheel and tire in the appropriate position on vehicle. Refer to

WT-45, "Removal and Installation"

.

NOTE:

If replacing the transmitter, then transmitter wake up operation must be performed. Refer to

WT-22, "Work

Procedure"

.

14. Adjust neutral position of steering angle sensor. Refer to

BRC-53, "Work Procedure"

.

JSEIA0465GB

Valve stem nut
tightening torque

:

WT-45, "Exploded View"
