Nissan Versa Note. Manual - part 854





WCS-30

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009654151

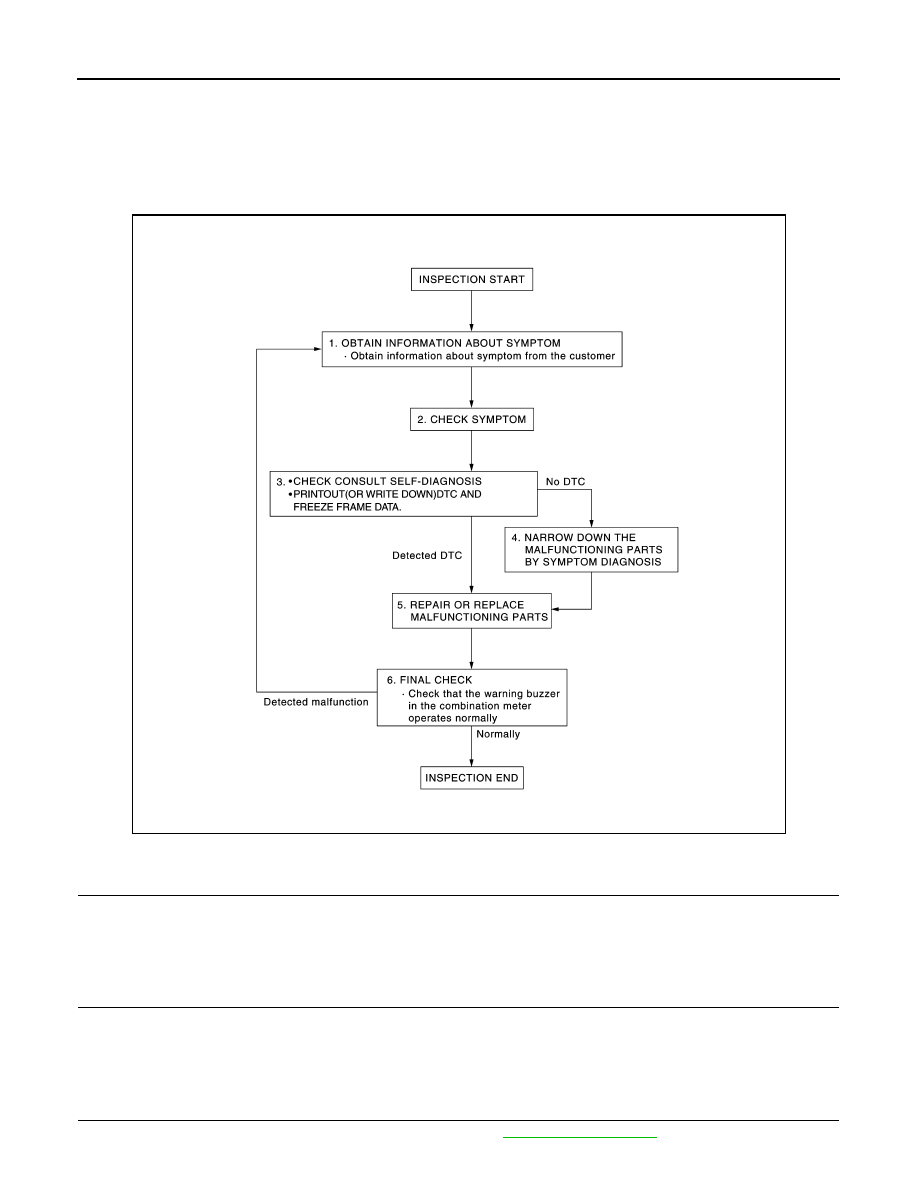

OVERALL SEQUENCE

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

1. Connect CONSULT and perform self-diagnosis. Refer to

WCS-23, "DTC Index"

.

JSNIA4485GB

WCS

DIAGNOSIS AND REPAIR WORK FLOW

WCS-31

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Are self-diagnosis results normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 5.

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace malfunctioning parts.

NOTE:

If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that the warning buzzer in the combination meter operates normally.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 1.

WCS-32

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER
COMBINATION METER : Diagnosis Procedure

INFOID:0000000009695439

Regarding Wiring Diagram information, refer to

MWI-23, "Wiring Diagram"

.

1.

CHECK FUSE

Check that the following fuses are not blown.

Is the fuse blown?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the affected circuit.

2.

POWER SUPPLY CIRCUIT CHECK

1. Disconnect combination meter connector.

2. Check voltage between combination meter harness connector M24,  terminals 27, 28, 15 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connector.

3.

GROUND  CIRCUIT CHECK

1. Turn ignition switch OFF.

2. Disconnect combination meter connector.

3. Check continuity between combination meter harness connector M24, terminals 21, 22, 23 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connector.

BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM)

Power source

Fuse No.

Battery

8

Ignition switch ON or START

3

Ignition switch ACC or ON

18

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

START

Connector

Terminal

M24

27

Ground

Battery voltage

Battery voltage

Battery voltage

Battery voltage

28

0V

0V

Battery voltage

Battery voltage

15

0V

Battery voltage

Battery voltage

0V

Terminals

Continuity

(+)

(–)

Connector

Terminal

M24

21

Ground

Yes

22

23

WCS

POWER SUPPLY AND GROUND CIRCUIT

WCS-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM) : Diagnosis
Procedure

INFOID:0000000009693747

Regarding Wiring Diagram information, refer to

BCS-51, "Wiring Diagram"

.

1.

CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1. Disconnect BCM connector M99.

2. Check voltage between BCM connector M99 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between BCM connector M99 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair harness or connector.

BCM (BODY CONTROL SYSTEM) (WITHOUT INTELLIGENT KEY SYSTEM)
BCM (BODY CONTROL SYSTEM) (WITHOUT INTELLIGENT KEY SYSTEM) : Diag-
nosis Procedure

INFOID:0000000009693748

Regarding Wiring Diagram information, refer to

BCS-111, "Wiring Diagram"

.

1.

CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

12 (10A)

70

G (40A)

BCM

Ground

Voltage

Connector

Terminal

M99

57

Battery voltage

70

BCM

Ground

Continuity

Connector

Terminal

M99

67

Yes
