PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009681837

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

WCS-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000009654139

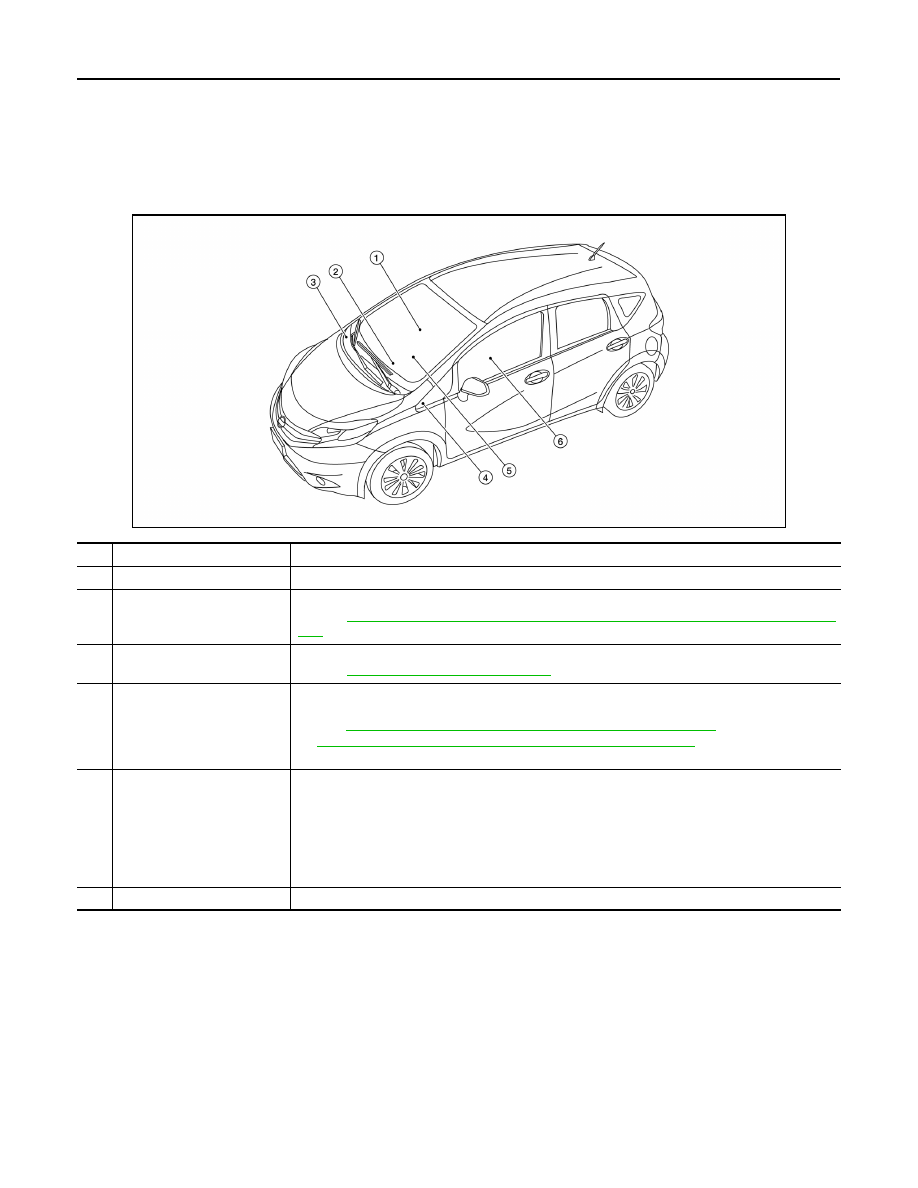

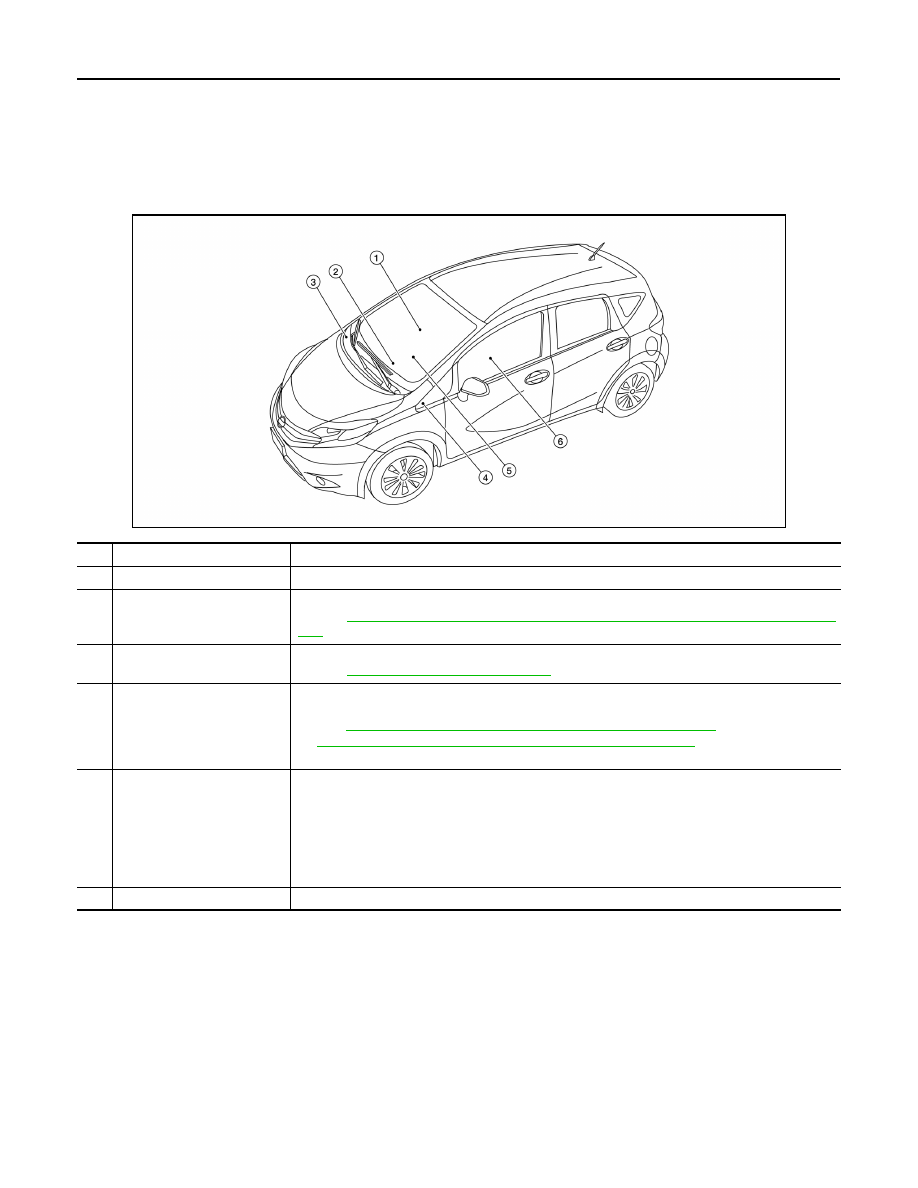

AWNIA3128ZZ

No.

Component

Function

1.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

2.

Key switch

Transmits the key switch signal to the BCM.
Refer to

SEC-131, "NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS : Component Parts Loca-

tion"

 (without Intelligent Key) for detailed installation location.

3.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.
Refer to

BRC-7, "Component Parts Location"

 for detailed installation location.

4.

BCM

Based on the signals received from various units and switches, transmits the buzzer output signal
to the combination meter via CAN communication.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 (with Intelligent Key)

or

BCS-73, "BODY CONTROL SYSTEM : Component Parts Location"

 (without Intelligent Key)

for detailed installation location.

5.

Combination meter

• Receives a buzzer output signal from the BCM with CAN communication line and sounds the

buzzer.

• Controls the following with the vehicle speed signal received from ABS actuator and electric

unit (control unit) via CAN communication and the signals from switches.

- Seat belt reminder warning chime
- Parking brake release warning chime
- Key warning chime

6.

Seat belt buckle switch LH

Transmits a seat belt buckle switch signal LH to the combination meter.

WCS

COMPONENT PARTS

WCS-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Combination Meter

INFOID:0000000009654140

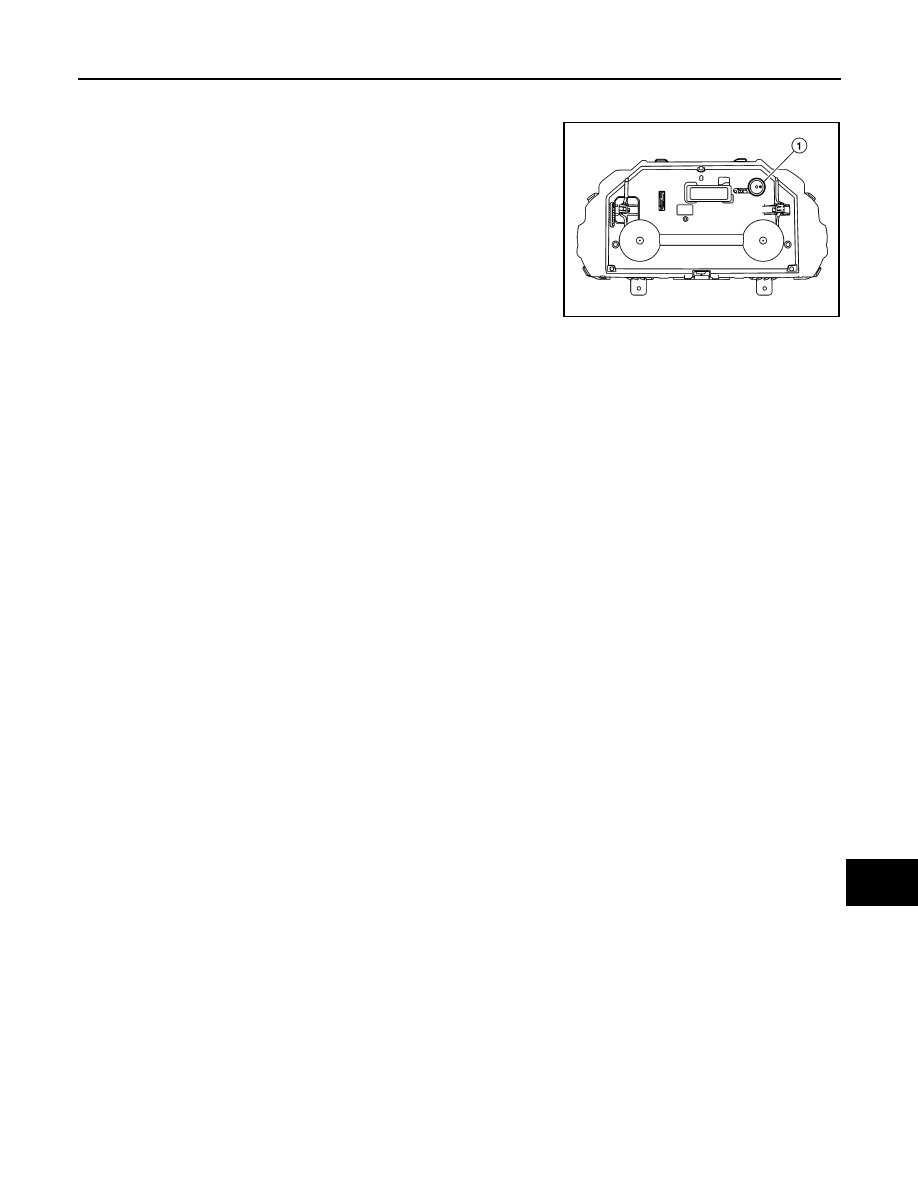

The combination meter has a built-in buzzer (1) and sounds the fol-

lowing warnings, according to signals from each switch and unit.

• Light reminder warning

• Parking brake release warning chime

• Seat belt warning

• Key warning chime

AWNIA3061ZZ
