PREPARATION

VTL-3

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PREPARATION

PREPARATION

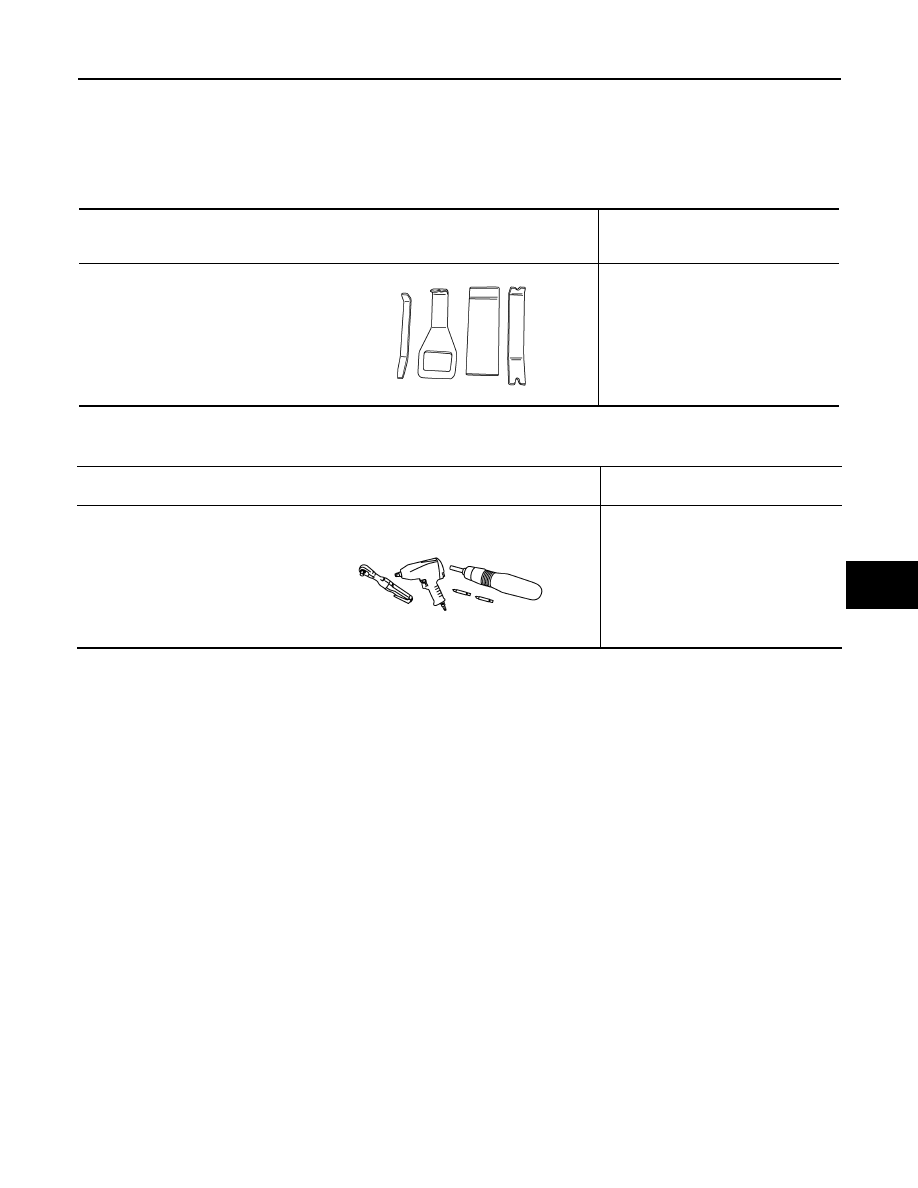

Special Service Tool

INFOID:0000000009429689

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009429690

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

(Kent-Moore No.)
Tool name

Description

( — )
Power tool

Loosening nuts, screws and bolts

PIIB1407E

VTL-4

< SYSTEM DESCRIPTION >

VENTILATION SYSTEM

SYSTEM DESCRIPTION

VENTILATION SYSTEM

System Description

INFOID:0000000009429693

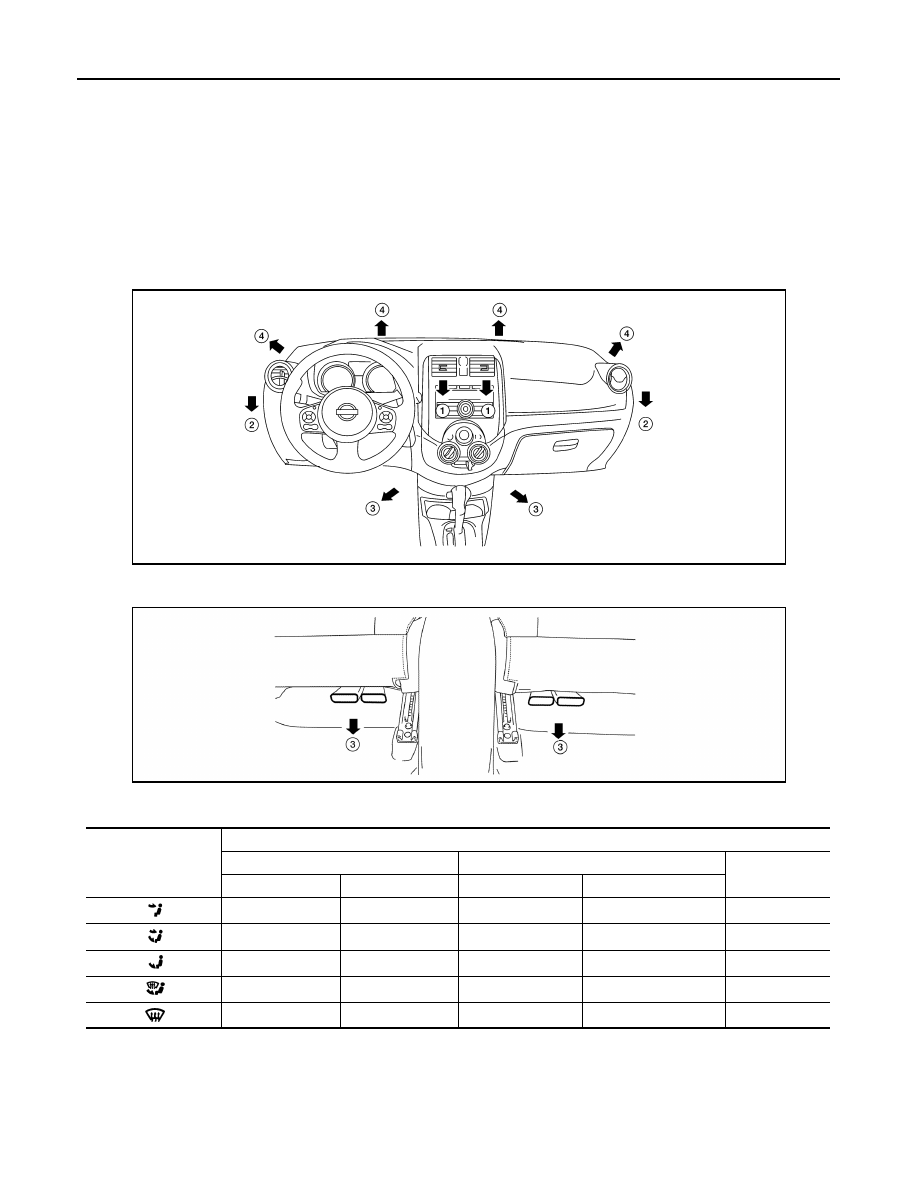

OUTLINE

The ventilation system is controlled by the front air control.

AIR FLOW

Front

Rear (Canada only)

×: Applicable

AWIIA1690ZZ

AWIIA1463ZZ

MODE/DEF setting

AIR OUTLET

Ventilator

Foot

Defroster (4)

Center (1)

Side (2)

Front (3)

Rear (3) (Canada only)

×

×

—

—

—

×

×

×

×

—

—

×

×

×

×

—

×

×

×

×

—

×

—

—

×

DUCT AND GRILLE

VTL-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL AND INSTALLATION

DUCT AND GRILLE

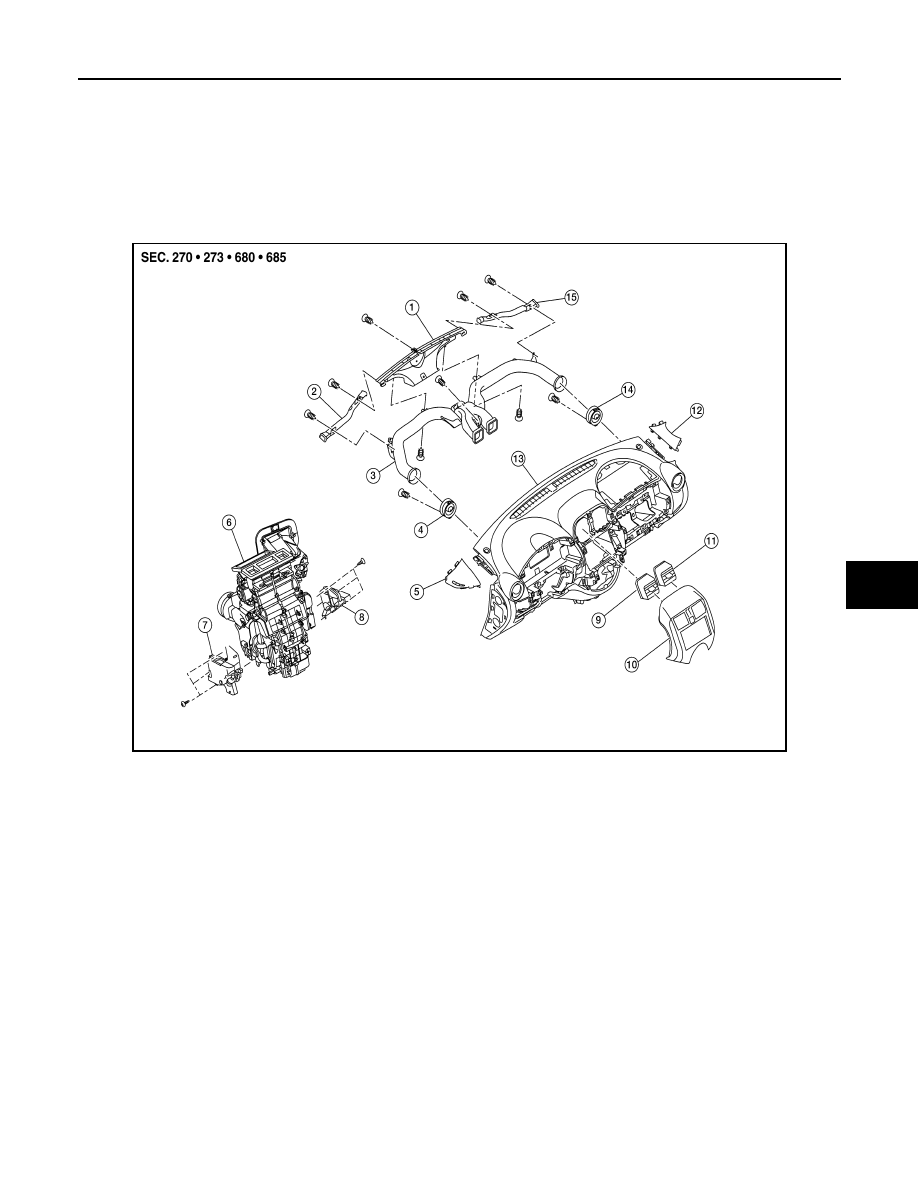

Exploded View

INFOID:0000000008968533

FRONT

AWIIA1679ZZ

1.

Center defroster duct

2.

Side defroster duct (LH)

3.

Center ventilator duct

4.

Side ventilator grille (LH)

5.

Side defroster grille LH

6.

Heating and cooling unit assembly

7.

Foot duct (LH)

8.

Foot duct (RH)

9.

Center ventilator grille (LH)

10.

Cluster lid C

11.

Center ventilator grille (RH)

12.

Side defroster grille RH

13.

Instrument panel assembly

14.

Side ventilator grille (RH)

15.

Side defroster duct (RH)

VTL-6

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

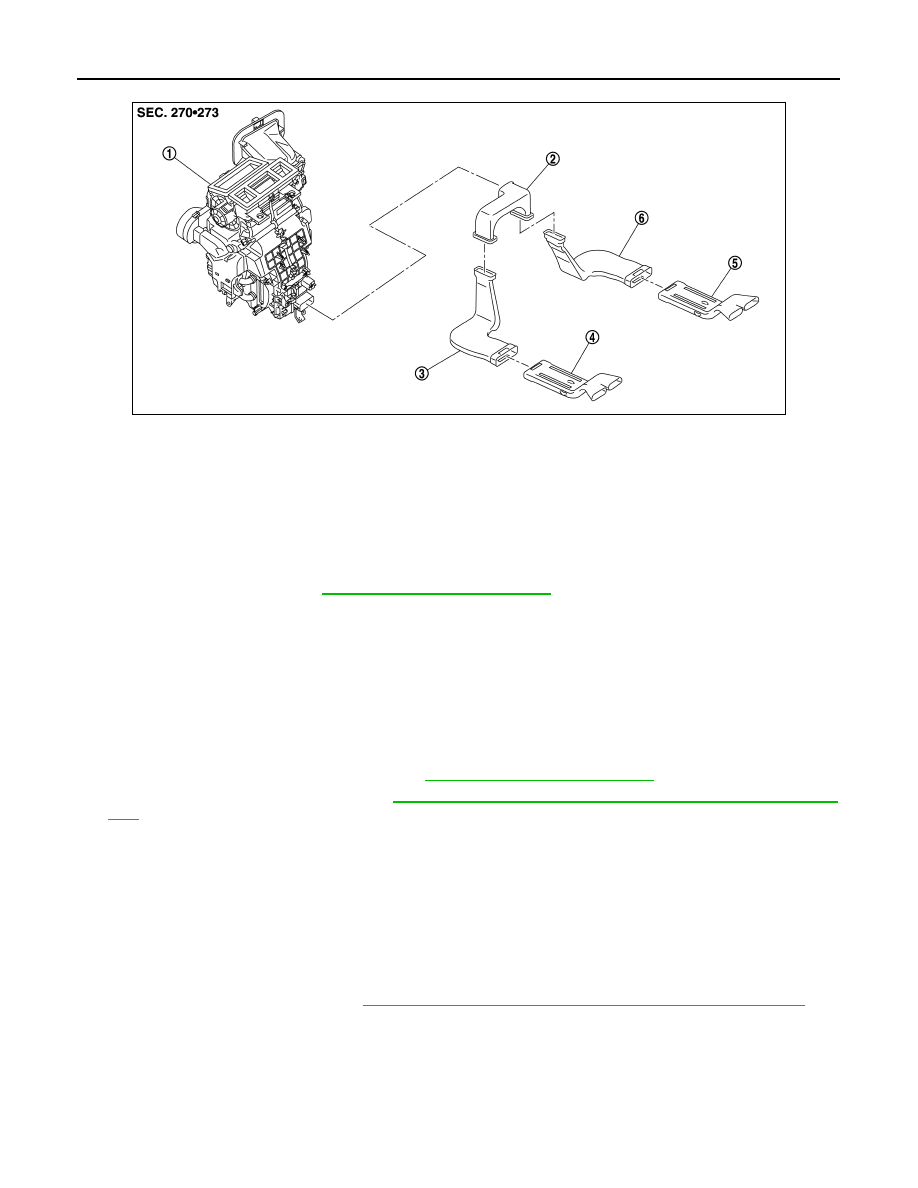

REAR (Canada only)

CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009395329

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Release pawls and remove the center ventilator grille from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009395330

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove center ventilator duct. Refer to

VTL-7, "CENTER VENTILATOR DUCT : Removal and Installa-

tion"

.

3. Remove screw and the side ventilator grille.

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER GRILLE
SIDE DEFROSTER GRILLE : Removal and Installation

INFOID:0000000009395335

REMOVAL

1. Remove front pillar finisher. Refer to

INT-21, "FRONT PILLAR FINISHER : Removal and Installation"

.

JMIIA1736ZZ

1.

Heating and cooling unit assembly

2.

Connector duct

3.

Rear floor duct (LH)

4.

Rear floor nozzle (LH)

5.

Rear floor nozzle (RH)

6.

Rear floor duct (RH)
