TM-216

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F11A]

OVERDRIVE CONTROL SWITCH

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace malfunctioning parts.

5.

CHECK CIRCUIT BETWEEN COMBINATION METER AND CVT SHIFT SELECTOR (PART 2)

Check continuity between combination meter harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace malfunctioning parts.

6.

CHECK COMBINATION METER INPUT SIGNAL

1. Connect all of disconnected connectors.

2. Turn ignition switch ON.

3. Select “Data Monitor” in “METER/M&A”.

4. Select “O/D OFF SW”.

5. Check that “O/D OFF SW” turns ON/OFF when overdrive control switch is operated. Refer to

MWI-18,

"Reference Value"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

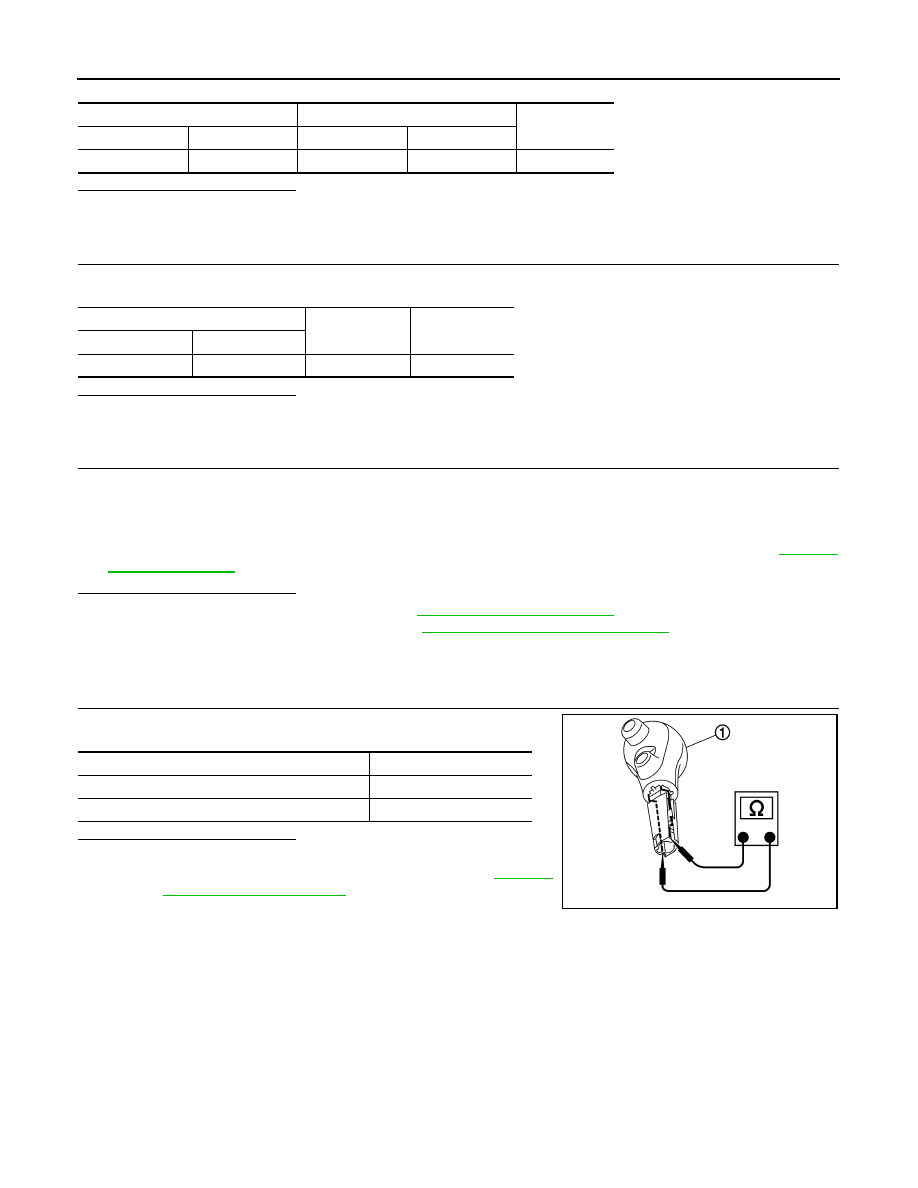

Component Inspection (Overdrive Control Switch)

INFOID:0000000009019758

1.

CHECK OVERDRIVE CONTROL SWITCH

Check  continuity between wires of selector lever knob (1)

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace  selector lever knob. Refer to

TM-229,

"Removal and Installation"

.

Combination meter

CVT shift selector

Continuity

Connector

Terminal

Connector

Terminal

M24

8

M38

1

Existed

Combination meter

—

Continuity

Connector

Terminal

M24

8

Ground

Not existed

Condition

Continuity

Overdrive control switch is depressed

Existed

Overdrive control switch is depressed

Not existed

JSDIA1969ZZ

OD OFF INDICATOR LAMP

TM-217

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OD OFF INDICATOR LAMP

Component Function Check

INFOID:0000000009019759

1.

CHECK OD OFF INDICATOR LAMP FUNCTION

Check OD OFF indicator lamp turns ON for approx. 2 seconds when ignition switch turns ON.
Is the inspection results normal?

YES

>> INSPECTION END

NO

>> Go to

TM-217, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009019760

1.

CHECK DTC (TCM)

With CONSULT

1. Turn ignition switch ON.

2. Check “Self Diagnostic Results” in “TRANSMISSION”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

TM-112, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DTC (COMBINATION METER)

With CONSULT

Check “Self Diagnostic Results” in “METER/M&A”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

MWI-21, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK COMBINATION METER INPUT SIGNAL

With CONSULT

1. Shift the selector lever to “D” position.

2. Select “Data Monitor” in “METER/M&A”.

3. Select “O/D OFF IND”.

4. Check that “O/D OFF IND” turns ON/OFF when overdrive control switch is operated. Refer to

MWI-18,

"Reference Value"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK TCM INPUT/OUTPUT SIGNAL

With CONSULT

1. Select “Data Monitor” in “TRANSMISSION”.

2. Select “SPORT MODE SW”.

3. Check that “SPORT MODE SW” turns ON/OFF when overdrive control switch is operated. Refer to

TM-

100, "Reference Value"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-54, "Removal and Installation"

.

NO

>> Check overdrive control switch. Refer to

TM-215, "Diagnosis Procedure"

.

TM-218

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F11A]

SHIFT POSITION INDICATOR CIRCUIT

SHIFT POSITION INDICATOR CIRCUIT

Component Parts Function Inspection

INFOID:0000000009019761

1.

CHECK SHIFT POSITION INDICATOR

1. Start the engine.

2. Shift selector lever.

3. Check that the selector lever position and the shift position indicator on the combination meter are identi-

cal.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

TM-218, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009019762

1.

CHECK TCM INPUT/OUTPUT SIGNAL

With CONSULT

1. Start the engine.

2. Select “Data Monitor” in “TRANSMISSION”.

3. Select “RANGE”.

4. Shift selector lever.

5. Check that selector lever position, “RANGE” on  CONSULT screen, and shift position indicator display on

combination meter are identical.

 Is the check result normal?

YES

>> INSPECTION END

NO-1 (“RANGE” is changed but is not displayed on  shift position indicator.>>Check “Self Diagnostic Result”

in “TRANSMISSION”.

NO-2 (“RANGE” and shift position indicator are different.)>>Check “Self Diagnostic Result” in “TRANSMIS-

SION”.

NO-3 (Specific“RANGE” is not displayed on  shift position indicator.)>>Check “Self Diagnostic Result” in

“METER/M&A”.

SHIFT LOCK SYSTEM

TM-219

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT LOCK SYSTEM

Component Function Check

INFOID:0000000009019763

1.

CHECK SHIFT LOCK OPERATION (BRAKE PEDAL RELEASED)

1. Ignition switch ON.

2. Attempt to shift selector lever to any position other than “P” position with brake pedal released.
Can the selector lever be shifted?

YES

>> Go to

TM-219, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

CHECK SHIFT LOCK OPERATION (BRAKE PEDAL APPLIED)

Attempt to shift the selector lever to any position other than “P” position with brake pedal applied.
Can the selector lever be shifted?

YES

>> Inspection End.

NO

>> Go to

TM-219, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009019764

1.

CHECK STOP LAMP SWITCH

1. Ignition switch ON.

2. Check voltage between stop lamp switch connector E13 terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CVT SHIFT SELECTOR

Check voltage between CVT shift selector connector M38 terminal 6 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 5.

3.

CHECK GROUND CIRCUIT

1. Ignition switch OFF.

2. Disconnect CVT shift selector connector.

3. Check continuity between CVT shift selector connector M38 terminal 6 and ground.

Is the inspection result normal?

YES

>> Replace CVT shift selector. Refer to

TM-229, "Removal and Installation"

.

NO

>> Repair or replace ground circuit.

Stop lamp switch

Ground

Brake pedal

Voltage

Connector

Terminal

E13

4

Ground

Applied

Battery voltage

Released

0V

CVT shift selector

Ground

Brake pedal

Shift selector

Voltage

Connector

Terminal

M38

6

Ground

Applied

Park

Battery voltage

Others

0V

CVT shift selector

Ground

Continuity

Connector

Terminal

M38

6

Ground

Yes
