TM-92

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

DIAGNOSIS SYSTEM (TCM)

• When the self-diagnosis result is acceptable at the 2nd trip (conforming to driving condition B), DTC of the

1st trip is erased.

COUNTER SYSTEM LIST

DRIVING CONDITION

Driving condition A

Driving condition A is the driving condition that provides warm-up.

In specific, count-up is performed when all of the following conditions are satisfied.

• Engine speed is 400 rpm or more.

• After start of the engine, the water temperature increased by 20

°C (36 °F) or more.

• Water temperature was 70

°C (158 °F) or more.

• The ignition switch was changed from ON to OFF.

NOTE:

• If the same malfunction is detected regardless of the driving condition, reset the A counter.

• When the above is satisfied without detecting the same malfunction, count up the A counter.

• When MIL goes off due to the malfunction and the A counter reaches 40, the DTC is erased.

Driving condition B

Driving condition B is the driving condition that performs all diagnoses once.

In specific, count-up is performed when all of the following conditions are satisfied.

• Engine speed is 400 rpm or more.

• Water temperature was 70

°C (158 °F) or more.

• In closed loop control, vehicle speed of 70 – 120 km/h (43 – 75 MPH) continued for 60 seconds or more.

• In closed loop control, vehicle speed of 30 – 60 km/h (19 – 37 MPH) continued for 10 seconds or more.

• In closed loop control, vehicle speed of 4 km/h (2 MPH) or less and idle determination ON continued for 12

seconds or more.

• After start of the engine, 22 minutes or more have passed.

• The condition that the vehicle speed is 10km/h (6 MPH) or more continued for 10 seconds or more in total.

• The ignition switch was changed from ON to OFF.

NOTE:

• If the same malfunction is detected regardless of the driving condition, reset the B counter.

• When the above is satisfied without detecting the same malfunction, count up the B counter.

• When the B counter reaches 3 without malfunction, MIL goes off.

• When the B counter is counted once without detecting the same malfunction after TCM memorizes DTC of

the 1st trip, DTC of the 1st trip is erased.

Item

Driving condition

Trip

MIL (OFF)

DTC (clear)

DTC at 1st trip (clear)

DIAGNOSIS SYSTEM (TCM)

TM-93

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

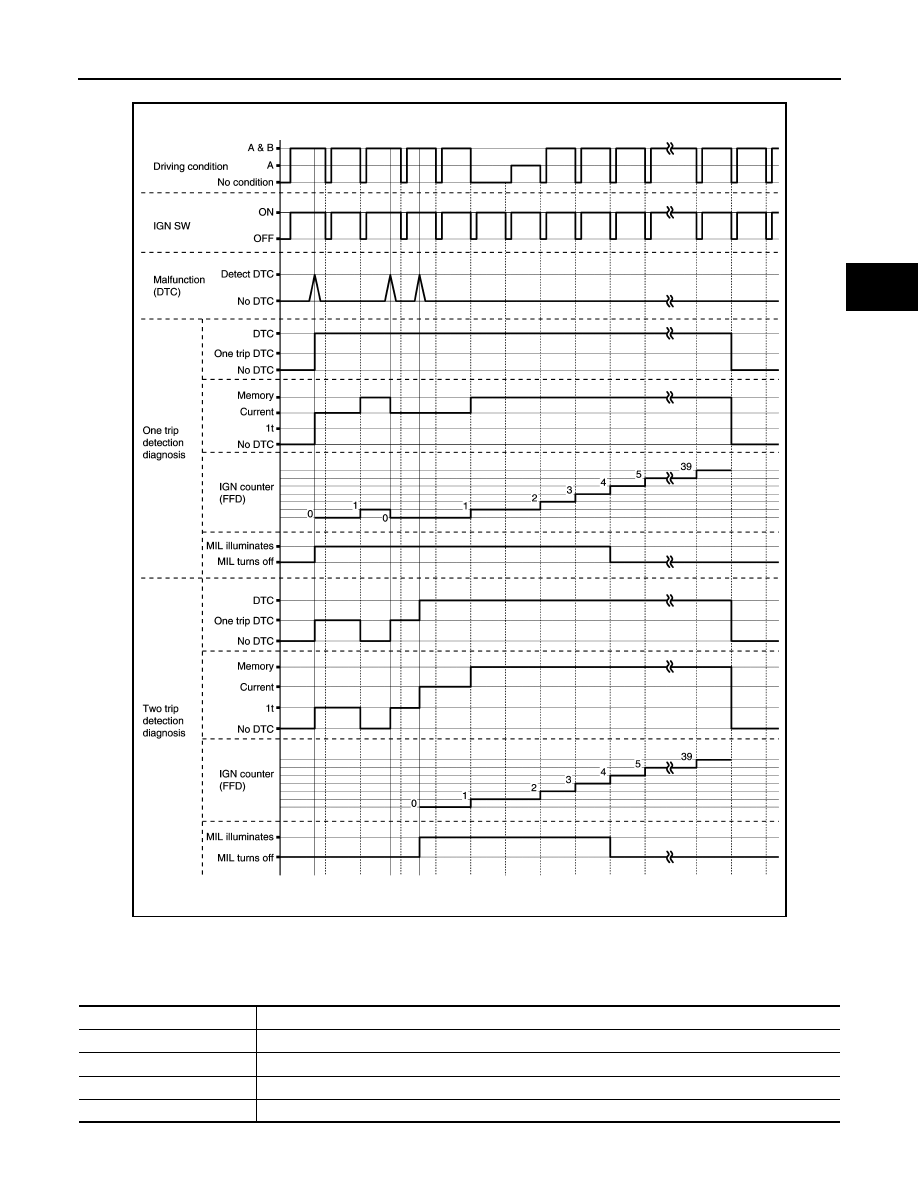

TIME CHART

CONSULT Function

INFOID:0000000009019627

APPLICATION ITEMS

JSDIA1868GB

Conditions

Function

Work Support

This mode enables a technician to adjust some devices faster and more accurately.

Self Diagnostic Results

Retrieve DTC from ECU and display diagnostic items.

Data Monitor

Monitor the input/output signal of the control unit in real time.

CAN Diagnosis

This mode displays a network diagnosis result about CAN by a diagram.

TM-94

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

DIAGNOSIS SYSTEM (TCM)

SELF DIAGNOSTIC RESULTS

Display Item List

Refer to

TM-112, "DTC Index"

DTC at 1st trip and method to read DTC

• DTC (P0705, P0711, P0720, etc.) is specified by SAE J2012/ISO 15031-6.

• DTC and DTC at 1st trip are displayed on “Self Diagnostic results” of CONSULT.

When DTC is currently detected, “CRNT” is displayed. If “PAST” is displayed, it shows a malfunction

occurred in the past.The trip number of drive without malfunction of concerned DTC can be confirmed with

“IGN counter” inside “FFD”.

• When the DTC at the 1st trip is detected, the “timing” is displayed as “1t”.

DTC deletion method

NOTE:

• If the battery terminal is disconnected, the TCM memory is erased. (The disconnection time varies from sev-

eral seconds to several hours.

• If the ignition switch is left ON after repair, turn OFF the ignition switch and wait for 10 seconds or more.

Then, turn the ignition ON again. (Engine stop)

1. Touch “TRANSMISSION” of CONSULT.

2. Touch “Self Diagnostic Result”.

3. Touch “Erase”. (DTC memorized in TCM is erased.)

IGN counter

The ignition counter is displayed in “FFD” and the number of times of satisfied “Driving condition A” is dis-

played after normal recovery of DTC. Refer to

TM-91, "DIAGNOSIS DESCRIPTION : Counter System"

• If malfunction (DTC) is currently detected, “0” is displayed.

• After normal recovery, every time “Driving condition A” is satisfied, the display value increases from 1

→ 2 →

3...38

→ 39.

• When MIL turns OFF due to the malfunction and the counter reaches 40, the DTC is erased.

NOTE:

The counter display of “40” cannot be checked.

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

×: Application

: Optional selection

CAN Diagnosis Support Mon-
itor

It monitors the status of CAN communication.

ECU Identification

Display the ECU identification number (part number etc.) of the selected system.

CALIB DATA

The calibration data status of TCM can be checked.

Conditions

Function

Monitored item

(Unit)

Monitor item selection

Remarks

MAIN SIG-

NALS

ECU IN-

PUT SIG-

NALS

VSP SENSOR

(km/h or mph)

Displays the vehicle speed calculated from the CVT out-
put shaft speed.

ESTM VSP SIG

(km/h or mph)

Displays the vehicle speed signal (ABS) received
through CAN communication.

PRI SPEED SEN

(rpm)

Displays the primary pulley speed calculated from the
pulse signal of the primary speed sensor.

SEC REV SENSOR

(rpm)

Displays the secondary pulley speed calculated from the
pulse signal of the secondary speed sensor.

VHCL/S SE (REV)

(rpm)

Displays the CVT output shaft speed calculated from the
pulse signal of the output speed sensor.

ENG SPEED SIG

(rpm)

Displays the engine speed received through CAN com-
munication.

DIAGNOSIS SYSTEM (TCM)

TM-95

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

LINE PRESSURE SEN

(V)

Displays the signal voltage of the line pressure sensor.

ATF TEMP SEN

(V)

Displays the signal voltage of the CVT fluid temperature
sensor.

G SENSOR

(V)

Displays the signal voltage of the G sensor.

VIGN SEN

(V)

Displays the battery voltage applied to TCM.

VEHICLE SPEED

(km/h or mph)

Displays the vehicle speed recognized by TCM.

INPUT REV

(rpm)

Displays the input shaft speed of CVT recognized by
TCM.

PRI SPEED

(rpm)

Displays the primary pulley speed recognized by TCM.

SEC SPEED

(rpm)

Displays the secondary pulley speed recognized by
TCM.

OUTPUT REV

(rpm)

Displays the output shaft speed of CVT recognized by
TCM.

ENG SPEED

(rpm)

Displays the engine speed recognized by TCM.

SLIP REV

(rpm)

Displays the speed difference between the input shaft
speed of CVT and the engine speed.

TOTAL GEAR RATIO

Displays the total CVT gear ratio calculated from input
shaft speed/output shaft speed of CVT.

PULLEY GEAR RATIO

Displays the pulley gear ratio calculated from primary
pulley speed/secondary pulley speed.

AUX GEARBOX

Displays the gear position of the auxiliary gearbox recog-
nized by TCM.

G SPEED

(G)

Displays the acceleration and deceleration speed of the
vehicle calculated from vehicle speed change.

ACCEL POSI SEN 1

(deg)

Displays the estimated throttle position received through
CAN communication.

VENG TRQ

(Nm)

Display the engine torque recognized by TCM.

PRI TRQ

(Nm)

Display the input shaft torque of CVT.

TRQ RTO

Display the torque ratio of torque converter.

LINE PRESSURE

(MPa)

Displays the secondary pressure (line pressure) calcu-
lated from the signal voltage of the secondary pressure
sensor.

FLUID TEMP

(

°C or °F)

Displays the CVT fluid temperature calculated from the
signal voltage of the CVT fluid temperature sensor.

DSR REV

(rpm)

Displays the target primary pulley speed calculated from
processing of gear shift control.

TRGT GEAR RATIO

Displays the target gear ratio from the input shaft to the
output shaft of CVT calculated from processing of gear
shift control.

TGT PLLY GR RATIO

Displays the target gear ratio of the pulley from process-
ing of gear shift control.

TRGT AUX GEARBOX

Displays the target gear of the auxiliary gearbox calculat-
ed from processing of gear shift control.

LU PRS

(MPa)

Displays the target oil pressure of the torque converter
clutch solenoid valve calculated from oil pressure pro-
cessing of gear shift control.

Monitored item

(Unit)

Monitor item selection

Remarks

MAIN SIG-

NALS

ECU IN-

PUT SIG-

NALS
