Gear shifting is performed in all shifting ranges from the lowest to the

highest gear ratio.

D Position (OD OFF)

The gear ratio is generally high by limiting the shifting range on the

high side, and this always generates a large driving power.

L Position

By limiting the shifting range only to the lowest of the gear ratio, a

large driving force and engine brake are obtained.

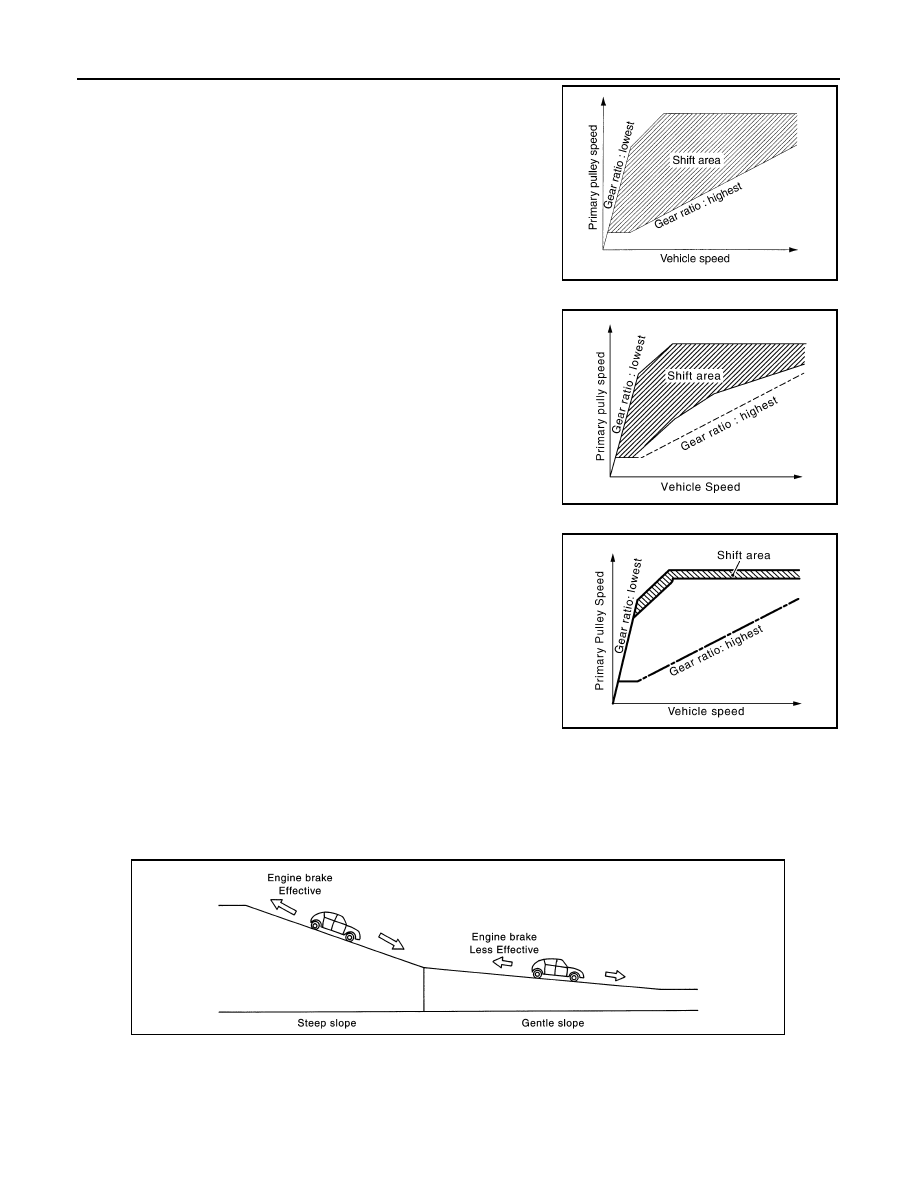

Hill Climbing And Descending Control

If a downhill is detected with the accelerator pedal is released, the system performs downshift to increase the

engine brake force so that vehicle may not be accelerated more than necessary. If a climbing hill is detected,

the system improves the acceleration performance in re-acceleration by limiting the gear shift range on the

high side.

NOTE:

For engine brake control on a downhill, the control can be stopped with CONSULT.

Control In Acceleration

From change of the vehicle speed or accelerator pedal position, the acceleration request level of the driver or

driving scene is evaluated. In start or acceleration during driving, the gear shift characteristics with linearity of

revolution increase and vehicle speed increase are gained to improve the acceleration feel.

SELECT CONTROL

SCIA1953E

SCIA8229E

SCIA8240E

JSDIA2060GB

SYSTEM

TM-85

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SELECT CONTROL : System Description

INFOID:0000000009019616

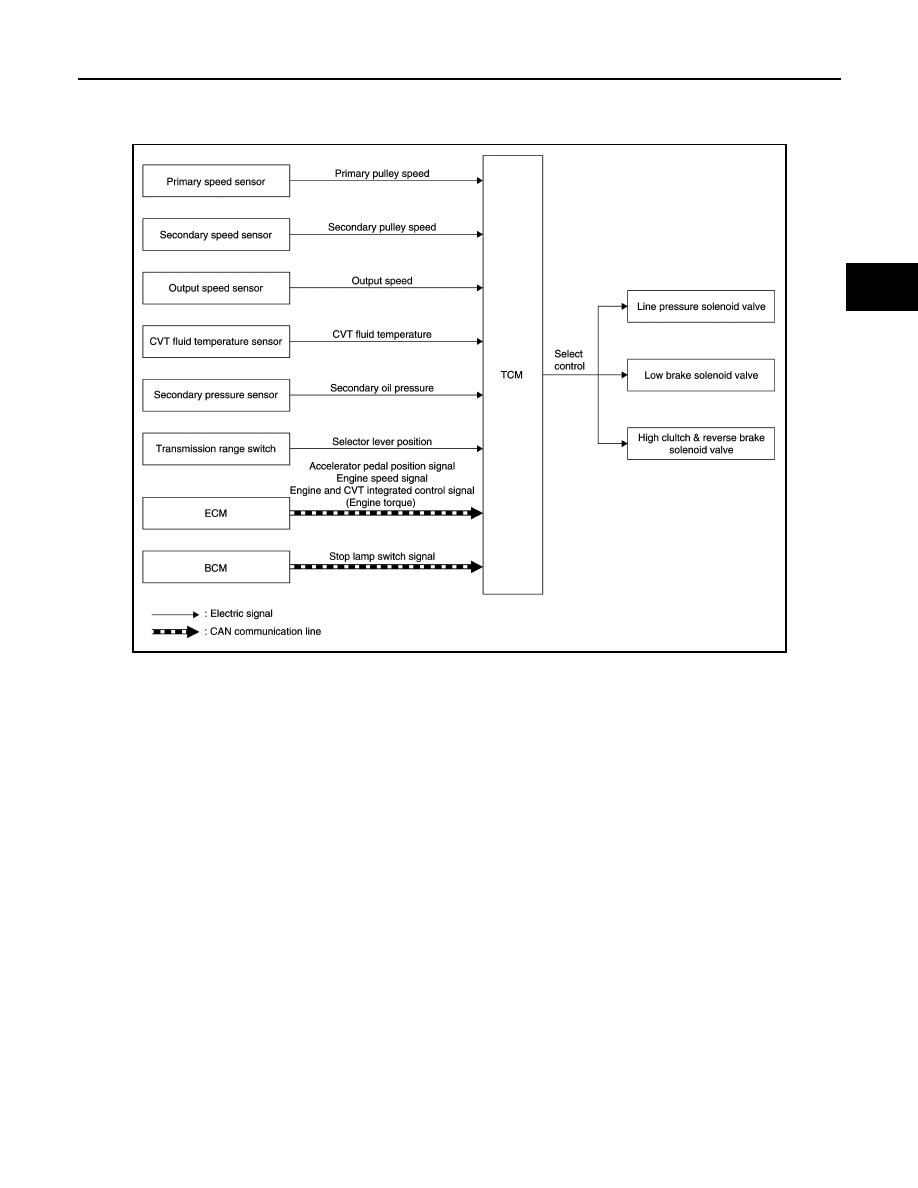

SYSTEM DIAGRAM

DESCRIPTION

Based on accelerator pedal angle, engine speed, primary pulley speed, and the secondary pulley speed, the

optimum operating pressure is set to reduce impact of a selector lever operation while shifting from “N” (“P”) to

“D” (“R”) position.

LOCK-UP CONTROL

JSDIA1862GB

TM-86

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

SYSTEM

LOCK-UP CONTROL : System Description

INFOID:0000000009019617

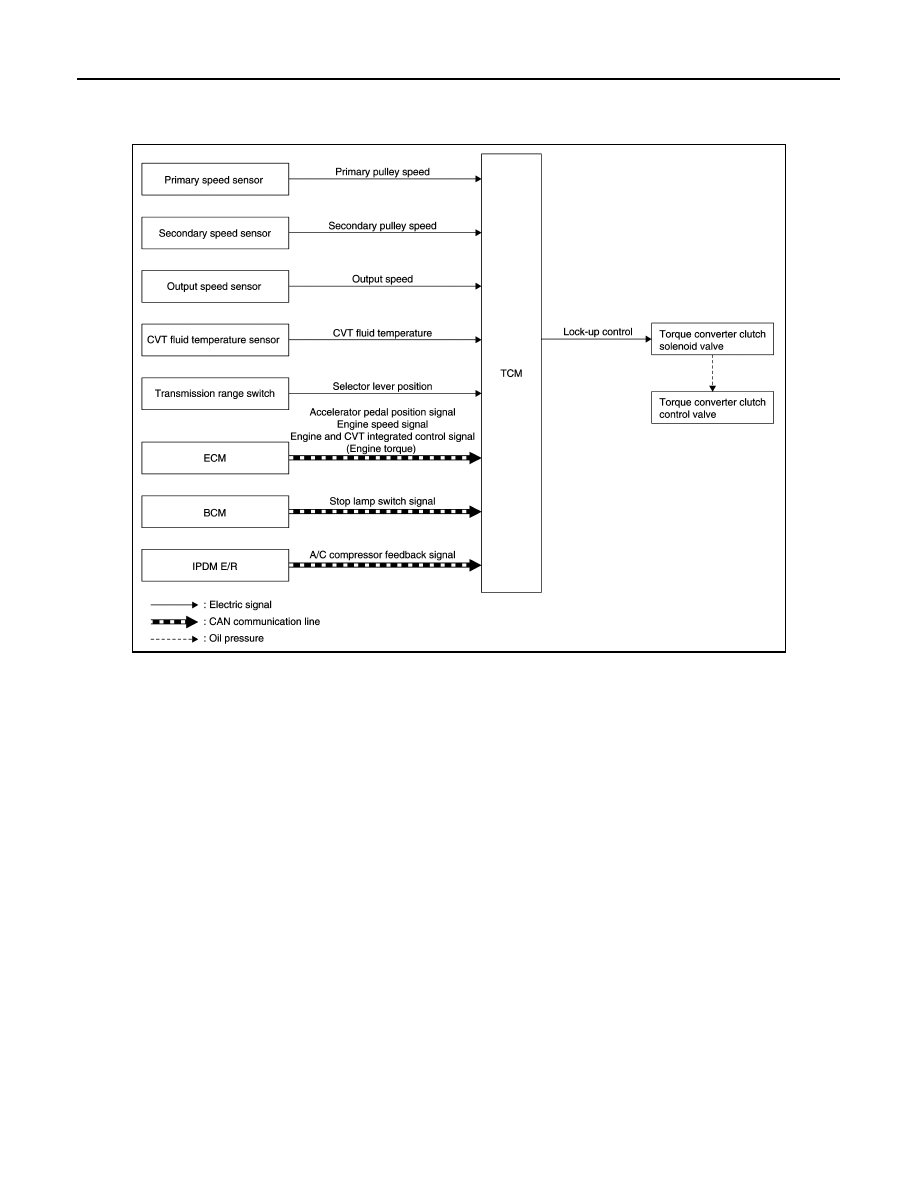

SYSTEM DIAGRAM

DESCRIPTION

• Controls for improvement of the transmission efficiency by engaging the torque converter clutch in the

torque converter and eliminating slip of the converter. Achieves comfortable driving with slip control of the

torque converter clutch.

• The oil pressure feed circuit for the torque converter clutch piston chamber is connected to the torque con-

verter clutch control valve. The torque converter clutch control valve is switched by the torque converter

clutch solenoid valve with the signal from TCM. This controls the oil pressure circuit, which is supplied to the

torque converter clutch piston chamber, to the release side or engagement side.

• If the CVT fluid temperature is low or the vehicle is in fail-safe mode due to malfunction, lock-up control is

prohibited.

Lock-up engagement

In lock-up engagement, the torque converter clutch solenoid valve makes the torque converter clutch control

valve locked up to generate the lock-up apply pressure. This pushes the torque converter clutch piston for

engagement.

Lock-up release condition

In lock-up release, the torque converter clutch solenoid valve makes the torque converter clutch control valve

non-locked up to drain the lock-up apply pressure. This does not engage the torque converter clutch piston.

IDLE NEUTRAL CONTROL

JSDIA1865GB

SYSTEM

TM-87

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

IDLE NEUTRAL CONTROL : System Description

INFOID:0000000009019618

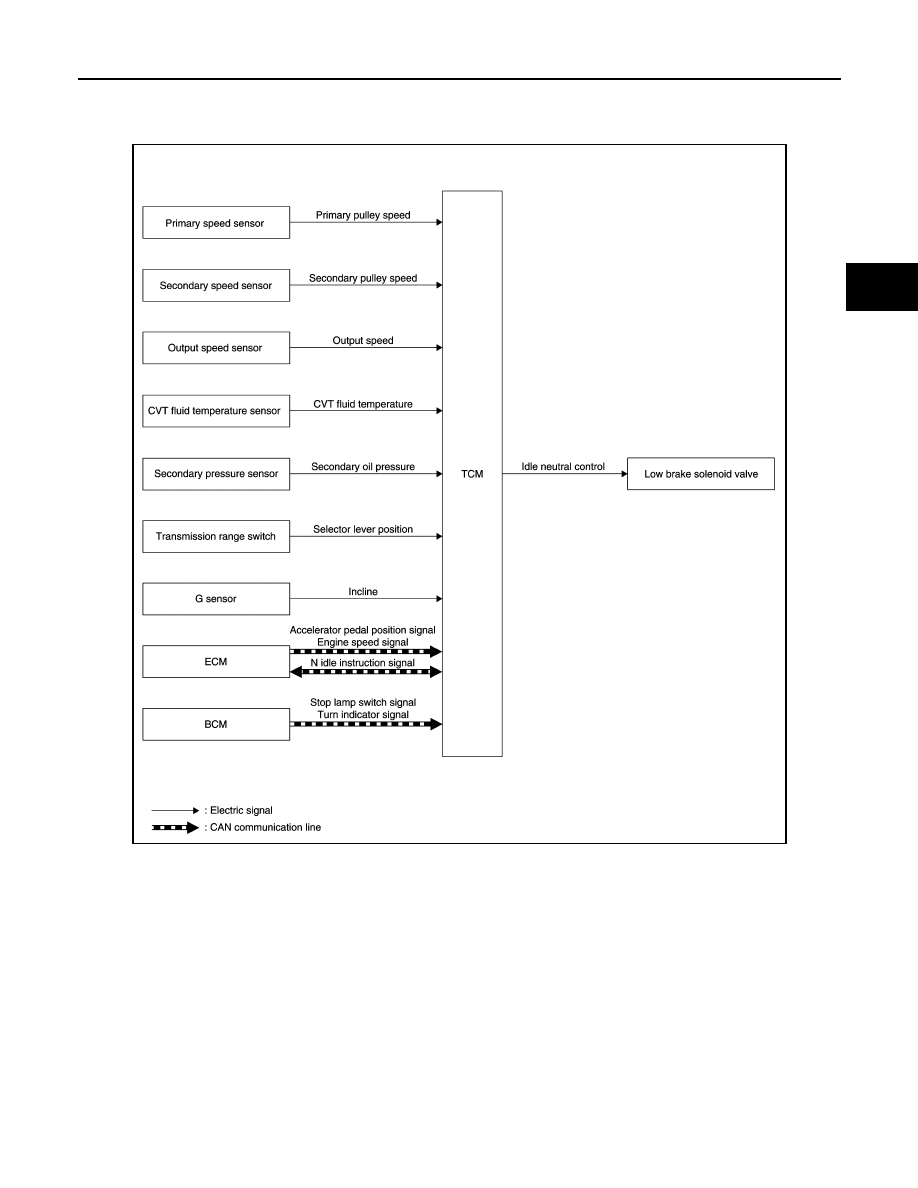

SYSTEM DIAGRAM

DESCRIPTION

If a driver has no intention of starting the vehicle in D position, TCM operates the low brake solenoid valve and

controls the oil pressure of the low brake to be low pressure. Therefore, the low brake is in the release (slip)

status and the power transmission route of transaxle is the same status as the N position. In this way, the tran-

saxle is in idling status and load to the engine can be reduced to improve fuel economy.

NOTE:

JSDIA2535GB
