COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM
CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000009019584

COMPONENT DESCRIPTION

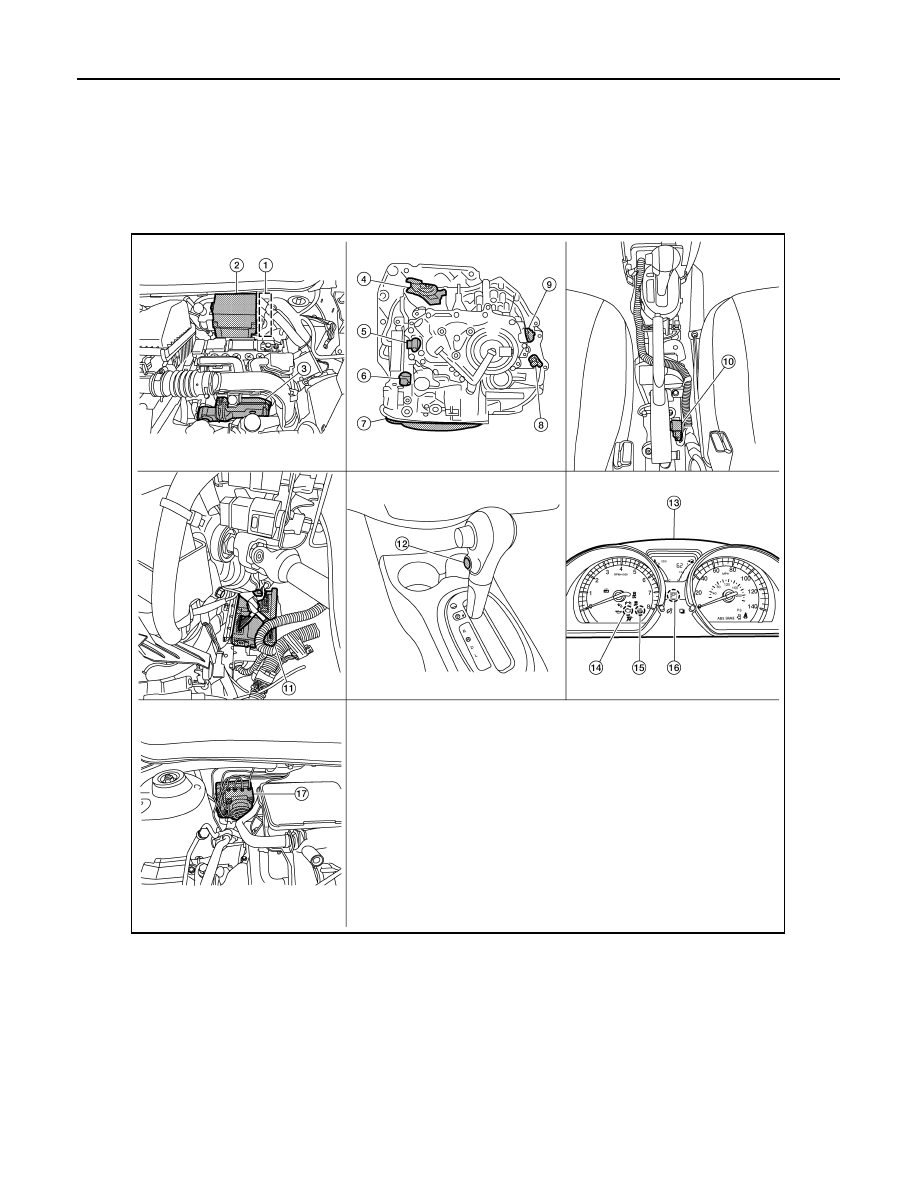

ALDIA0434ZZ

IPDM E/R

TCM

Transmission range switch

Primary speed sensor

CVT unit

Output speed sensor

Secondary speed sensor

G sensor

Stop lamp switch

10. CVT shift selector

11. Overdrive control switch

12. Combination meter (type A)

13. Combination meter (type B)

COMPONENT PARTS

TM-61

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

*: These components are included in control valve assembly.

CVT CONTROL SYSTEM : TCM

INFOID:0000000009019585

• The vehicle driving status is judged based on the signals from the sensors, switches, and other control units,

and the optimal transaxle control is performed.

• For TCM control items, refer to

TM-74, "CVT CONTROL SYSTEM : System Description"

CVT CONTROL SYSTEM : ROM Assembly

INFOID:0000000009019586

• The ROM assembly is installed to control valve.

Component

Function

IPDM E/R

The TCM receives the A/C compressor feedback signal via CAN communica-
tions from the IPDM E/R.

TCM

TM-61, "CVT CONTROL SYSTEM : TCM"

Transmission range switch

TM-62, "CVT CONTROL SYSTEM : Transmission Range Switch"

Primary speed sensor

TM-62, "CVT CONTROL SYSTEM : Primary Speed Sensor"

CVT unit

—

Control
valve

ROM assembly*

TM-61, "CVT CONTROL SYSTEM : ROM Assembly"

CVT fluid temperature sensor*

TM-63, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Secondary pressure sensor*

TM-63, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Primary pressure solenoid valve*

TM-64, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Low brake solenoid valve*

TM-64, "CVT CONTROL SYSTEM : Low Brake Solenoid Valve"

High clutch & reverse brake solenoid
valve*

TM-64, "CVT CONTROL SYSTEM : High Clutch & Reverse Brake Solenoid
Valve"

Torque converter clutch solenoid valve*

TM-64, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid Valve"

Line pressure solenoid valve*

TM-65, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

Output speed sensor

TM-63, "CVT CONTROL SYSTEM : Output Speed Sensor"

Secondary speed sensor

TM-62, "CVT CONTROL SYSTEM : Secondary Speed Sensor"

G sensor

TM-65, "CVT CONTROL SYSTEM : G Sensor"

Overdrive control switch

TM-65, "CVT CONTROL SYSTEM : Overdrive Control Switch"

Combination meter

The TCM receives the overdrive control switch signal via CAN communications
from the combination meter.

ABS actuator and electric unit (control unit)

The TCM receives the following signals via CAN communications from the ABS
actuator and electric unit (control unit).
• Vehicle speed signal
• VDC operation signal
• VDC malfunction signal

ECM

• For purposes including improving the feeling when shifting and preventing

drops in engine speed, control signals are exchanged between the ECM and
TCM, and real-time cooperative control is performed according to the vehicle
driving conditions. (Engine and CVT integrated control)

- Engine and CVT integrated control signal
• The TCM receives the following signals via CAN communications from the

ECM.

- Engine speed signal
- Accelerator pedal position signal
- Closed throttle position signal
• TCM sends and receives the following signals with ECM through CAN com-

munication to perform D position N idle control.

- N idle instruction signal

BCM

The TCM receives the following signals via CAN communications from the
BCM.
• Stop lamp switch signal
• Turn indicator signal

TM-62

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

COMPONENT PARTS

• The ROM assembly stores the calibration data (characteristic value) of each solenoid valve. TCM enables

accurate hydraulic control by obtaining the calibration data.

CVT CONTROL SYSTEM : Transmission Range Switch

INFOID:0000000009019587

• The transmission range switch is installed to upper part of transaxle case.

• The transmission range switch detects the selector lever position.

CVT CONTROL SYSTEM : Primary Speed Sensor

INFOID:0000000009019588

• The primary speed sensor is installed to side cover of transaxle.

• The primary speed sensor detects primary pulley speed.

• The primary speed sensor generates the ON-OFF pulse (short waveform) in proportion to the rotating body

speed which is “The higher the rotating body speed is, the faster the change cycle is”. The TCM judges the

rotating speed from the changing cycle of this pulse signal.

CVT CONTROL SYSTEM : Secondary Speed Sensor

INFOID:0000000009019589

• The secondary speed sensor is installed to side cover of transaxle.

• The secondary speed sensor detects secondary pulley speed.

• The secondary speed sensor generates the ON-OFF pulse (short waveform) in proportion to the rotating

body speed which is “The higher the rotating body speed is, the faster the change cycle is”. The TCM judges

the rotating speed from the changing cycle of this pulse signal.

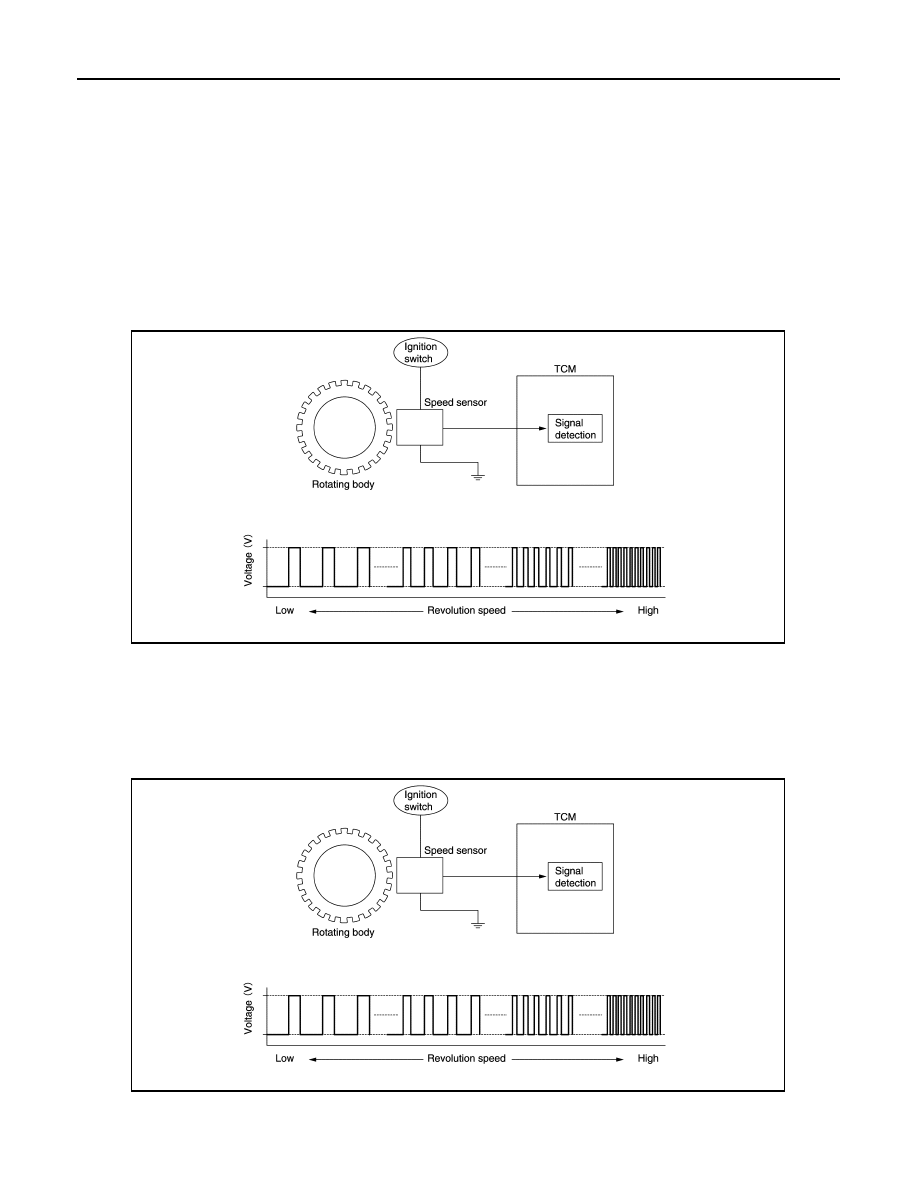

JSDIA1824GB

COMPONENT PARTS

TM-63

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

CVT CONTROL SYSTEM : Output Speed Sensor

INFOID:0000000009019590

• The output speed sensor is installed to the back side of transaxle case.

• The output speed sensor detects final gear speed. TCM evaluates the vehicle speed from the final gear rev-

olution.

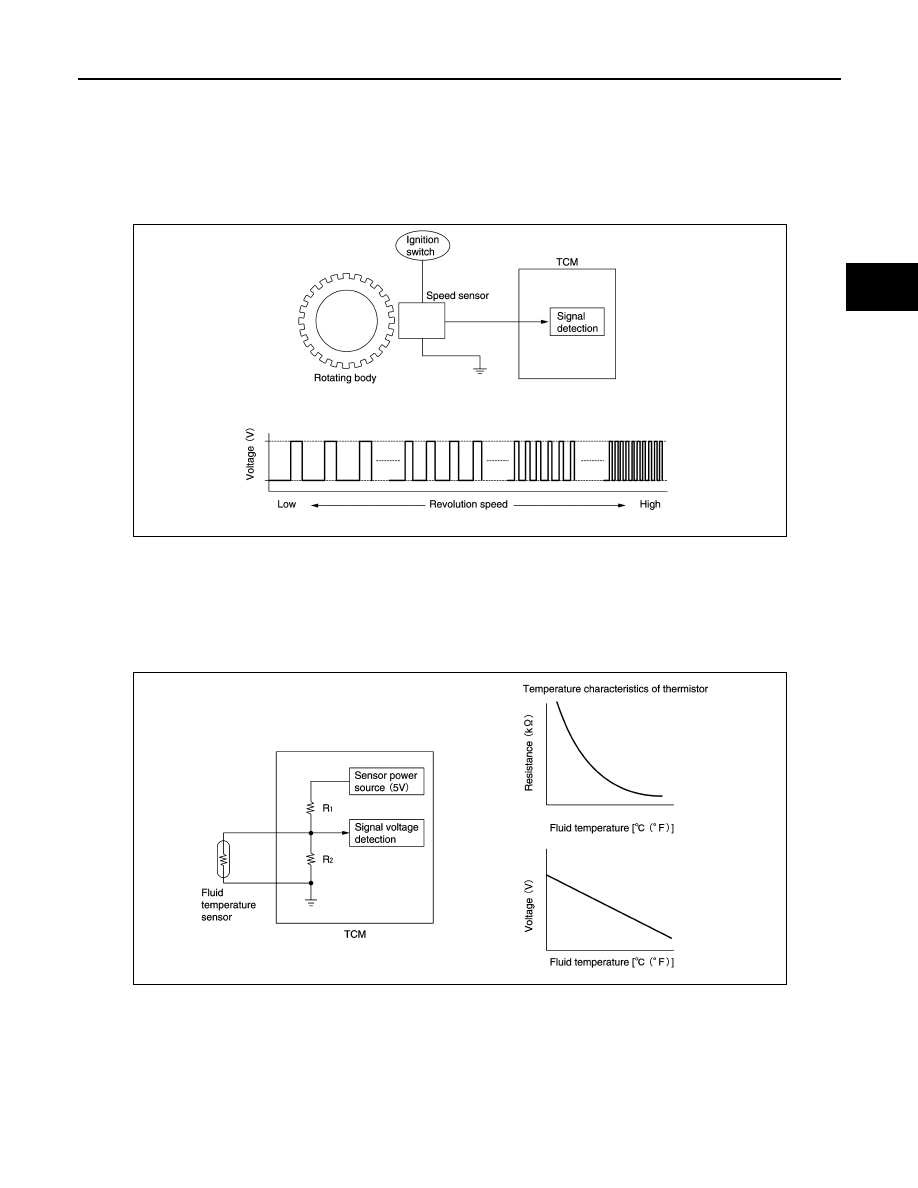

• The output speed sensor generates the ON-OFF pulse (short waveform) in proportion to the rotating body

speed which is “The higher the rotating body speed is, the faster the change cycle is”. The TCM judges the

rotating speed from the changing cycle of this pulse signal.

CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor

INFOID:0000000009019591

• The CVT fluid temperature sensor is installed to control valve.

• The CVT fluid temperature sensor detects CVT fluid temperature in oil pan.

• The fluid temperature sensor uses a thermistor, and changes the signal voltage by converting changes in the

CVT fluid temperature to a resistance value. TCM evaluates the CVT fluid temperature from the signal volt-

age value.

CVT CONTROL SYSTEM : Secondary Pressure Sensor

INFOID:0000000009019592

• The secondary pressure sensor is installed to control valve.

• The secondary pressure sensor detects the pressure applied to the secondary pulley.

JSDIA1824GB

JSDIA1825GB
