TM-52

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

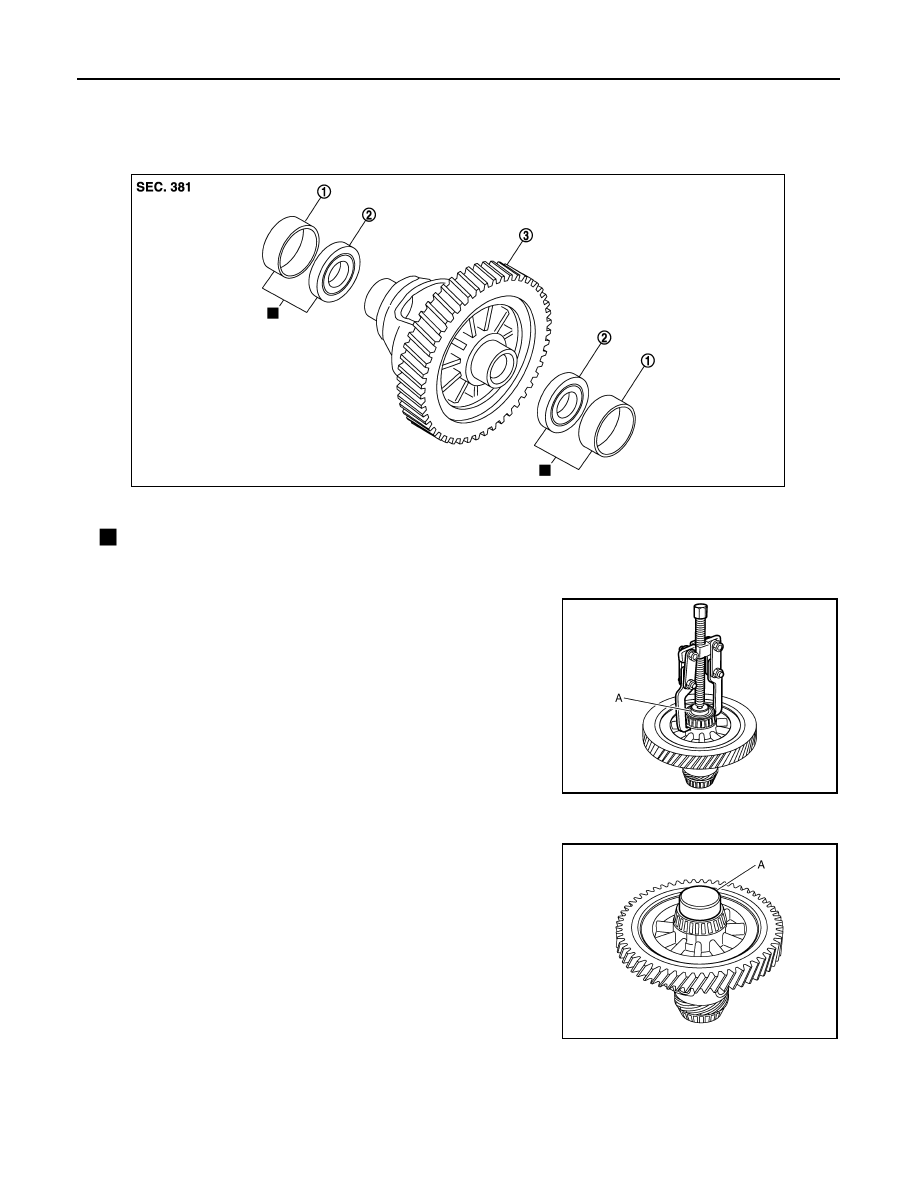

FINAL DRIVE

FINAL DRIVE

Exploded View

INFOID:0000000009417486

Disassembly

INFOID:0000000009417487

• Remove differential side bearings, using Tool (A) and suitable tool.

Assembly

INFOID:0000000009417488

• Install differential side bearings, using Tool (A).

CAUTION:

Replace differential side bearing outer race and differential

side bearing as a set.

Inspection

INFOID:0000000009417489

INSPECTION AFTER DISASSEMBLY

Gear and Final Drive

1.

Differential side bearing outer race

2.

Differential side bearing

3.

Final drive

: Replace the parts as a set.

JPDIC0481ZZ

Tool number

: ST33052000 ( — )

PCIB1568E

Tool number

: KV40104920 ( — )

PCIB1570E

FINAL DRIVE

TM-53

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Check the sliding surfaces for wear, crack, or damage. Replace if necessary.

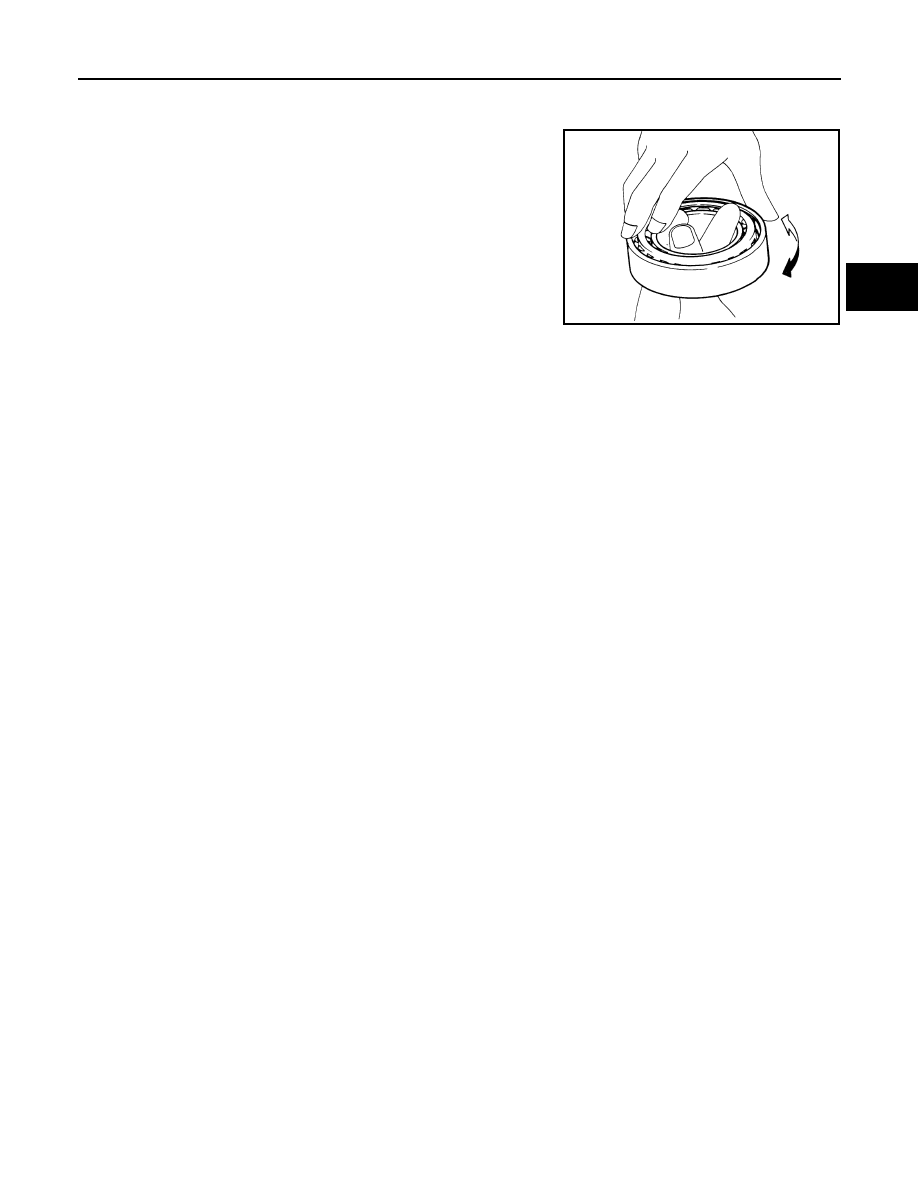

Bearing

Check bearing for damage and rough rotation. Replace if necessary.

SPD715

TM-54

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5MT: RS5F91R]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000009417490

Transaxle type

RS5F91R

Engine type

HR16DE

Model code number

3AM0C

Number of speed

5

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.7273

2nd

2.0476

3rd

1.3929

4th

1.0294

5th

0.8205

Reverse

3.5455

Final gear

4.0667

Number of
teeth

Input gear

1st

11

2nd

21

3rd

28

4th

34

5th

39

Reverse

11

Main gear

1st

41

2nd

43

3rd

39

4th

35

5th

32

Reverse

39

Reverse idler gear

26

Final gear

Final gear/Pinion

61/15

Side gear/Pinion mate gear

13/9

Gear oil capacity (Reference)

 (US pt, Imp pt)

Approx. 2.67 (5-5/8, 4-3/4)

Remarks

Reverse brake

Installed

Double-cone synchronizer

1st and 2nd

Speedometer drive gear

Not installed

SCIA0821E

PRECAUTIONS

TM-55

< PRECAUTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009578754

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

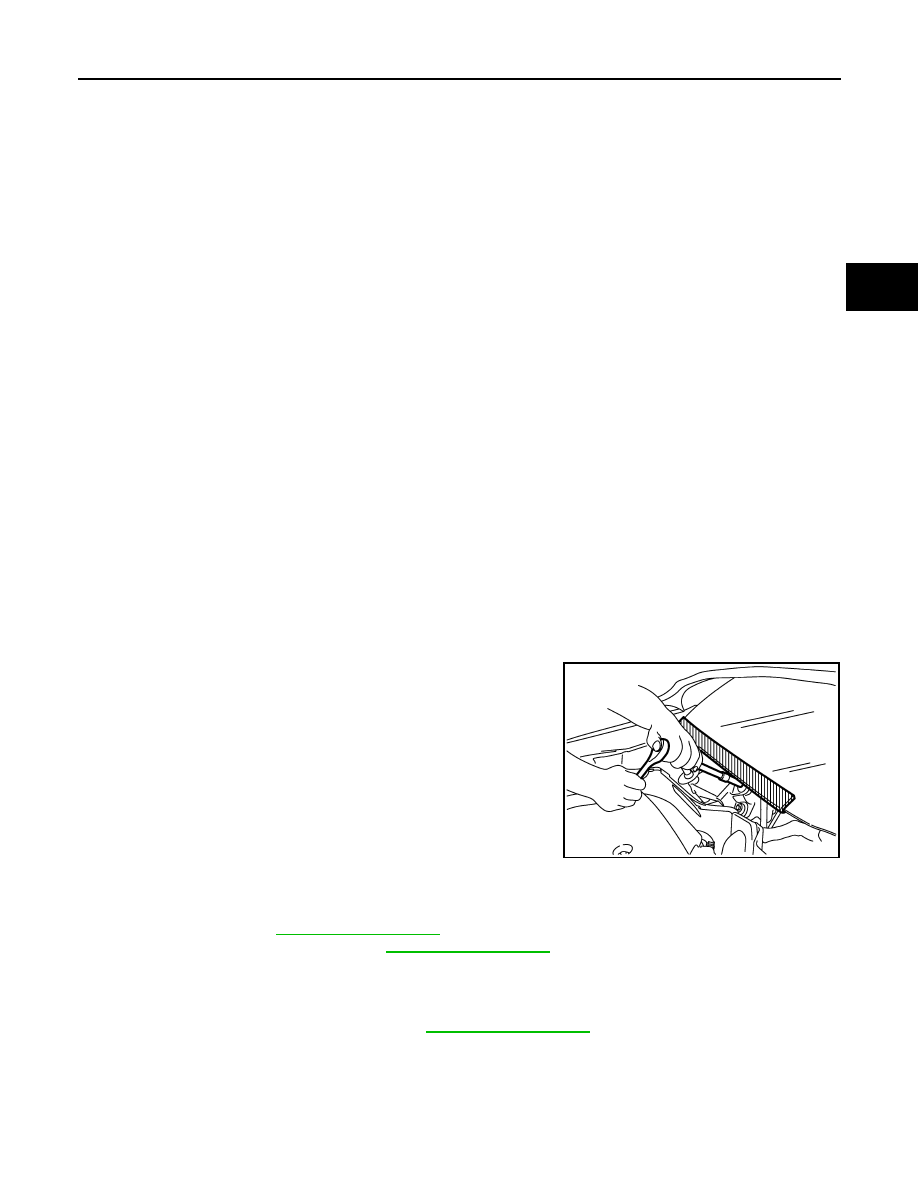

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009019576

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precaution for TCM and Transaxle Assembly Replacement

INFOID:0000000009019577

CAUTION:

• To replace TCM, refer to

TM-127, "Description"

.

• To replace transaxle assembly, refer to

TM-128, "Description"

.

Precaution for G Sensor Removal/Installation or Replacement

INFOID:0000000009019578

CAUTION:

To remove/install or replace G sensor, refer to

TM-130, "Description"

.
