Nissan Versa Note. Manual - part 784





TM-16

< SYMPTOM DIAGNOSIS >

[5MT: RS5F91R]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009417456

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If nec-

essary, repair or replace these parts.

Reference page

TM-17

TM-26

TM-21

TM-26

SUSPECTED PARTS
(Possible cause)

OIL

 (Oil

lev

el

 is

 lo

w)

OI

L (W

ro

ng

 oi

l)

OIL

 (Oil

lev

el

 is

 h

igh

)

GASKET

 (Damaged)

OIL SEAL (W

orn or

damaged)

O

-RING

 (W

orn

 or

da

ma

ge

d)

SHIF

T CONTROL L

INKAGE

(W

o

rn)





















SHIF

T FORK (W

orn)

G

EAR (W

o

rn o

r da

m

age

d)

BEAR

ING

 (W

orn

 o

da

ma

ge

d)

BAUL

K

 RING

 (W

orn

 o

r da

ma

ge

d)

INSE

R

T S

P

RING

 (Dam

ag

ed

)

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

2

Hard to shift or will not shift

1

1

2

3

3

Jumps out of gear

1

2

2

GEAR OIL

TM-17

< PERIODIC MAINTENANCE >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

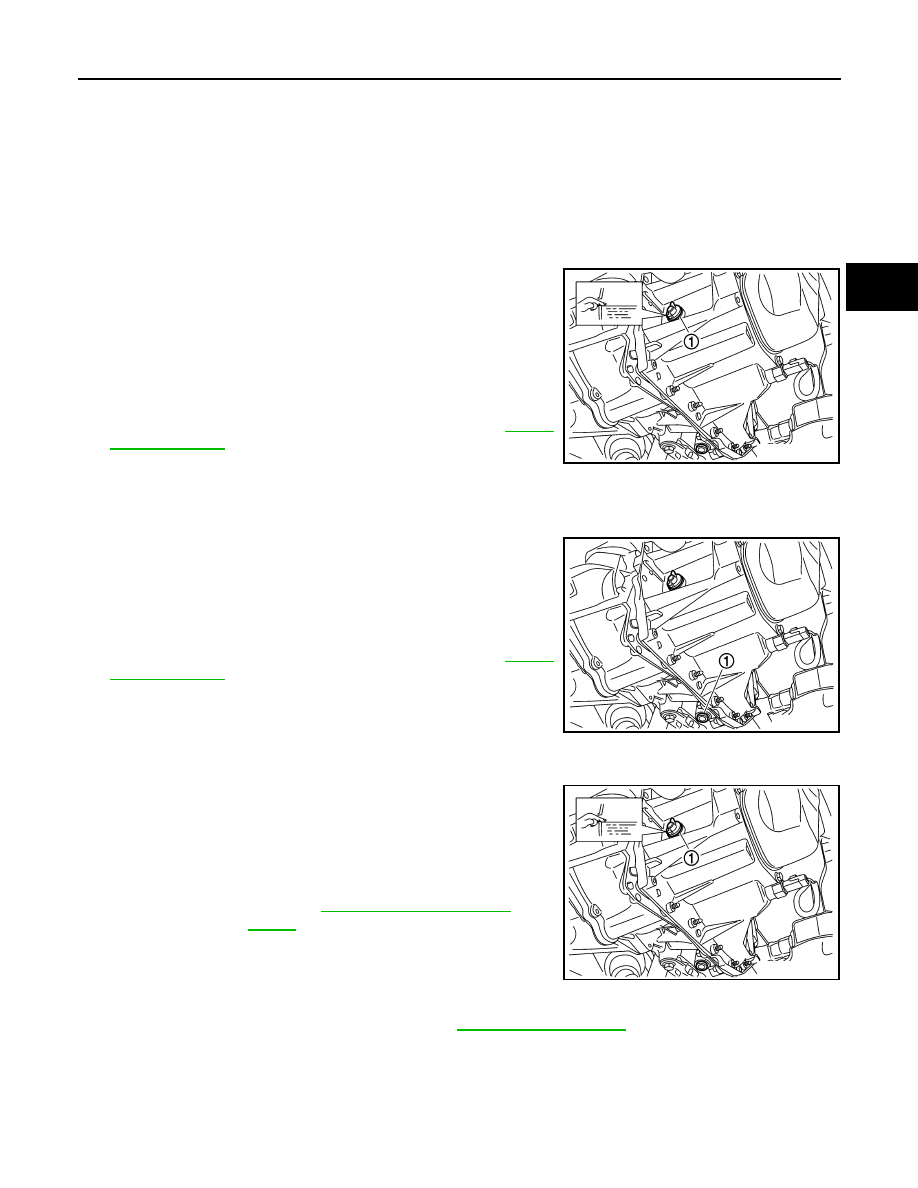

PERIODIC MAINTENANCE

GEAR OIL

Inspection

INFOID:0000000009417457

GEAR OIL LEAKS

Make sure that gear oil is not leaking from transaxle or around it.

GEAR OIL LEVEL

1. Remove filler plug (1) and gasket from transaxle case.
2. Check the gear oil level from filler plug hole as shown.

CAUTION:

Do not start engine while checking gear oil level.

3. Install a new gasket on filler plug and then install filler plug to

transaxle case.

CAUTION:

Do not reuse gasket.

4. Tighten filler plug to the specified torque. Refer to

TM-26,

"Exploded View"

.

Draining

INFOID:0000000009417458

1. Start engine and let it run to warm up transaxle.
2. Stop engine. Remove drain plug (1) and gasket, using suitable

tool and then drain gear oil.

3. Install a new gasket on drain plug (1) and install drain plug to

clutch housing, using suitable tool.

CAUTION:

Do not reuse gasket.

4. Tighten drain plug (1) to the specified torque. Refer to

TM-26,

"Exploded View"

.

Refilling

INFOID:0000000009417459

1. Remove filler plug (1) and gasket from transaxle case.
2. Fill with new gear oil until gear oil level reaches the specified

limit at filler plug hole as shown.

CAUTION:

Do not start engine while checking gear oil level.

3. Install a new gasket on filler plug and then install filler plug to

transaxle case.

CAUTION:

Do not reuse gasket.

4. Tighten filler plug to the specified torque. Refer to

TM-26, "Exploded View"

.

SCIA7119E

PCIB1504E

Oil capacity
and viscosity

: Refer to

MA-11, "Fluids and Lubri-

cants"

.

SCIA7119E

TM-18

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

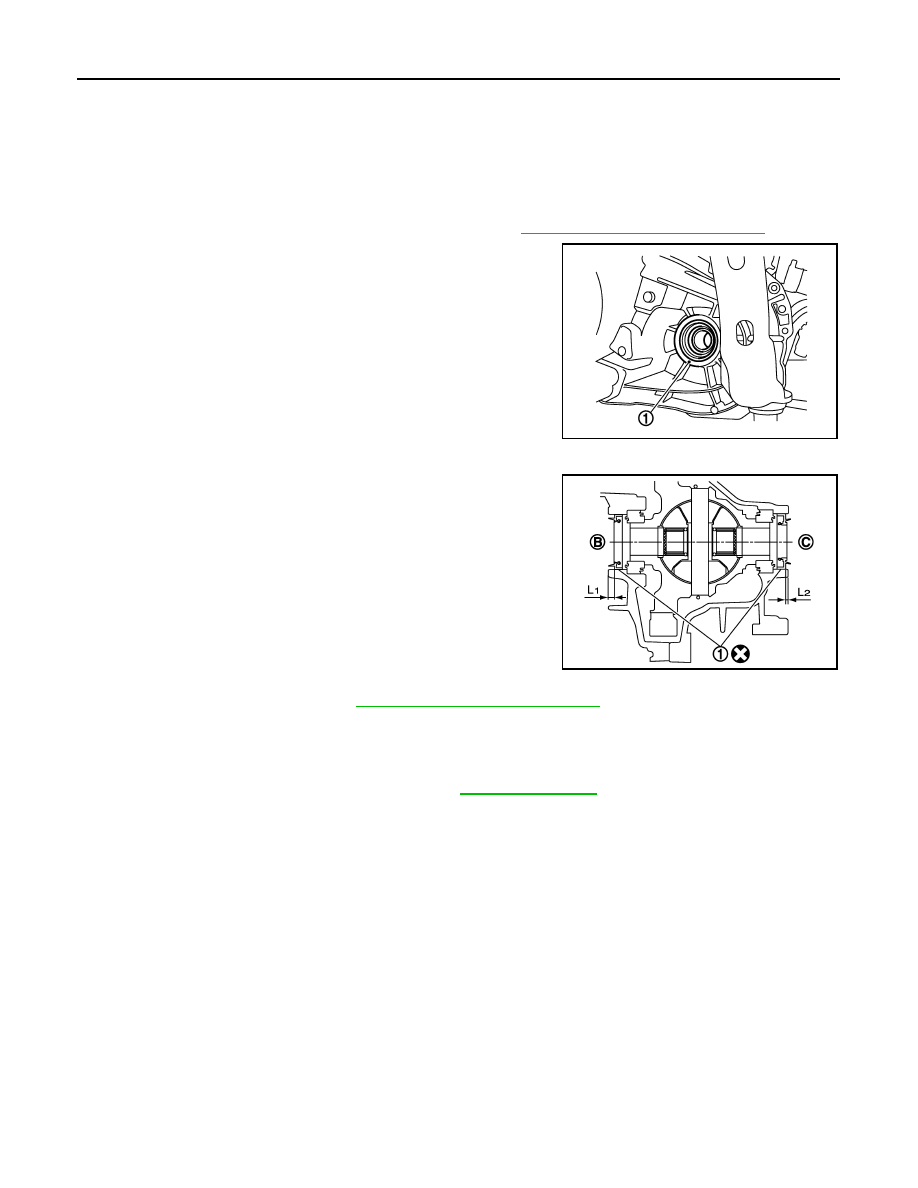

SIDE OIL SEAL

REMOVAL AND INSTALLATION

SIDE OIL SEAL

Removal and Installation

INFOID:0000000009417460

REMOVAL

1. Remove front drive shaft from transaxle assembly. Refer to

FAX-19, "Removal and Installation"

.

2. Remove differential side oil seal (1) using suitable tool.

CAUTION:

Do not damage transaxle case and clutch housing.

INSTALLATION

1. Install differential side oil seal (1) to transaxle case side (B) and

clutch housing side (C) using Tool.

CAUTION:

• Do not reuse differential side oil seal.

• Do not tilt differential side oil seal.

• Do not damage clutch housing and transaxle case.

2. Install the front drive shaft. Refer to

FAX-19, "Removal and Installation"

Inspection

INFOID:0000000009417461

INSPECTION AFTER INSTALLATION

Check the gear oil level and for gear oil leaks. Refer to

TM-17, "Inspection"

.

JPDIC0118ZZ

Dimension (L

1

)

: 5.7 – 6.3 mm (0.224 – 0.248 in)

Dimension (L

2)

: 2.4 – 3.0 mm (0.094 – 0.118 in)

Tool number

: KV32500QAA ( — )

JPDIC0401ZZ

POSITION SWITCH

TM-19

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

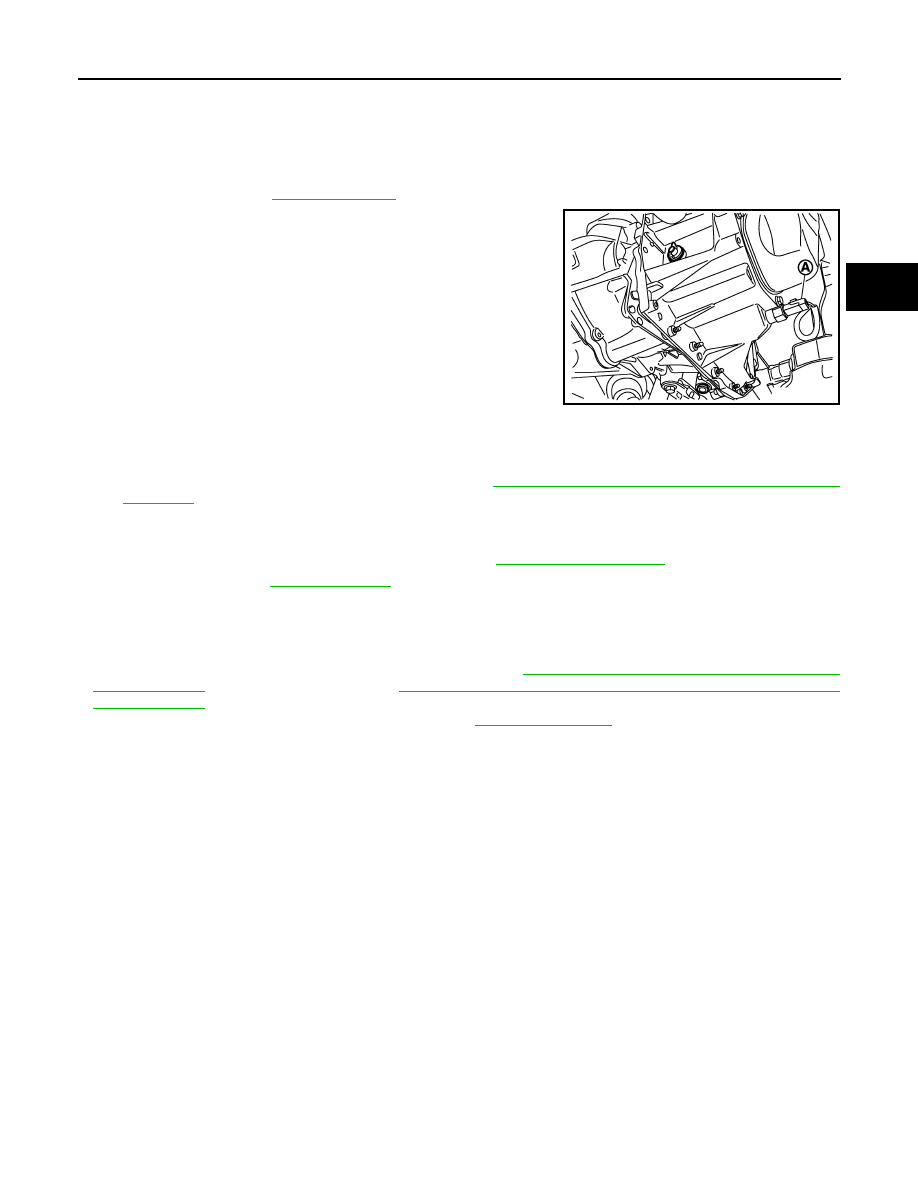

POSITION SWITCH

Removal and Installation

INFOID:0000000009417462

REMOVAL

1. Drain gear oil. Refer to

TM-17, "Draining"

.

2. Disconnect the harness connector (A) from position switch.
3. Remove position switch from transaxle case.

INSTALLATION

1. Apply recommended sealant to threads of position switch.

CAUTION:

• Use Genuine Silicone RTV or equivalent. Refer to

GI-22, "Recommended Chemical Products and

Sealants"

.

• Remove old sealant and gear oil adhering to threads.

2. Install position switch to transaxle case.
3. Tighten position switch to the specified torque. Refer to

TM-26, "Exploded View"

.

4. Refill gear oil. Refer to

TM-17, "Refilling"

.

Inspection

INFOID:0000000009417463

INSPECTION AFTER INSTALLATION

• Check continuity between position switch terminals. Refer to

TM-15, "BACK-UP LAMP SWITCH : Compo-

nent Inspection"

 (Back-up lamp switch) and

TM-15, "PARK/NEUTRAL POSITION (PNP) SWITCH : Compo-

nent Inspection"

 (PNP switch).

• Check the gear oil level and for gear oil leaks. Refer to

TM-17, "Inspection"

.

JPDIC0733ZZ
