Nissan Versa Note. Manual - part 783





TM-12

< PREPARATION >

[5MT: RS5F91R]

PREPARATION

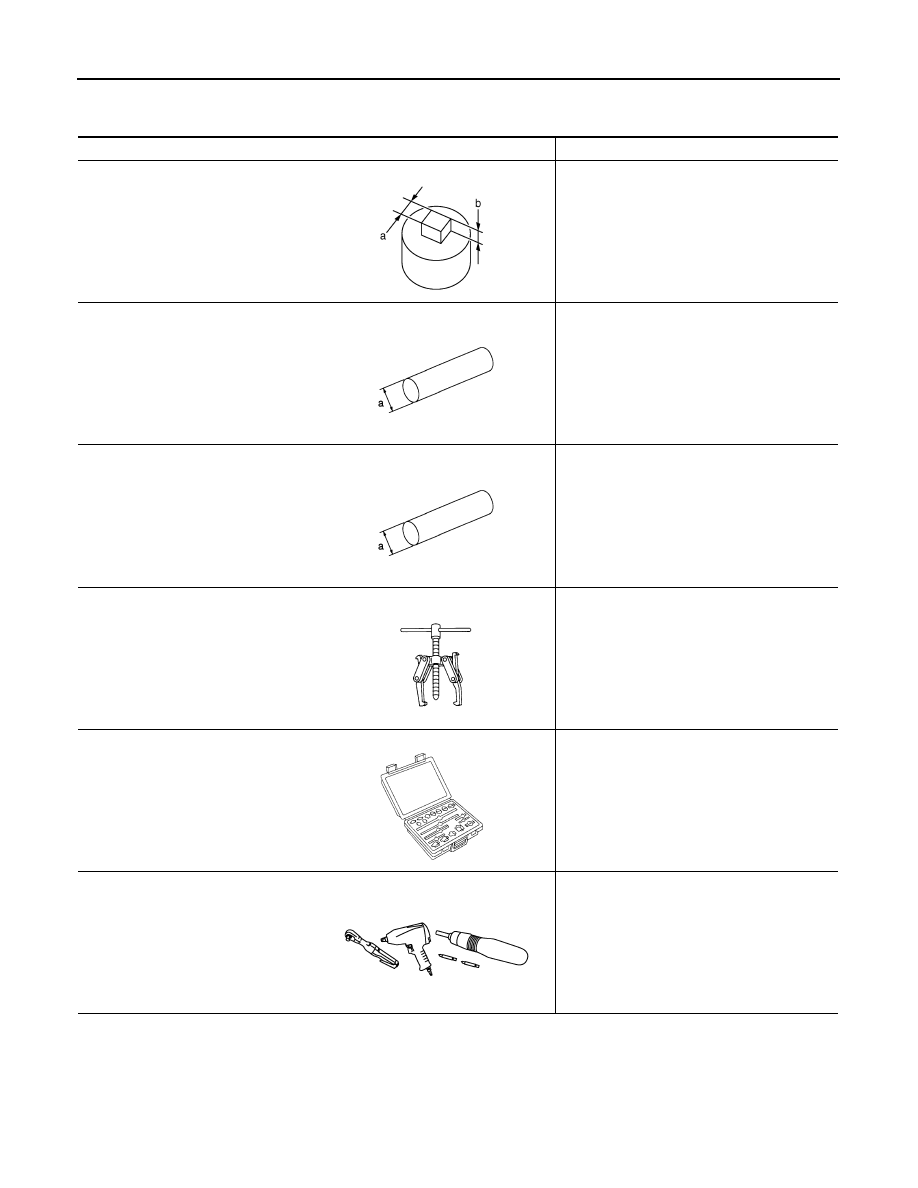

Commercial Service Tools

INFOID:0000000009417451

Tool name

Description

Socket

Removing and installing drain plug
a: 8 mm (0.31 in)
b: 5 mm (0.20 in)

Drift

Removing input shaft front bearing
a: 38 mm (1.50 in) dia.

Drift

Installing bushing
a: 14.5 mm (0.571 in) dia.

Puller

• Removing 5th-reverse synchronizer hub
• Removing differential side bearing

Bearing remover

Removing bushing

Power tool

Loosening nuts, screws and bolts

PCIB1776E

S-NT063

S-NT063

NT077

S-NT134

PIIB1407E

STRUCTURE AND OPERATION

TM-13

< SYSTEM DESCRIPTION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

STRUCTURE AND OPERATION

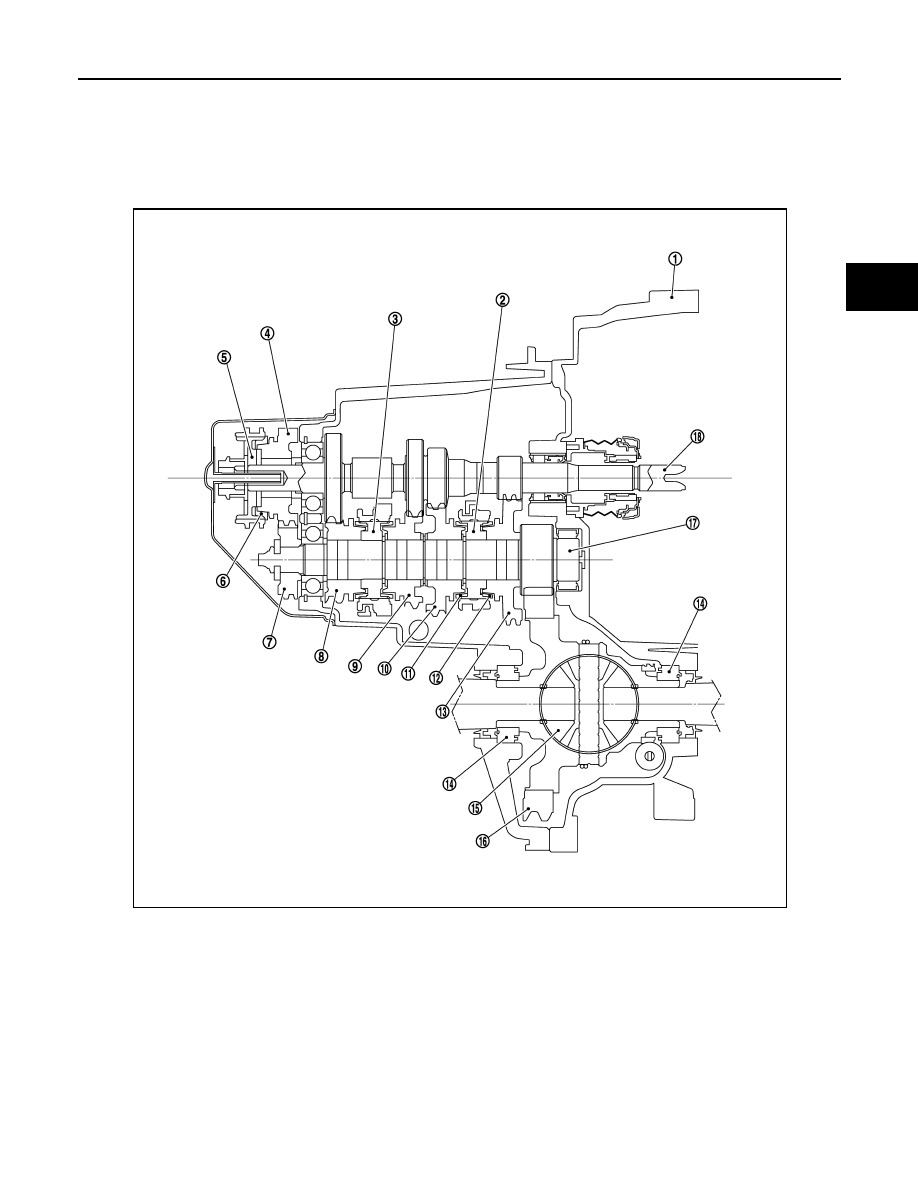

Sectional View

INFOID:0000000009417452

System Description

INFOID:0000000009417453

DOUBLE-CONE SYNCHRONIZER

1.

Clutch housing

2.

1st-2nd synchronizer hub assembly 3.

3rd-4th synchronizer hub assembly

4.

5th input gear

5.

5th-reverse synchronizer hub as-
sembly

6.

5th-reverse baulk ring

7.

5th main gear

8.

4th main gear

9.

3rd main gear

10. 2nd main gear

11. 2nd double-cone synchronizer

12. 1st double-cone synchronizer

13. 1st main gear

14. Differential side bearing

15. Differential

16. Final gear

17. Mainshaft

18. Input shaft

JPDIC0580ZZ

TM-14

< SYSTEM DESCRIPTION >

[5MT: RS5F91R]

STRUCTURE AND OPERATION

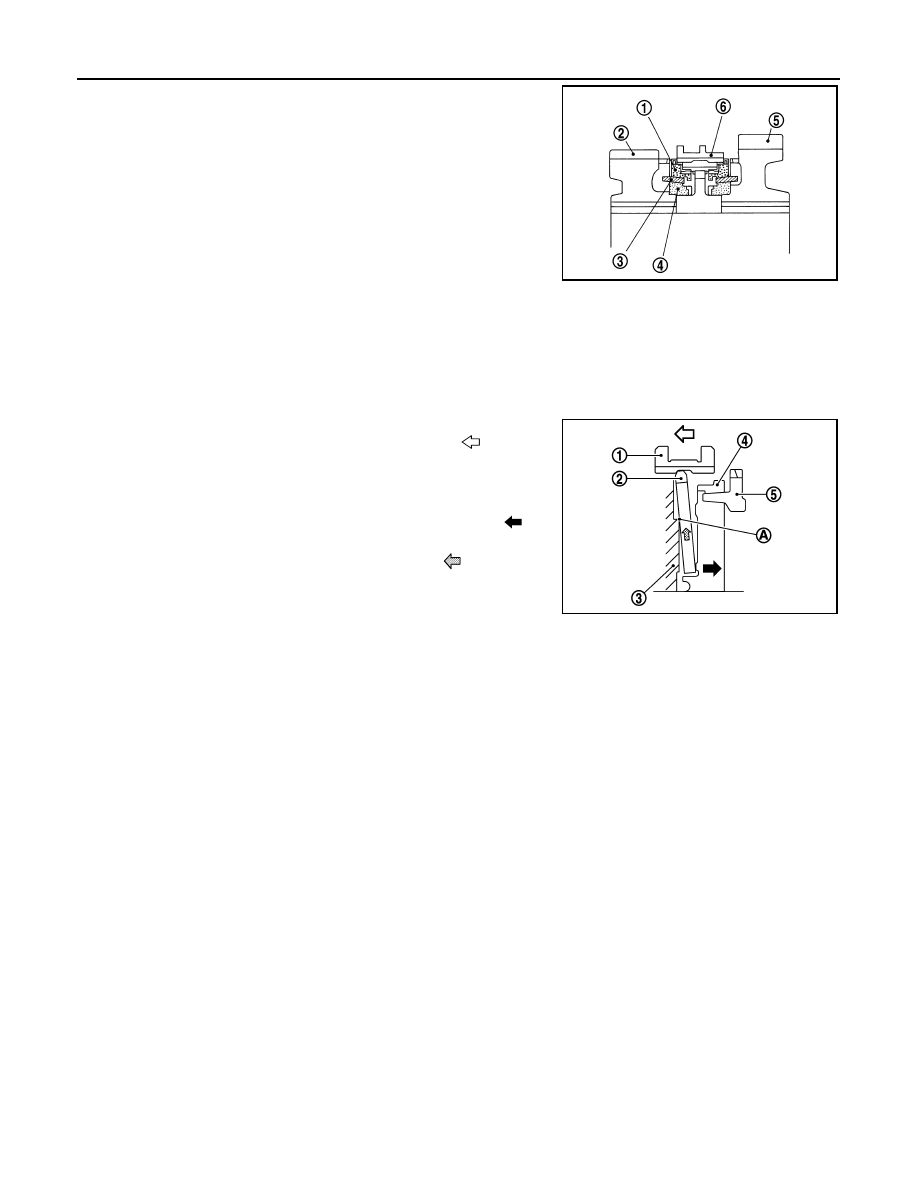

Double-cone synchronizers are adopted for 1st and 2nd gears to

reduce operating force of the shift selector.

REVERSE GEAR NOISE PREVENTION FUNCTION (REVERSE BRAKE)

Description

Soon after the clutch is disengaged, the input shaft is still rotating due to inertia. This may cause a gear noise

when the shift selector is moved to reverse position. The reverse gear noise prevention function stops the

rotation of the input shaft and enables smooth gear shifting when the reverse gear is selected.

Operation Principle

1. When the shift selector is moved to reverse position, 5th-reverse

coupling sleeve (1) slides in the reverse direction. (

)

2. Synchronizer levers (2) with support point (A) at 5th-reverse

synchronizer hub (3) presses 5th-reverse baulk ring (4). (

)

3. Friction that is generated at 5-reverse baulk ring presses syn-

chronizer lever on 5th-reverse coupling sleeve. ( )

4. 5th-reverse coupling sleeve that is pressed by synchronizer

lever stops the rotation of input shaft.

(1)

: Outer baulk ring

(2)

: 2nd main gear

(3)

: Synchronizer cone

(4)

: Inner baulk ring

(5)

: 1st main gear

(6)

: 1st-2nd coupling sleeve

SCIA7117E

(5)

: 5th input gear

JPDIC0415ZZ

POSITION SWITCH

TM-15

< DTC/CIRCUIT DIAGNOSIS >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DTC/CIRCUIT DIAGNOSIS

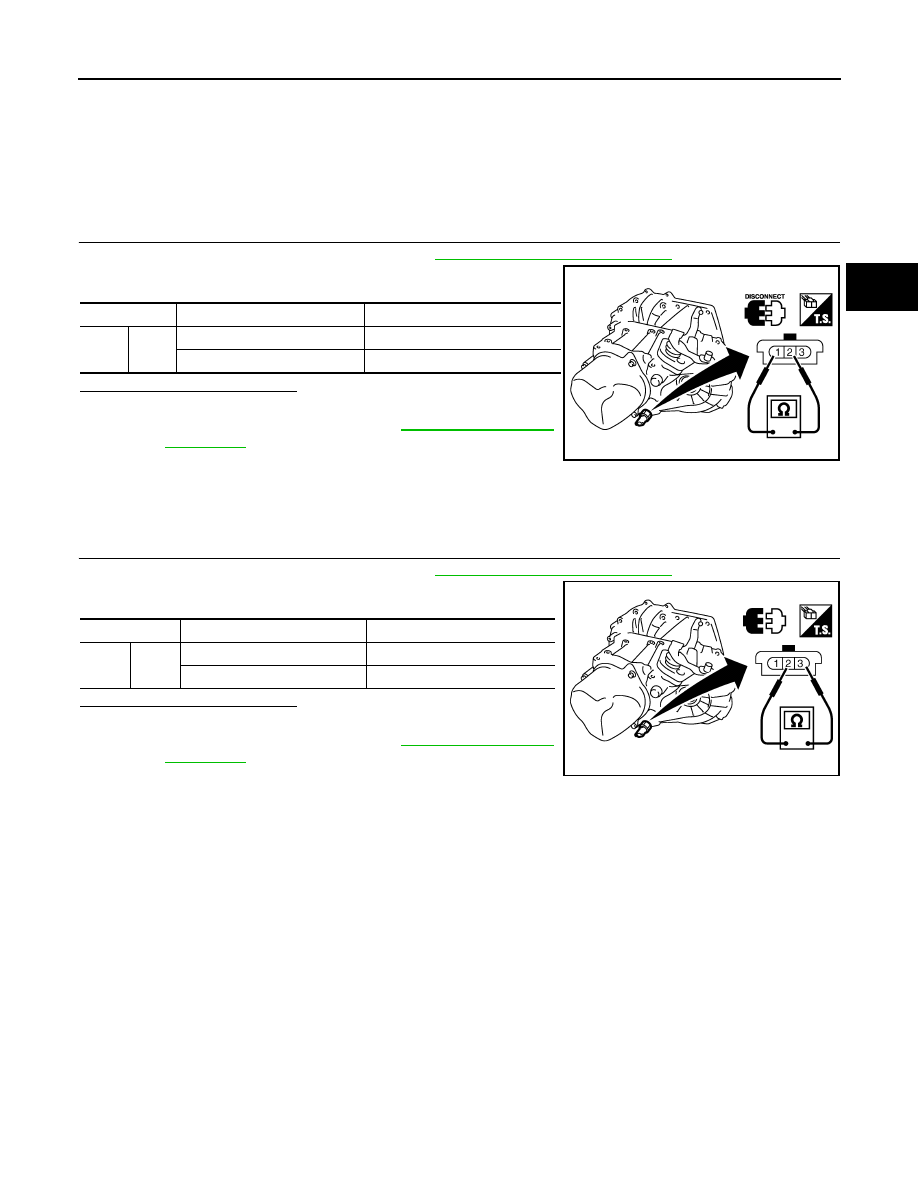

POSITION SWITCH

BACK-UP LAMP SWITCH
BACK-UP LAMP SWITCH : Component Inspection

INFOID:0000000009417454

1.

CHECK BACK-UP LAMP SWITCH

1. Disconnect position switch connector. Refer to

TM-19, "Removal and Installation"

.

2. Check continuity between position switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-19, "Removal and

Installation"

PARK/NEUTRAL POSITION (PNP) SWITCH
PARK/NEUTRAL POSITION (PNP) SWITCH : Component Inspection

INFOID:0000000009417455

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

1. Disconnect position switch connector. Refer to

TM-19, "Removal and Installation"

.

2. Check continuity between position switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-19, "Removal and

Installation"

.

Terminals

Condition

Continuity

1

2

Reverse gear position

Yes

Except reverse gear position

No

MCIA0157E

Terminals

Condition

Continuity

2

3

Neutral gear position

Yes

Except neutral gear position

No

JPDIC0092ZZ
