STR-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

STARTING SYSTEM (WITHOUT INTELLIGENT KEY)

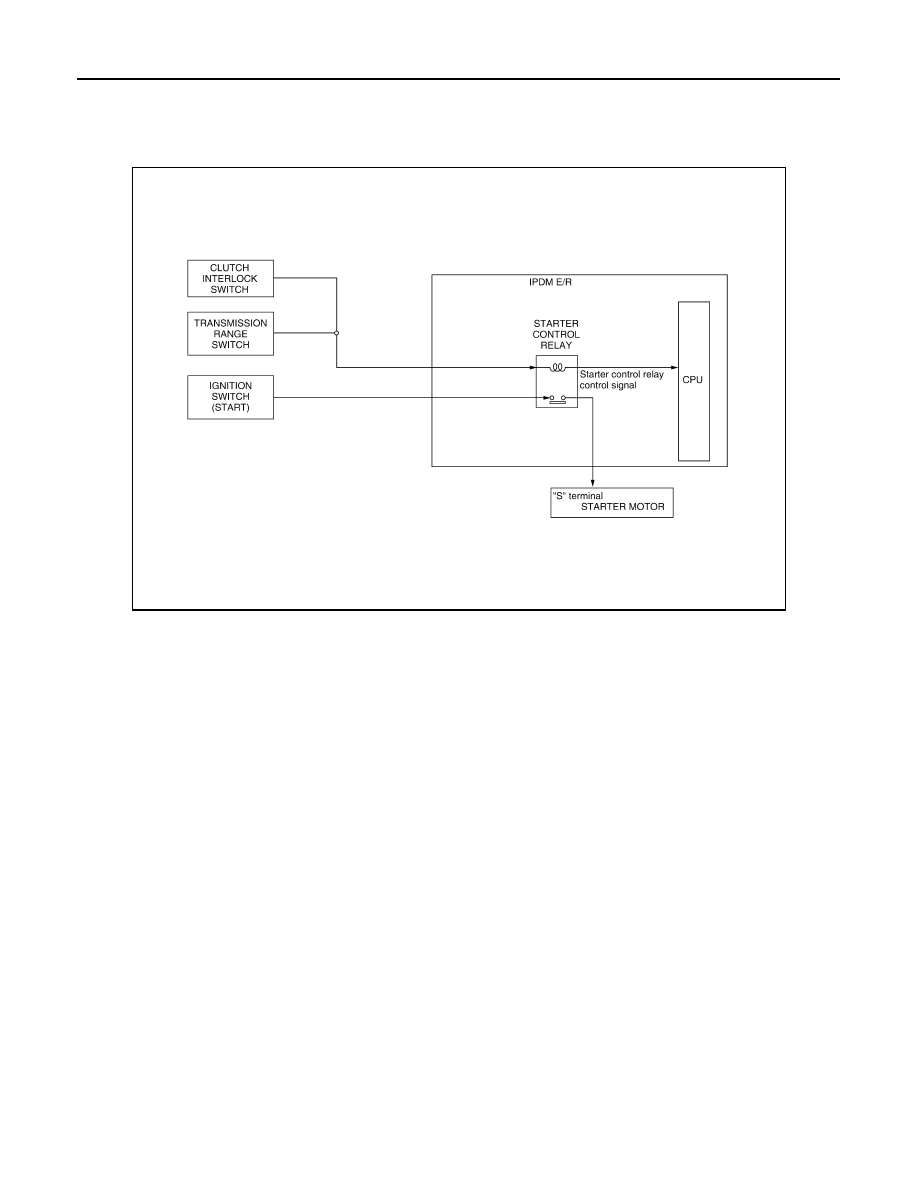

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : System Diagram

INFOID:0000000009693715

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : System Description

INFOID:0000000009693716

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The

starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

STARTING SYSTEM (WITH INTELLIGENT KEY)

ALBIA1161GB

SYSTEM

STR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

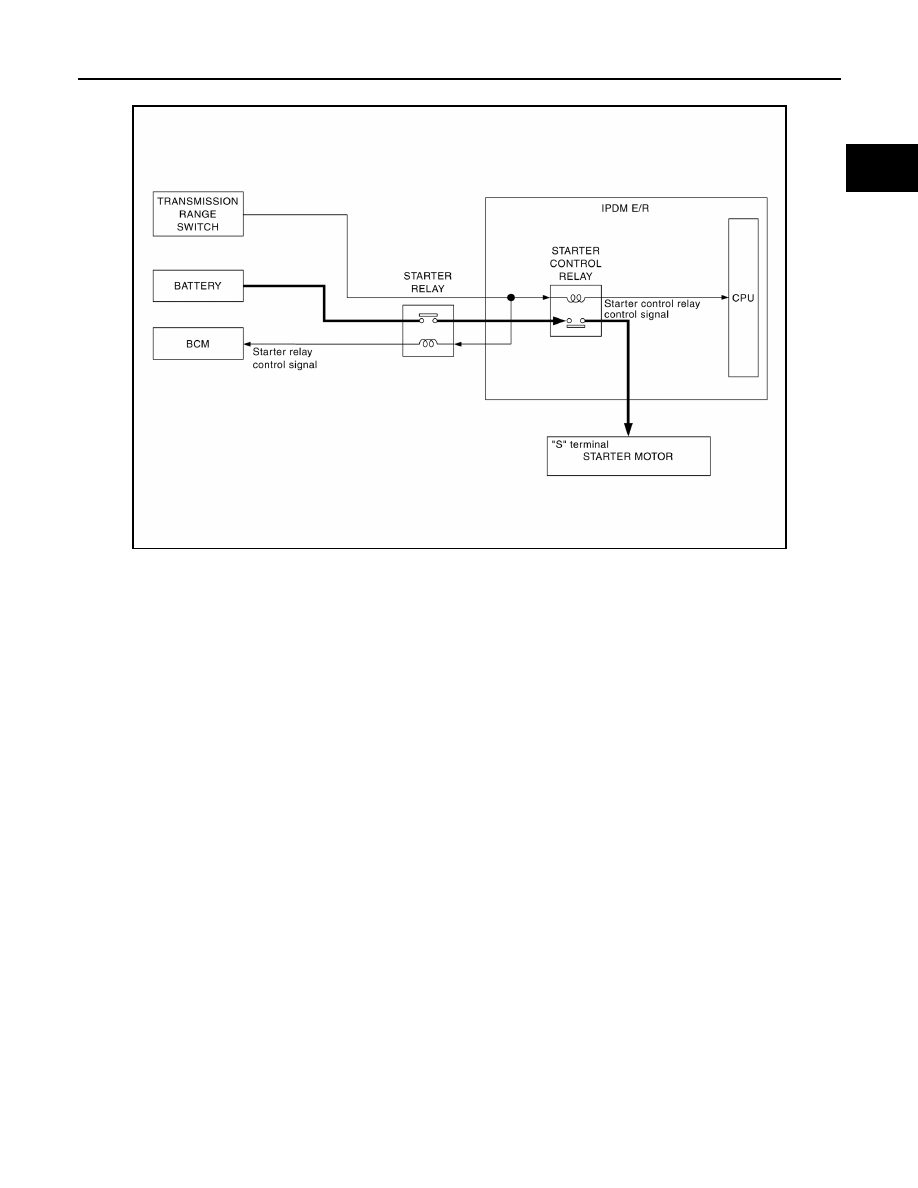

STARTING SYSTEM (WITH INTELLIGENT KEY) : System Diagram

INFOID:0000000009693717

STARTING SYSTEM (WITH INTELLIGENT KEY) : System Description

INFOID:0000000009693718

• When the selector lever is in the P or N position, power is supplied to starter relay and starter control relay by

the transmission range switch. The BCM and IPDM E/R (CPU) will detect the selector lever position by the

input signal.

• When the starter operating condition is met, the IPDM E/R will turn the starter control relay ON by starter

control relay control signal.

• When engine cranking condition is met, the BCM turns ON the starter relay by starter control relay signal.

• Then battery power is supplied to starter motor (“S” terminal) through the starter control relay and starter

relay.

ALBIA0984GB

STR-10

< WIRING DIAGRAM >

STARTING SYSTEM

WIRING DIAGRAM

STARTING SYSTEM

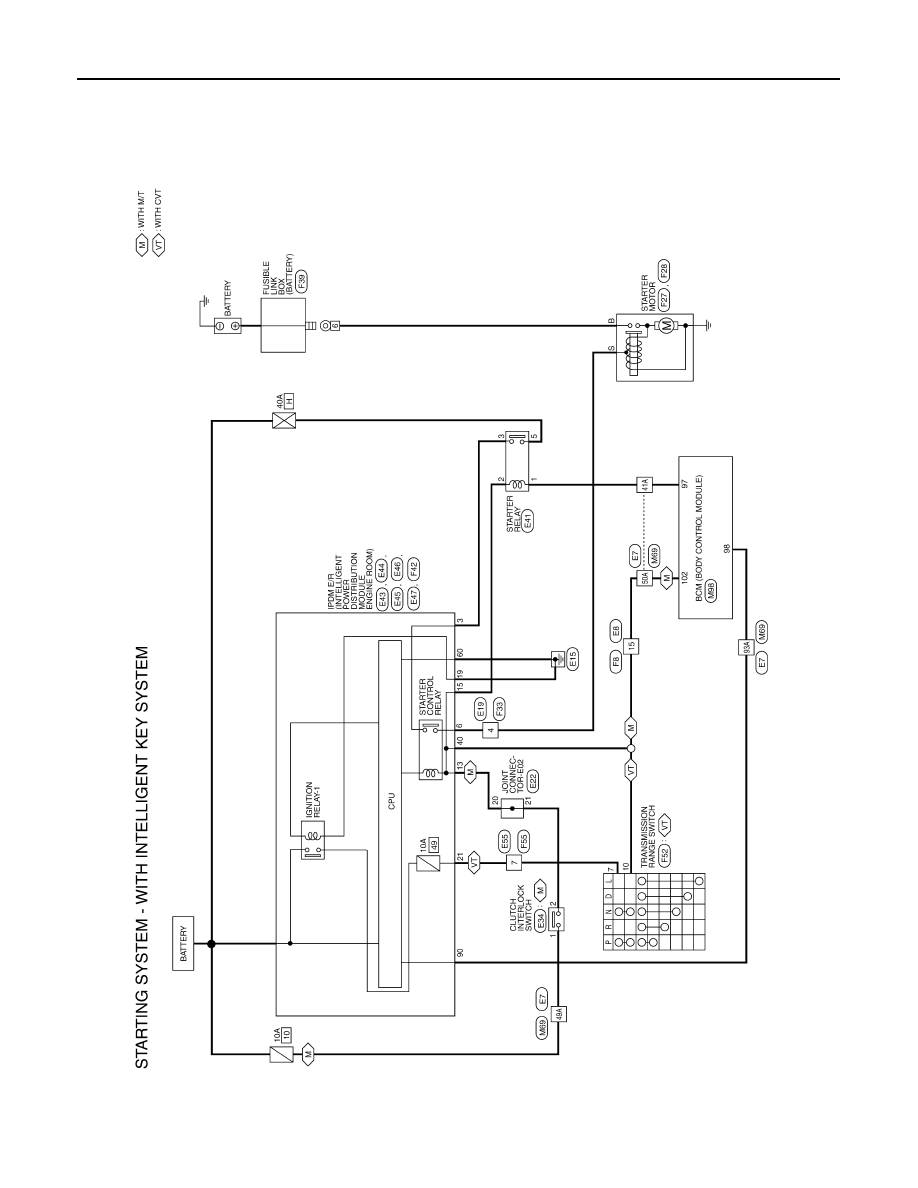

Wiring Diagram - With Intelligent Key System

INFOID:0000000009693719

AABWA0826GB

STARTING SYSTEM

STR-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

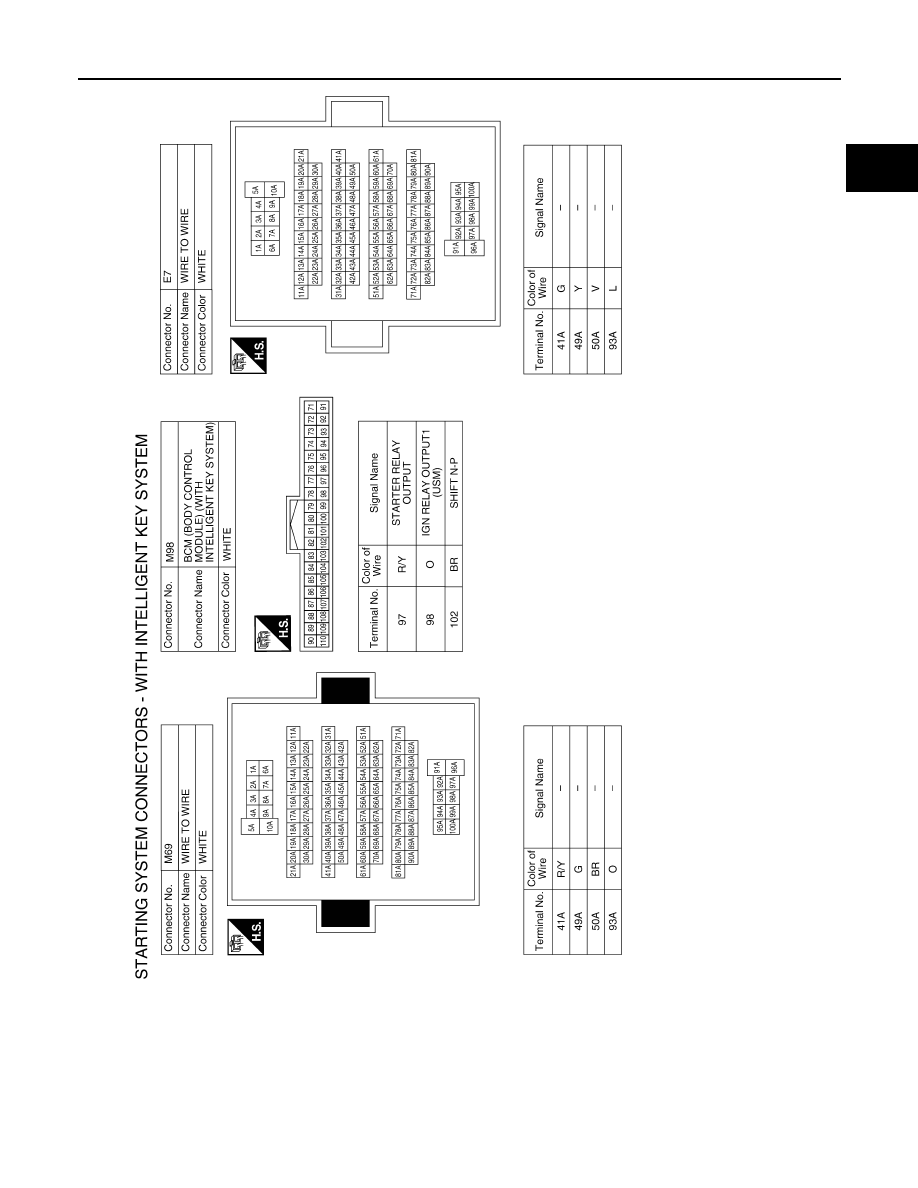

AABIA1107GB
