STR-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

STARTING SYSTEM (WITHOUT INTELLIGENT KEY)

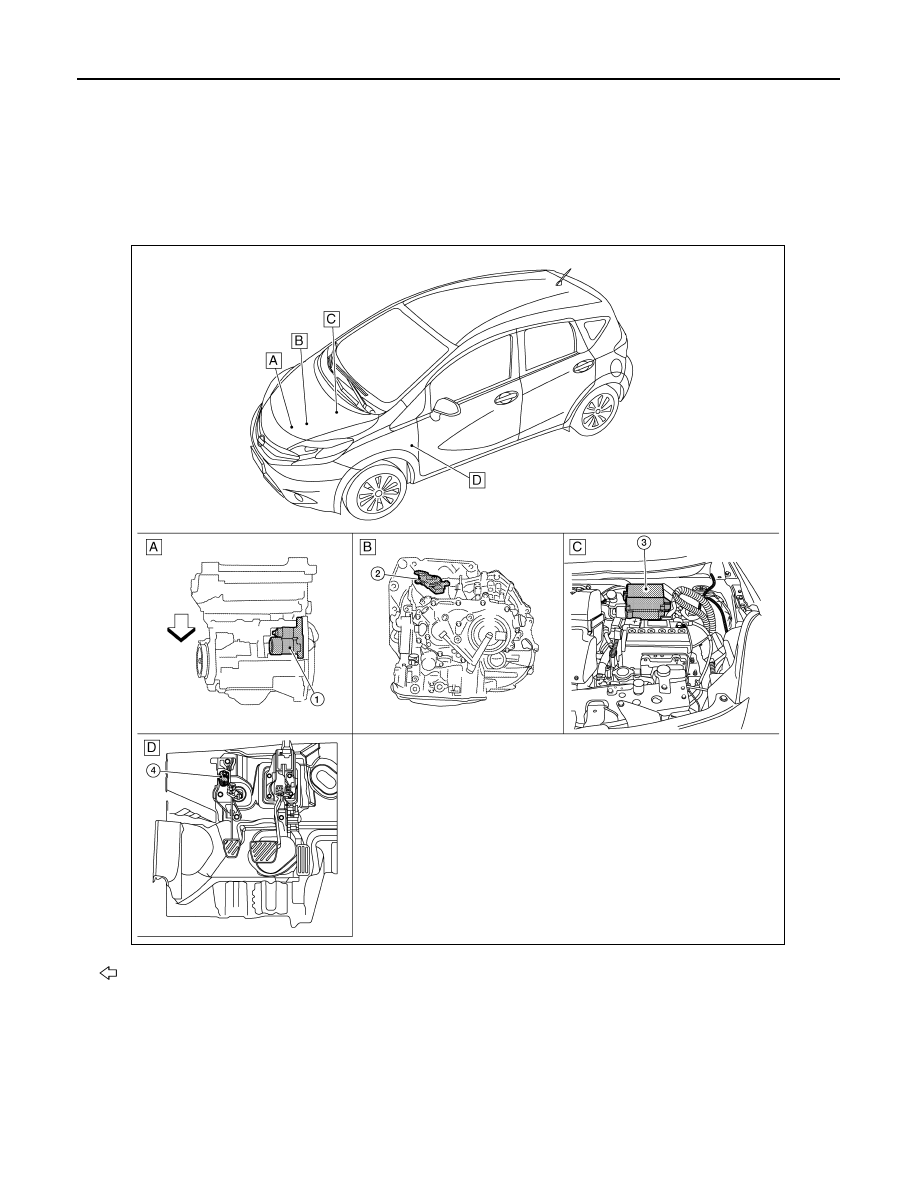

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : Component Parts Location

INFOID:0000000009693711

:Vehicle front

A.

View with engine removed.

B.

View with CVT removed.

C.

Left side of engine compartment.

D.

Clutch pedal area.

ALBIA1160ZZ

COMPONENT PARTS

STR-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

STARTING SYSTEM (WITHOUT INTELLIGENT KEY) : Component Description

INFOID:0000000009693712

STARTING SYSTEM (WITH INTELLIGENT KEY)

No.

Component part

Description

1.

Starter motor

The starter motor plunger closes and the motor is supplied
with battery power, which in turn cranks the engine, when the
S terminal is supplied with electric power.

2.

Transmission range switch (CVT Models)

Supplies power to the starter relay (inside IPDM E/R) when
the selector lever is shifted into the P or N position.

3.

IPDM E/R

CPU inside IPDM E/R operates the starter relay when the ig-
nition switch is in the start position.

4.

Clutch interlock switch (M/T Models)

Clutch interlock switch supplies power to the coil side of the
starter relay when the clutch pedal is depressed to crank the
engine.

STR-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

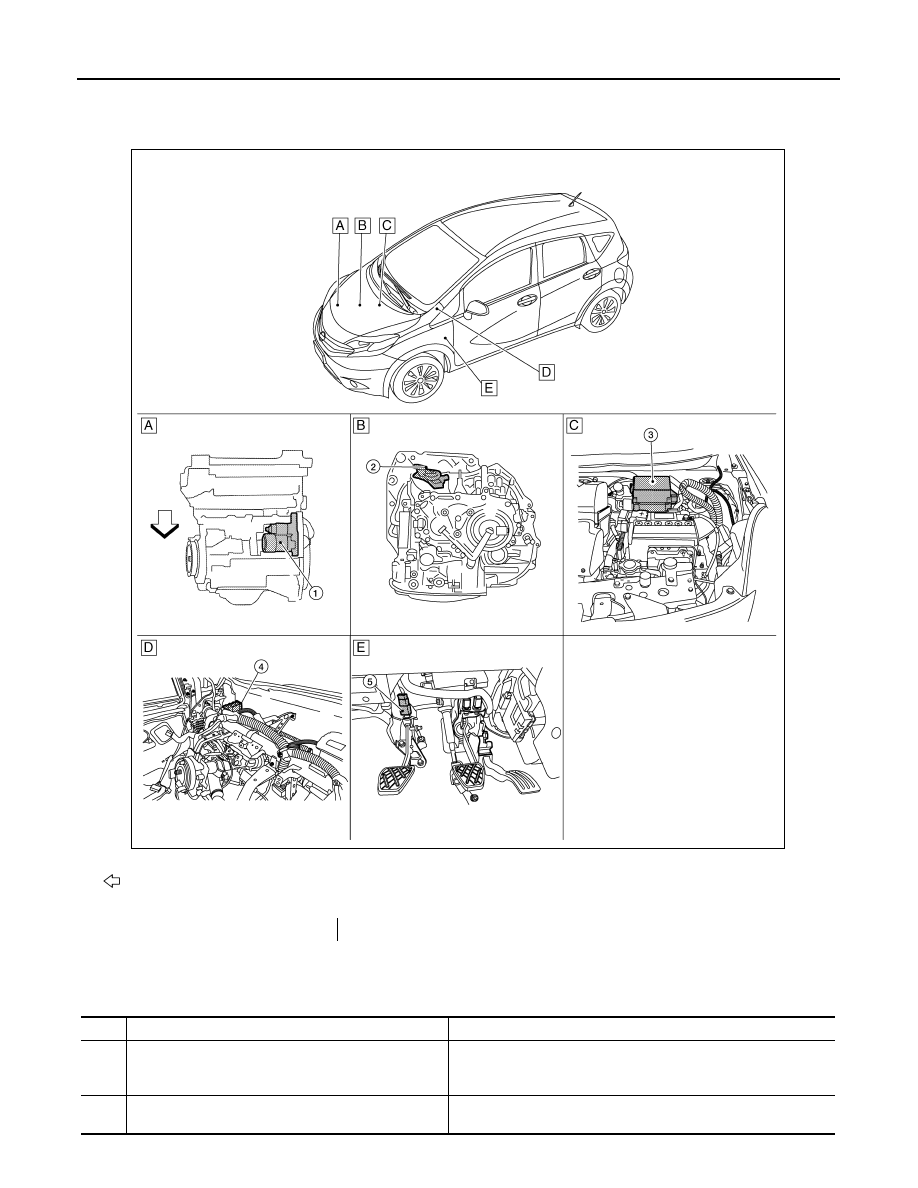

STARTING SYSTEM (WITH INTELLIGENT KEY) : Component Parts Location

INFOID:0000000009693713

STARTING SYSTEM (WITH INTELLIGENT KEY) : Component Description

INFOID:0000000009693714

Vehicle front

A.

View with engine removed.

B.

View with CVT removed.

C.

Left side of engine compartment.

D.

Left side of instrument panel.

E.

Clutch pedal area.

AWBIA1588ZZ

No.

                                         Component part

                                             Description

1.

Starter motor

The starter motor plunger closes and the motor is supplied with bat-
tery power, which in turn cranks the engine, when the S terminal is
supplied with electric power.

2.

Transmission range switch

Supplies power to the starter relay and starter control relay (inside
IPDM E/R) when the selector lever is shifted into the P or N position.

COMPONENT PARTS

STR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

3.

IPDM E/R

CPU inside IPDM E/R operates the starter relay when the ignition
switch is in the start position.

4.

BCM

BCM controls the starter relay inside the IPDM E/R.

5.

Clutch interlock switch (M/T)

Clutch interlock switch supplies power to the coil side of the starter
relay when the clutch pedal is depressed to crank the engine.
