Nissan Versa Note. Manual - part 740

DIAGNOSIS SENSOR UNIT

SRC-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

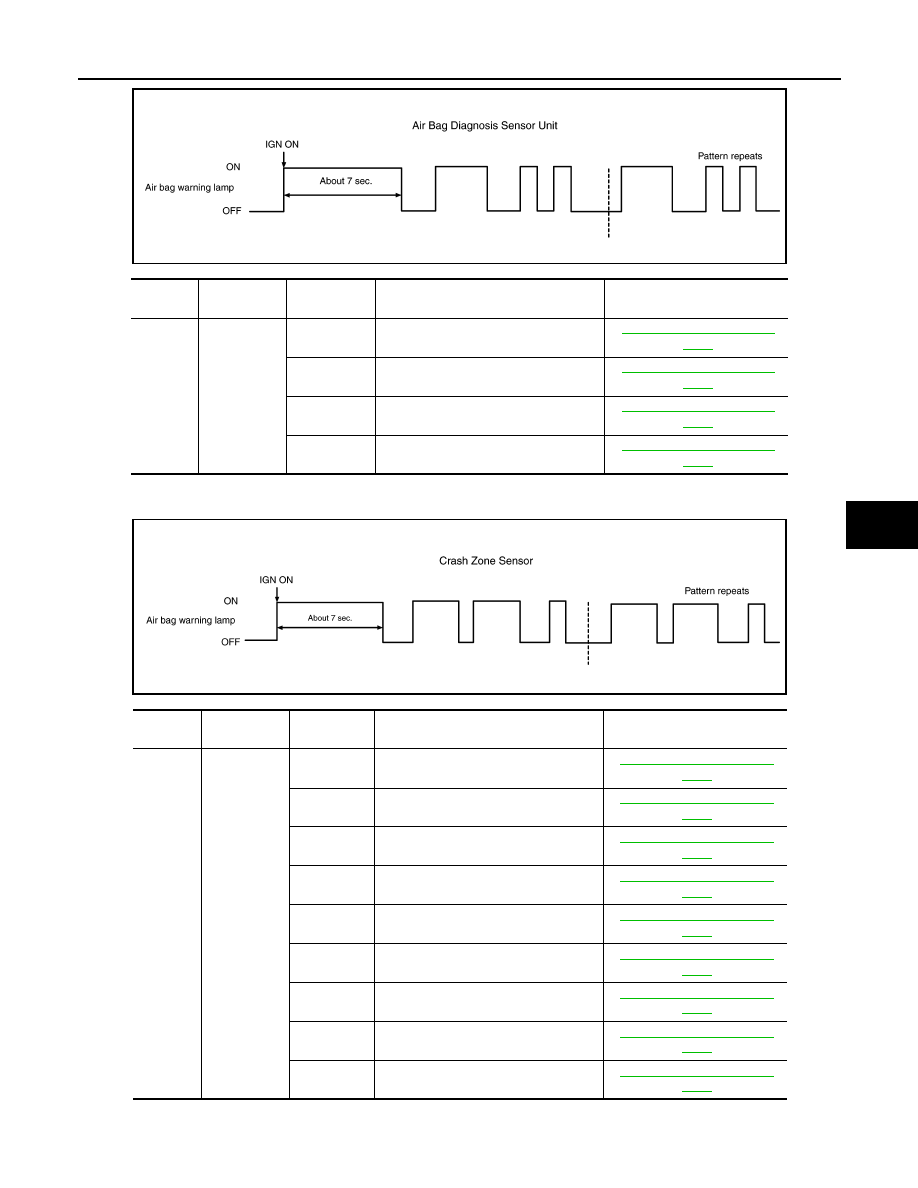

Sensor subsystem

AWHIA0432GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

1

3

1

Collision detection

SRC-91, "Diagnosis Proce-

dure"

2

Air bag diagnosis sensor unit

SRC-83, "Diagnosis Proce-

dure"

3

Passenger air bag OFF indicator

SRC-85, "Diagnosis Proce-

dure"

4

Occupant classification system

SRC-81, "Diagnosis Proce-

dure"

AWHIA0433GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

2

3

1

Crash zone sensor

SRC-62, "Diagnosis Proce-

dure"

2

Front side air bag satellite sensor LH

SRC-69, "Diagnosis Proce-

dure"

3

Front side air bag satellite sensor RH

SRC-72, "Diagnosis Proce-

dure"

4

Rear side air bag satellite sensor LH

SRC-75, "Diagnosis Proce-

dure"

5

Rear side air bag satellite sensor RH

SRC-78, "Diagnosis Proce-

dure"

6

Front door satellite sensor LH

SRC-64, "Diagnosis Proce-

dure"

7

Front door satellite sensor RH

SRC-66, "Diagnosis Proce-

dure"

8

Seat belt buckle switch LH

SRC-58, "Diagnosis Proce-

dure"

9

Seat belt buckle switch RH

SRC-60, "Diagnosis Proce-

dure"

SRC-24

< WIRING DIAGRAM >

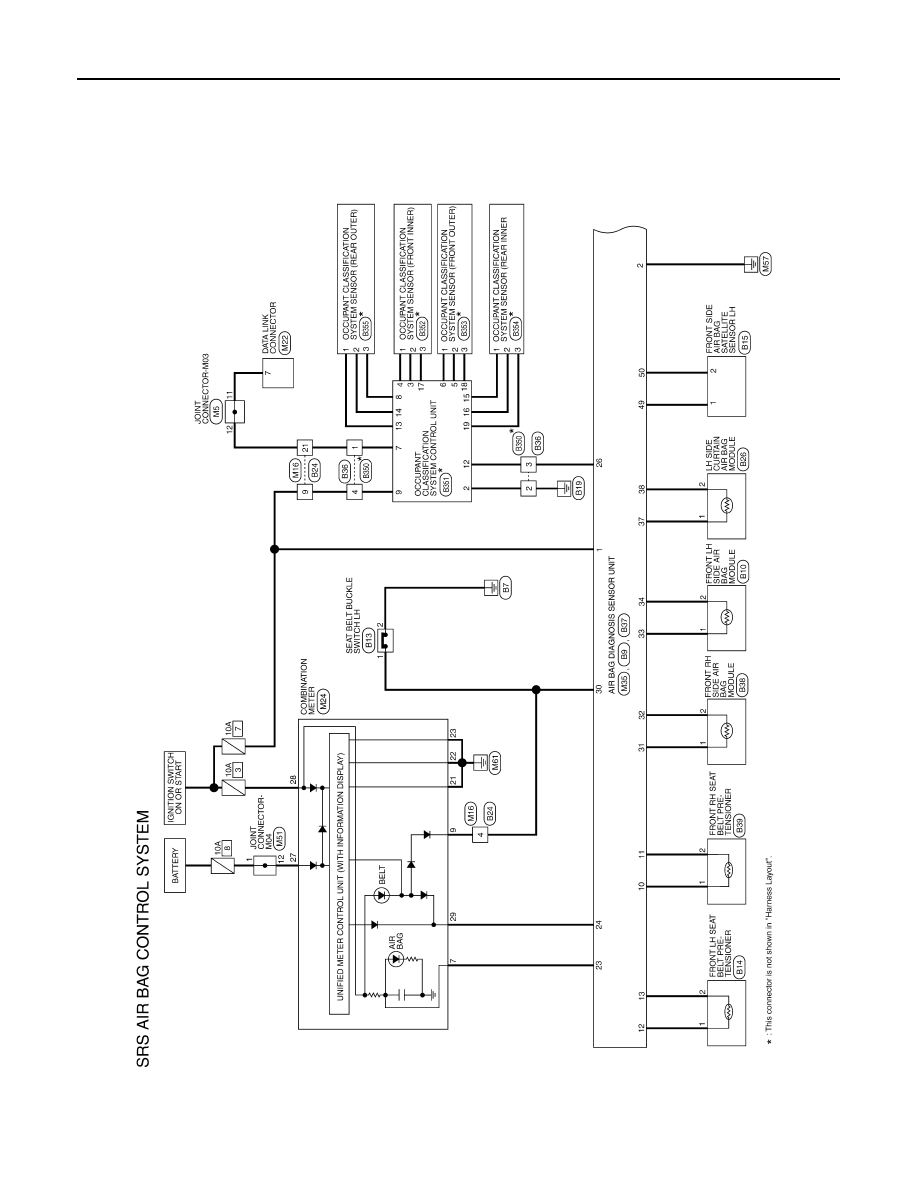

SRS AIR BAG SYSTEM

WIRING DIAGRAM

SRS AIR BAG SYSTEM

Wiring Diagram

INFOID:0000000008969311

AAHWA0064GB

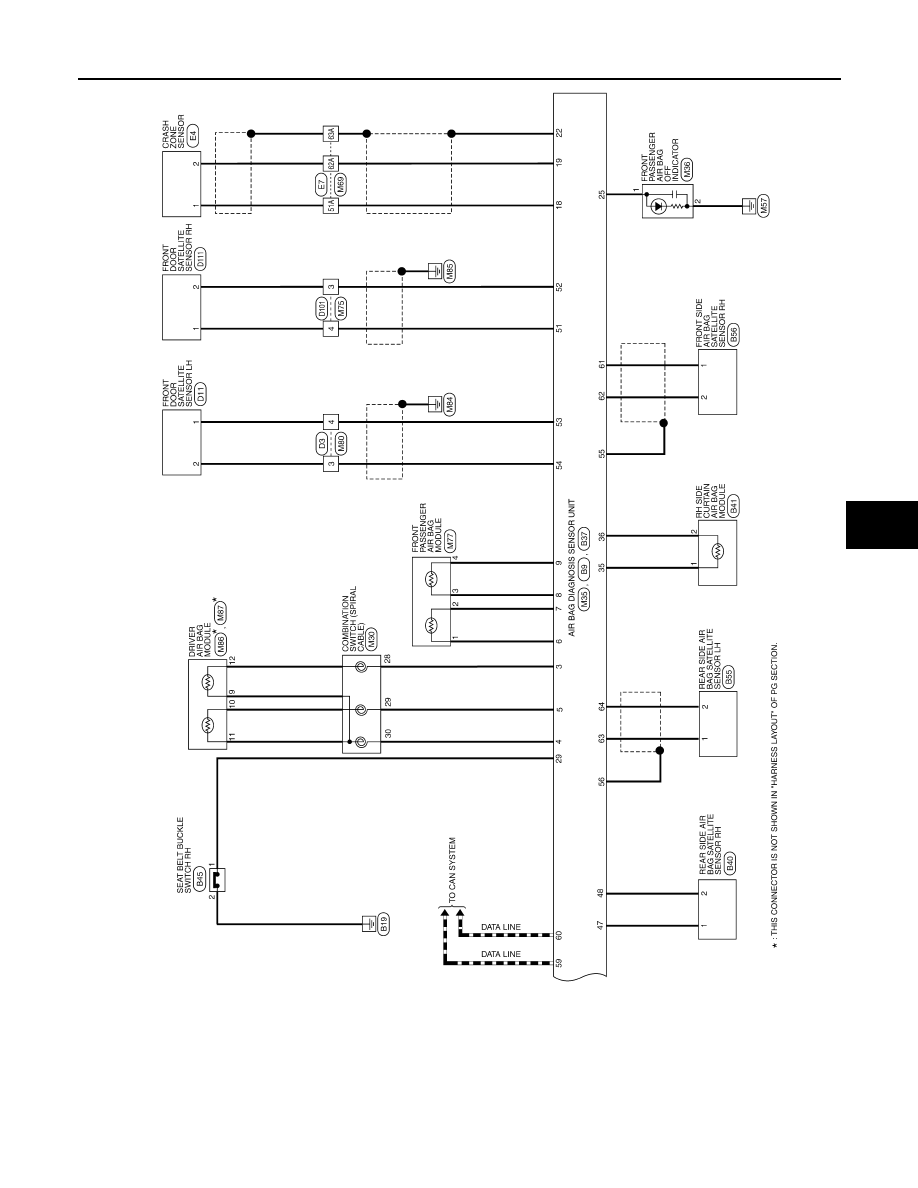

SRS AIR BAG SYSTEM

SRC-25

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

AAHWA0065GB

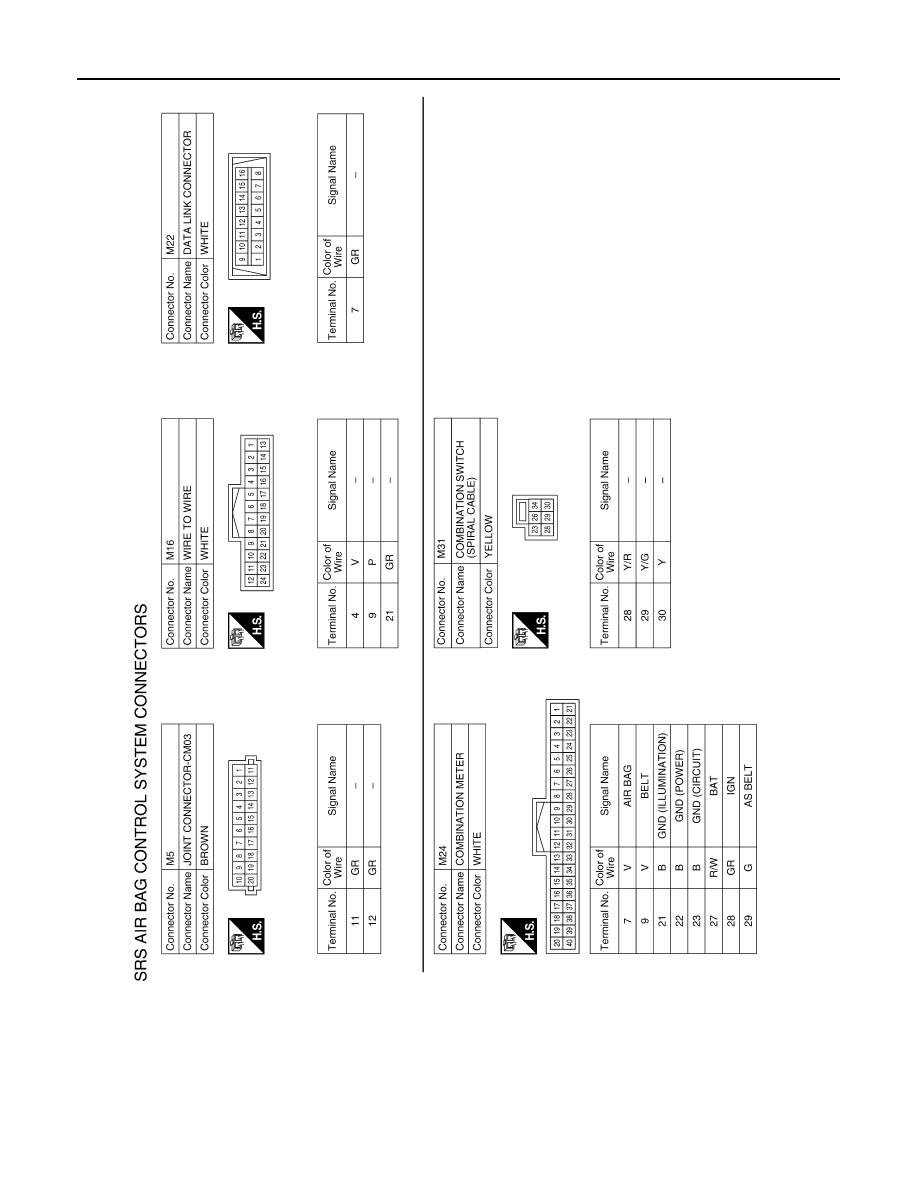

SRC-26

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

AAHIA0153GB
