DIAGNOSIS SENSOR UNIT

SRC-19

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SEAT BELT BUCKLE SW LH CIRCUIT

[OPEN]

B1428

LH seat belt buckle switch circuit is open.

Refer to

SRC-58, "Diag-

nosis Procedure"

.

SEAT BELT BUCKLE SW LH CIRCUIT

[VB-SHORT]

LH seat belt buckle switch circuit is shorted
to a power supply circuit.

SEAT BELT BUCKLE SW LH CIRCUIT

[GND-SHORT]

LH seat belt buckle switch circuit is shorted
to ground.

SEAT BELT BUCKLE SW LH CIRCUIT

[UNDEFINED]

LH seat belt buckle switch circuit malfunc-
tion.

SEAT BELT BUCKLE SW RH CIRCUIT

[OPEN]

B1429

RH seat belt buckle switch circuit is open.

Refer to

SRC-60, "Diag-

nosis Procedure"

.

SEAT BELT BUCKLE SW RH CIRCUIT

[VB-SHORT]

RH seat belt buckle switch circuit is shorted
to a power supply circuit.

SEAT BELT BUCKLE SW RH CIRCUIT

[GND-SHORT]

RH seat belt buckle switch circuit is shorted
to ground.

SEAT BELT BUCKLE SW RH CIRCUIT

[UNDEFINED]

RH seat belt buckle switch circuit malfunc-
tion.

CRASH ZONE SENSOR

[SENSOR FAIL]

B0094

Crash zone sensor has malfunctioned.

Refer to

SRC-62, "Diag-

nosis Procedure"

.

CRASH ZONE SENSOR

[COMM FAIL]

Crash zone sensor communication error.

CRASH ZONE SENSOR

[DISCONNECT]

Crash zone sensor is disconnected.

CRASH ZONE SENSOR

[UNMATCH]

Crash zone sensor is out of specification.

CRASH ZONE SENSOR

[GND-SHORT]

Crash zone sensor circuit is shorted to
ground.

DOOR SATELLITE SENSOR LH

[SENSOR FAIL]

B0093

Front door satellite sensor LH has malfunc-
tioned.

Refer to

SRC-64, "Diag-

nosis Procedure"

.

DOOR SATELLITE SENSOR LH

[COMM FAIL]

Front door satellite sensor LH communica-
tion error.

DOOR SATELLITE SENSOR LH

[DISCONNECT]

Front door satellite sensor LH is disconnect-
ed.

DOOR SATELLITE SENSOR LH

[UNMATCH]

Front door satellite sensor LH is out of spec-
ification.

DOOR SATELLITE SENSOR LH

[GND-SHORT]

Front door satellite sensor LH circuit is
shorted to ground.

DOOR SATELLITE SENSOR RH

[SENSOR FAIL]

B0098

Front door satellite sensor RH has malfunc-
tioned.

Refer to

SRC-66, "Diag-

nosis Procedure"

.

DOOR SATELLITE SENSOR RH

[COMM FAIL]

Front door satellite sensor RH communica-
tion error.

DOOR SATELLITE SENSOR RH

[DISCONNECT]

Front door satellite sensor RH is discon-
nected.

DOOR SATELLITE SENSOR RH

[UNMATCH]

Front door satellite sensor RH is out of spec-
ification.

DOOR SATELLITE SENSOR RH

[GND-SHORT]

Front door satellite sensor RH circuit is
shorted to ground.

CONSULT name

DTC

DTC detecting condition

Repair order

SRC-20

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

B-PILLAR SATELLITE SENSOR LH

[SENSOR FAIL]

B0091

Front side air bag satellite sensor LH has
malfunctioned.

Refer to

SRC-69, "Diag-

nosis Procedure"

.

B-PILLAR SATELLITE SENSOR LH

[COMM FAIL]

Front side air bag satellite sensor LH com-
munication error.

B-PILLAR SATELLITE SENSOR LH

[DISCONNECT]

Front side air bag satellite sensor LH is dis-
connected.

B-PILLAR SATELLITE SENSOR LH

[UNMATCH]

Front side air bag satellite sensor LH is out
of specification.

B-PILLAR SATELLITE SENSOR LH

[GND-SHORT]

Front side air bag satellite sensor LH circuit
is shorted to ground.

B-PILLAR SATELLITE SENSOR RH

[SENSOR FAIL]

B0096

Front side air bag satellite sensor RH has
malfunctioned.

Refer to

SRC-72, "Diag-

nosis Procedure"

.

B-PILLAR SATELLITE SENSOR RH

[COMM FAIL]

Front side air bag satellite sensor RH com-
munication error.

B-PILLAR SATELLITE SENSOR RH

[DISCONNECT]

Front side air bag satellite sensor RH is dis-
connected.

B-PILLAR SATELLITE SENSOR RH

[UNMATCH]

Front side air bag satellite sensor RH is out
of specification.

B-PILLAR SATELLITE SENSOR RH

[GND-SHORT]

Front side air bag satellite sensor RH circuit
is shorted to ground.

C-PILLAR SATELLITE SENSOR LH

[SENSOR FAIL]

B0092

Rear side air bag satellite sensor LH has
malfunctioned.

Refer to

SRC-75, "Diag-

nosis Procedure"

.

C-PILLAR SATELLITE SENSOR LH

[COMM FAIL]

Rear side air bag satellite sensor LH com-
munication error.

C-PILLAR SATELLITE SENSOR LH

[DISCONNECT]

Rear side air bag satellite sensor LH is dis-
connected.

C-PILLAR SATELLITE SENSOR LH

[UNMATCH]

Rear side air bag satellite sensor LH is out
of specification.

C-PILLAR SATELLITE SENSOR LH

[GND-SHORT]

Rear side air bag satellite sensor LH circuit
is shorted to ground.

C-PILLAR SATELLITE SENSOR RH

[SENSOR FAIL]

B0097

Rear side air bag satellite sensor RH has
malfunctioned.

Refer to

SRC-78, "Diag-

nosis Procedure"

.

C-PILLAR SATELLITE SENSOR RH

[COMM FAIL]

Rear side air bag satellite sensor RH com-
munication error.

C-PILLAR SATELLITE SENSOR RH

[DISCONNECT]

Rear side air bag satellite sensor RH is dis-
connected.

C-PILLAR SATELLITE SENSOR RH

[UNMATCH]

Rear side air bag satellite sensor RH is out
of specification.

C-PILLAR SATELLITE SENSOR RH

[GND-SHORT]

Rear side air bag satellite sensor RH circuit
is shorted to ground.

CONSULT name

DTC

DTC detecting condition

Repair order

DIAGNOSIS SENSOR UNIT

SRC-21

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Flash Code Index

INFOID:0000000009761168

WARNING LAMP FLASH CODE CHART

How to read flash codes

1. Put the vehicle in Diagnosis Mode.  Refer to

SRC-14, "On Board Diagnosis Function"

.

2. All codes are proceded by a seven second "holding" flash.
3. Identify how many primary flashes are displayed as well as the length of each primary flash.
4. Refer to the tables and examples below to determine which SRS subsystem the code belongs to.
5. Count the short secondary flashes that follow the primary flashes.
6. Match the correct flashing pattern to the malfunctioning component and perform the Diagnosis Procedure.

Refer to the illustrations below for an example of each flashing pattern.

OCCUPANT DETECTION SENSOR UNIT

[UNIT FAIL]

B00A0

The OCS control unit is malfunctioning.

Refer to

SRC-81, "Diag-

nosis Procedure"

.

OCCUPANT DETECTION SENSOR UNIT

[NO DATA]

OCCUPANT DETECTION SENSOR UNIT

[UNDEFINED]

OCCUPANT DETECTION SENSOR UNIT

[RESET FAIL]

OCCUPANT DETECTION SENSOR UNIT

[COMM FAIL]

Communication between the OCS control
unit and the air bag diagnosis sensor unit is
interrupted.

OCCUPANT DETECTION SENSOR

[UNIT FAIL]

The OCS sensor is malfunctioning.

OCCUPANT DETECTION SENSOR

[POWER FAIL]

The OCS sensor circuit is malfunctioning.

CONTROL UNIT

[UNIT FAIL]

B14XX

Air bag diagnosis sensor unit is malfunction-
ing.

Refer to

SRC-83, "Diag-

nosis Procedure"

.

PASSENGER AIRBAG INDICATOR CIRCUIT

[FAIL]

B00D5

Front passenger air bag OFF indicator is
malfunctioning.

Refer to

SRC-85, "Diag-

nosis Procedure"

.

PASSENGER AIRBAG INDICATOR CIRCUIT

[OPEN]

Front passenger air bag OFF indicator cir-
cuit is open.

PASSENGER AIRBAG INDICATOR CIRCUIT

[VB-SHORT]

Front passenger air bag OFF indicator is
shorted to a power supply circuit.

PASSENGER AIRBAG INDICATOR CIRCUIT

[GND-SHORT]

Front passenger air bag OFF indicator is
shorted to ground.

IGN VOLTAGE

[LOW]

B142A

Ignition voltage to the air bag diagnosis sen-
sor unit is low.

Refer to

SRC-87, "Diag-

nosis Procedure"

.

IGN VOLTAGE

[HIGH]

Ignition voltage to the air bag diagnosis sen-
sor unit is high.

CAN COMMUNICATION FAILURE

U1000

CAN system communication faiilure.

Refer to

SRC-89, "Diag-

nosis Procedure"

.

CAN COMMUNICATION FAILURE

[CONTROL UNIT]

U1010

CAN system (control unit) faiilure.

Refer to

SRC-90, "Diag-

nosis Procedure"

.

FRONTAL COLLISION DETECTION

B1421

Frontal collision detected. Driver and/or
front passenger air bag modules are de-
ployed.

Refer to

SR-5, "For

Frontal Collision"

.

SIDE COLLISION DETECTION

B1422

Side collision detected. Curtain air bag mod-
ule and seat belt pre-tensioner are de-
ployed.

Refer to

SR-7, "For Side

and Rollover Collision"

.

CONSULT name

DTC

DTC detecting condition

Repair order

SRC-22

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

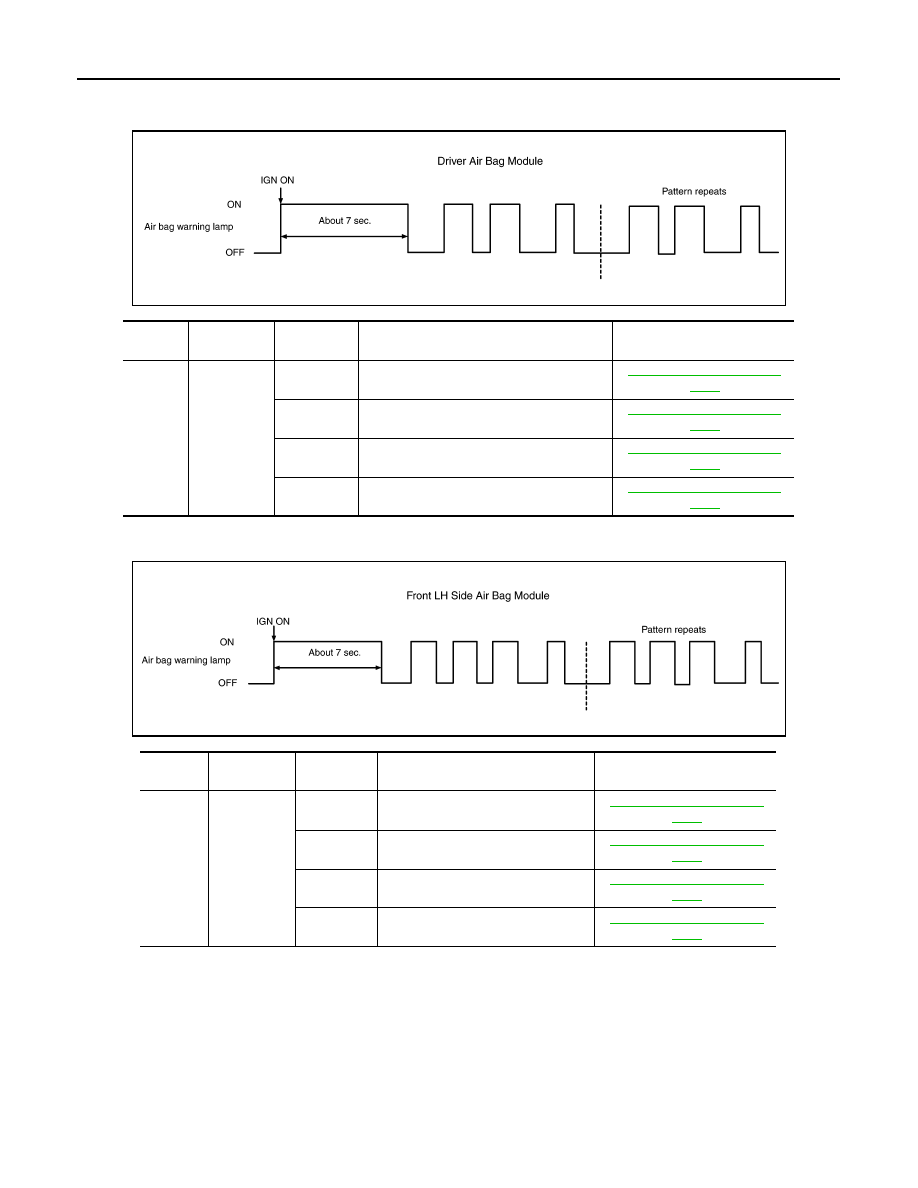

Front subsystem

Side subsystem

Air bag subsystem

AWHIA0430GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

2

1.5

1

Driver air bag module

SRC-42, "Diagnosis Proce-

dure"

2

Passenger air bag module

SRC-44, "Diagnosis Proce-

dure"

3

Front LH seat belt pre-tensioner

SRC-56, "Diagnosis Proce-

dure"

4

Front RH seat belt pre-tensioner

SRC-58, "Diagnosis Proce-

dure"

AWHIA0431GB

Flashes

(Primary)

Flash Length

(seconds)

Flashes

(Secondary)

Malfunctioning Component or Circuit

Reference

3

1.5

1

Front LH side air bag module

SRC-46, "Diagnosis Proce-

dure"

2

Front RH side air bag module

SRC-48, "Diagnosis Proce-

dure"

3

LH side curtain air bag module

SRC-50, "Diagnosis Proce-

dure"

4

RH side curtain air bag module

SRC-52, "Diagnosis Proce-

dure"
