AIR BAG DIAGNOSIS SENSOR UNIT

SR-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

AIR BAG DIAGNOSIS SENSOR UNIT

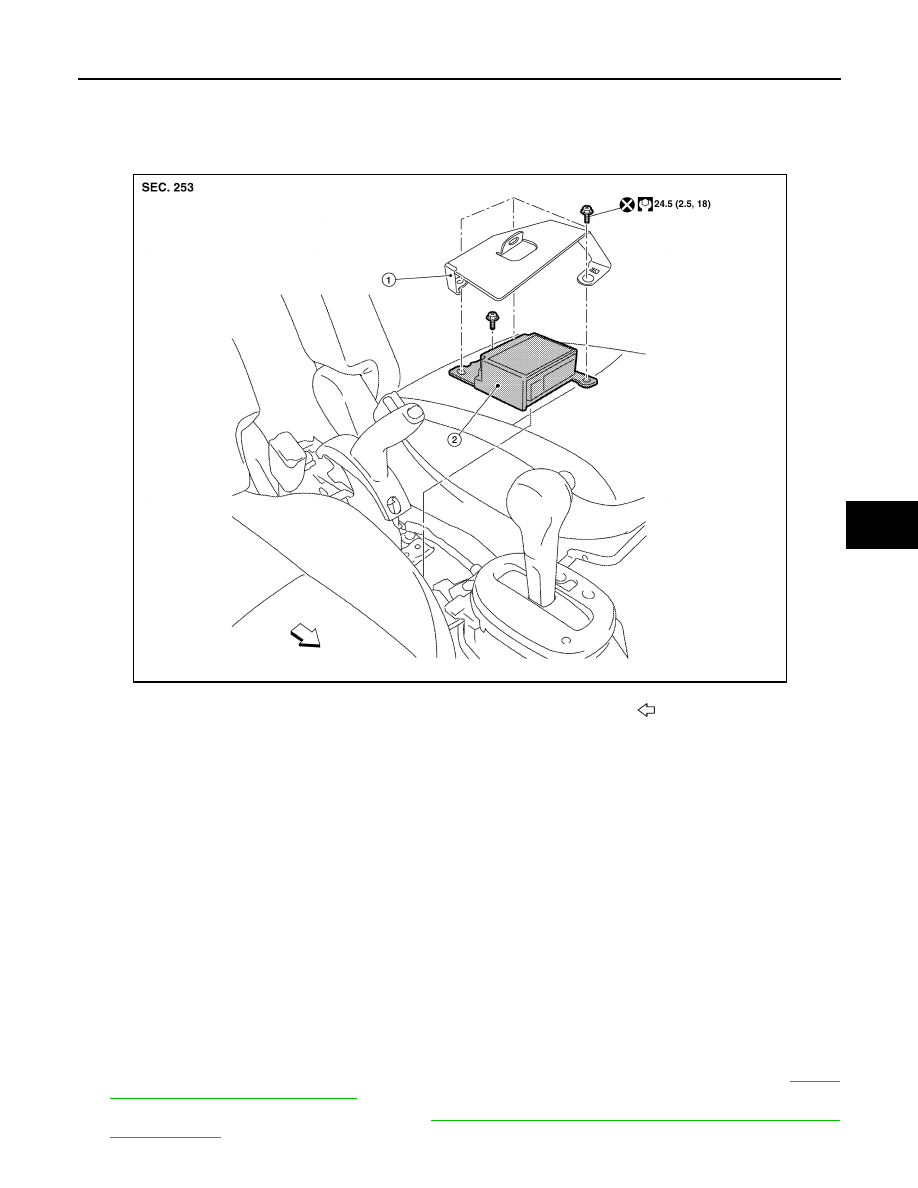

Exploded View

INFOID:0000000008969294

Removal and Installation

INFOID:0000000008969295

REMOVAL

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Replace the air bag diagnosis sensor unit if any SRS air bag has been deployed or if any front seat

belt pre-tensioner has been deployed.

• Before disconnecting the air bag diagnosis sensor unit harness connectors, be sure to disconnect

each harness connector of the front seat belt pre-tensioners (LH/RH) to prevent accidental air bag

deployment by static electricity and seat belt pre-tensioner operation.

• Do not use the air tools or electric tools for servicing.

• When replacing the air bag diagnosis sensor unit, always check with the parts department for the lat-

est parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the

air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags

and seat belt pre-tensioners in a collision resulting in serious personal injury or death.

1. Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) or part

number using CONSULT.

2. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

3. Remove center pillar lower finisher. Refer to

INT-25, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

1. Bracket

2.

Air bag diagnosis sensor unit

Front

AWHIA0553ZZ

SR-30

< REMOVAL AND INSTALLATION >

AIR BAG DIAGNOSIS SENSOR UNIT

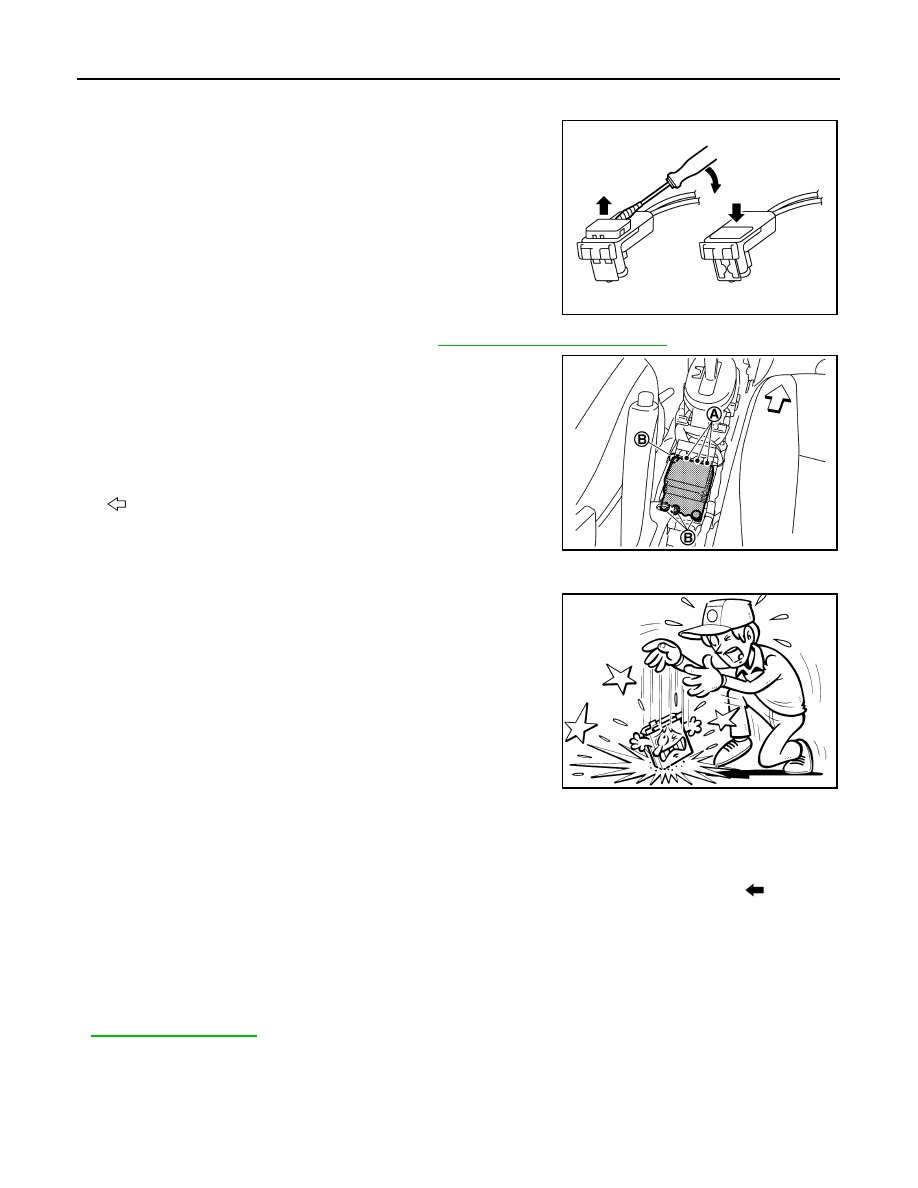

4. Disconnect the harness connectors from the front seat belt pre-tensioners (LH/RH).

CAUTION:

• For removing/installing the front seat belt pre-tensioner

harness connector, insert a thin screwdriver wrapped in

tape into the notch, then lift the lock and remove the har-

ness connector as shown.

• Install the harness connector with the lock raised, and

push the lock into the harness connector as shown.

• After installing the harness connector, check that the lock

is pushed in securely.

5. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

6. Disconnect the harness connectors (A) from the air bag diagno-

sis sensor unit.

7. Remove and discard bolts (B), then remove bracket and air bag

diagnosis sensor unit.

CAUTION:

Do not reuse air bag diagnosis sensor unit bolts.

NOTE:

Shown with bracket removed for clarity.

: Front

CAUTION:

• Do not strike the air bag diagnosis sensor unit.

• Replace the air bag diagnosis sensor unit if it has been

dropped or sustained an impact.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the air bag diagnosis sensor unit bolts.
• The air bag diagnosis sensor unit must always be installed with the label arrow mark "

" pointing

toward the front of the vehicle for proper operation.

• Do not damage the air bag diagnosis sensor unit harness or connectors during installation.

• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) or part number of the new replacement air bag diagnosis sen-

sor unit matches the ECU discriminated number (identification number) or part number of the

replaced (old) air bag diagnosis sensor unit.

• After the work is completed, perform diagnosis to check that no malfunction is detected. Refer to

SRC-14, "Description"

.

NOTE:

If the ECU discriminated number or part number of the new replacement air bag diagnosis sensor unit differs

from the ECU discriminated number or part number of the replaced air bag diagnosis sensor unit, reconfirm

the parts information and verify that the correct air bag diagnosis sensor unit was installed.

PHIA0953J

JMHIA2027ZZ

SGI787

OCCUPANT CLASSIFICATION SYSTEM

SR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

OCCUPANT CLASSIFICATION SYSTEM

Removal and Installation

INFOID:0000000009423891

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

The occupant classification system control unit is serviced with the front passenger seat frame assembly.

Refer to

SE-40, "PASSENGER SIDE : Exploded View"

.

OCCUPANT CLASSIFICATION SYSTEM SENSORS

The occupant classification system sensors are serviced with the front passenger seat frame assembly. Refer

to

SE-40, "PASSENGER SIDE : Exploded View"

.

SR-32

< REMOVAL AND INSTALLATION >

SEAT BELT PRE-TENSIONER

SEAT BELT PRE-TENSIONER

Removal and Installation

INFOID:0000000008969297

The front seat belt pre-tensioner is part of the front seat belt retractor. Refer to

SB-9, "SEAT BELT RETRAC-

TOR : Removal and Installation"

.
