4. Check continuity between BCM connector M18 terminal 23 and ground.

Is the inspection result normal?

YES

>> Check the following:

• 10A fuse [No. 8, located in fuse block (J/B)]

• Harness for open or short between security indicator lamp and fuse

NO

>> Repair or replace harness.

23 - Ground

: Continuity should not exist.

SEC-180

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

SYMPTOM DIAGNOSIS

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

Symptom Table

INFOID:0000000009521034

NOTE:

• Before performing the diagnosis in the following table, check “

SEC-162, "Work Flow"

”.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

• If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

• Mechanical key is not inserted into key cylinder.

• Ignition knob switch is not depressed.

Symptom

Diagnosis/service procedure

Reference page

Security indicator does not turn ON or flash.

1. Check vehicle security indicator

SEC-178

2. Check Intermittent Incident

GI-41

NATS ANTENNA AMP.

SEC-181

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000009521035

REMOVAL

1. Remove combination switch. Refer to

BCS-71, "Removal and Installation"

.

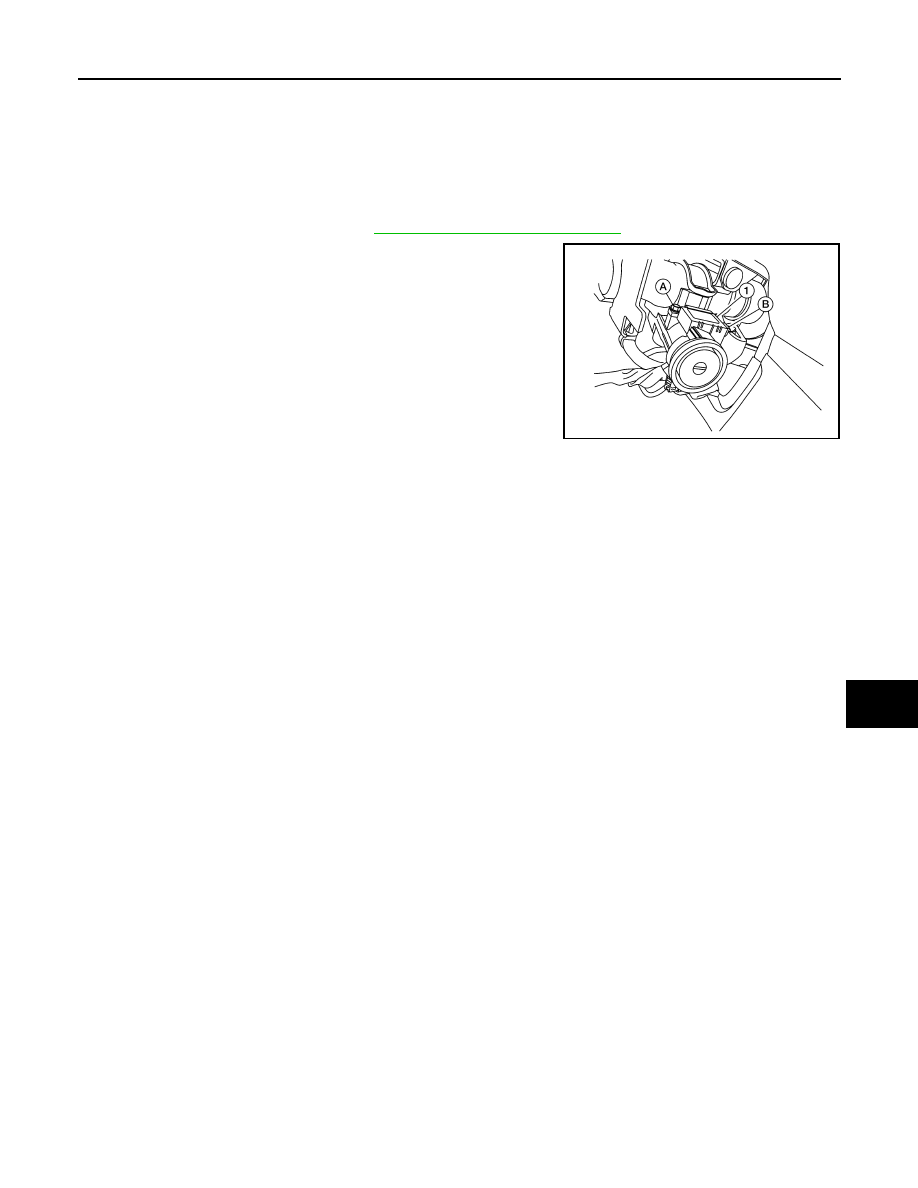

2. Remove the NATS antenna amp bolt (A).
3. Disconnect the harness connector (B) from the NATS antenna

amp. (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• If NATS antenna amp. is not installed correctly, NVIS (NATS) system will not operate properly and “SELF-

DIAG RESULTS" on CONSULT screen will show “LOCK MODE” or "CHAIN OF IMMU-KEY".

• Initialization is not necessary when only the NATS antenna amp. is replaced with a new one.

AWKIA2524ZZ

SEC-182

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation

INFOID:0000000009541252

REMOVAL

1. Remove the glove box. Refer to

IP-25, "Removal and Installation"

.

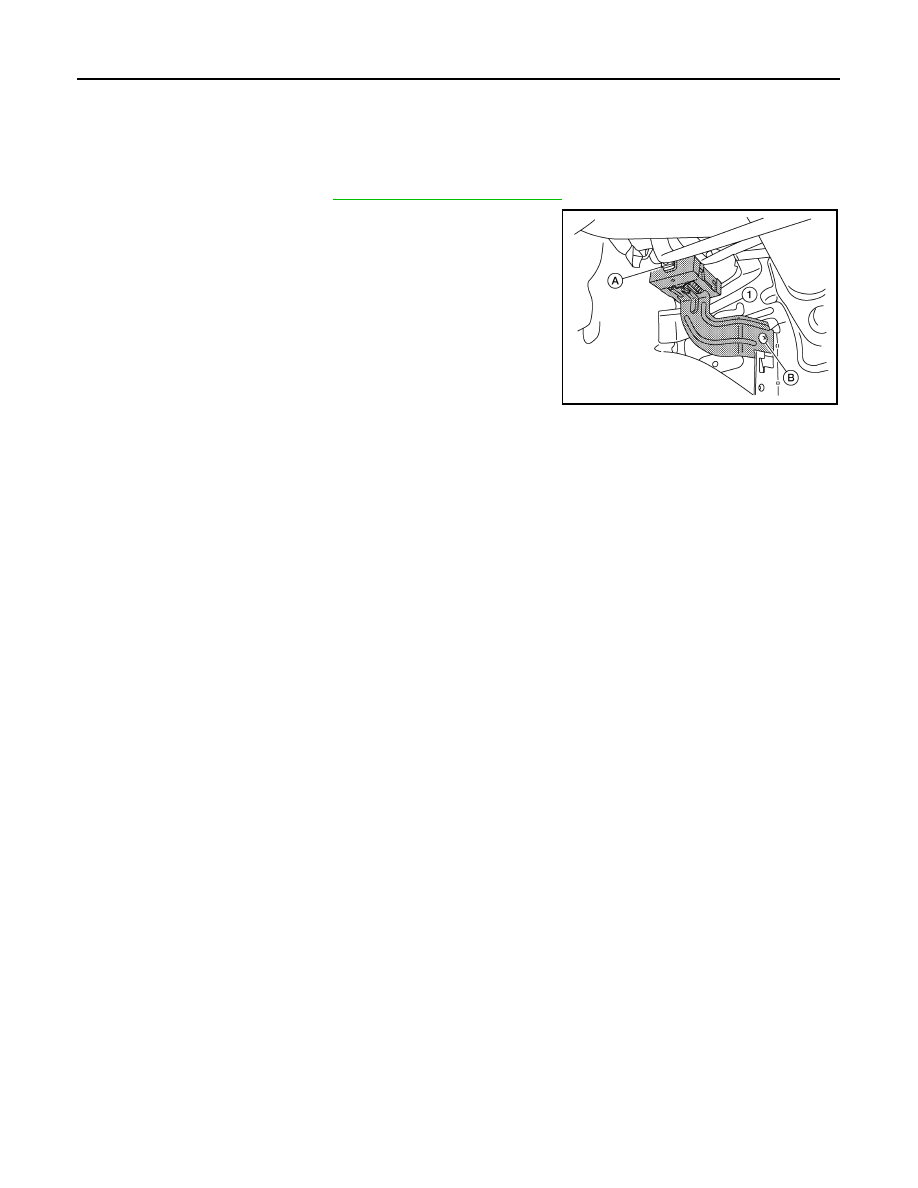

2. Disconnect the harness connector (A) from remote keyless entry

receiver (1).

3. Remove screw (B) and remove remote keyless entry receiver.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3178ZZ
