B2110 SHIFT POSITION/CLUTCH INTERLOCK SWITCH

SEC-123

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-31, "Removal and Installation"

.

NO

>> Repair or replace harness.

(+)

(–)

Continuity

IPDM E/R

Connector

Terminal

F42

40

Ground

No

SEC-124

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

ENGINE DOES NOT START WHEN INTELLIGENT KEY IS INSIDE OF VEHICLE

SYMPTOM DIAGNOSIS

ENGINE DOES NOT START WHEN INTELLIGENT KEY IS INSIDE OF VE-
HICLE

Description

INFOID:0000000009520982

Engine does not start when push-button ignition switch is pressed while carrying Intelligent Key.

NOTE:

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

• The engine start function, door lock function, power distribution system, and NATS-IVIS/NVIS in the Intelli-

gent Key system are closely related to each other regarding control. The vehicle security function can oper-

ate only when the door lock and power distribution system are operating normally.

Conditions of Vehicle (Operating Conditions)

• “ENGINE START BY I-KEY” setting in “WORK SUPPORT” mode of “INTELLIGENT KEY” of “BCM” is ON.

• One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.

Diagnosis Procedure

INFOID:0000000009520983

1.

PERFORM WORK SUPPORT

Perform “INSIDE ANT DIAGNOSIS” in “Work Support” mode of “INTELLIGENT KEY” of “BCM” using CON-

SULT.

Refer to

BCS-20, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS RESULT

Select “Self Diagnostic Result” mode of “BCM”, and check whether or not DTC of inside key antenna is

detected.
Is DTC detected?

YES

>> Perform the trouble diagnosis for detected DTC. Refer to

BCS-48, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK PUSH-BUTTON IGNITION SWITCH

Check push-button ignition switch.

Refer to

SEC-80, "Component Inspection"

.

Is the operation normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the inspection normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> GO TO 1.

SECURITY INDICATOR LAMP DOES NOT TURN ON OR BLINK

SEC-125

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SECURITY INDICATOR LAMP DOES NOT TURN ON OR BLINK

Description

INFOID:0000000009520984

Security indicator lamp does not blink when power supply position is other than the ON position.

NOTE:

• Before performing the diagnosis, perform “Work Flow”. Refer to

SEC-60, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

Conditions of Vehicle (Operating Conditions)

Power supply position is other than the ON position.

Diagnosis Procedure

INFOID:0000000009520985

1.

CHECK SECURITY INDICATOR LAMP

Check security indicator lamp.

Refer to

SEC-178, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> GO TO 1.

SEC-126

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

NATS ANTENNA AMP.

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000009520986

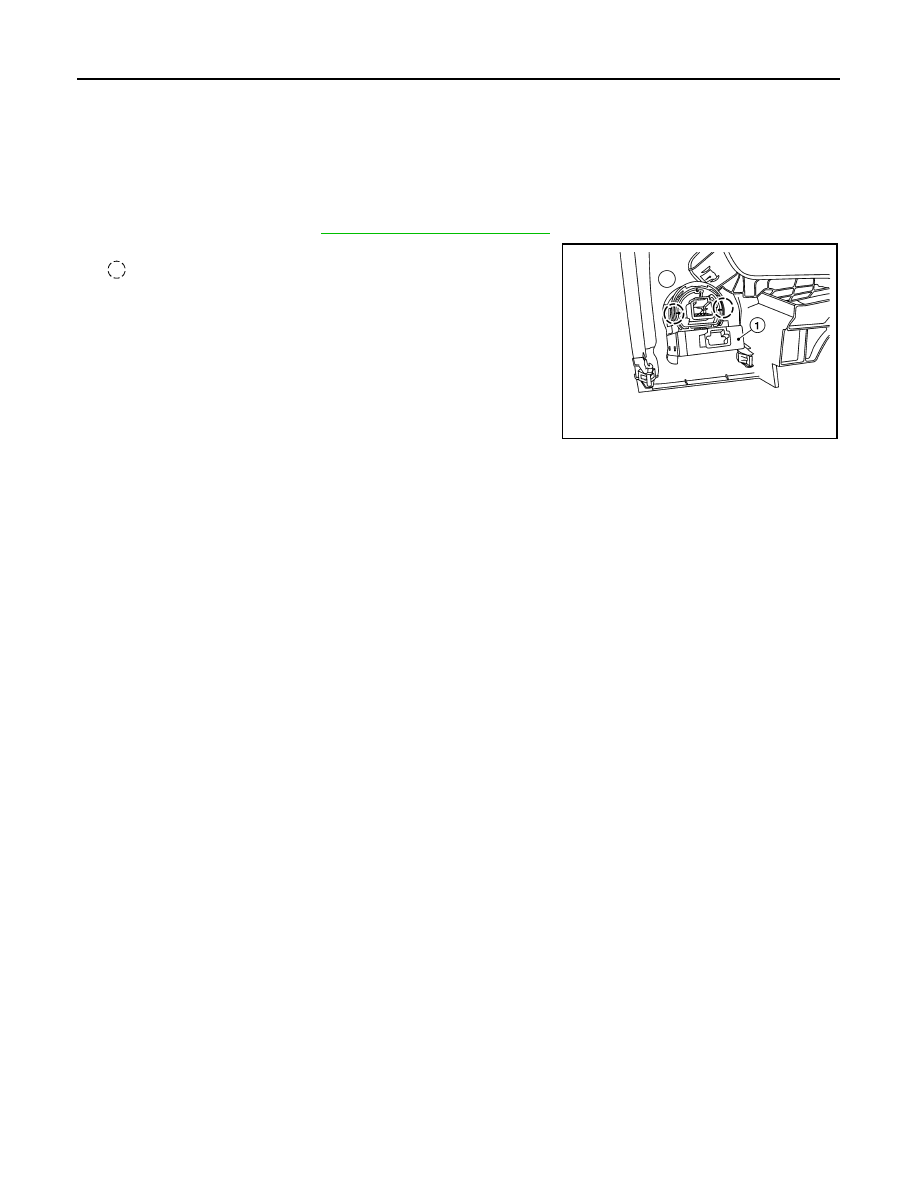

REMOVAL

1. Remove cluster lid A. Refer to

IP-21, "Removal and Installation"

.

2. Release pawls and remove NATS antenna amp. (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• If NATS antenna amp. is not installed correctly, NVIS (NATS) system will not operate properly and "SELF-

DIAG RESULTS" on CONSULT screen will show "LOCK MODE" or "CHAIN OF IMMU-KEY".

• Initialization is not necessary when only the NATS antenna amp. is replaced with a new one.

ALKIA3179ZZ
