DIAGNOSIS SYSTEM (BCM)
SEC-23
< SYSTEM DESCRIPTION >

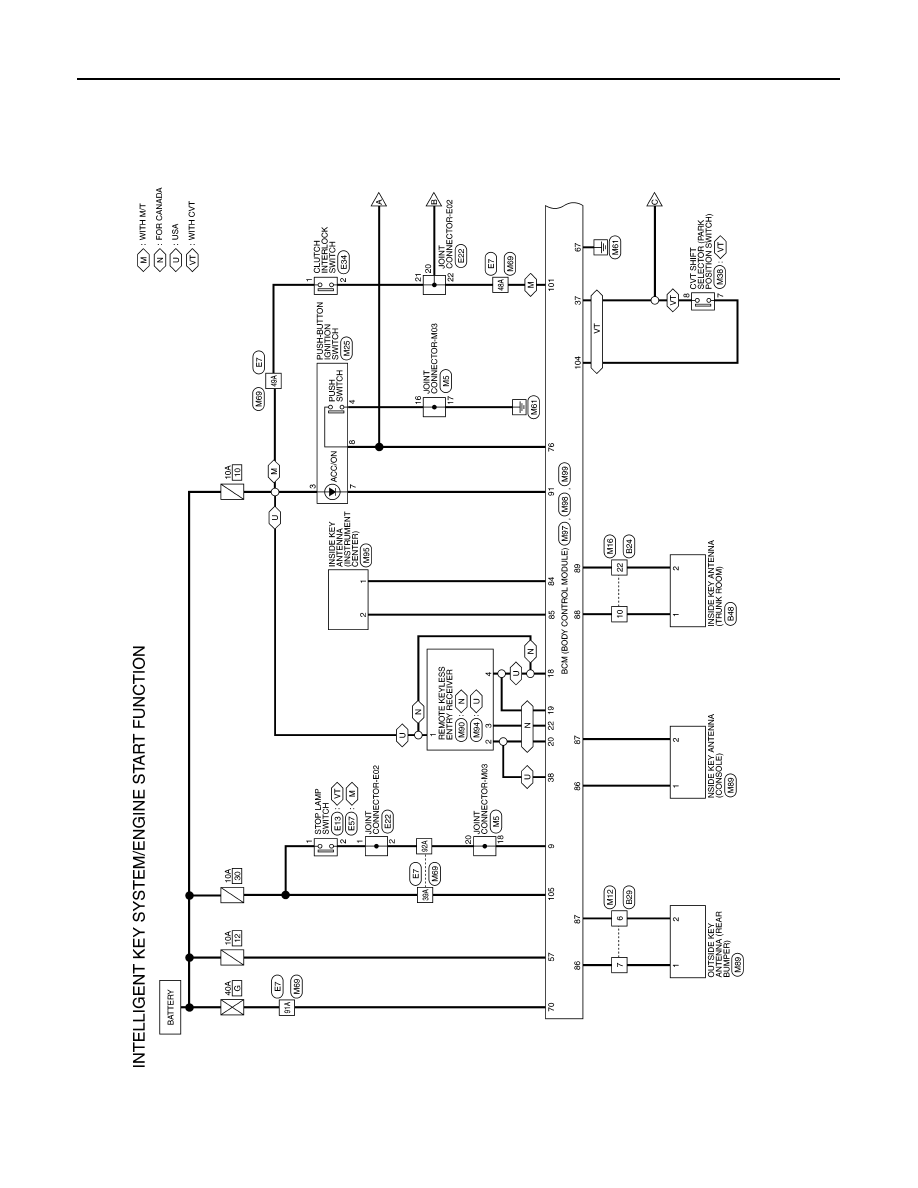

[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
SEC
N
O
P
*: Initial Setting
THEFT ALM
THEFT ALM : CONSULT Function (BCM - THEFT)
INFOID:0000000009697558
DATA MONITOR
ACTIVE TEST
IMMU
IMMU : CONSULT Function (BCM - IMMU)
INFOID:0000000009697559
SELF DIAGNOSTIC RESULT
DATA MONITOR
AUTO LOCK SET
MODE7
5 min
Auto door lock time setting.
MODE6
4 min
MODE5
3 min
MODE4
2 min
MODE3*
1 min
MODE2
30 sec
MODE1
Off
Support Item
Setting
Description
Monitored Item
Description
REQ SW -DR [On/Off]
Indicates condition of door request switch LH.
REQ SW -AS [On/Off]
Indicates condition of door request switch RH.
REQ SW -BD/TR [On/Off]
Indicates condition of back door request switch.
PUSH SW [On/Off]
Indicates condition of push-button ignition switch.
UNLK SEN -DR [On/Off]
Indicates condition of door unlock sensor.
DOOR SW-DR [On/Off]
Indicates condition of front door switch LH.
DOOR SW-AS [On/Off]
Indicates condition of front door switch RH.
DOOR SW-RR [On/Off]
Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off]
Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off]
Indicates condition of back door switch.
CDL LOCK SW [On/Off]
Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off]
Indicates condition of unlock signal from door lock and unlock switch.
KEY CYL LK-SW [On/Off]
Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off]
Indicates condition of unlock signal from door key cylinder switch.
RKE-LOCK [On/Off]
Indicates condition of lock signal from Intelligent Key.
RKE-UNLOCK [On/Off]
Indicates condition of unlock signal from Intelligent Key.
Test Item
Description
VEHICLE SECURITY HORN
This test is able to check vehicle security horn operation [On].
FLASHER
This test is able to check turn signal lamp operation [LH/RH/Off].
THEFT IND
This test is able to check security indicator lamp operation [On/Off].
HEADLAMP(HI)
This test is able to check vehicle security lamp operation [On].
