Nissan Versa Note. Manual - part 679

SE-46

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

7.

Headrest holder (free)

8.

Seatback latch bracket (RH)

9.

Seatback latch (RH)

10. Seatback frame (RH)

11. Seatback latch finisher (RH)

12. Seatback latch release knob

13. Seatback trim (RH)

14. Seatback pad (RH)

15. Seat cushion hook

16. Seat cushion

17. Seat cushion pad

18. Seat cushion trim

19. Cup holder

20. Armrest

21. Armrest hinge bracket

22. Armrest pivot bolt bushing

23. Armrest pivot bolt

24. Armrest hinge bracket finisher

(RH)

25. Bushing

26. Armrest hinge bracket finisher (LH) 27. Seatback pad (LH)

28. Seatback trim (LH)

29. Seatback latch finisher (LH)

30. Seatback frame (LH)

31. Seatback latch bracket (LH)

32. Seatback latch (LH)

33. Seatbelt guide finisher

34. Seat belt guide

35. Seatback (LH)

Pawl

REAR SEAT

SE-47

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

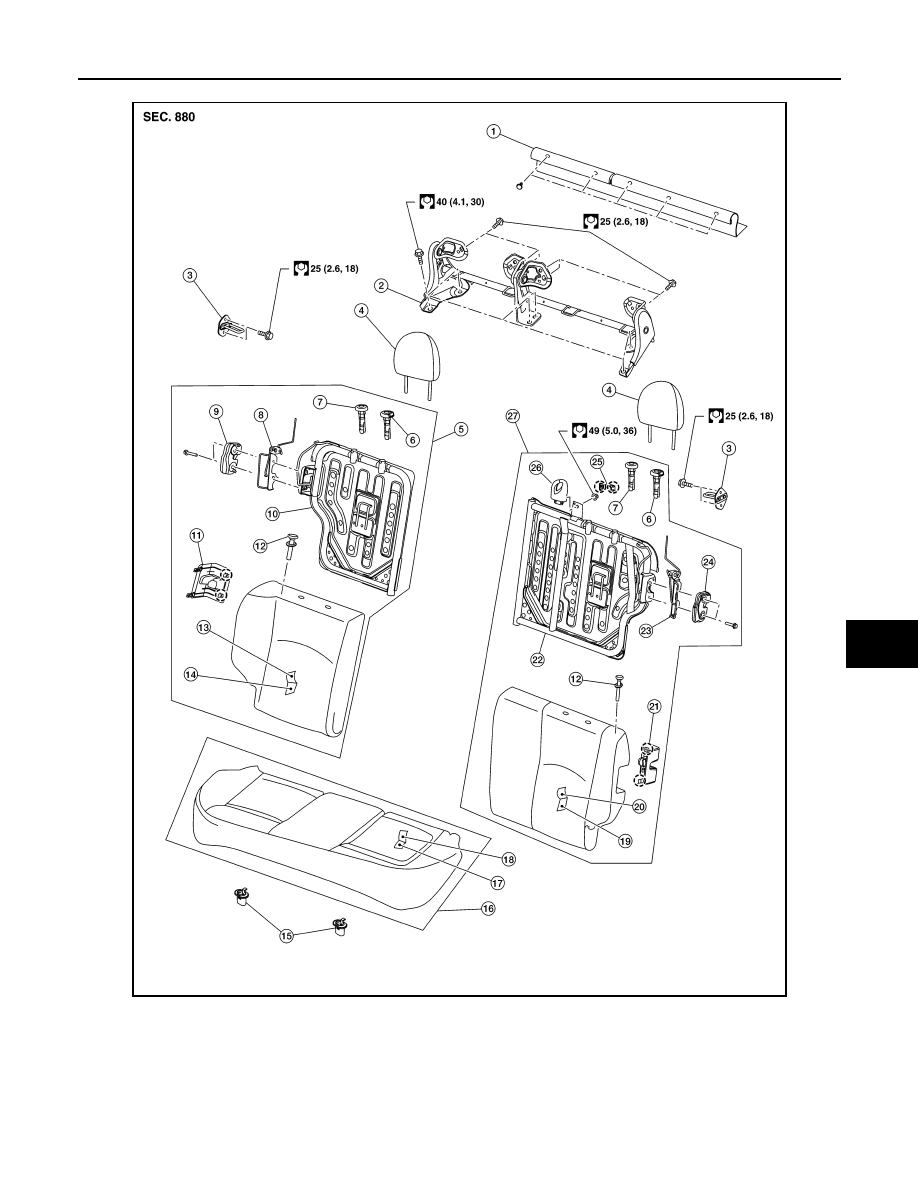

REAR SEAT WITHOUT ARMREST

AWJIA1137ZZ

1.

Seatback hinge trim

2.

Seatback hinge

3.

Seatback striker

4.

Headrest

5.

Seatback(RH)

6.

Headrest holder (locked)

7.

Headrest holder (free)

8.

Seatback latch bracket (RH)

9.

Seatback latch (RH)

10. Seatback frame (RH)

11. Seatback latch finisher (RH)

12. Seatback latch release knob

13. Seatback trim (RH)

14. Seatback pad (RH)

15. Seat cushion hook

16. Seat cushion

17. Seat cushion pad

18. Seat cushion trim

SE-48

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

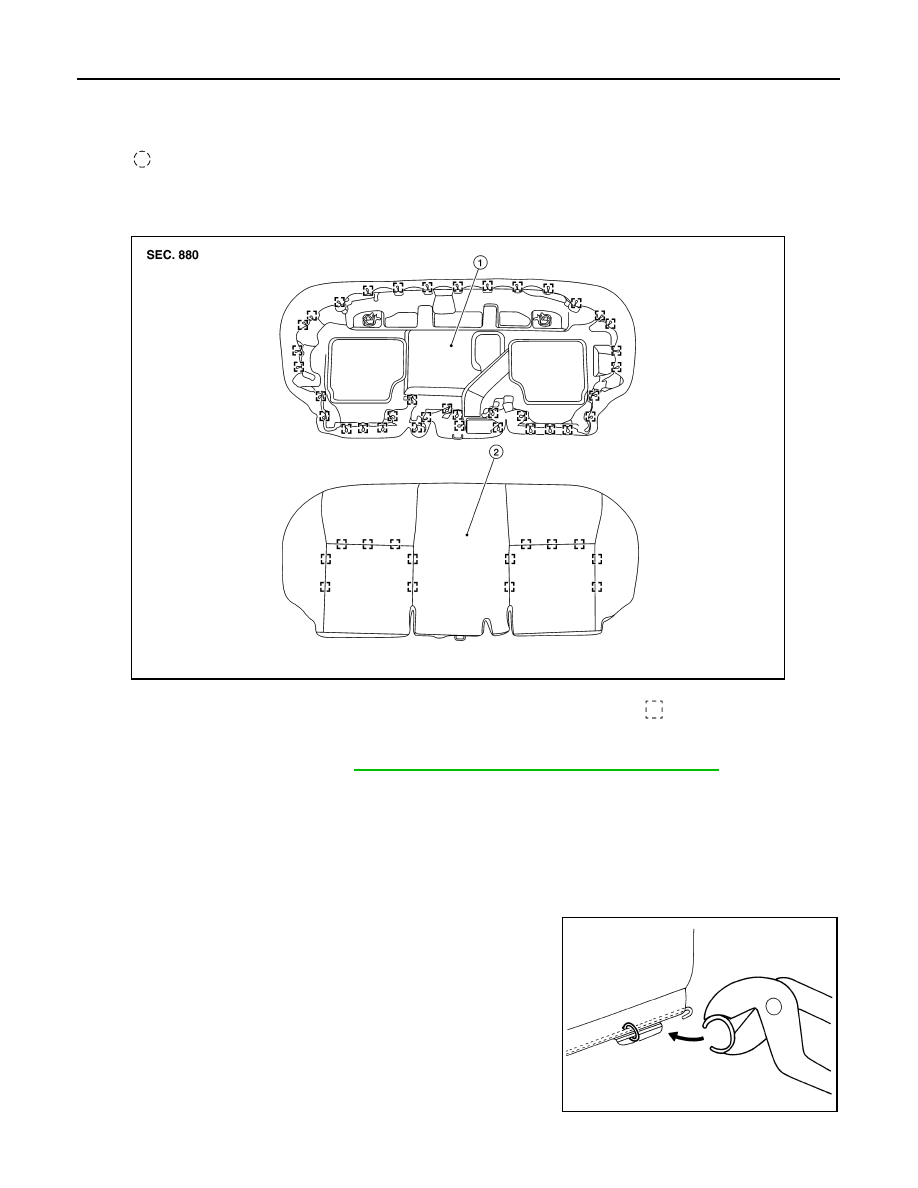

Seat Cushion

INFOID:0000000009567502

DISASSEMBLY

1. Remove the seat cushion. Refer to

SE-30, "SEAT CUSHION : Removal and Installation"

.

2. Remove the hog rings on the bottom side of seat cushion.
3. Remove the hog rings on the top side of seat cushion and separate the seat cushion trim from the seat

cushion pad.

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

19. Seatback pad (LH)

20. Seatback trim (LH)

21. Seatback latch finisher (LH)

22. Seatback frame (LH)

23. Seatback latch bracket (LH)

24. Seatback latch (LH)

25. Seatbelt guide finisher

26. Seat belt guide

27. Seatback (LH)

Pawl

1.

Seat cushion pad

2.

Seat cushion trim

Hog rings

ALJIA1251ZZ

PIIB3356J

REAR SEAT

SE-49

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

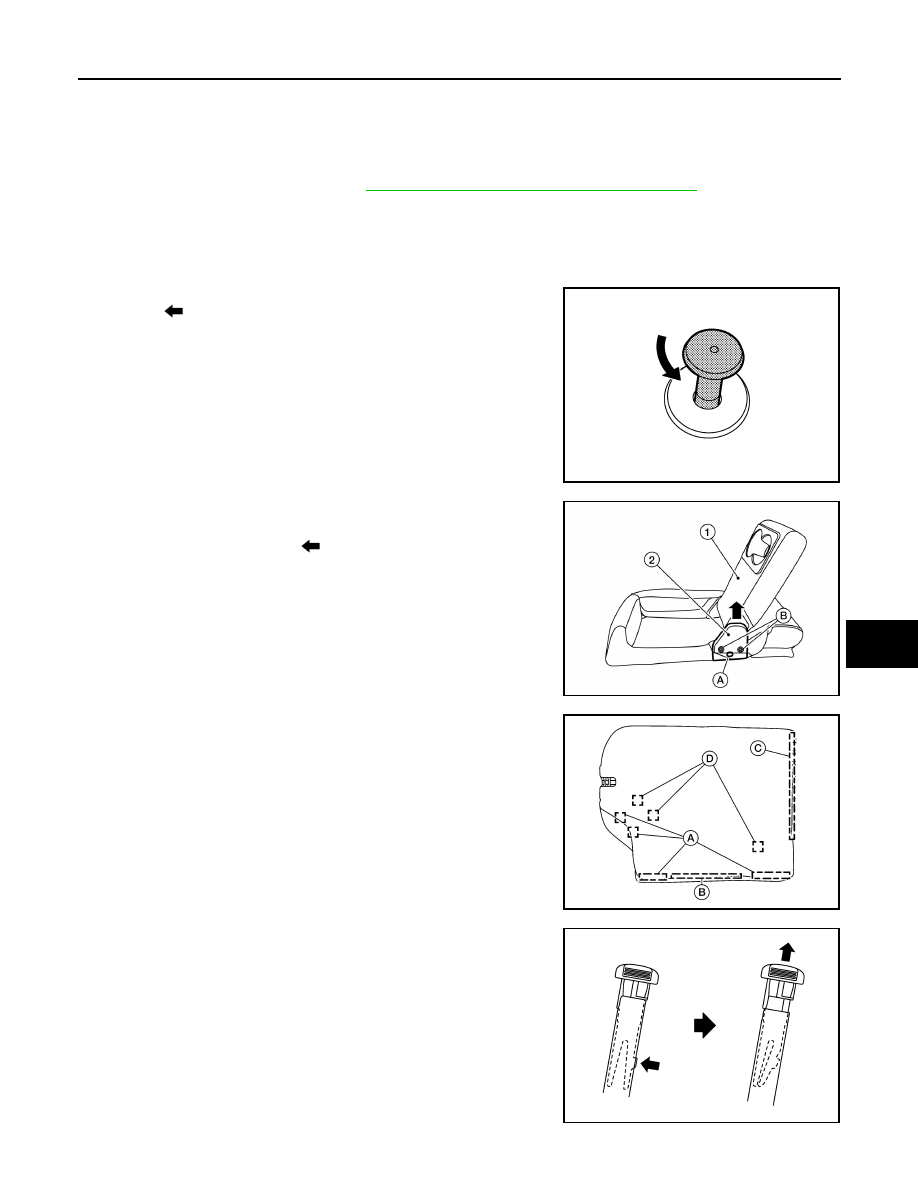

Seatback

INFOID:0000000009567504

DISASSEMBLY

Seatback (LH)

1. Remove the seatback (LH). Refer to

SE-30, "SEATBACK : Removal and Installation"

.

2. Remove the headrest.
3. Release clips and remove latch finisher.
4. Release pawls and remove the seat belt guide finisher.
5. Remove nut and the seat belt guide.
6. Rotate the seatback latch release knob counterclockwise as

shown (

) and remove.

7. Remove the armrest (1) (if equipped).
a. Remove clip (A) using a suitable tool, then the armrest bracket

finisher (RH) (2) as shown (

).

b. Remove nuts (B), then the armrest.

8. Release hook fasteners (A), then J-hook retainer (B).
9. Unzip the seatback trim zipper (C), then release J-clip retainers

(D).

10. Release the headrest holder locks as shown and remove.

CAUTION:

Before removing the headrest holder, check its orientation

(front/rear and right/left).

JMJIA4374ZZ

ALJIA1247ZZ

ALJIA1246ZZ

JMJIA4073ZZ
