SE-38

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

DRIVER SIDE : Seat Cushion

INFOID:0000000009639730

WARNING:

Always work from the side or back of the seatback, do not work in front of seat.

DISASSEMBLY

1. Remove the driver side front seat. Refer to

SE-20, "DRIVER SIDE : Removal and Installation"

.

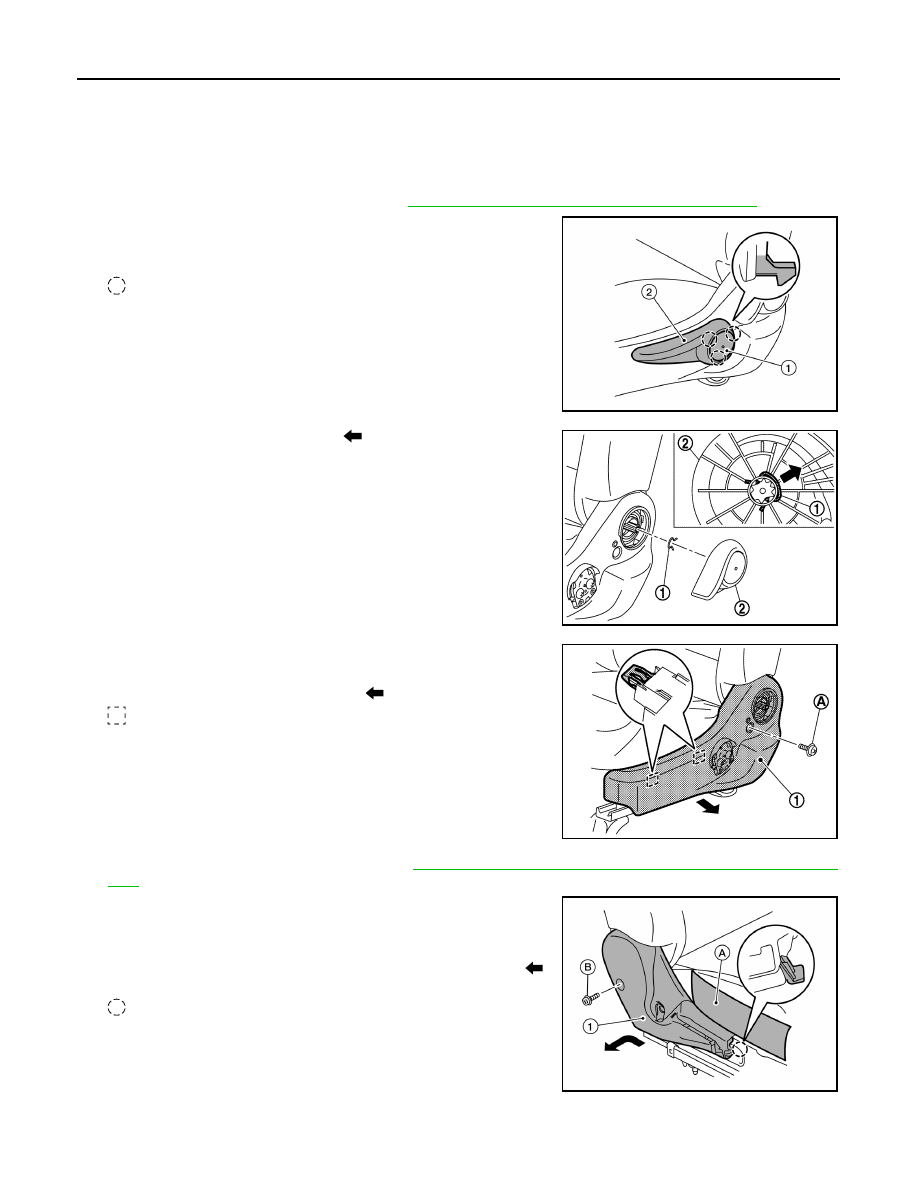

2. Remove the lift lever (1) (if equipped).
a. Release pawls and remove the lift lever finisher.
b. Remove screws and the lift lever (2).

: Pawl

3. Remove snap ring (1) as shown (

) using a suitable tool, then

the recline lever (2).

4. Remove the seat cushion outer finisher (LH) (1).
a. Remove screw (A).
b. Pull to release metal clips as shown (

) and remove.

: Metal clip

5. Remove the seat belt buckle (LH). Refer to

SB-8, "FRONT SEAT BELT BUCKLE : Removal and Installa-

tion"

.

6. Remove the seat cushion outer finisher (RH) (1).
a. Remove screw (B).
b. Position seat cushion trim (A) aside.
c.

Slide seat cushion outer finisher (RH) rearward, as shown (

),

to release pawl and remove.

: Pawl

7. Remove the seat cushion from the seat frame.

AWJIA0932ZZ

JMJIA6005ZZ

JMJIA6006ZZ

AWJIA0933ZZ

FRONT SEAT

SE-39

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

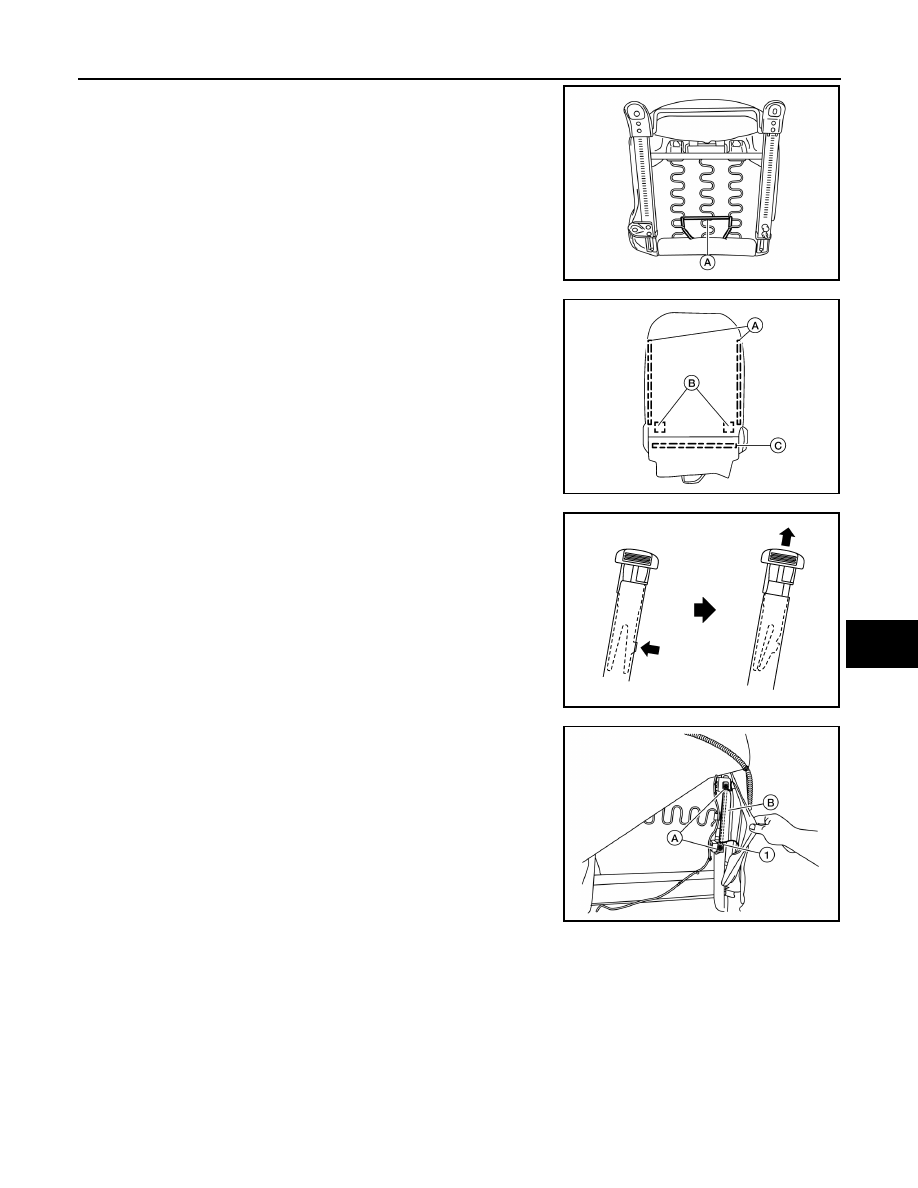

a. Release the seatback trim J-clips (C) and seat cushion J-clips

(B) from the seat cushion frame.

b. Unclip the harness from the seat cushion frame.

NOTE:

Take note of harness routing and attachment location for correct

installation.

c. Remove bolts (A) and the seat cushion.

8. Remove seat cushion trim and seat cushion pad from the seat

cushion frame (1).

a. Release string at locations (A) from seat cushion frame.

: Front

b. Loosen string then remove the seat cushion trim and seat cush-

ion pad.

9. Remove the hog rings and separate the seat cushion trim (1)

from the seat cushion pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

CAUTION:

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

to

SRC-14, "Description"

PASSENGER SIDE

ALJIA0997ZZ

JMJIA6008ZZ

ALJIA0990ZZ

PIIB3356J

SE-40

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

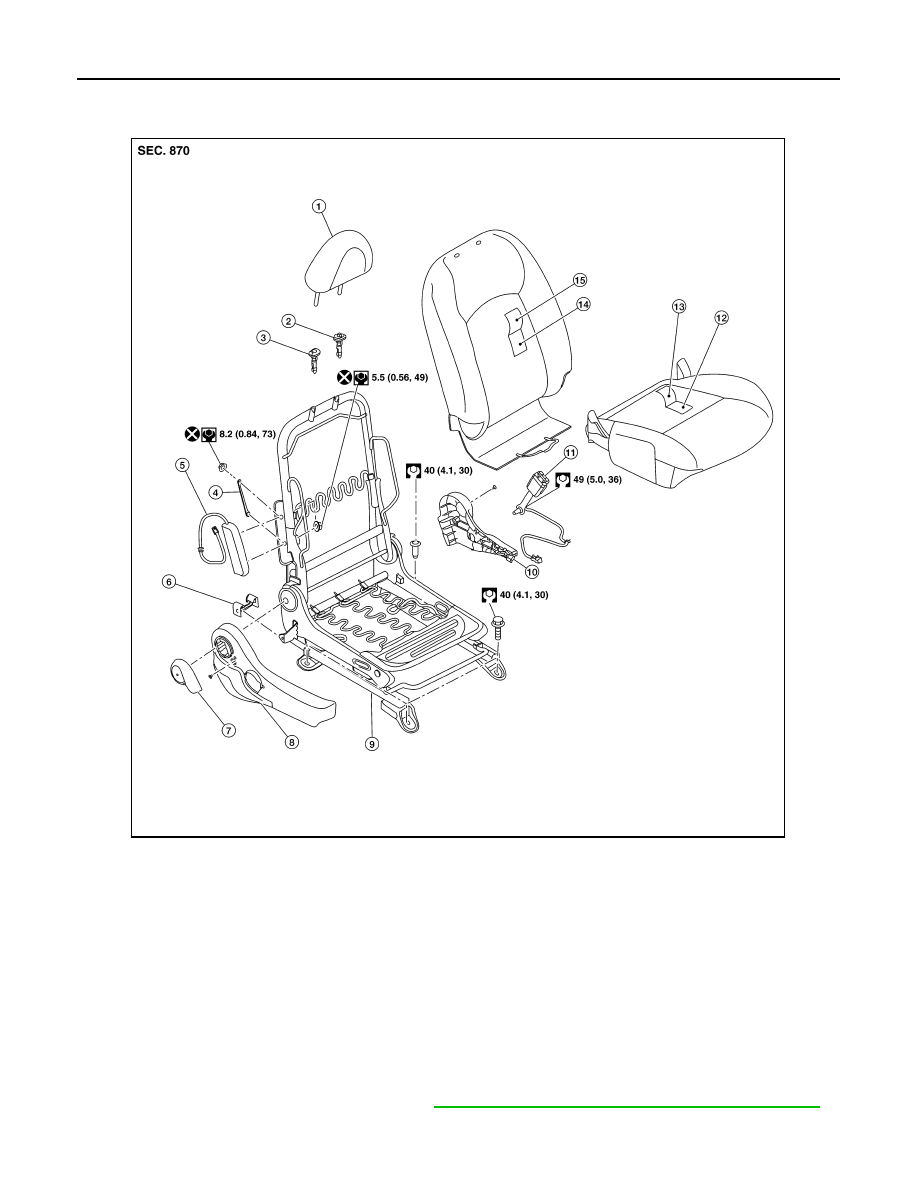

PASSENGER SIDE : Exploded View

INFOID:0000000009567632

PASSENGER SIDE : Seatback

INFOID:0000000009567498

WARNING:

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not damage the, chute, connectors, retainers, clips, module harness or the side air bag module.

DISASSEMBLY

1. Remove the pasenger side front seat. Refer to

SE-22, "PASSENGER SIDE : Removal and Installation"

.

2. Remove the headrest.

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Chute rod

5.

Side air bag module

6.

Slide finisher rear (LH/RH)

7.

Recline lever

8.

Seat cushion outer finisher (RH)

9.

Seat frame

10. Seat cushion outer finisher (LH)

11. Seat belt buckle

12. Seat cushion pad

13. Seat cushion trim

14. Seatback pad

15. Seatback trim

ALJIA1239ZZ

FRONT SEAT

SE-41

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

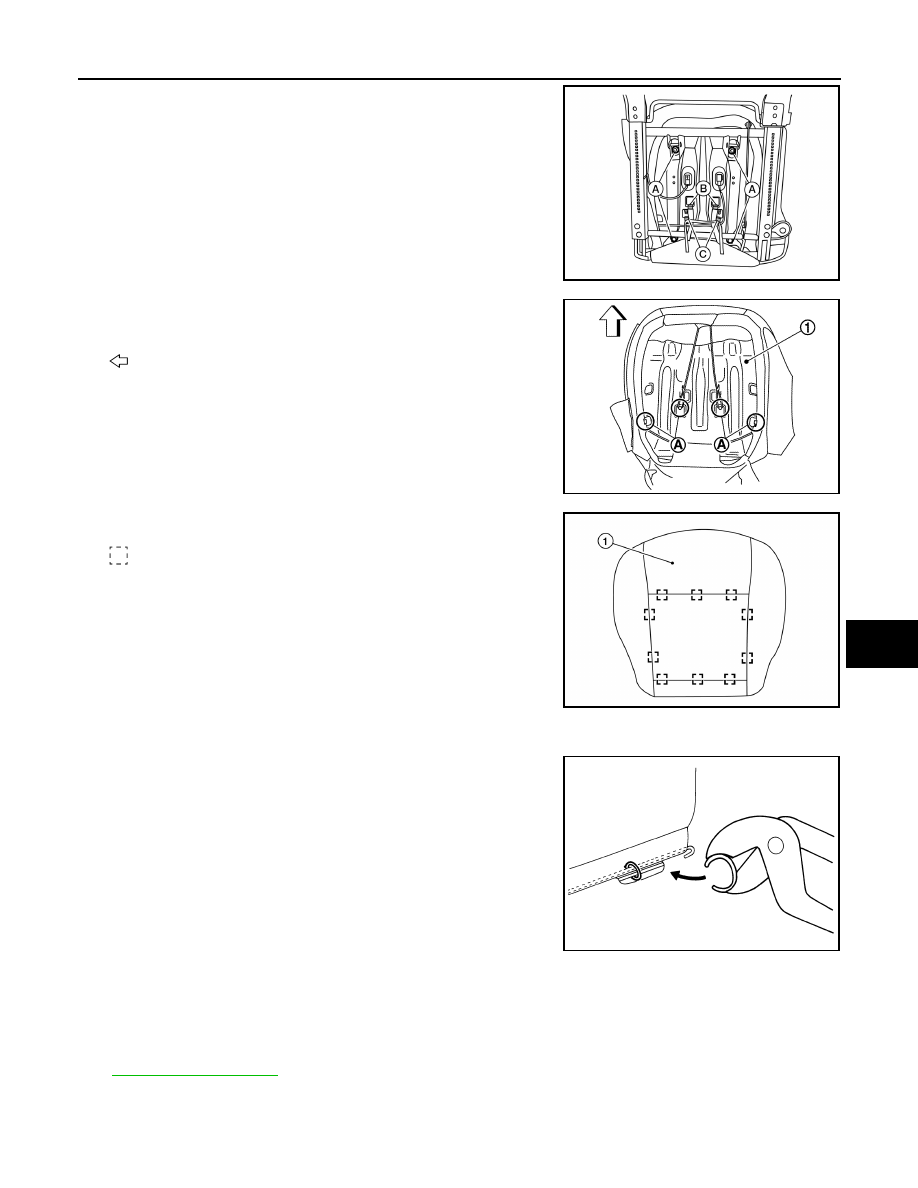

3. Release trim strap (A) from the seat frame.

4. Release the J-hook retainer (C), unzip seatback zippers (A) and

release J-clips (B).

5. Release the headrest holder locks as shown and remove.

CAUTION:

Before removing the headrest holder, check its orientation

(front/rear and right/left).

6. Remove and discard chute rod nuts (A), then route the chute rod

(1) through the opening and remove it from the chute (B).

CAUTION:

Do not reuse the chute rod nuts.

7. Unclip the side air bag module harness from the seat frame.

NOTE:

Take note of harness routing and attachment location for correct installation.

AWJIA0913ZZ

AWJIA1115ZZ

JMJIA4073ZZ

AWJIA0922ZZ
