SE-22

< REMOVAL AND INSTALLATION >

FRONT SEAT

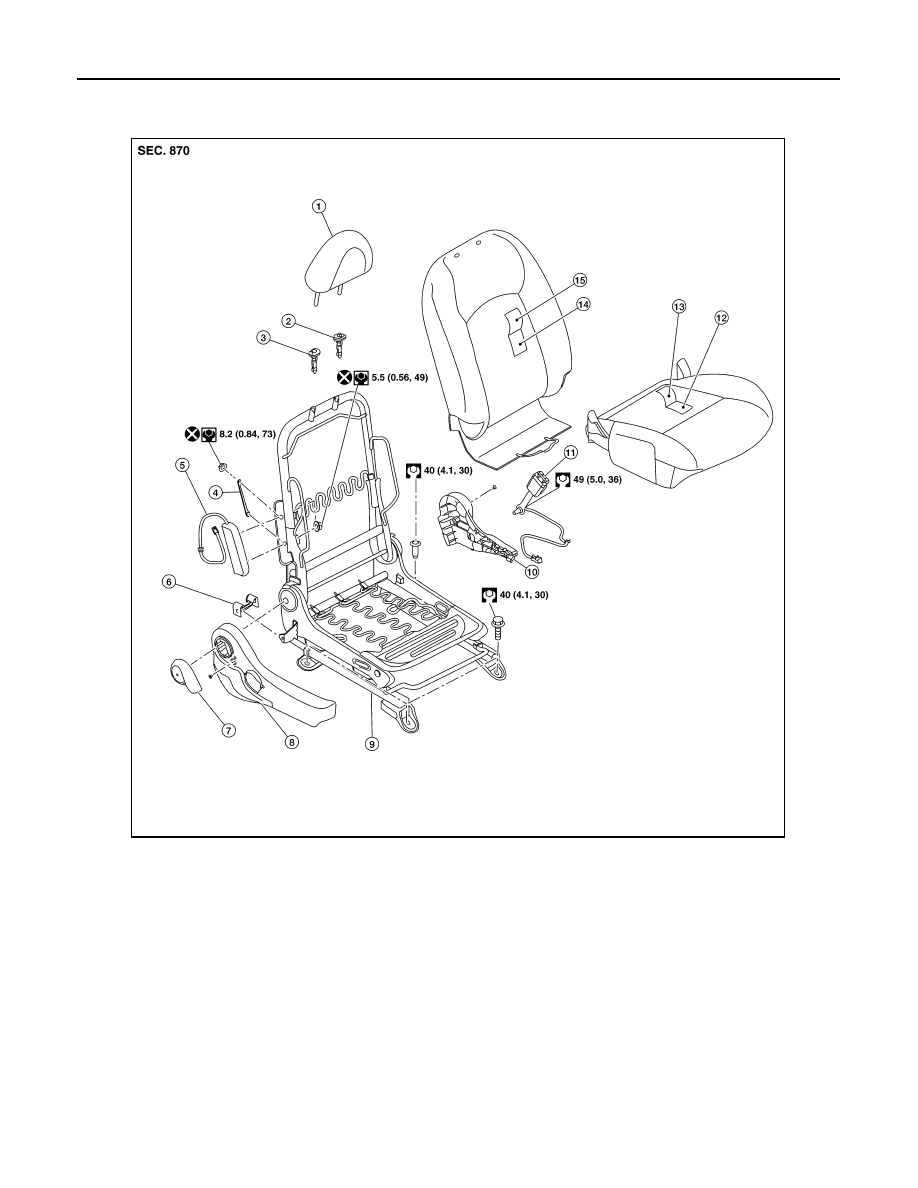

PASSENGER SIDE : Exploded View

INFOID:0000000009567479

PASSENGER SIDE : Removal and Installation

INFOID:0000000009567480

WARNING:

• Do not leave any objects (screwdrivers, tools, etc.) on the seat during repair. It can lead to personal

injury if the side air bag module should accidentally deploy.

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat assembly.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After the side air bag module inflates, the front seat frame must be replaced.

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Chute rod

5.

Side air bag module

6.

Slide finisher rear (LH/RH)

7.

Recline lever

8.

Seat cushion outer finisher (RH)

9.

Seat frame

10. Seat cushion outer finisher (LH)

11. Seat belt buckle

12. Seat cushion pad

13. Seat cushion trim

14. Seatback pad

15. Seatback trim

ALJIA1239ZZ

FRONT SEAT

SE-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then

wait at least three minutes.

CAUTION:

When removing and installing the seat, use shop cloths to protect components from damage.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Slide the seat to the full forward position.
3. Remove the seat rear bolts.
4. Slide the seat to the full rearward position.
5. Remove the seat front bolts.
6. Tilt the seat rearward and disconnect the harness connectors from the seat and remove.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

• Perform additional services when installing front passenger seat. Refer to

SRC-38, "ZERO POINT

RESET : Description"

.

• Zero point reset must be performed every time the front passenger seat is removed from the vehicle.

• Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tight-

ened to specification.

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

When installing the passenger side front seat, tighten the bolts in the

order shown.

Passenger side front seat
bolt torque

: 40 Nm (4.1 kg-m, 30 ft-lb)

AWJIA0921ZZ

SE-24

< REMOVAL AND INSTALLATION >

SIDE AIR BAG MODULE

SIDE AIR BAG MODULE

DRIVER SIDE
DRIVER SIDE : Side Air Bag Module

INFOID:0000000009567652

WARNING:

• If the vehicle has been involved in a collision and the side air bag module has deployed, the seat-

back pad and seatback trim must be replaced.

• Do not leave any objects (screwdrivers, tools, etc.) on the seat during repair. It can lead to personal

injury if the side air bag module should accidentally deploy.

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not attempt to disassemble the side air bag module.

• Handle the side air bag module carefully. During removal, always hold the side air bag module, do

not let it hang by the wire harness.

• Do not use air tools or electric tools for servicing the seat assembly.

• Do not insert any objects into the side air bag module.

• Do not expose the side air bag module to temperatures exceeding 93

°C (200°F).

• Do not expose the side air bag module to any oil, grease, detergent or water.

• Do not damage the chute, connectors, retainers, clips, module harness or the side air bag module.

• Before servicing, turn ignition switch OFF, disconnect both battery terminals then wait at least three

minutes.

REMOVAL

1. Remove the driver side seatback. Refer to

SE-35, "DRIVER SIDE : Seatback"

.

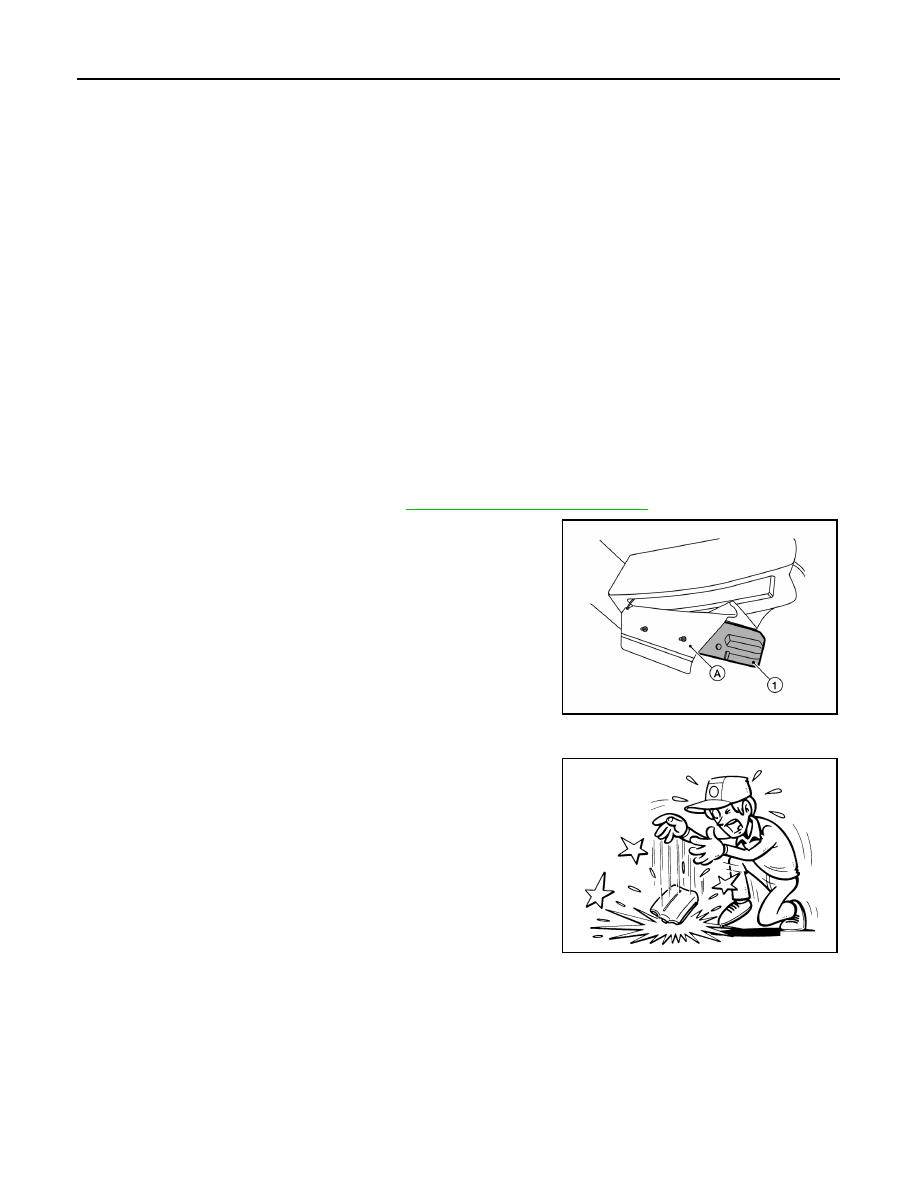

2. Open the seatback trim, pull the side air bag module (1) out of

the chute (A) and remove.

CAUTION:

• Replace the side air bag module if it has been dropped or

sustained an impact.

• Do not strike the side air bag module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.

• When installing the side air bag module, make sure there are no wrinkles and the chute is not folded,

twisted or pinched.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

ALJIA0993ZZ

JMHIA0009ZZ

SIDE AIR BAG MODULE

SE-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

to

SRC-14, "Description"

.

PASSENGER SIDE
PASSENGER SIDE : Side Air Bag Module

INFOID:0000000009567653

WARNING:

• If the vehicle has been involved in a collision and the side air bag module has deployed, the seat-

back pad and seatback trim must be replaced.

• Do not leave any objects (screwdrivers, tools, etc.) on the seat during repair. It can lead to personal

injury if the side air bag module should accidentally deploy.

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not attempt to disassemble the side air bag module.

• Handle the side air bag module carefully. During removal, always hold the side air bag module, do

not let it hang by the wire harness.

• Do not use air tools or electric tools for servicing the seat assembly.

• Do not insert any objects into the side air bag module.

• Do not expose the side air bag module to temperatures exceeding 93

°C (200°F).

• Do not expose the side air bag module to any oil, grease, detergent or water.

• Do not damage the chute, connectors, retainers, clips, module harness or the side air bag module.

• Before servicing, turn ignition switch OFF, disconnect both battery terminals then wait at least three

minutes.

REMOVAL

1. Remove the passenger side seatback. Refer to

SE-40, "PASSENGER SIDE : Seatback"

.

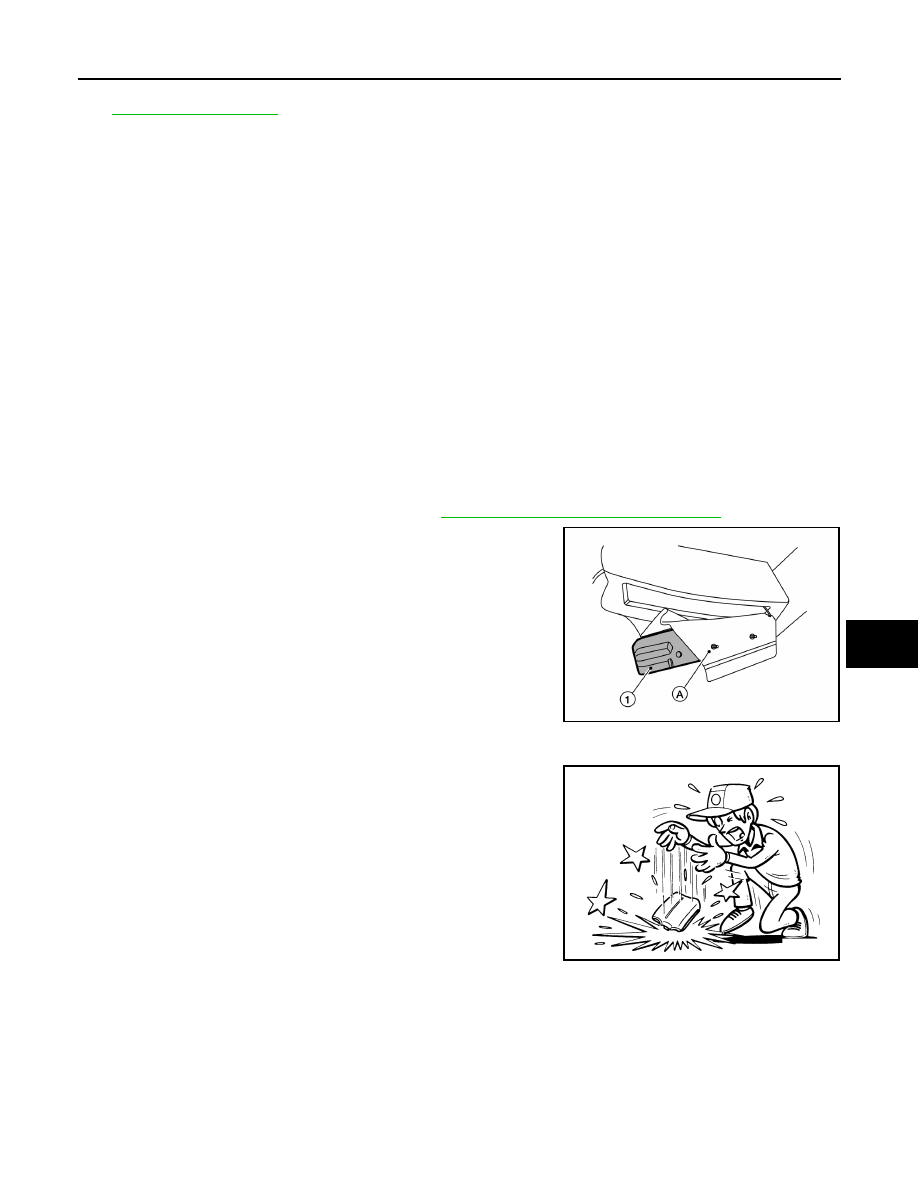

2. Open the seatback trim, pull the side air bag module (1) out of

the chute (A) and remove.

CAUTION:

• Replace the side air bag module if it has been dropped or

sustained an impact.

• Do not strike the side air bag module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.

• When installing the side air bag module, make sure there are no wrinkles and the chute is not folded,

twisted or pinched.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

AWJIA0924ZZ

JMHIA0009ZZ
