SE-18

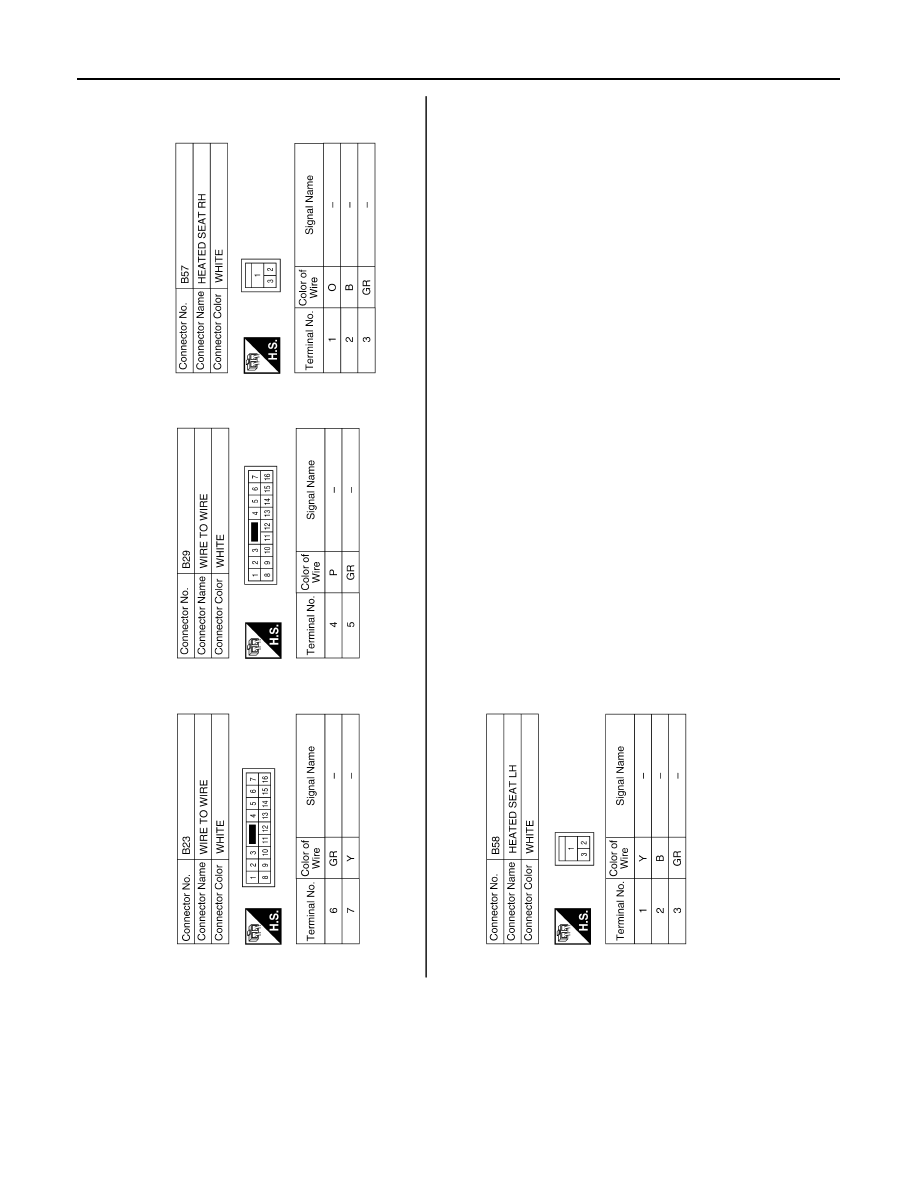

< WIRING DIAGRAM >

HEATED SEAT SYSTEM

AAJIA0298GB

FRONT SEAT

SE-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT

DRIVER SIDE

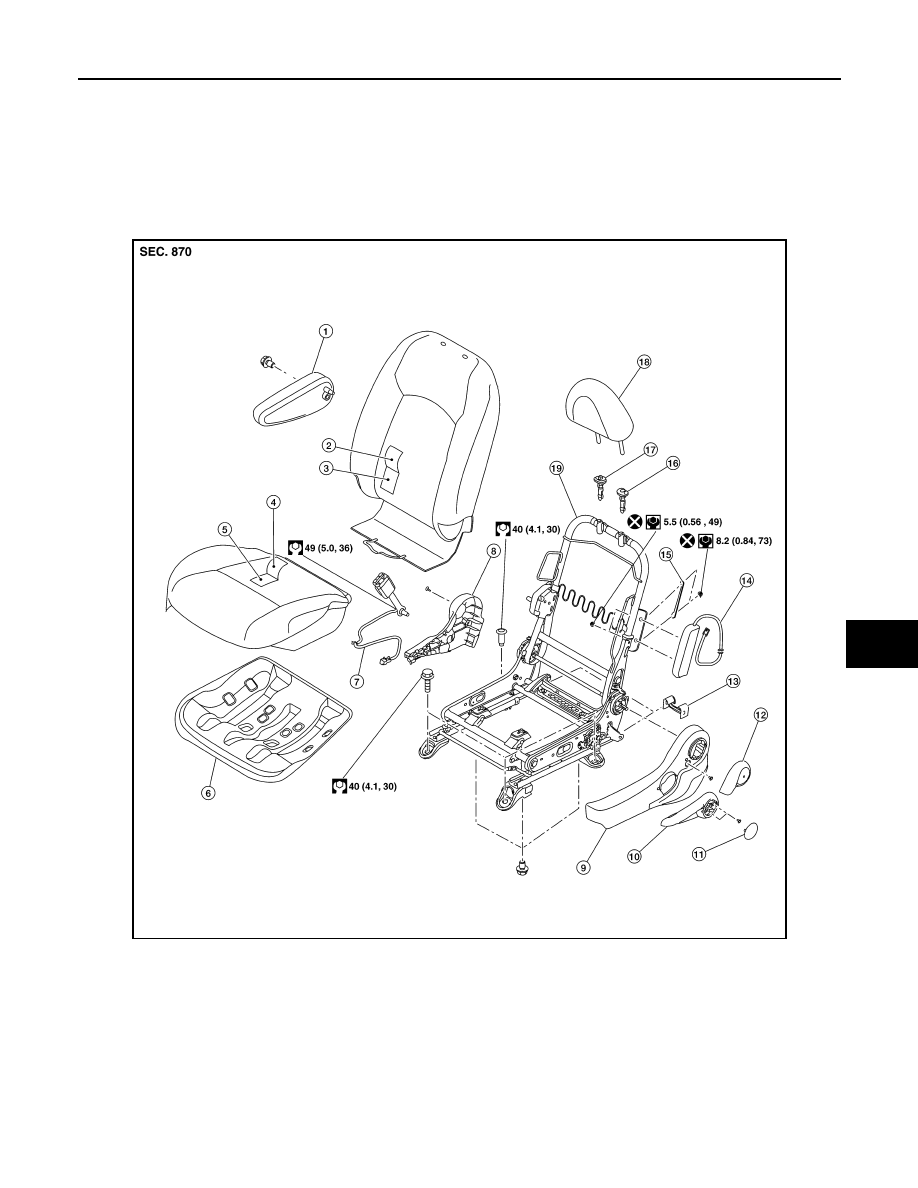

DRIVER SIDE : Exploded View

INFOID:0000000009567477

DRIVER SEAT WITH LIFT

ALJIA1238ZZ

1.

Armrest

2.

Seatback trim

3.

Seatback pad

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion frame

7.

Seat belt buckle

8.

Seat cushion outer finisher (RH)

9.

Seat cushion outer finisher (LH)

10. Lift lever

11. Lift lever finisher

12. Recline lever

13. Slide finisher rear (LH/RH)

14. Side air bag module

15. Chute rod

16. Headrest holder (locked)

17. Headrest holder (free)

18. Headrest

19. Seat frame

SE-20

< REMOVAL AND INSTALLATION >

FRONT SEAT

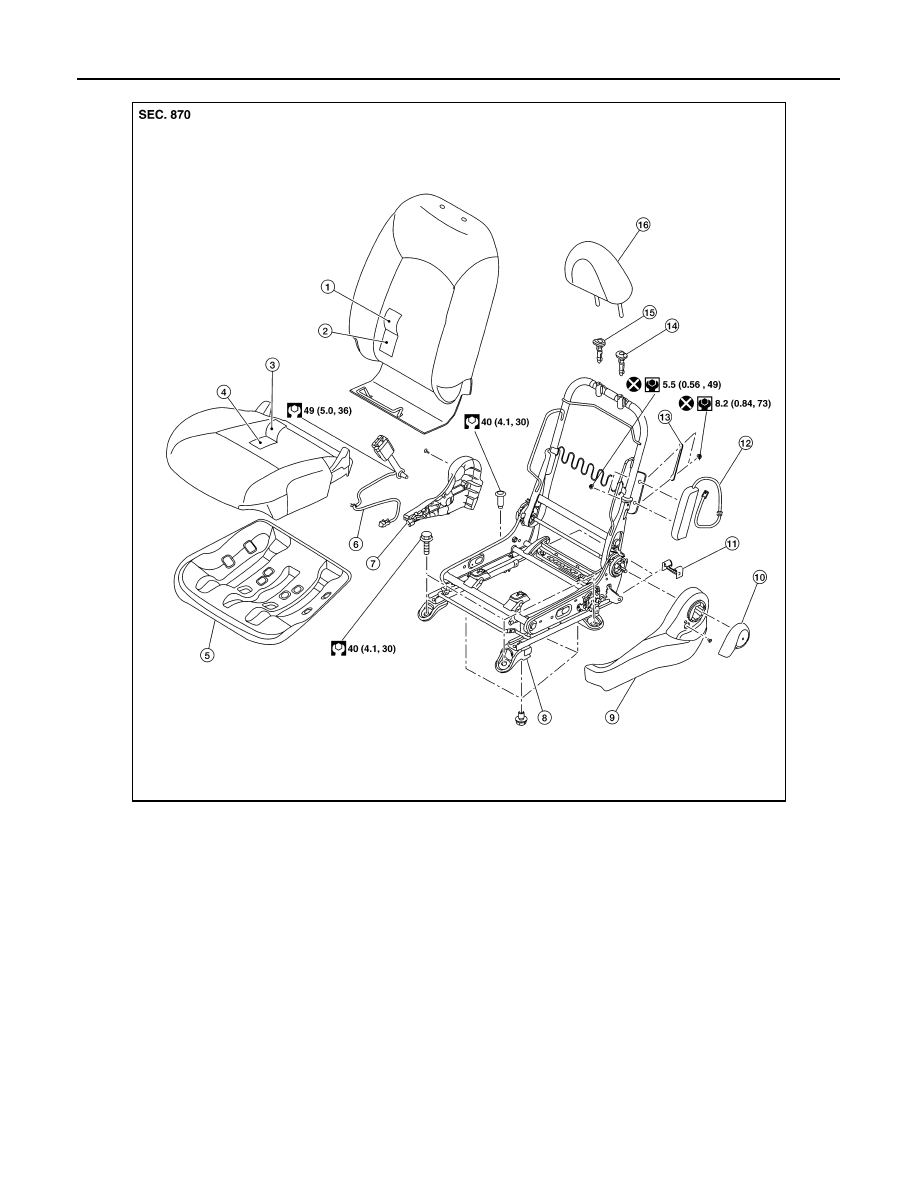

DRIVER SEAT WITHOUT LIFT

DRIVER SIDE : Removal and Installation

INFOID:0000000009567478

WARNING:

• Do not leave any objects (screwdrivers, tools, etc.) on the seat during repair. It can lead to personal

injury if the side air bag module should accidentally deploy.

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After the side air bag module inflates, the front seat frame must be replaced.

ALJIA1237ZZ

1.

Seatback trim

2.

Seatback pad

3.

Seat cushion trim

4.

Seat cushion pad

5.

Seat cushion frame

6.

Seat belt buckle

7.

Seat cushion outer finisher (RH) 8.

Seat frame

9.

Seat cushion outer finisher (LH)

10. Recline lever

11. Slide finisher rear (LH/RH)

12. Side air bag module

13. Chute rod

14. Headrest holder (locked)

15. Headrest holder (free)

16. Headrest

FRONT SEAT

SE-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then

wait at least three minutes.

CAUTION:

• When removing and installing the seat, use shop cloths to protect components from damage.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Slide the seat to the full forward position.
3. Remove the seat rear bolts.
4. Slide the seat to the full rearward position.
5. Remove the seat front bolts.
6. Tilt the seat rearward and disconnect the harness connectors from the seat and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

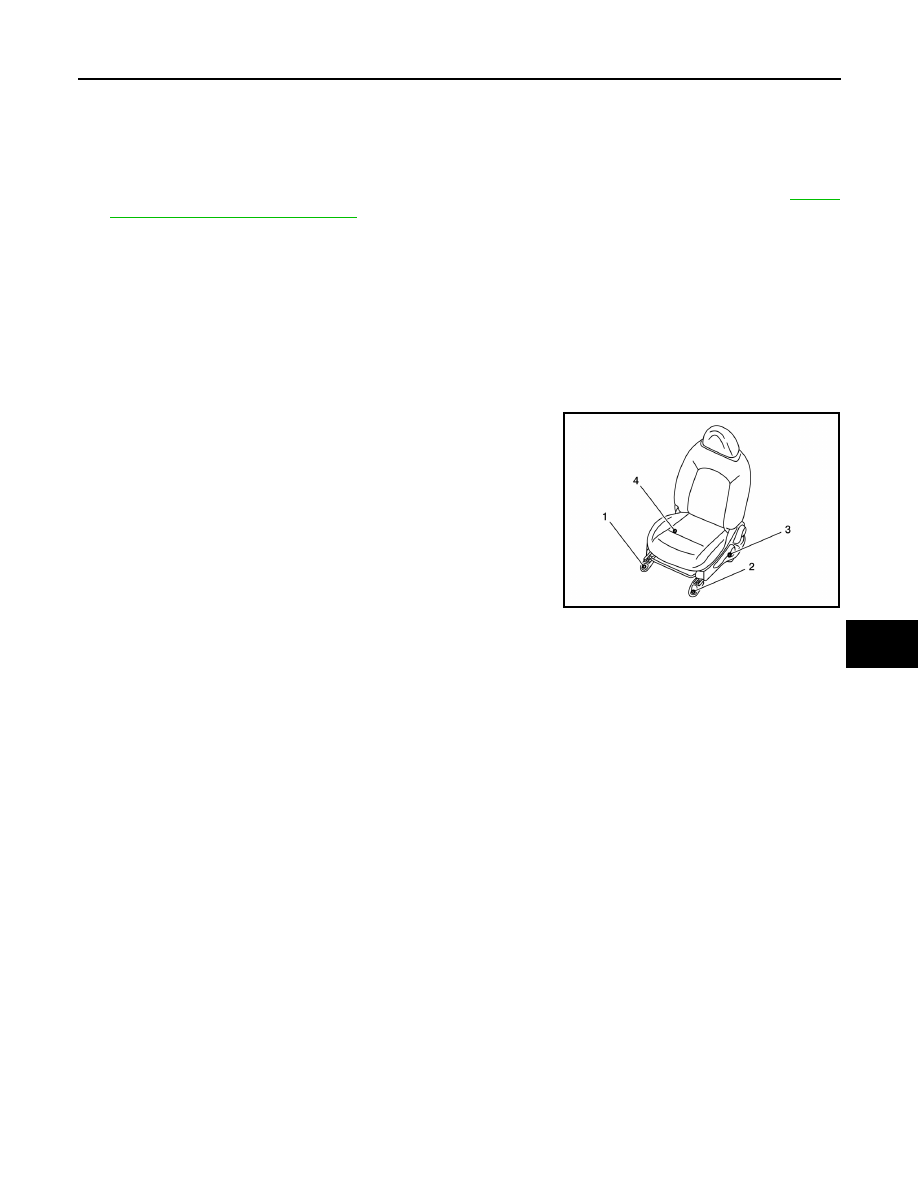

When installing the driver side front seat, tighten the bolts in the

order shown.

PASSENGER SIDE

Driver side front seat bolt
torque

: 40 Nm (4.1 kg-m, 30 ft-lb)

AWJIA0920ZZ
