Nissan Versa Note. Manual - part 659

REAR WHEEL HUB

RAX-7

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

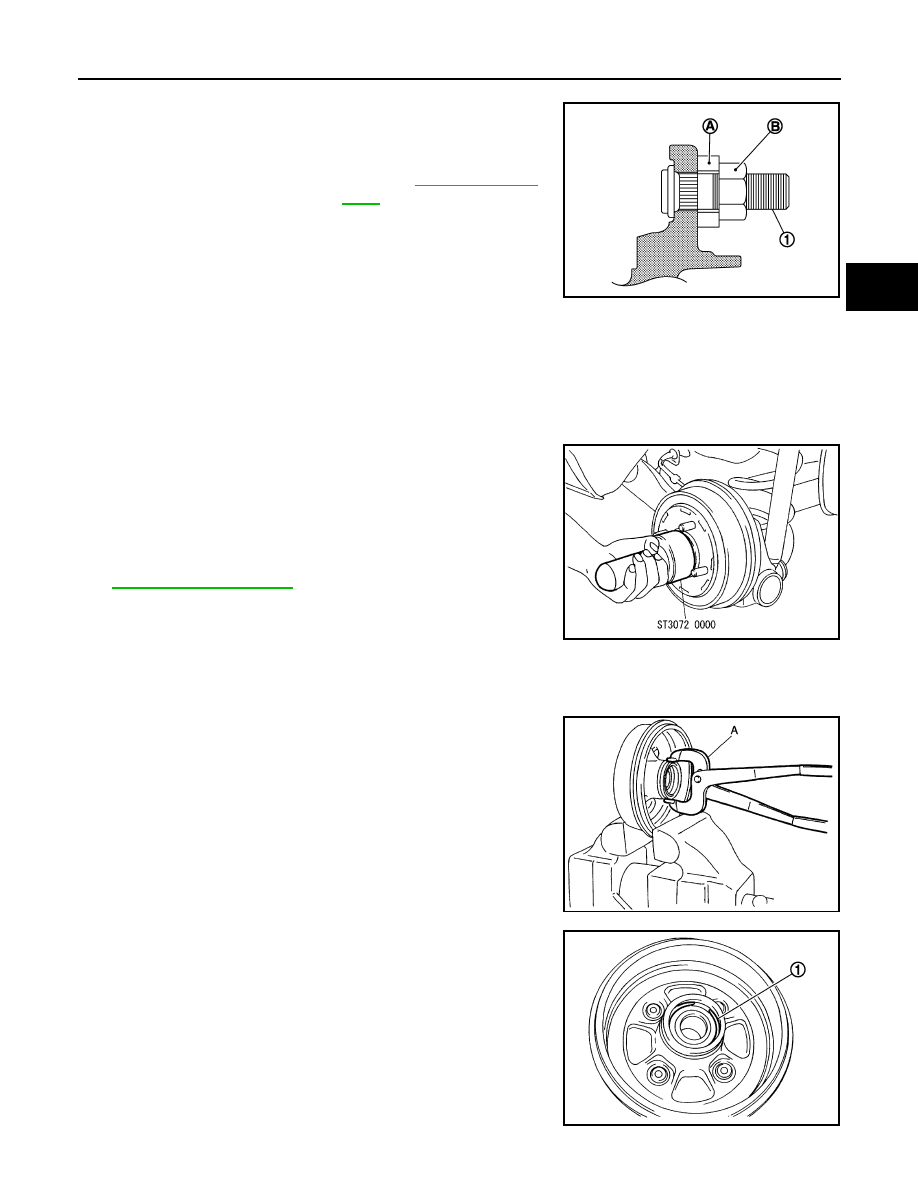

If required, position the wheel stud (1) to the brake drum. Place

Position the stud (1) to the brake drum. Place a washer (A) on the

opposite end of the stud and by use of a nut (B), tighten to press the

stud into the brake drum.

CAUTION:

• Check that no clearance exists between brake drum, and the

wheel stud after installation.

• Do not reuse wheel stud.

Insert brake drum in a straight line onto the spindle.

CAUTION:

• If the brake drum becomes stuck and must be pulled out, do not use tools. Replace the wheel bear-

ing with a new one if the brake drum cannot be pulled out without use of tools.

• If the brake drum becomes stuck and the wheel bearing inner race is damaged, replace the wheel

bearing with a new one.

• Do not damage the wheel bearing seal. If damaged, replace wheel bearing with new one.

Using the Tool, install hub cap on brake drum as shown.

CAUTION:

• Do not reuse hub cap.

• Do not reuse wheel hub lock nut.

• Tighten the wheel hub lock nut to the specified torque. Refer

to

RAX-6, "Exploded View"

.

Disassembly and Assembly

INFOID:0000000009486652

DISASSEMBLY

1. Remove sensor rotor, using a suitable tool (A).

CAUTION:

Do not damage the brake drum.

2. Remove snap ring (1).

Wheel stud press-fit load

: Refer to

RAX-10, "Wheel

Hub"

.

JPDIF0300ZZ

Tool number : ST30720000 ( — )

SDIA0766J

JPDIG0097ZZ

JPDIG0092ZZ

RAX-8

< REMOVAL AND INSTALLATION >

REAR WHEEL HUB

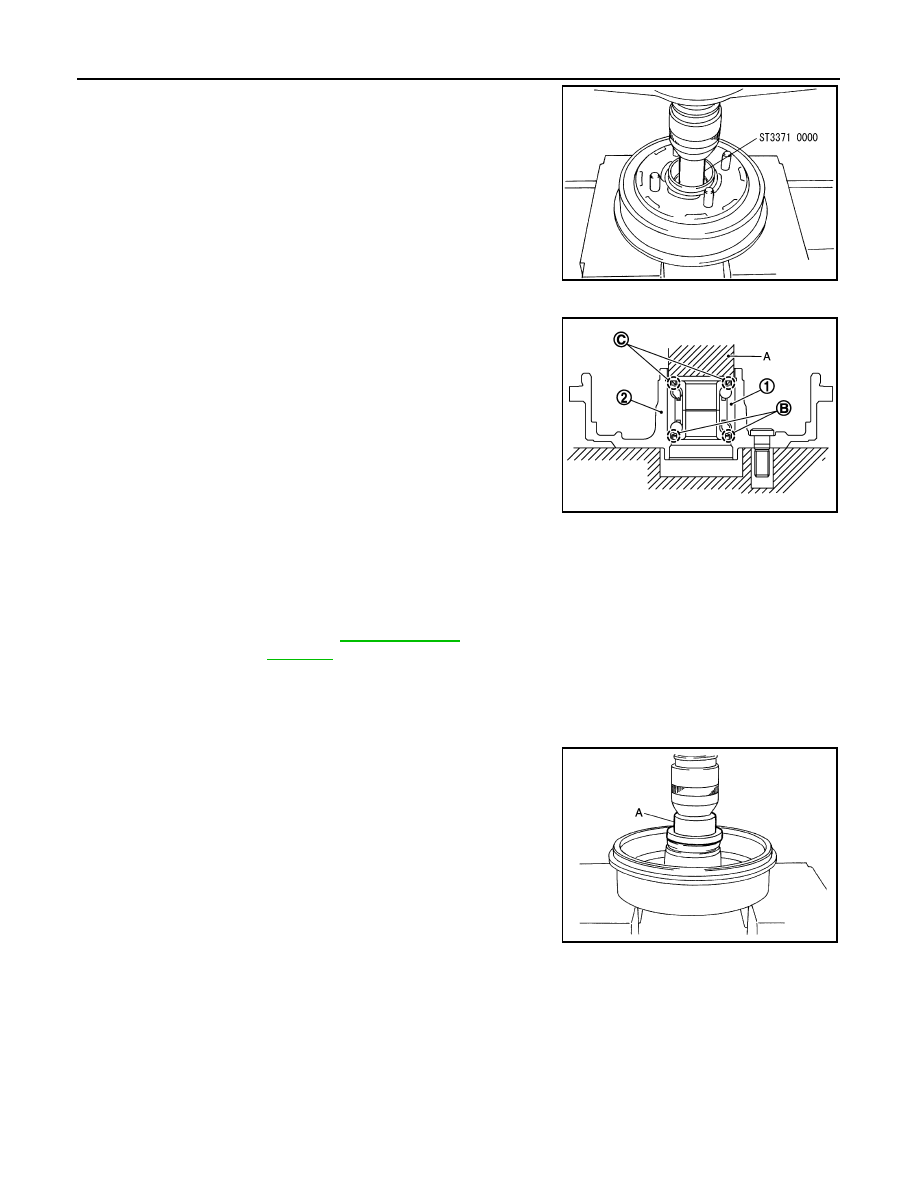

3. Remove wheel bearing, using the Tool.

ASSEMBLY

1. Install wheel bearing (1) to brake drum (2), using the Tool (A).

CAUTION:

• Do not reuse wheel bearing.

• Do not apply lubricating oil to the press-fit surface of the

wheel hub bearing.

• Install wheel bearing with the seal rubber part (B) faced to

the brake drum side.

• Set brake drum and wheel bearing horizontally and insert

them vertically.

• The press-fit load must be applied to the wheel bearing

outer race and the brake drum.

• Do not apply press-fit load to the wheel bearing inner race, the seal (B) on the rubber surface

side, and the seal (C) on the metallic surface side. If a press-fit load is applied, the wheel bearing

must be replaced with a new one.

2. Install snap ring to brake drum.

CAUTION:

• Do not damage the wheel bearing seal.

• The snap ring must be installed evenly into the groove.

3. Install sensor rotor, using the Tool (A).

CAUTION:

Do not reuse sensor rotor.

Inspection

INFOID:0000000009486653

INSPECTION AFTER REMOVAL

Check the brake drum and spindle for wear, cracks, and damage. Replace if necessary.

INSPECTION AFTER DISASSEMBLY

• Check brake drum for wear, cracks, or any other damage. Replace if necessary.

• Check snap ring for wear or cracks. Replace if necessary.

INSPECTION AFTER INSTALLATION

1. Check wheel bearing rotating torque per the following instructions.

Tool number : ST33710000 ( — )

JPDIG0079ZZ

Tool number : KV40104730 ( — )

Wheel bearing
press-fit load

: Refer to

FAX-27, "Wheel

Bearing"

Tool number : ST30032000 ( — )

JPDIG0200ZZ

JPDIG0191ZZ

REAR WHEEL HUB

RAX-9

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

NOTE:

The adequacy of turning torque can be judged from a measurement value by a suitable tool.

a. Check the contact surface of the brake drum and spindle for foreign matter. If there is any foreign matter,

clean the contact surface.

b. Check that the wheel hub lock nut is tightened to the specified torque.
c. Turn the brake drum 10 times or more both clockwise and counterclockwise for proper fit.

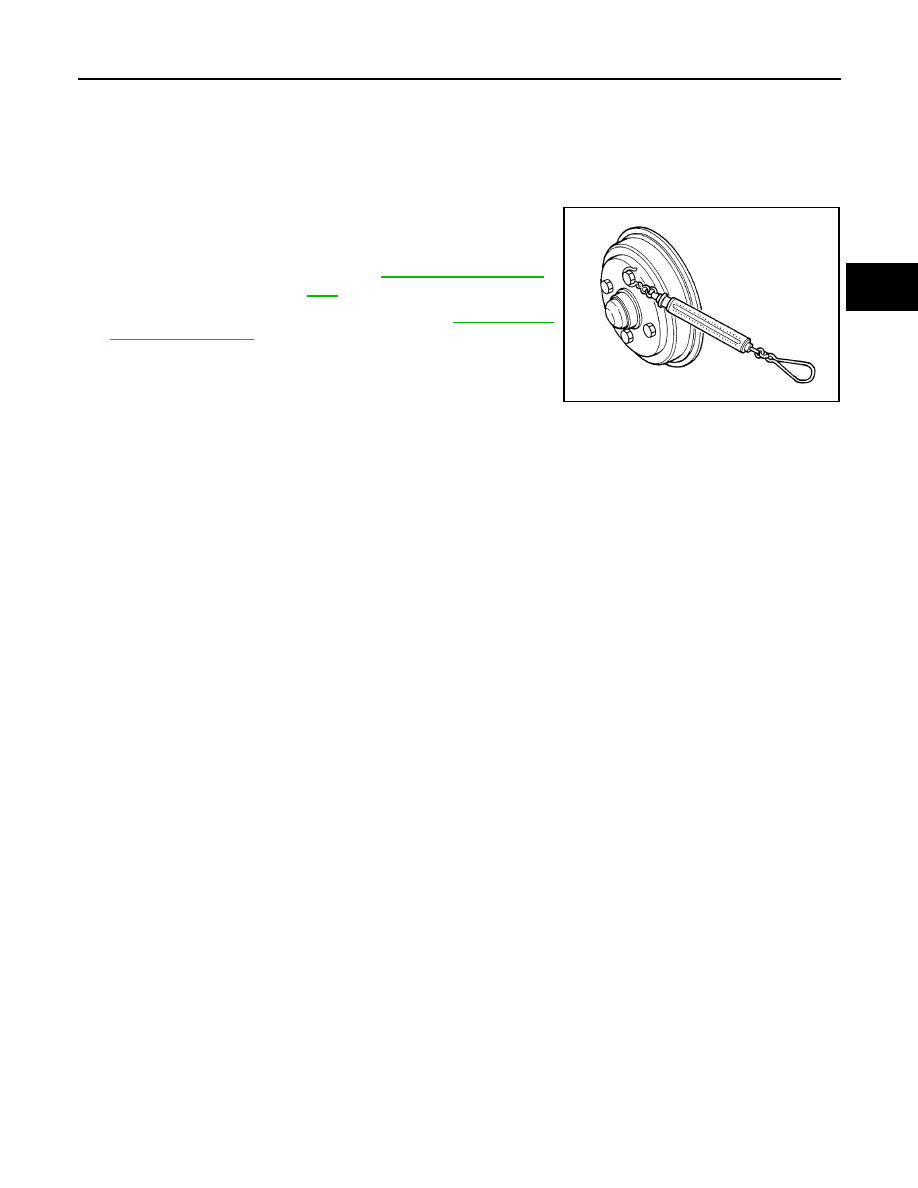

d. Set a suitable tool to the wheel nut and measure turning torque

at turning speeds of 8 to 12 rpm.

2. Adjust parking brake operation (stroke). Refer to

PB-4, "Inspec-

tion and Adjustment"

.

Wheel bearing rotat-
ing torque

: Refer to

RAX-10, "Wheel Bear-

ing"

.

MDIA0060E

RAX-10

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000008969752

Wheel Hub

INFOID:0000000009499765

Item

Standard

Axial end play

0.0 mm (0.00 in) or less

Rotating torque

1.71 N·m (0.17 kg-m, 15 in-lb) or less

Spring balance measurement

34.2 N (3.49 kg, 7.69 lb) or less

Wheel bearing press-fit load

44.1 - 53.9 kN (4,498.2 - 5,497.8 kg-f, 9,913.7 - 12,116.7 lb-f)

Item

Standard

Wheel stud  press-fit load

26.5 - 32.3 kN (2,703.0 - 3,294.6 kg-f, 5,957.2 - 7,261.0 lb-f)
