Nissan Versa Note. Manual - part 657

PWO-6

< REMOVAL AND INSTALLATION >

CONSOLE POWER SOCKET

REMOVAL AND INSTALLATION

CONSOLE POWER SOCKET

Removal and Installation

INFOID:0000000009567678

CONSOLE POWER SOCKET or CIGARETTE LIGHTER (IF EQUIPPED)

REMOVAL

NOTE:

If unable to use the tool because of power socket location or access to the harness connector, then further

removal of interior components may be required. Refer to

IP-18, "Removal and Installation"

.

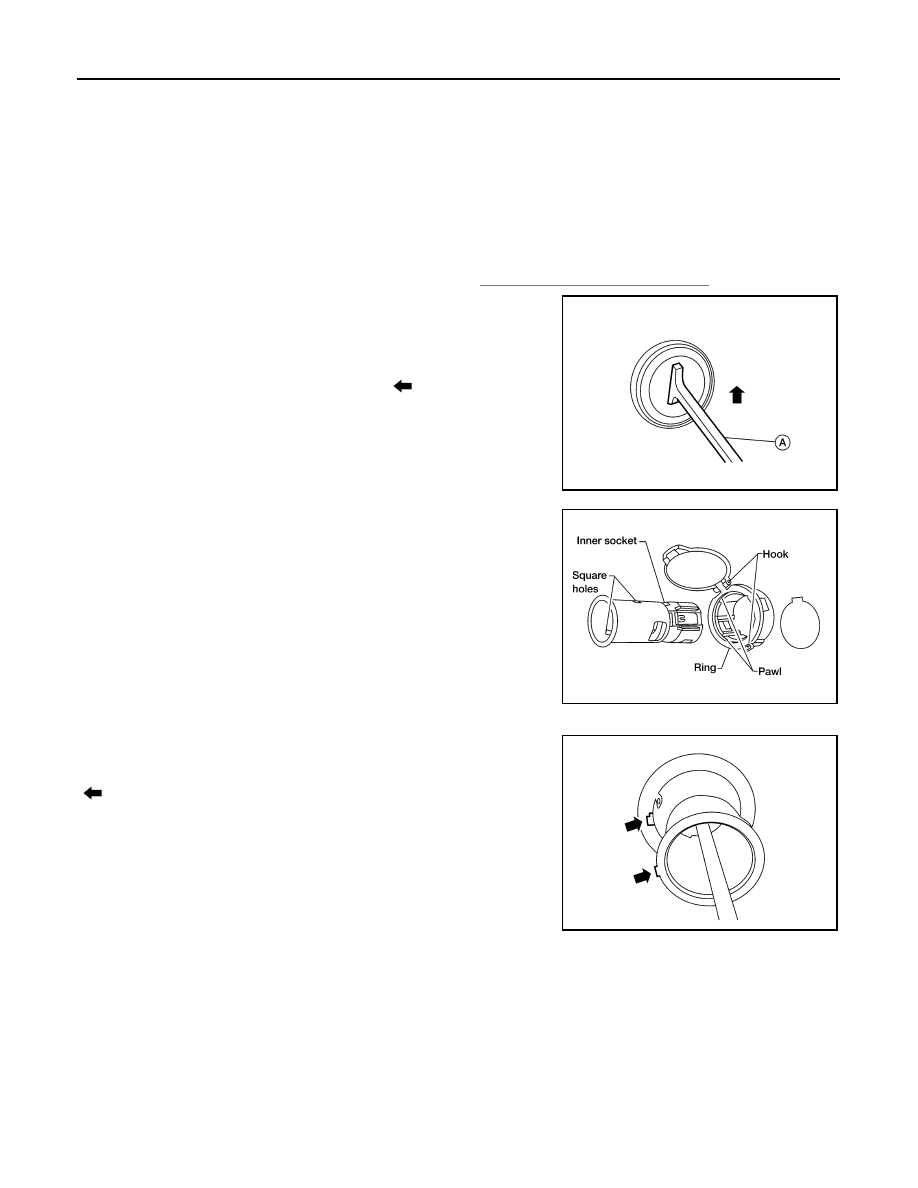

1. Insert one side of Tool (A) into one of the square holes inside the

power socket.

2. Lift up the handle of the Tool as shown (

) until the other side

snaps into the other square hole in the power socket.

3. Pull the power socket straight out with the Tool.

4. Disconnect the harness connector from the power socket.
5. Remove the ring from the power socket while pressing the pawls

with a suitable tool.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure to align the tabs with the square notched areas as shown
(

) during installation.

Tool number:

—  (J-42059)

AWMIA1182GB

WKIA1035E

AWMIA1183GB

PWO

SERVICE DATA AND SPECIFICATIONS (SDS)

PWO-7

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Power Socket

INFOID:0000000009567683

Rated voltage

DC 12 V

Maximum electric capacity

120 W or less (Total)

Maximum current

10 A or less (Total)
