PWC-56

< REMOVAL AND INSTALLATION >

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

REMOVAL AND INSTALLATION

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Removal and Installation

INFOID:0000000009560296

REMOVAL

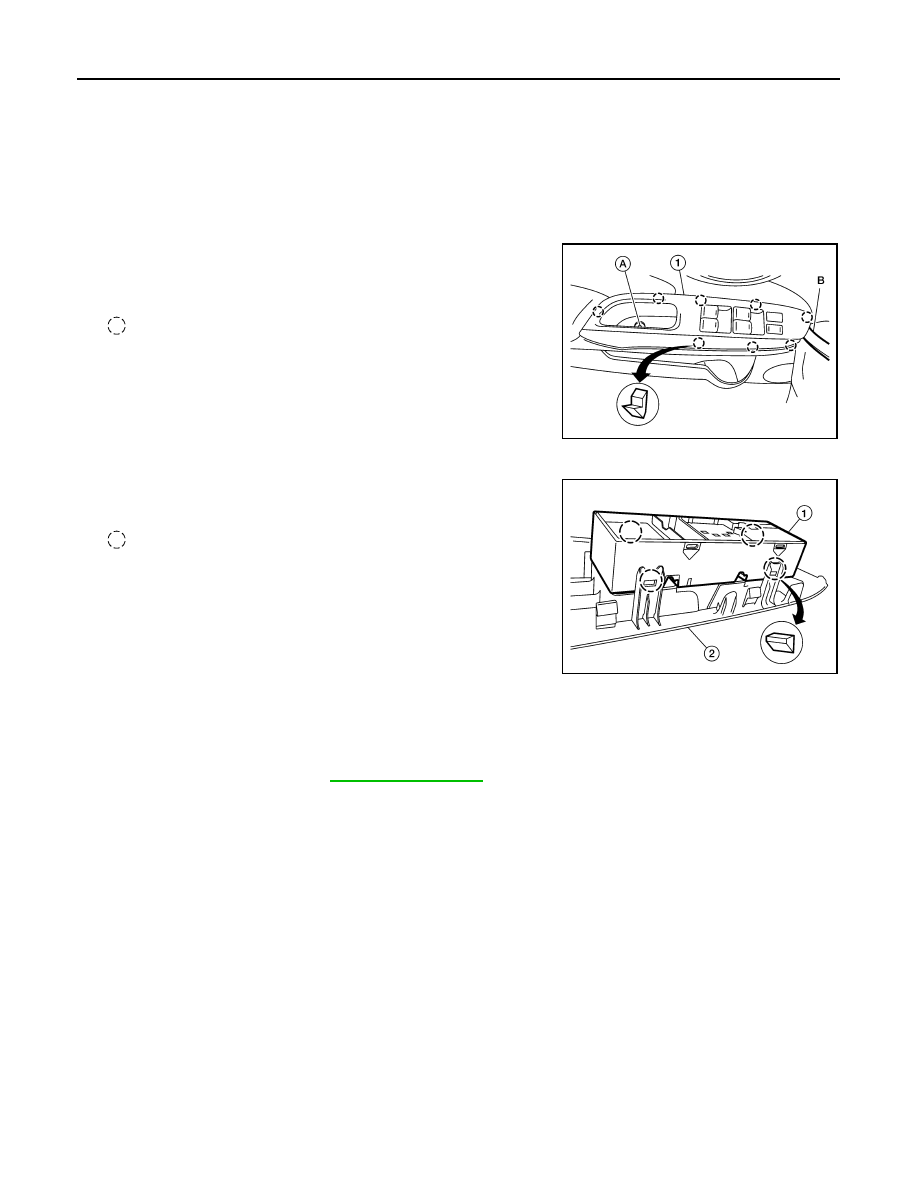

1. Remove main power window and door lock/unlock switch finisher door handle pull escutcheon.
2. Remove screw (A) from main power window and door lock/

unlock switch finisher.

3. Remove main power window and door lock/unlock switch fin-

isher (1) using a suitable tool (B).

: Pawl

4. Disconnect the harness connectors from the main power window and door lock/unlock switch.
5. Release pawls and remove main power window and door lock/

unlock switch (1) from main power window and door lock/unlock

switch finisher assembly (2) using a suitable tool.

: Pawl

CAUTION:

Do not bend back the pawls on the switch finisher too far or

damage may occur.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

When the main power window and door lock/unlock switch is removed or replaced, it is necessary to perform

the initialization procedure. Refer to

PWC-23, "Work Flow"

.

AWKIA2536ZZ

AWKIA2506ZZ

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

PWC-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

Removal and Installation

INFOID:0000000009560297

REMOVAL

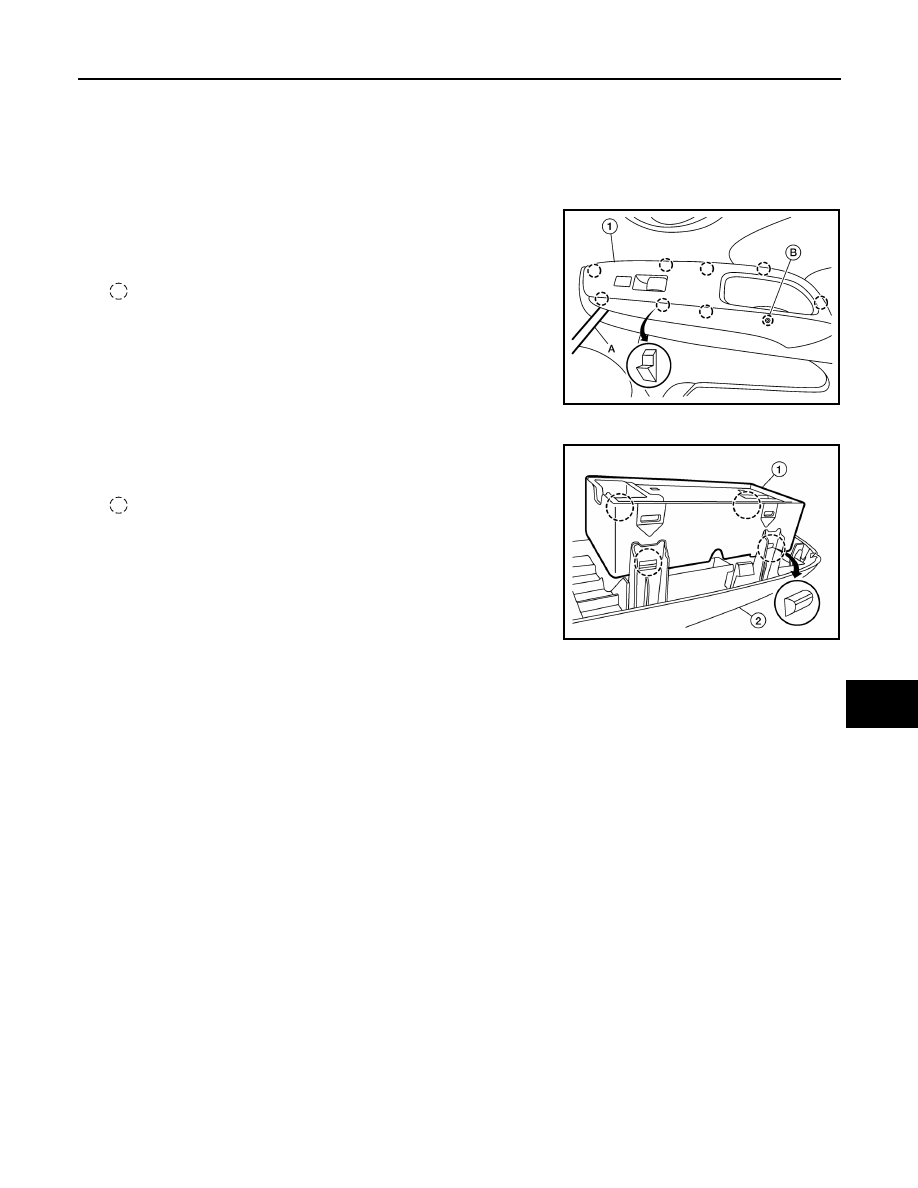

1. Remove power window and door lock/unlock switch (RH) finisher door handle pull escutcheon.
2. Remove screw (B) from power window and door lock/unlock

switch (RH) finisher.

3. Remove power window and door lock/unlock switch (RH) fin-

isher (1) using a suitable tool (A).

: Pawl

4. Disconnect the harness connector from the power window and door lock/unlock switch (RH).
5. Release pawls and remove power window and door lock/unlock

switch (1) from power window and door lock/unlock switch (RH)

finisher (2) using a suitable tool.

: Pawl

CAUTION:

Do not bend back the pawls on the switch finisher too far or

damage may occur.

INSTALLATION

Installation is in the reverse order of removal.

AWKIA2505ZZ

AWKIA2507ZZ

PWC-58

< REMOVAL AND INSTALLATION >

REAR POWER WINDOW SWITCH

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000009560298

REMOVAL

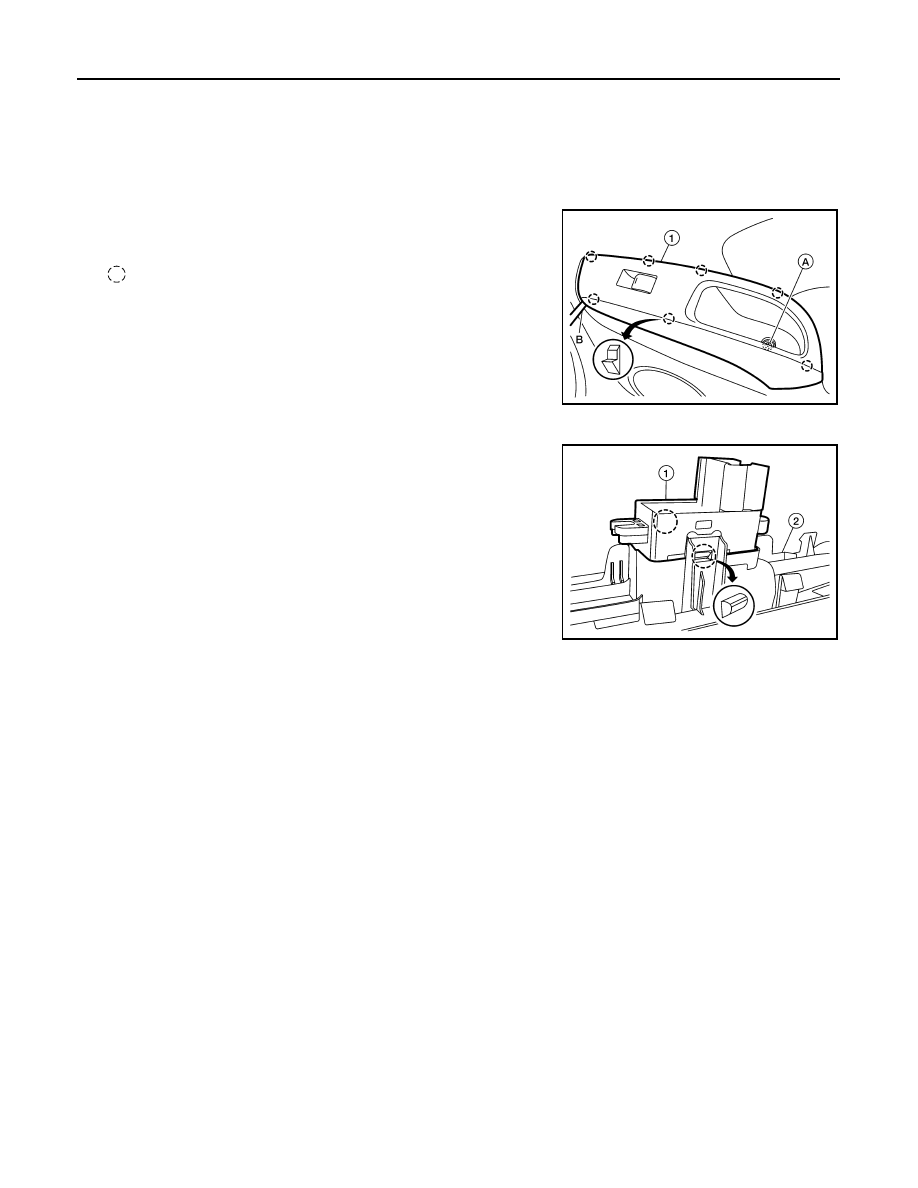

1. Remove rear power window switch door handle pull escutcheon.
2. Remove screw (A) from rear power window switch finisher.
3. Remove rear power window switch finisher (1) using a suitable

tool (B).

: Pawl

4. Disconnect the harness connector from the rear power window switch.
5. Release pawls and remove rear power window switch (1) from

rear power window switch finisher (2) using a suitable tool.

CAUTION:

Do not bend back the pawls on the switch finisher too far or

damage may occur.

INSTALLATION

Installation is in the reverse order of removal.

AWKIA2510ZZ

AWKIA2511ZZ
