Nissan Versa Note. Manual - part 651





PWC-40

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

3. Check continuity between door switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-70, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Refer to

PWC-40, "WITH INTELLIGENT KEY : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning door switch.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

WITH INTELLIGENT KEY : Component Inspection

INFOID:0000000009781483

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check continuity between door switch terminals.

Is the inspection result normal?

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Front door switch
LH

B8

3

M100

47

Yes

Front door switch
RH

B16

45

Rear door switch
LH

B6

48

Rear door switch
RH

B17

46

Door switch

Ground

Continuity

Connector

Terminal

Front door switch LH

B8

3

No

Front door switch RH

B16

Rear door switch LH

B6

Rear door switch RH

B17

Door switch

Condition

Continuity

Terminal

Front door switch
LH

3

Ground part of door

switch

Door switch

Pressed

No

Released

Yes

Front door switch
RH

Pressed

No

Released

Yes

Rear door switch
LH

Pressed

No

Released

Yes

Rear door switch
RH

Pressed

No

Released

Yes

DOOR SWITCH

PWC-41

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

YES

>> Inspection End.

NO

>> Replace malfunction door switch.

WITHOUT INTELLIGENT KEY
WITHOUT INTELLIGENT KEY : Description

INFOID:0000000009781484

Detects door open/close condition.

WITHOUT INTELLIGENT KEY : Component Function Check

INFOID:0000000009781485

1.

CHECK FUNCTION

 With CONSULT

Check door switches DOOR SW-DR, DOOR SW-AS, DOOR SW-RL, DOOR SW-RR in Data Monitor mode

with CONSULT.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

PWC-41, "WITHOUT INTELLIGENT KEY : Diagnosis Procedure"

.

WITHOUT INTELLIGENT KEY : Diagnosis Procedure

INFOID:0000000009781486

Regarding Wiring Diagram information, refer to

DLK-199, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

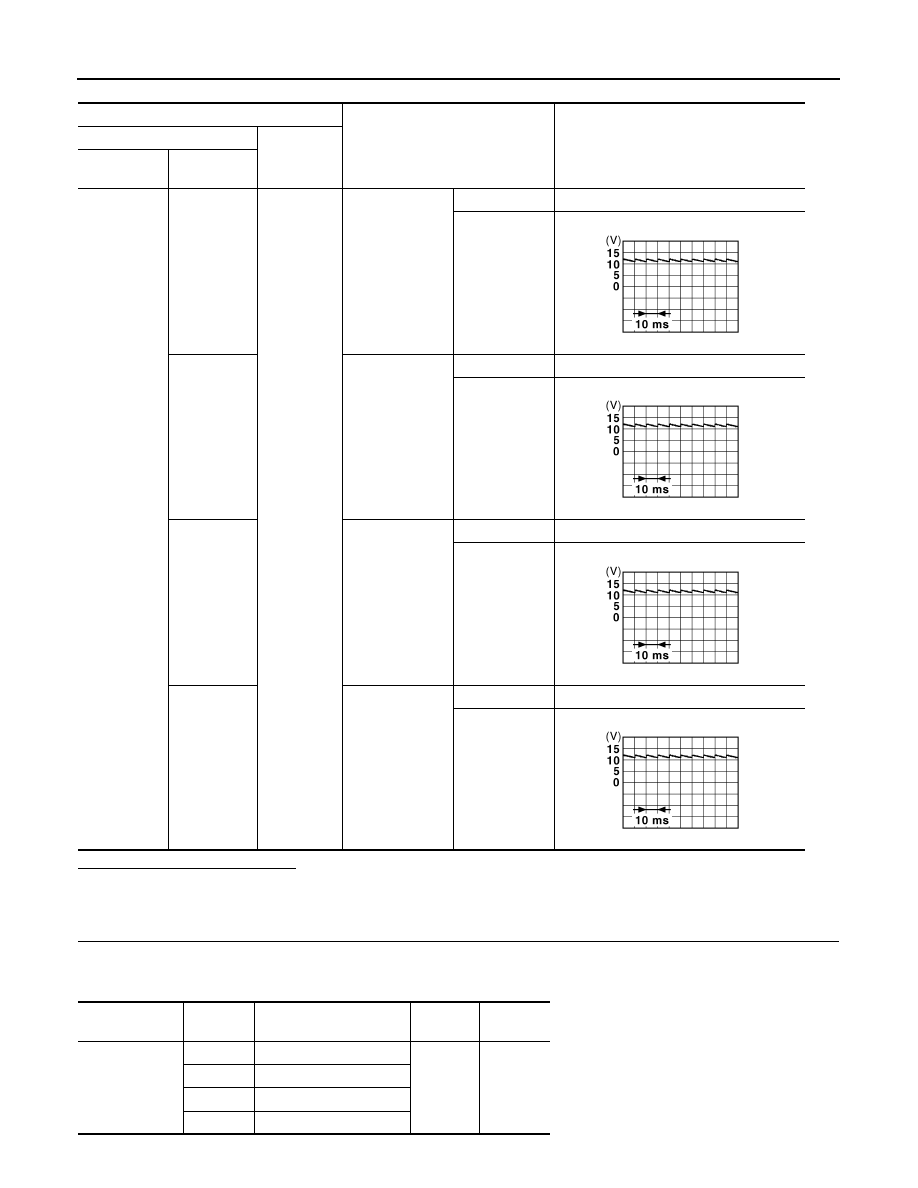

2. Check signal between BCM connector and ground with oscilloscope.

Monitor item

Condition

DOOR SW-DR

CLOSE

→ OPEN: OFF → ON

DOOR SW-AS

DOOR SW-RL

DOOR SW-RR

PWC-42

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 2

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM connector and door switch connector.

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M20

60

Ground

Front RH

OPEN

0

CLOSE

57

Rear RH

OPEN

0

CLOSE

59

Front LH

OPEN

0

CLOSE

58

Rear LH

OPEN

0

CLOSE

JPMIA0011GB

JPMIA0011GB

JPMIA0011GB

JPMIA0011GB

BCM connector

Terminal

Door switch

connector

Terminal

Continuity

M20

60

B16 (Front RH)

3

Yes

57

B17 (Rear RH)

59

B8 (Front LH)

58

B6 (Rear LH)

DOOR SWITCH

PWC-43

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness between BCM and door switch.

3.

CHECK DOOR SWITCH

Refer to

PWC-43, "WITHOUT INTELLIGENT KEY : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace malfunctioning door switch.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

WITHOUT INTELLIGENT KEY : Component Inspection

INFOID:0000000009781487

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect door switch connector.

3. Check door switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning door switch.

BCM connector

Terminal

Ground

Continuity

M20

60

No

57

59

58

Terminal

Door switch condition

Continuity

Door switch

3

Ground part of

door switch

Pressed

No

Released

Yes
