Nissan Versa Note. Manual - part 586

MWI

COMBINATION METER

MWI-19

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*: Displays “Off” if the brake warning lamp is illuminated when the valve check starts, the parking brake switch

is turned ON or the brake fluid level switch is turned ON.

CRUISE IND

Cruise indicator lamp

When cruise indicator lamp is ON

On

When cruise indicator lamp is OFF

Off

O/D OFF IND

O/D OFF indicator

When O/D OFF indicator lamp is OFF

Off

When O/D OFF indicator lamp is ON

On

FUEL W/L

Low fuel warning

When low fuel warning is ON

On

When low fuel warning is Off

Off

AIR PRES W/L

Tire pressure warning lamp op-
eration

When tire pressure warning lamp is ON

ON

When tire pressure warning lamp is OFF

Off

KEY G/Y W/L

Intelligent Key warning lamp
operation

When Intelligent Key warning lamp is ON

ON

When  Intelligent Key warning lamp is OFF

Off

EPS W/L

EPS warning lamp

EPS warning lamp ON

On

EPS warning lamp OFF

Off

CHAGE W/L

Charge warning lamp

Engine running

Off

SHIFT IND

Shift position indicator

The position of the shift position selector

[P, R, N, D, L]

FUEL CAP W/L

Loose fuel cap warning

Loose fuel filler cap warning is On

On

Loose fuel filler cap warning is OFF

Off

O/D OFF SW

O/D OFF switch

When O/D OFF switch is pressed to OFF

Off

When O/D OFF switch is pressed to ON

On

REAR DEF SW

Rear defogger switch

When rear defogger switch is pressed to ON

On

When rear defogger is pressed to OFF

Off

PKB SW

Parking brake switch

When parking brake is active

On

When parking brake is inactive

Off

BUCKLE SW

Seat belt buckle switch LH

When seat belt buckle LH is unfastened

On

When seat belt buckle LH is fastened

Off

BRAKE OIL SW

Brake fluid level switch

When brake fluid level switch ON

On

When brake fluid level switch OFF

Off

DISTANCE

Distance to empty

While driving

 [mi or km]

FUEL LOW SIG

Low fuel warning

When low fuel warning is On

On

When low fuel warning is Off

Off

BUZZER

Buzzer operation

When Buzzer is ON

On

When Buzzer is OFF

Off

TPMS PRESS L

Low tire pressure warning

When check tire pressure warning message is On

On

When check tire pressure warning message is
OFF

Off

Monitor Item

Display content

Data monitor

Condition

Reference value in normal

operation

MWI-20

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

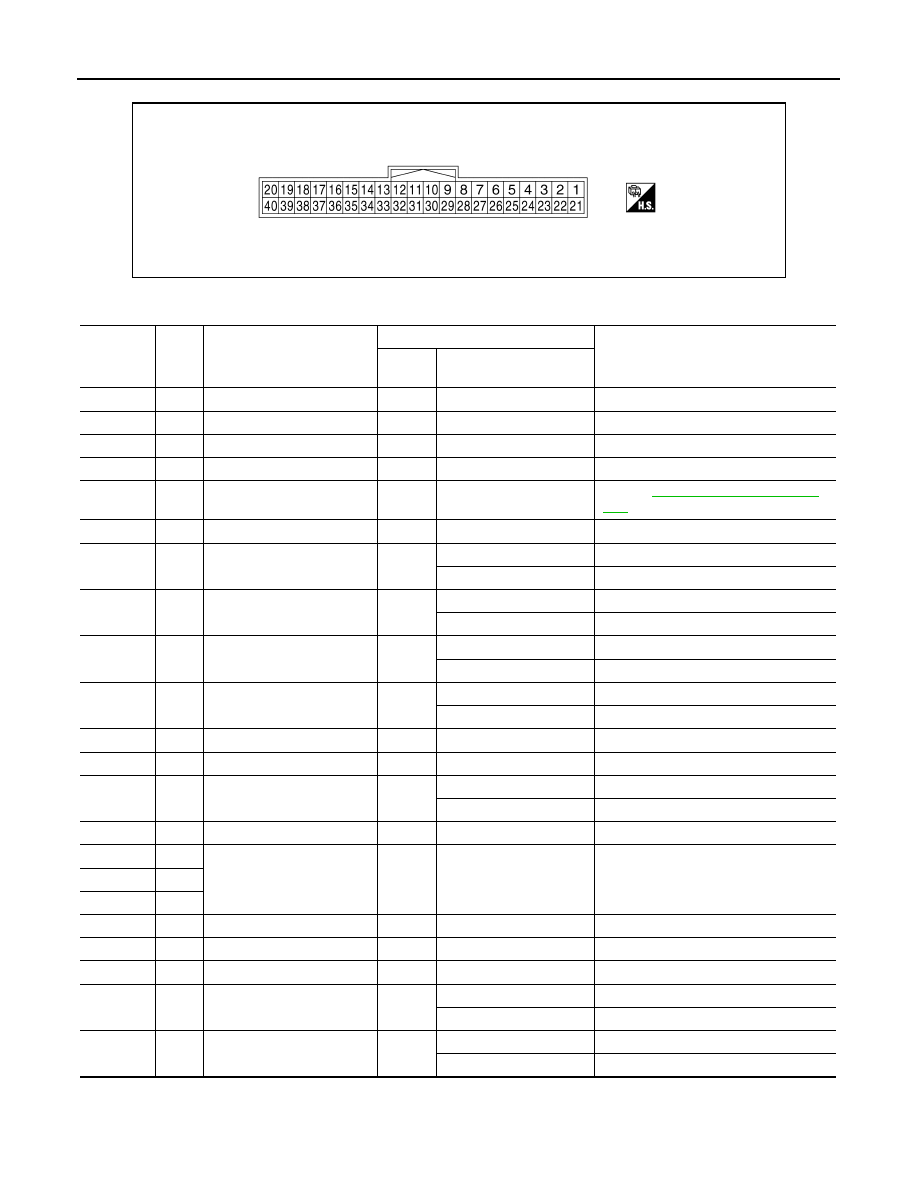

TERMINAL LAYOUT

PHYSICAL VALUES

Fail-safe

INFOID:0000000009654104

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

JSNIA5390ZZ

Terminal

No.

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

1

L

CAN-H

—

—

—

2

P

CAN-L

—

—

—

3

SB

2P/R

—

—

—

4

LG

8P/R

—

—

—

6

W

Fuel level sensor signal (+)

—

—

Refer to

MWI-46, "Component Inspec-

tion"

.

7

V

Air  bag

—

—

—

8

P

O/D OFF switch

ON

O/D OFF switch pressed

0

O/D OFF switch released

Battery voltage

9

V

Seat belt buckle switch LH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

10

SB

Parking Brake switch

ON

Parking brake is inactive

0

Parking brake is active

Battery voltage

11

BR

Brake fluid level switch

ON

Brake fluid level low

0

Brake fluid level normal

Battery voltage

13

B

Illumination control

—

—

—

15

R

Ignition switch ON or ACC

—

—

Battery voltage

17

V

Washer fluid level switch
(Canada models)

ON

Washer fluid level low

0

Washer fluid level normal

Battery voltage

18

R/Y

Security

—

—

—

21

B

Ground

—

—

0

22

B

23

B

24

GR

Fuel level sensor ground (-)

ON

—

0

27

R/W

Battery power supply

OFF

—

Battery voltage

28

GR

Ignition switch ON or START

ON

—

Battery voltage

29

G

Seat belt buckle switch RH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

38

Y

Generator

ON

Generator voltage low

0

Generator voltage normal

Battery voltage

MWI

COMBINATION METER

MWI-21

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000009654105

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Illumination control

When suspending communication, changes to nighttime mode.

Shift position indicator

When suspending communication, not indicate.

Information display

Trip com-
puter

Current fuel consump-
tion

• When reception time of an abnormal signal is 2 seconds or

less, the last received datum is used for calculation to indi-
cate the result.

• When reception time of an abnormal signal is more than two

seconds, the last result calculated during normal condition is
indicated.

Average fuel consump-
tion

Distance to empty

Engine coolant temperature gauge

Reset to zero by suspending communication.

Odo/trip meter

An indicated value is maintained at communications blackout.

Buzzer

The buzzer turns OFF by suspending communication.

Warning lamp/indicator lamp

ABS warning lamp

The lamp turns ON by suspending communication.

Malfunction indicator lamp (MIL)

EPS warning lamp

Brake warning lamp

High beam indicator lamp

The lamp turns OFF by suspending communication.

Turn signal indicator lamp

Door warning lamp

Light indicator lamp

Engine oil pressure warning lamp

Key warning lamp

O/D OFF indicator lamp

Shift P warning lamp

Engine start operation indicator lamp

Display contents of CONSULT

Diagnostic item is detected when...

Refer to

CAN COMM CIRCUIT
[U1000]

When combination meter is not transmitting or receiving CAN communication signal for
2 seconds or more.

MWI-37

CONTROL UNIT (CAN)
[U1010]

When detecting error during the initial diagnosis of the CAN controller of combination
meter.

MWI-38

VEHICLE SPEED
[B2205]

The abnormal vehicle speed signal is input from the ABS actuator and electric unit (con-
trol unit) for 2 seconds or more.

MWI-39

ENGINE SPEED
[B2267]

If ECM continuously transmits abnormal engine speed signals for 2 seconds or more.

MWI-40

WATER TEMP
[B2268]

If ECM continuously transmits abnormal engine coolant temperature signals for 60 sec-
onds or more.

MWI-41

MWI-22

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009654106

ECU

Reference

BCM (with Intelligent Key)

BCS-28, "Reference Value"

BCS-46, "Fail-safe"

BCS-47, "DTC Inspection Priority Chart"

BCS-48, "DTC Index"

BCM (without Intelligent Key)

BCS-95, "Reference Value"

BCS-108, "Fail-safe"

BCS-109, "DTC Inspection Priority Chart"

BCS-109, "DTC Index"
