Nissan Versa Note. Manual - part 584





MWI

SYSTEM

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The combination meter turns OFF meter illumination when the following conditions are satisfied.

INFORMATION DISPLAY
INFORMATION DISPLAY : System Description

INFOID:0000000009654099

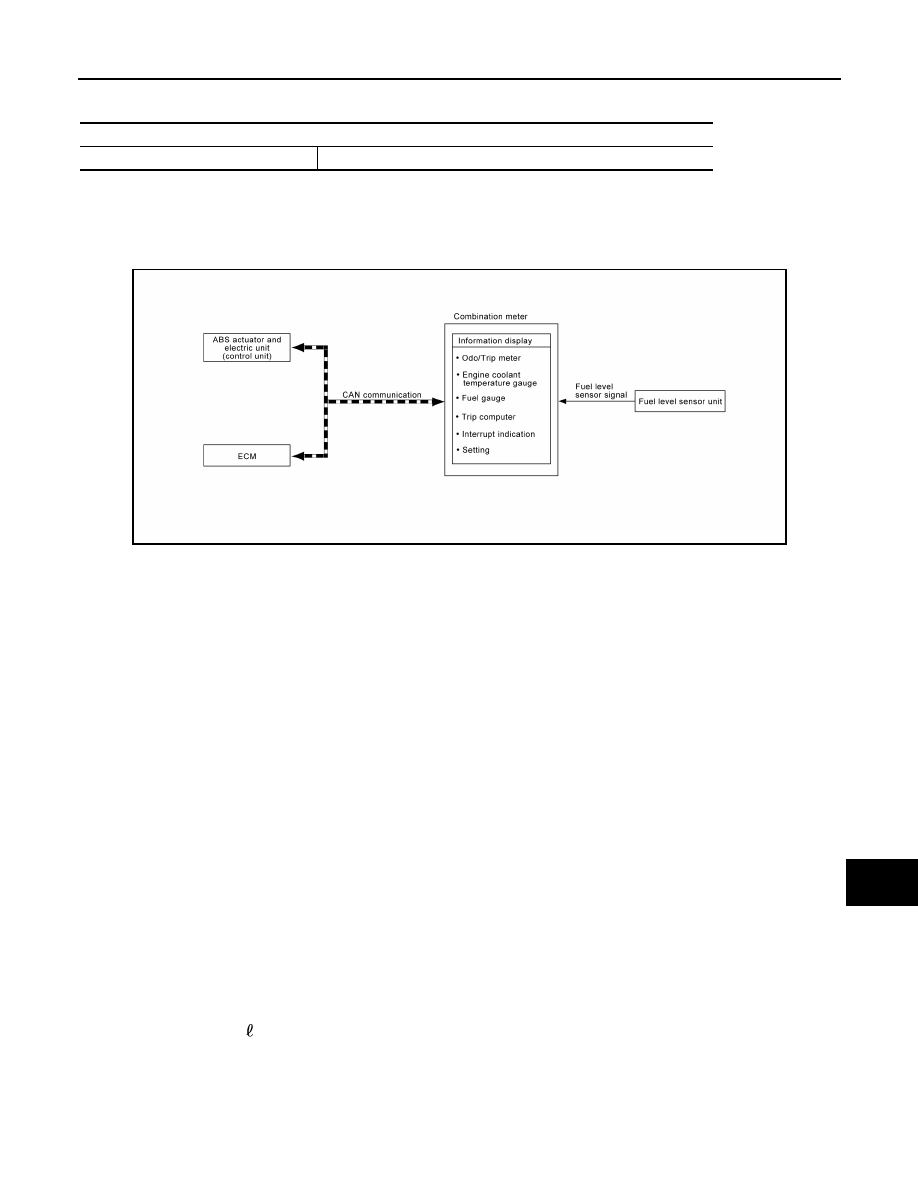

SYSTEM DIAGRAM

DESRIPTION

• The combination meter receives signals from switches, sensors and modules for operating the following

functions on  the information display.

- Odo/trip meter

- Engine coolant temperature gauge

- Fuel gauge

- Trip computer

- Interrupt indication

- Meter illumination level

- Low fuel warning

- Loose fuel cap warning

ODO/TRIP METER

The combination meter calculates mileage using the vehicle speed signal from the ABS actuator and electric

unit (control unit) and displays the mileage on the information display.

ENGINE COOLANT TEMPERATURE GAUGE

The engine coolant temperature gauge indicates the engine coolant temperature.

The ECM provides an engine coolant temperature signal to the combination meter  via CAN communication.

FUEL GAUGE

Control Outline

The fuel level sensor unit sends a variable resistor signal to the combination meter. The fuel gauge indicates

the approximate fuel level in the fuel tank.

Refuel Control

The unit detects the driver is refueling the vehicle and accelerates the fuel gauge segment movement if the
fuel level changes by 9   (2-3/8 US, 2 lmp gal) or more.

Condition

Combination switch (Lighting switch)

OFF

AWNIA2439GB

MWI-12

< SYSTEM DESCRIPTION >

SYSTEM

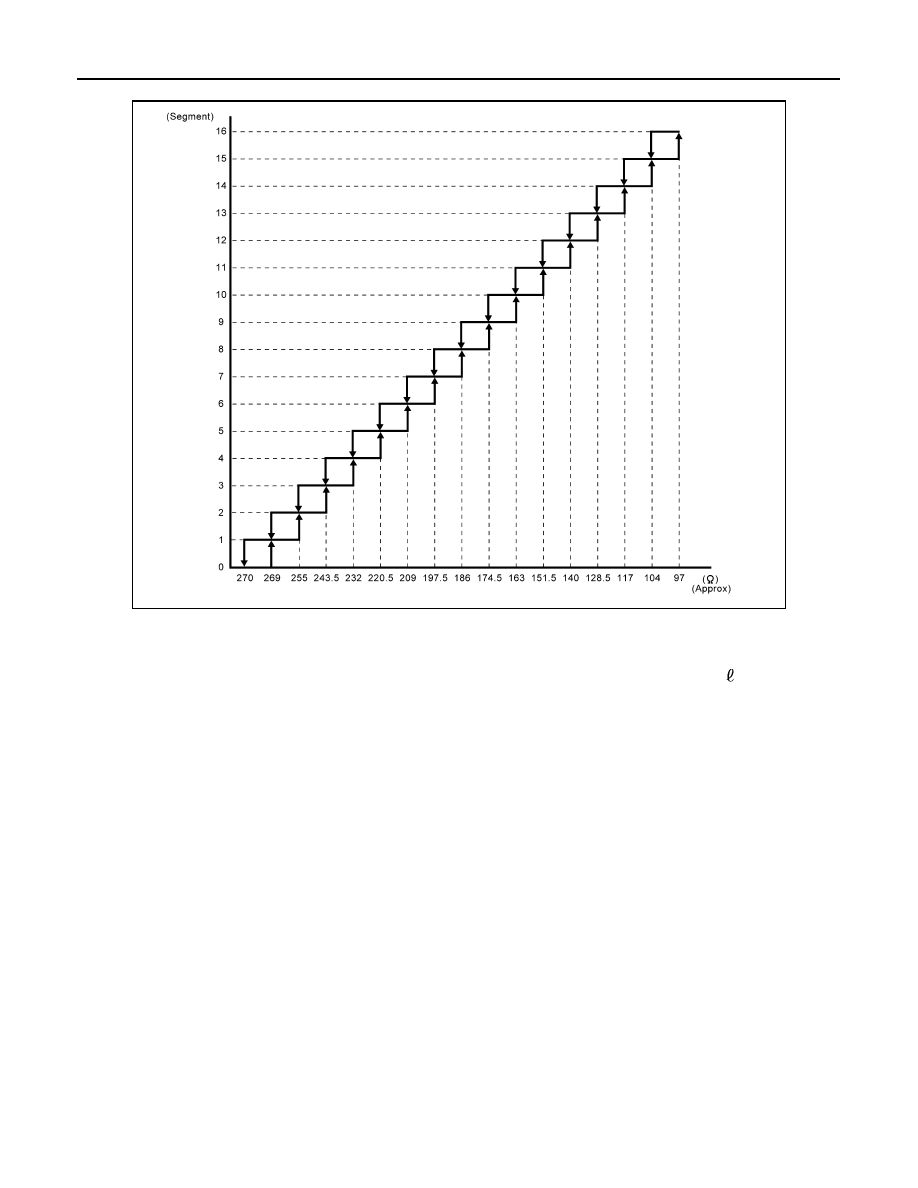

Lighting segment-resistance relationship

INTERRUPT INDICATION

Low Fuel Warning

The low fuel warning turns ON when the fuel level in the fuel tank reaches approximately 7.8   (2-1/8 US gal,

1-3/4 Imp gal).

LOOSE FUEL CAP WARNING

The LOOSE FUEL CAP message will display in the information display when the fuel-filler cap is not tightened

correctly. The message will turn off as soon as the ECM detects the fuel-filler cap is properly tightened. The

ECM provides a loose fuel cap signal to the combination meter via CAN communication lines.

AWNIA3088GB

MWI

OPERATION

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OPERATION

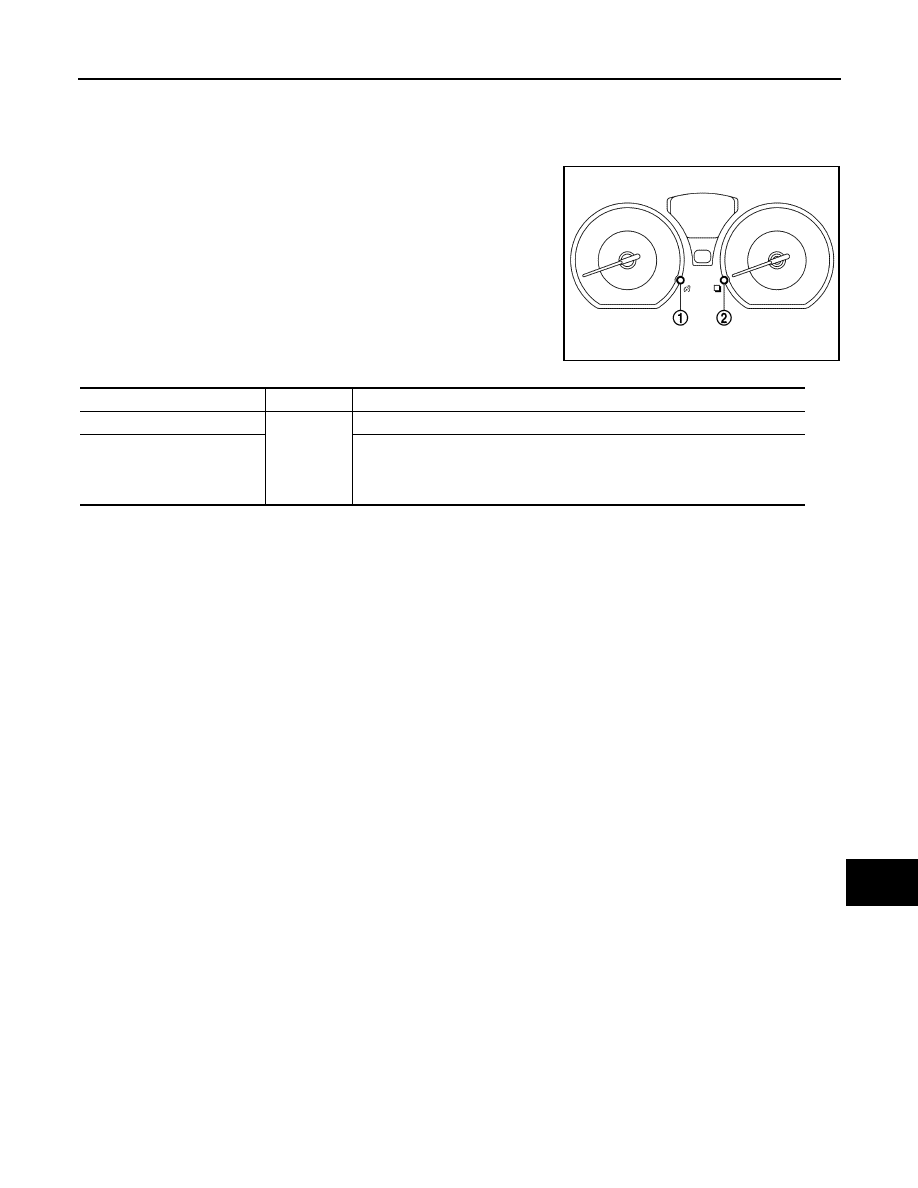

Switch Name and Function

INFOID:0000000009654100

JSNIA3909ZZ

Switch name

Operation

Description

Illumination control switch (1)

Press

An illuminance level of the back light of the combination meter can be adjusted.

Meter control switch (2)

• The information display screen can be switched.
• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the meter control switch.
• Time can be adjusted.

MWI-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

DIAGNOSIS SYSTEM (COMBINATION METER)

On Board Diagnosis Function

INFOID:0000000009654101

ON BOARD DIAGNOSIS ITEM

Information display, speedometer and tachometer can be checked in self-diagnosis mode.

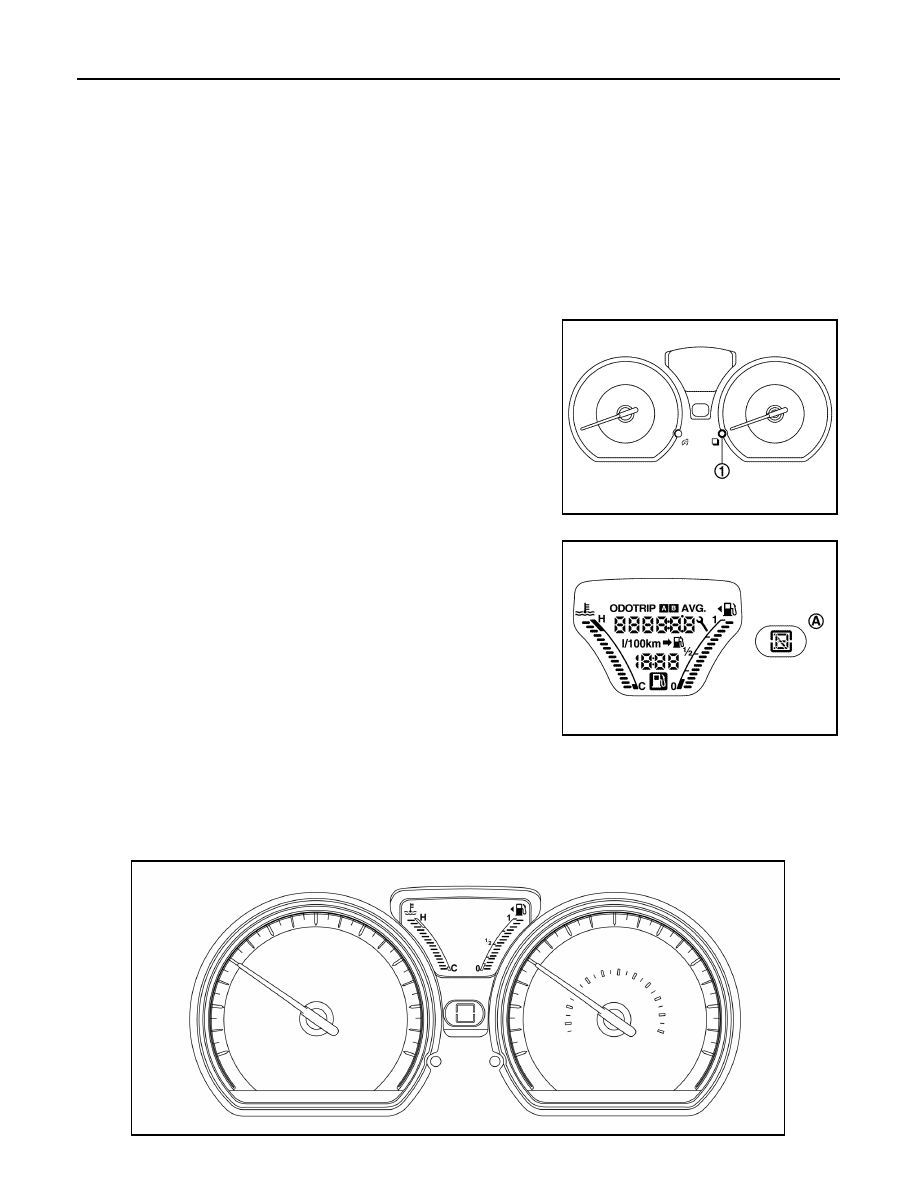

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

METHOD OF STARTING

1. Turn ignition switch ON,  and switch the trip meter to “trip A” or “trip B”.
2. Turn ignition switch to OFF.
3. While pressing the meter control switch (1), turn the ignition

switch ON.

4. Make sure that the trip meter displays “0000.0”.
5. Press the meter control switch (1) at least 3 times. (Within 7 sec-

onds after the ignition switch is turned ON).

6. The combination meter is turned to self-diagnosis mode.

• All segments of the information display and shift position indi-

cator (A) for CVT models are displayed.

NOTE:

• Check combination meter power supply and ground circuit when the self-diagnosis mode of the combination

meter does not start. replace combination meter if power supply and ground circuit are normal.

• If any of the segments are not displayed, replace combination meter.

7. Each meter activates by pressing the meter control switch.

JSNIA3904ZZ

JSNIA3900ZZ

AWNIA2440ZZ
