LAN-36

< WIRING DIAGRAM >

[CAN]

CAN SYSTEM

ABMIA4660GB

LAN

CAN SYSTEM

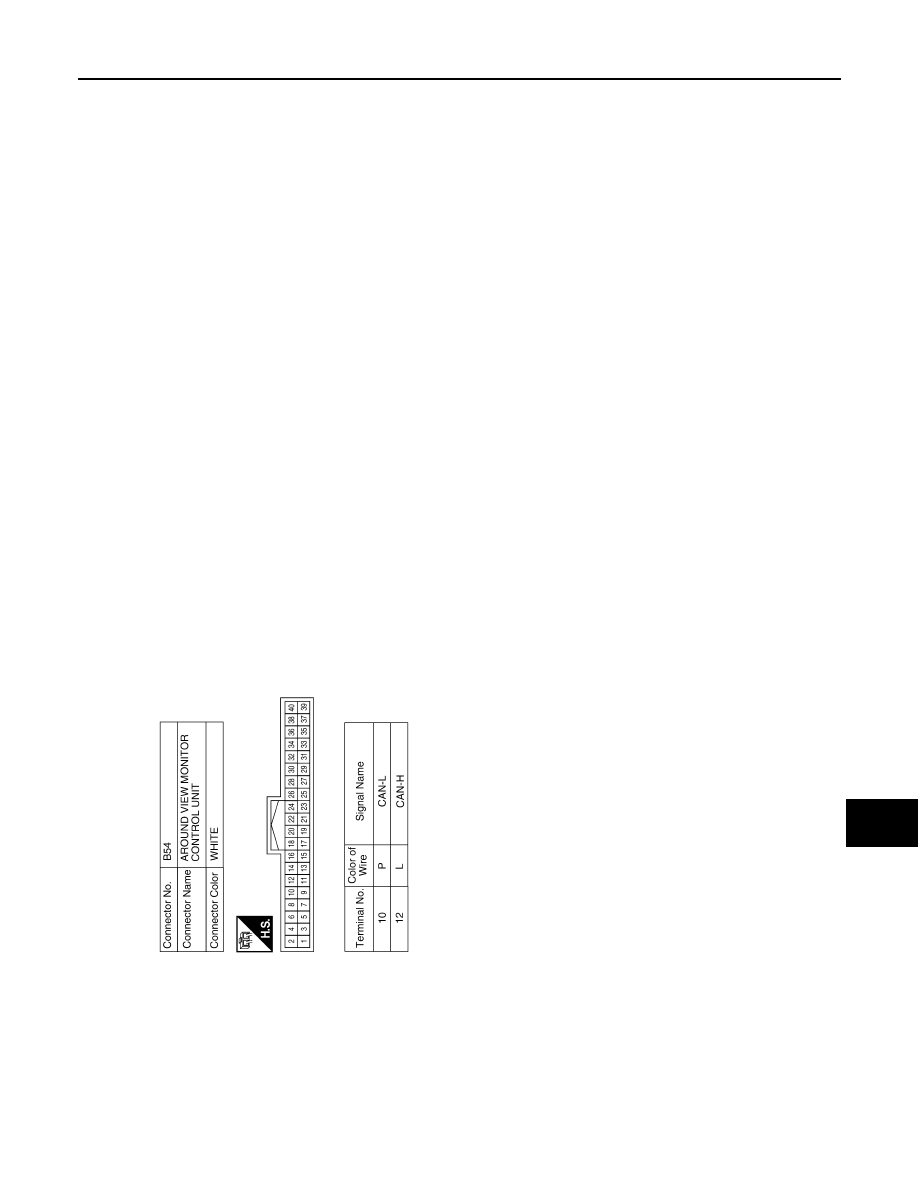

LAN-37

< WIRING DIAGRAM >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4661GB

LAN-38

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

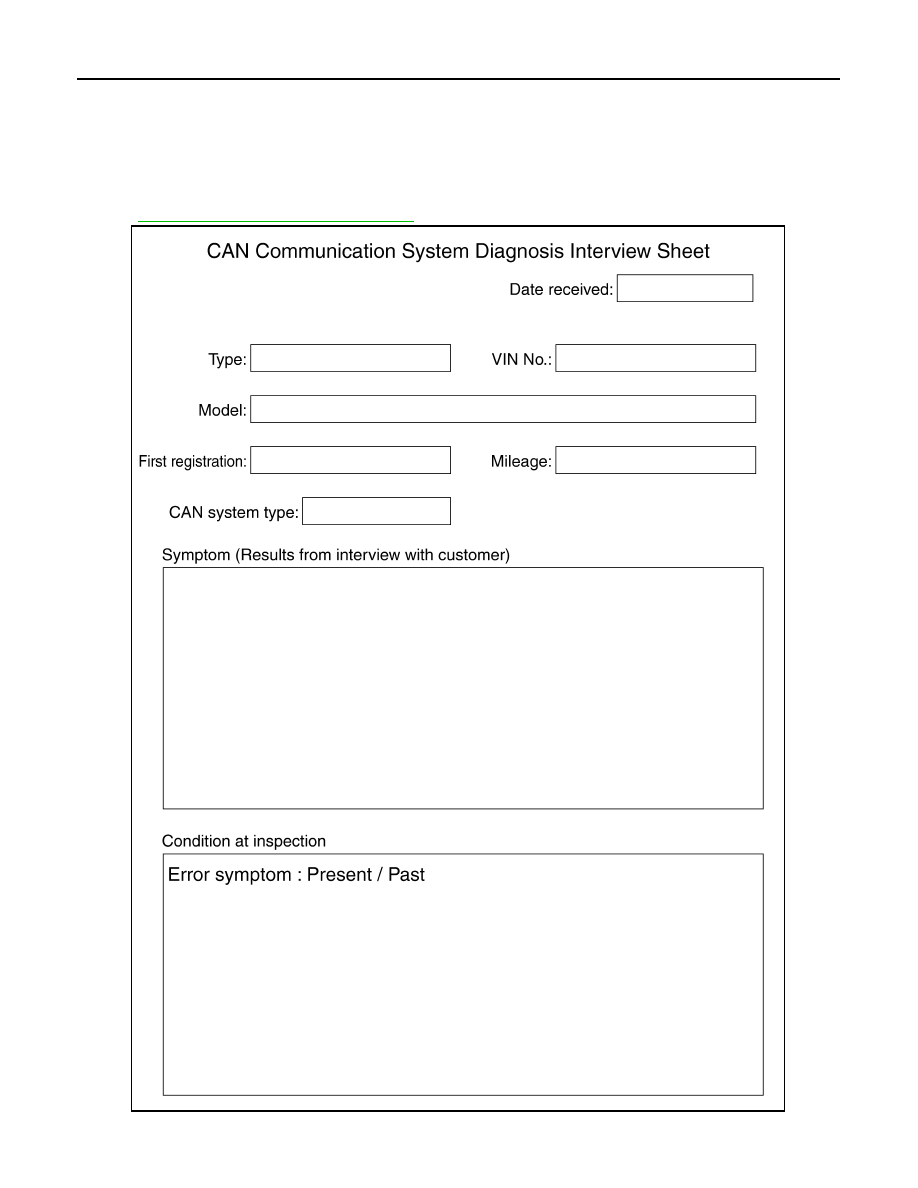

Interview Sheet

INFOID:0000000008968392

NOTE:

Refer to

LAN-15, "Trouble Diagnosis Procedure"

 for how to use interview sheet.

SKIB8898E

LAN

MALFUNCTION AREA CHART

LAN-39

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DTC/CIRCUIT DIAGNOSIS

MALFUNCTION AREA CHART

Main Line

INFOID:0000000008968393

Branch Line

INFOID:0000000008968394

Short Circuit

INFOID:0000000008968395

Malfunction area

Reference

Main line between IPDM E/R and data link connector

LAN-40, "Diagnosis Procedure"

Main line between IPDM E/R and around view monitor control unit

LAN-41, "Diagnosis Procedure"

Main line between around view monitor control unit and data link connector

LAN-42, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-43, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-44, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-45, "Diagnosis Procedure"

TCM branch line circuit

LAN-46, "Diagnosis Procedure"

Around view monitor control unit branch line circuit

LAN-47, "Diagnosis Procedure"

Air bag diagnosis sensor unit branch line circuit

LAN-48, "Diagnosis Procedure"

AV control unit branch line circuit

LAN-49, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-50, "Diagnosis Procedure"

EPS control unit branch line circuit

LAN-51, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-52, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-53, "Diagnosis Procedure"

BCM branch line circuit

LAN-54, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit

LAN-55, "Diagnosis Procedure"
