COMPRESSOR DOES NOT OPERATE

HAC-55

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

YES

>> Replace IPDM E/R. Refer to

PCS-31, "Removal and Installation"

 (with Intelligent Key) or

PCS-60,

"Removal and Installation"

 (without Intelligent Key).

NO

>> Replace BCM. Refer to

BCS-70, "Removal and Installation"

 (with Intelligent Key) or

BCS-127,

"Removal and Installation"

 (without Intelligent Key).

HAC-56

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

FRONT AIR CONTROL

REMOVAL AND INSTALLATION

FRONT AIR CONTROL

Exploded View

INFOID:0000000009395317

Removal and Installation

INFOID:0000000009395318

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

2. Remove front air control finisher. Refer to

IP-23, "Removal and Installation"

.

3. Remove audio unit or AV control unit. Refer to

AV-53, "Removal and Installation"

 (AUDIO UNIT), or

AV-

118, "Removal and Installation"

 (DISPLAY AUDIO), or

AV-240, "Removal and Installation"

 (NAVIGATION).

4. Remove air mix door cable, mode door cable, and intake door cable from the heating and cooling unit

assembly.

5. Remove screws and front air control.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front air control

2.

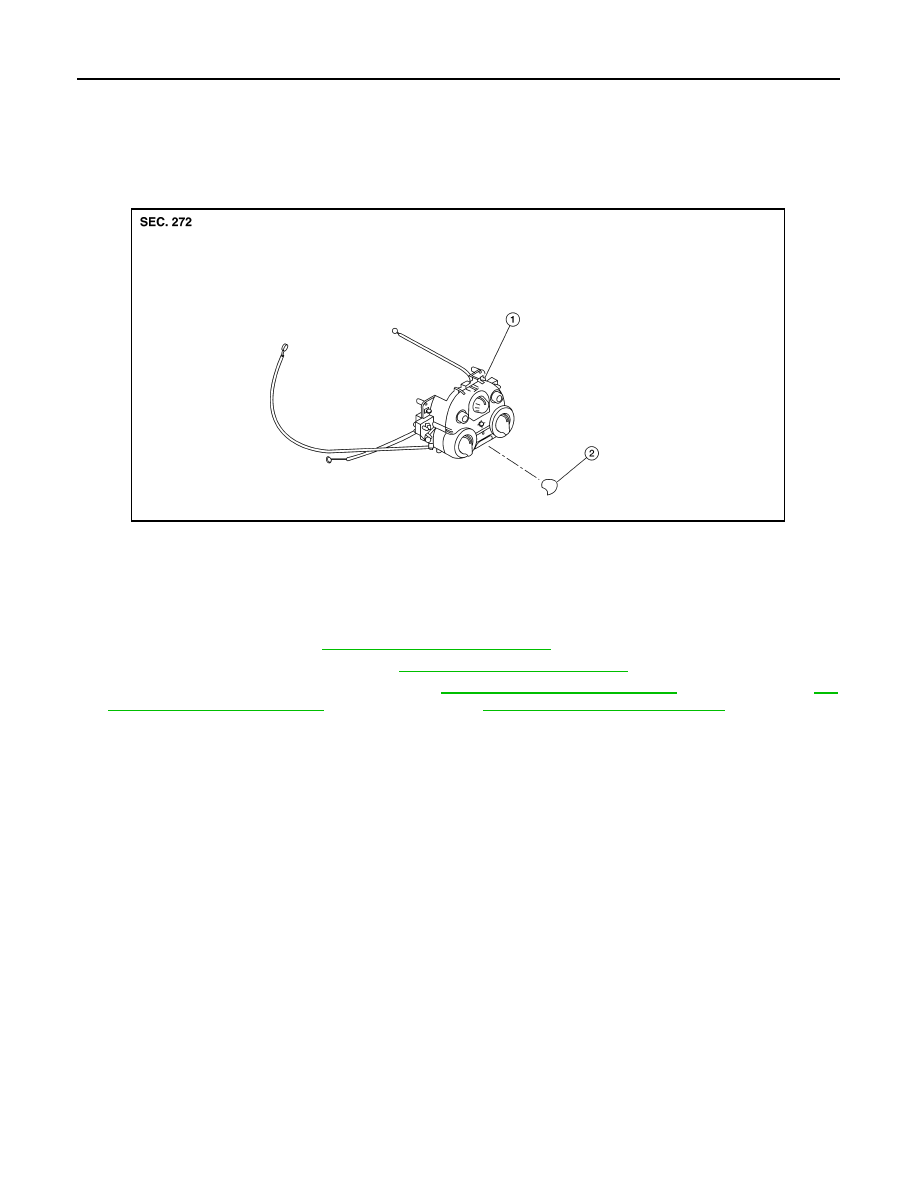

Intake door lever knob

AWIIA1693ZZ

THERMO CONTROL AMPLIFIER

HAC-57

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

THERMO CONTROL AMPLIFIER

Removal and Installation

INFOID:0000000009645131

REMOVAL

1. Remove evaporator. Refer to

HA-33, "EVAPORATOR : Removal and Installation"

.

2. Remove thermo control amplifier from evaporator.

INSTALLATION

Installation is in the reverse order of removal.

HAC-58

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000009515773

CAUTION:

Perform lubricant return operation before each A/C system disassembly. However, if a large amount of

refrigerant or lubricant leaks from the system, do not perform lubricant return operation. Refer to

HA-

21, "Perform Oil Return Operation"

.

REMOVAL

1. Discharge the refrigerant. Refer to

HA-19, "Recycle Refrigerant"

.

2. Remove front grille. Refer to

EXT-29, "Removal and Installation"

.

3. Remove upper air guide and air guide (LH). Refer to

DLK-139, "Exploded View"

.

4. Clean refrigerant pressure sensor and surrounding area.

CAUTION:

Make sure to clean carefully.

5. Disconnect refrigerant pressure sensor harness connector.

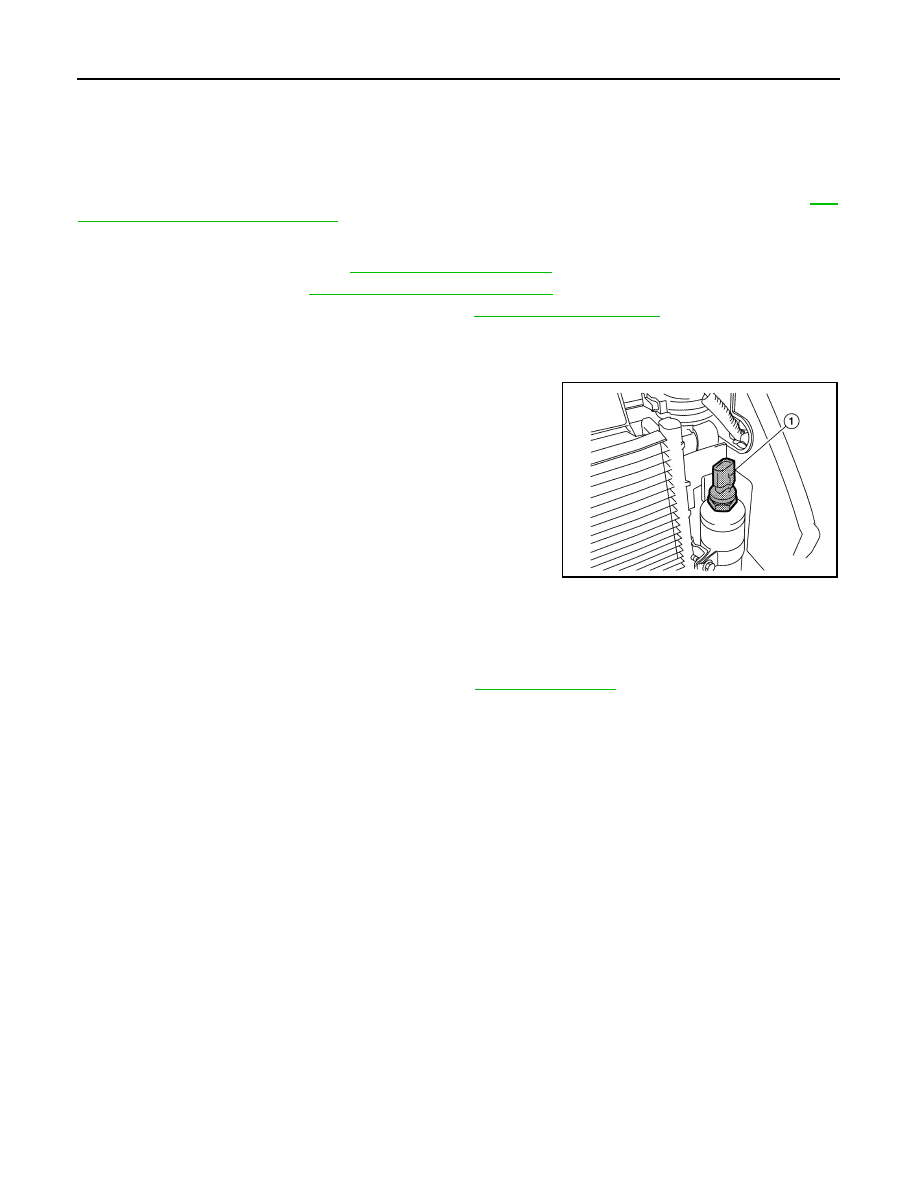

6. Support liquid tank, then remove refrigerant pressure sensor (1).

CAUTION:

• Be careful not to damage liquid tank.

• Be careful not to damage core surface of condenser.

• Cap or wrap the joint of the condenser and liquid tank

with suitable material such as vinyl tape to avoid the entry

of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Apply compressor oil to new O-ring of the refrigerant pressure sensor for installation.

• After charging refrigerant, check for leaks. Refer to

HA-17, "Leak Test"

.

ALIIA0004ZZ
