Nissan Versa Note. Manual - part 482





GW-26

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

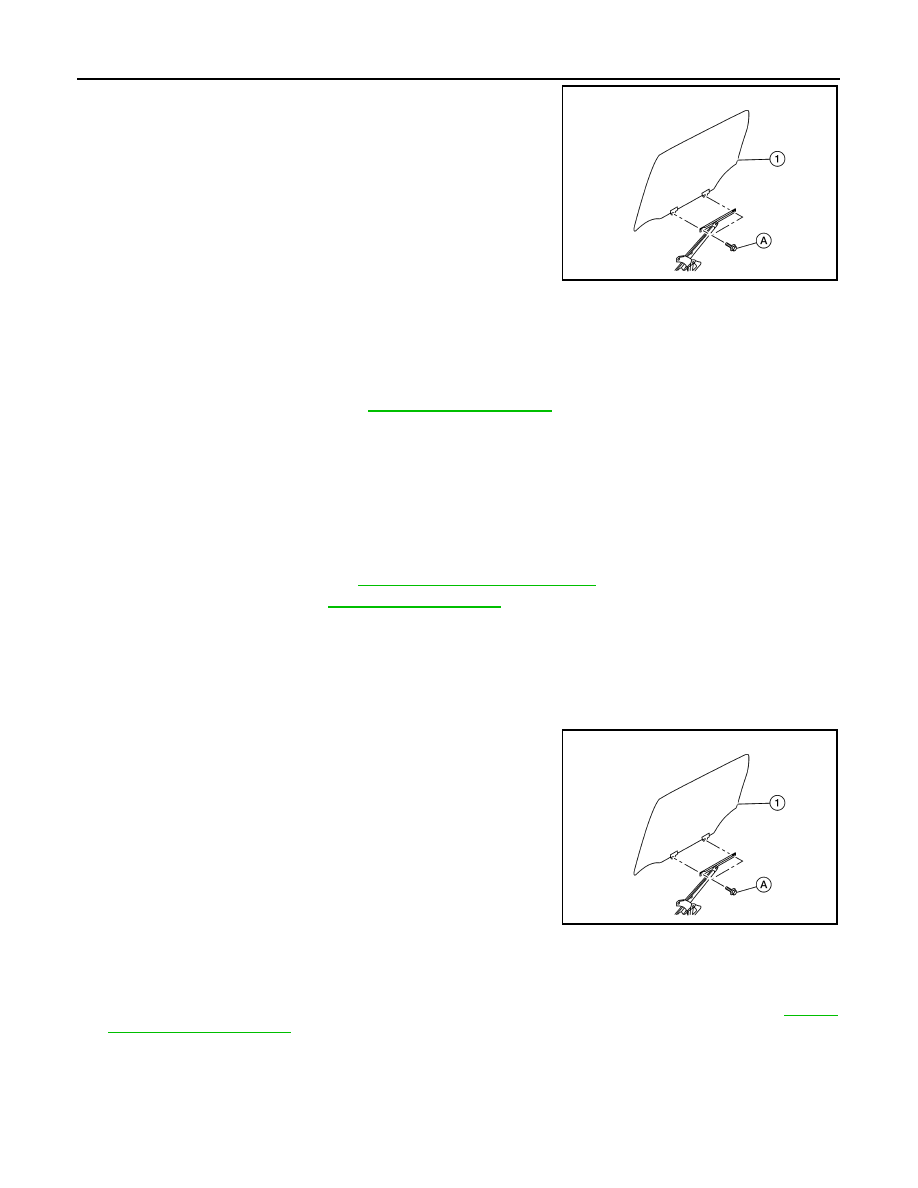

5. Remove rear door glass bolts (A) and rear door glass (1).

6. Remove rear door glass front run bolts and remove (if necessary).
7. Remove rear door glass rear run bolts and remove (if necessary).

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten bolts to specification. Refer to

GW-25, "Exploded View"

.

Fitting Inspection

• Make sure that the glass fits securely into the rear door glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator bolts, door sash bolts and glass bolts to correct the glass position if the

clearance between the glass and sash is not parallel.

REAR DOOR GLASS REGULATOR

Removal

1. Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove vapor barrier. Refer to

GW-25, "Exploded View"

.

CAUTION:

Use care not to damage or tear vapor barrier during removal.

3. Temporarily reconnect the rear power window switch to raise/lower the rear door glass until the bolts can

be seen through the access holes (with power window).

4. Temporarily reinstall the rear door glass handle and raise/lower the rear door glass until the bolts can be

seen through the access holes (without power window).

5. Remove rear door glass bolts (A).

1: Rear door glass

6. Raise the rear door glass and hold in place with a suitable tool or approximately two inches of masking

tape.

7. Remove bolts and rear door glass regulator.
8. Remove rear power window motor from rear door glass regulator (if necessary). Refer to

GW-28,

"Removal and Installation"

.

Inspection After Removal

Check the rear door glass regulator for the following items:

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

ALKIA3166ZZ

ALKIA3166ZZ

REAR DOOR GLASS AND REGULATOR

GW-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

If a malfunction is detected, replace or grease it.

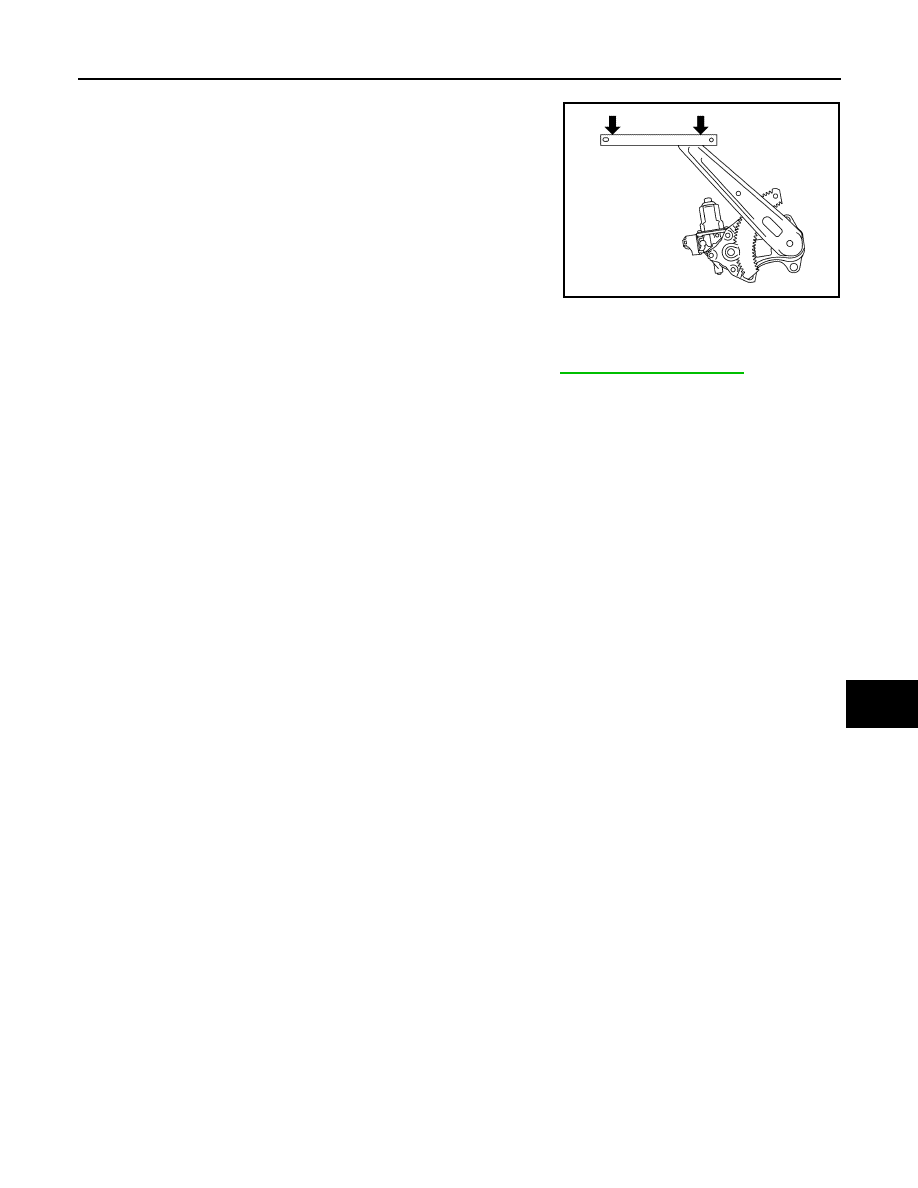

The arrows in the figure show the application points of a suitable

multi-purpose grease (if necessary).

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten rear door glass regulator bolts to specification. Refer to

GW-25, "Exploded View"

.

Fitting Inspection

• Make sure that the glass fits securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator bolts, door sash bolts and glass bolts to correct the glass position if the

clearance between the glass and sash is not parallel.

JMKIA7739ZZ

GW-28

< REMOVAL AND INSTALLATION >

REAR POWER WINDOW MOTOR

REAR POWER WINDOW MOTOR

Removal and Installation

INFOID:0000000009654179

REMOVAL

1. Remove rear door glass regulator. Refer to

GW-25, "Removal and Installation"

.

2. Remove bolts and rear power window motor.

INSTALLATION

Installation is in the reverse order of removal.

HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS

HEATER & AIR CONDITIONING SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Procedure without Cowl Top Cover ......

3

Precautions For Refrigerant System Service  ............

3

Service Equipment  ....................................................

6

PREPARATION ............................................

8

PREPARATION ...................................................

8

Special Service Tool  .................................................

8

Commercial Service Tool  ..........................................

8

Sealant and/or Oil  ...................................................

10

SYSTEM DESCRIPTION  .............................

11

COMPONENT PARTS  .......................................

11

Component Parts Location ......................................

11

BASIC INSPECTION  ...................................

12

DIAGNOSIS AND REPAIR WORKFLOW  .........

12

Workflow .................................................................

12

SYMPTOM DIAGNOSIS  ..............................

14

REFRIGERATION SYSTEM SYMPTOMS .........

14

Trouble Diagnosis For Unusual Pressure  ...............

14

Symptom Table  .......................................................

14

NOISE .................................................................

16

Symptom Table  .......................................................

16

PERIODIC MAINTENANCE .........................

17

REFRIGERANT ..................................................

17

Description ..............................................................

17

Leak Test  ................................................................

17

Recycle Refrigerant .................................................

19

Charge Refrigerant ..................................................

19

OIL .....................................................................

21

Description ...............................................................

21

Inspection ................................................................

21

Perform Oil Return Operation ..................................

21

Oil Adjusting Procedure for Components Replace-
ment Except Compressor  ........................................

21

Oil Adjusting Procedure for Compressor Replace-
ment .........................................................................

22

PERFORMANCE TEST  ....................................

23

Inspection ................................................................

23

REMOVAL AND INSTALLATION ...............

25

COMPRESSOR .................................................

25

Exploded View .........................................................

25

Removal and Installation  .........................................

25

Inspection ................................................................

25

COOLER PIPE AND HOSE  ..............................

27

Exploded View .........................................................

27

LOW-PRESSURE FLEXIBLE HOSE .........................

27

LOW-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

27

HIGH-PRESSURE FLEXIBLE HOSE  ........................

28

HIGH-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

28

HIGH-PRESSURE PIPE  ............................................

28

HIGH-PRESSURE PIPE : Removal and Installa-
tion ...........................................................................

28

CONDENSER ....................................................

29

Exploded View .........................................................

29

CONDENSER .............................................................

29

CONDENSER : Removal and Installation  ...............

29

LIQUID TANK  ............................................................

30

LIQUID TANK : Removal and Installation of Liquid
Tank .........................................................................

30
