Nissan Versa Note. Manual - part 479





GW-14

< REMOVAL AND INSTALLATION >

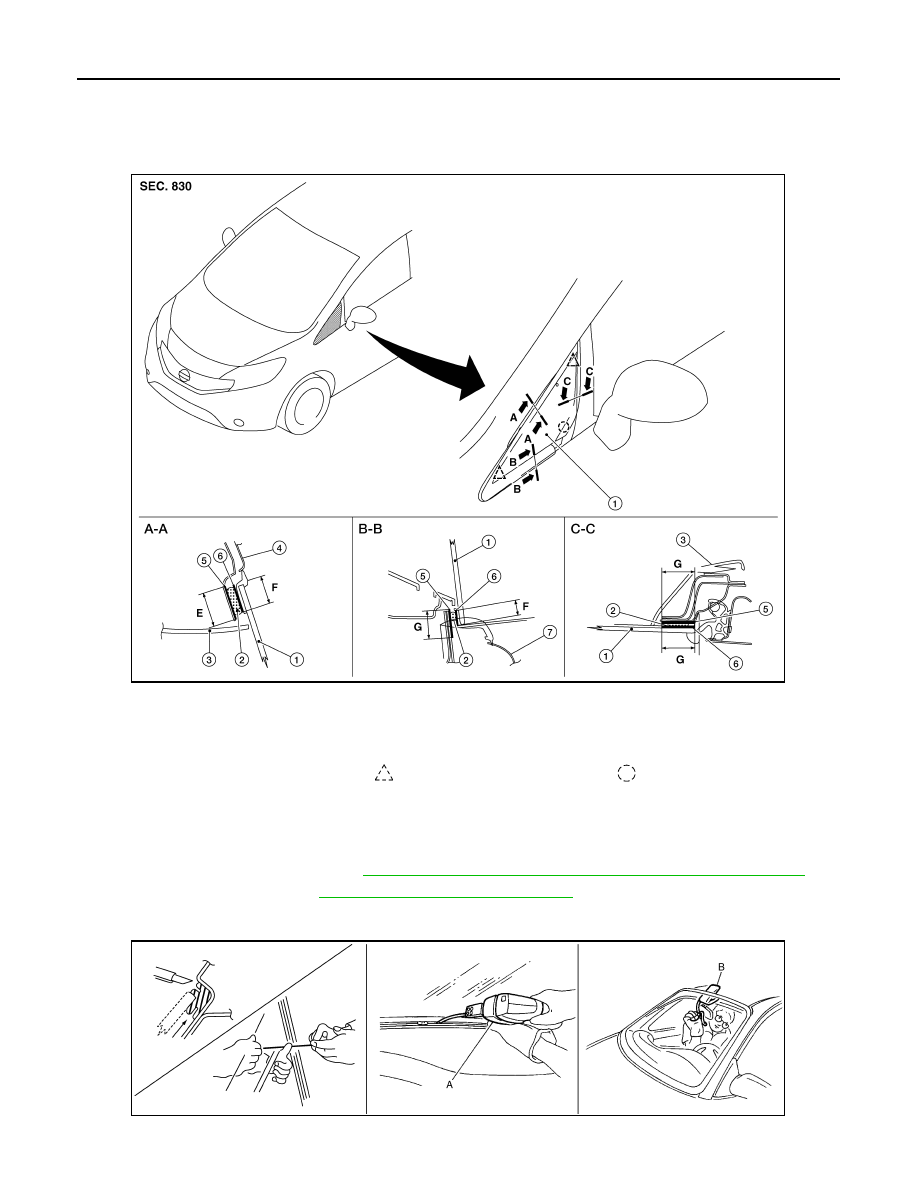

OPERA WINDOW

OPERA WINDOW

Exploded View

INFOID:0000000008969477

Removal and Installation

INFOID:0000000008969478

REMOVAL

1. Remove front pillar finisher. Refer to

INT-21, "FRONT PILLAR FINISHER : Removal and Installation"

.

2. Remove front fender. Refer to

DLK-142, "Removal and Installation"

.

3. Remove the opera window glass using piano wire or power cutting tool (A) and an inflatable pump bag

(B).

WARNING:

1.

Opera window glass

2.

Adhesive

3.

Front pillar finisher

4.

Body side outer

5.

Body primer

6.

Primer

7.

Front fender

E.

12.0 mm (0.47 in)

F.

11.0 mm (0.43 in)

G.

20.0 mm (0.79 in)

Clip

Pawl

AWKIA2460ZZ

PIIB5779E

OPERA WINDOW

GW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

When cutting glass from the vehicle, always wear safety glasses and heavy gloves to prevent

glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

• Apply protective tape around the opera window glass to protect the painted surface from dam-

age.

INSTALLATION

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• Adhesive shall be continuously applied to assure watertightness. Glass installation shall be finished within

five minutes after applying the adhesive.

• The start and finisher of the urethane adhesive application should be located at the bottom to assure water-

tightness.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive is completely cured may affect the performance of

the opera window glass in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive is completely

cured. Curing time varies depending on temperature and humidity. The curing time increases under

lower temperature and lower humidity.

REPAIRING WATER LEAKS FOR OPERA WINDOW GLASS

• Leaks can be repaired without removing and reinstalling opera window glass.

• If water is leaking between the urethane adhesive material and body or glass, determine the extent of the

leak.

• This can be done by applying water to the opera window glass area while pushing glass outward.

• To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

GW-16

< REMOVAL AND INSTALLATION >

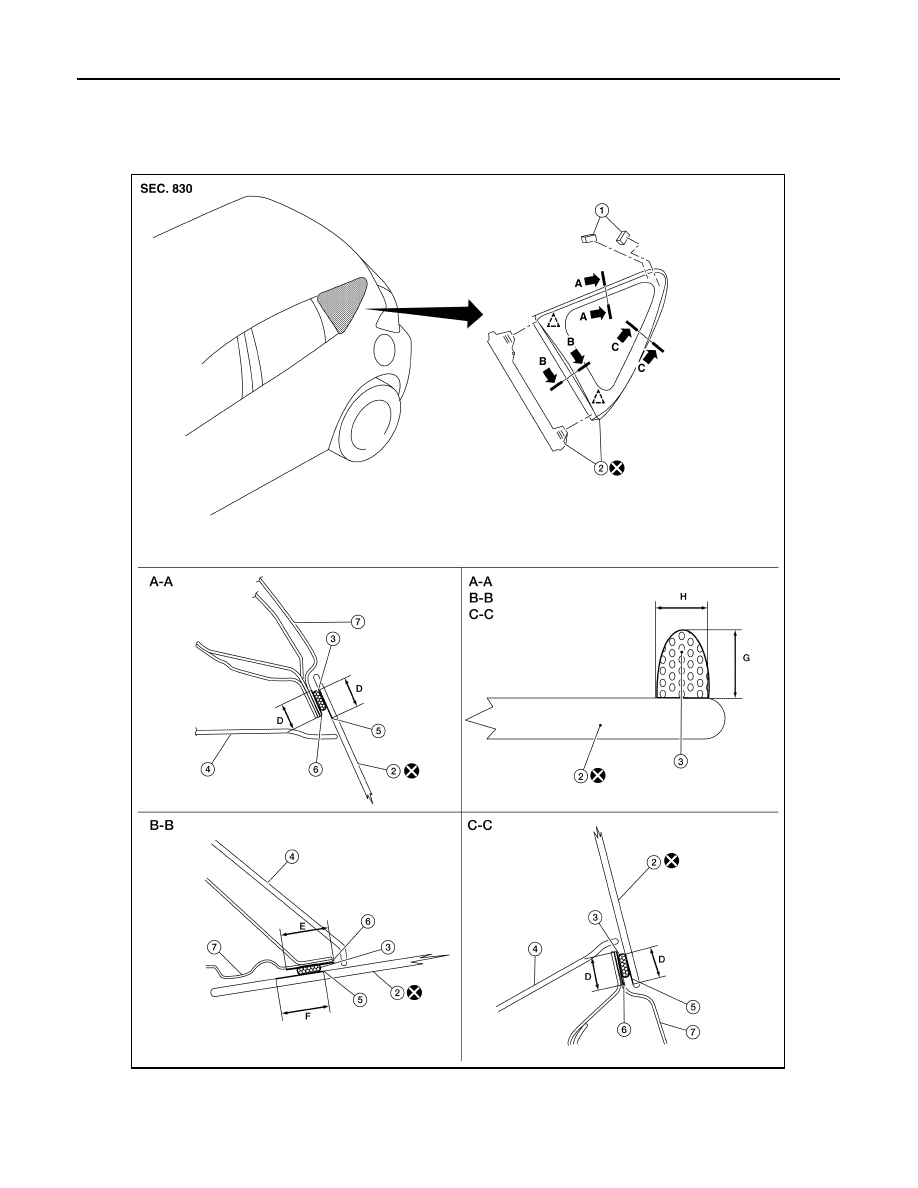

SIDE WINDOW GLASS

SIDE WINDOW GLASS

Exploded View

INFOID:0000000008969480

1.

Spacer

2.

Side window glass

3.

Adhesive

4.

Luggage side upper finisher

5.

Primer

6.

Body primer

7.

Body side outer

D.

15.0 mm (0.59 in)

E.

22.4 mm (0.88 in)

AWKIA2558ZZ

SIDE WINDOW GLASS

GW-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Removal and Installation

INFOID:0000000008969481

REMOVAL

1. Remove luggage side upper finisher. Refer to

INT-35, "LUGGAGE SIDE UPPER FINISHER : Removal

and Installation"

.

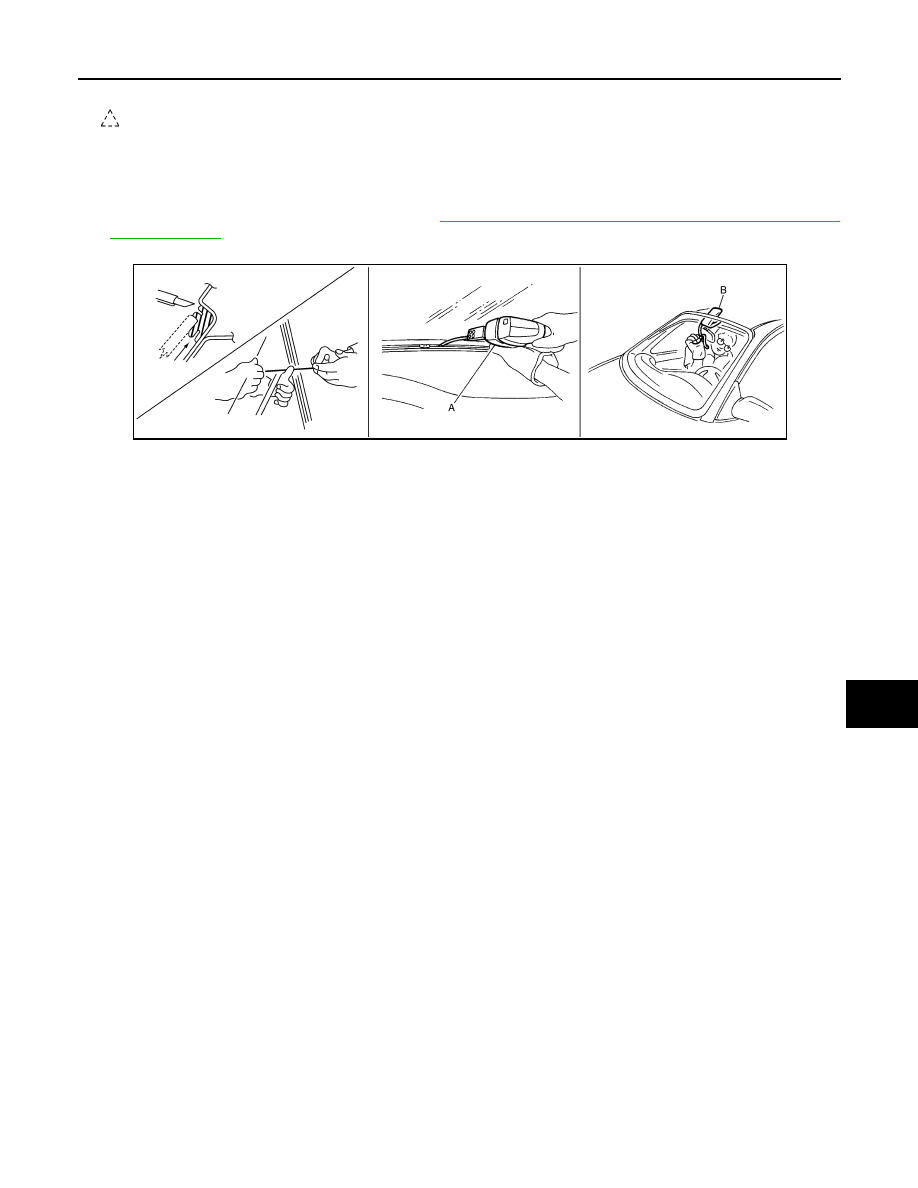

2. Remove the side window glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

WARNING:

When cutting glass from the vehicle, always wear safety glasses and heavy gloves to prevent

glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

• Apply protective tape around the side window glass to protect the painted surface from damage.

INSTALLATION

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• Adhesive shall be continuously applied to assure watertightness. Glass installation shall be finished within

five minutes after applying the adhesive.

• The start and finisher of the urethane adhesive application should be located at the bottom to assure water-

tightness.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive is completely cured may affect the performance of

the side window glass in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive is completely

cured. Curing time varies depending on temperature and humidity. The curing time increases under

lower temperature and lower humidity.

REPAIRING WATER LEAKS FOR SIDE WINDOW GLASS

• Leaks can be repaired without removing and reinstalling side window glass.

• If water is leaking between the urethane adhesive material and body or glass, determine the extent of the

leak.

F.

24.0 mm (0.94 in)

G.

12.0 mm (0.47 in)

H.

7.0 mm (0.28 in)

Clip

PIIB5779E
