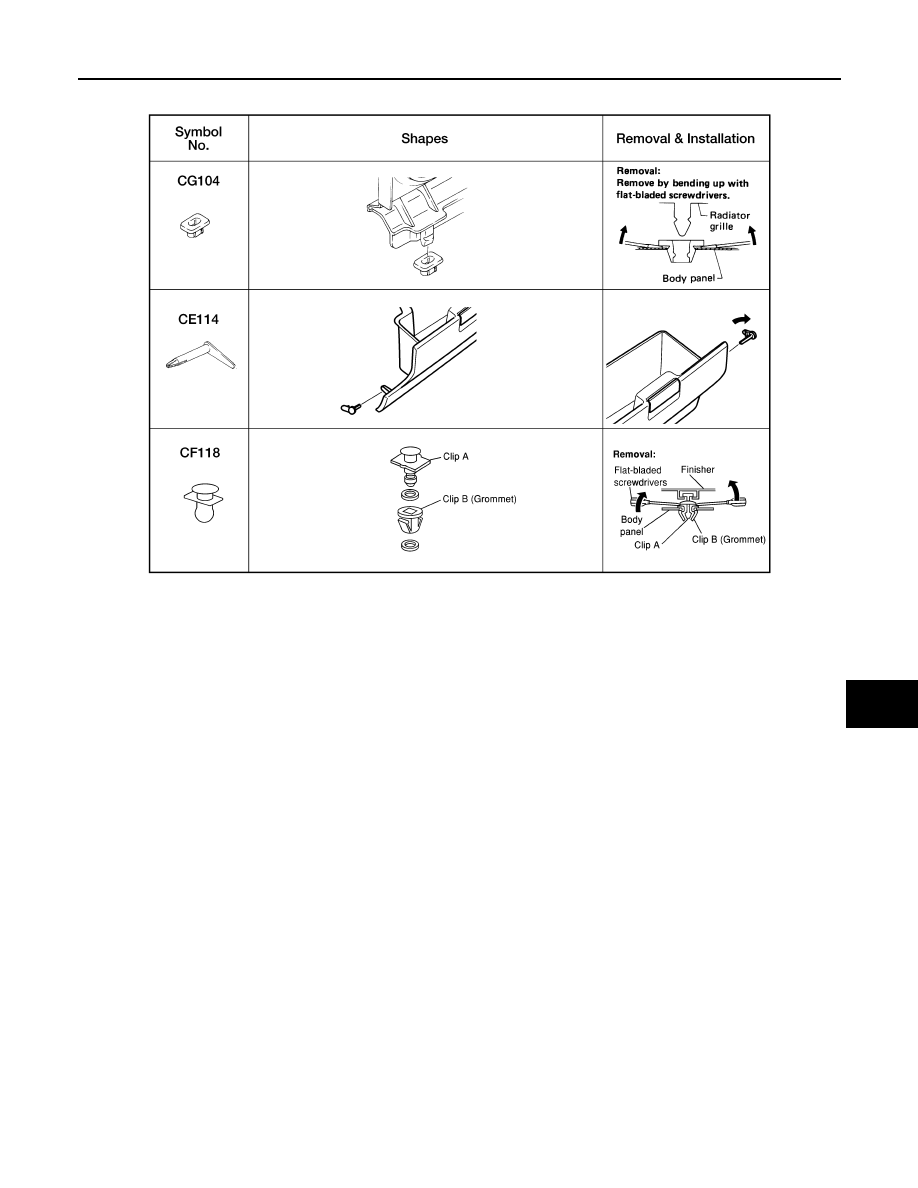

CLIP LIST

EXT-9

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ALJIA0564GB

EXT-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

ACTIVE GRILLE SHUTTER SYSTEM

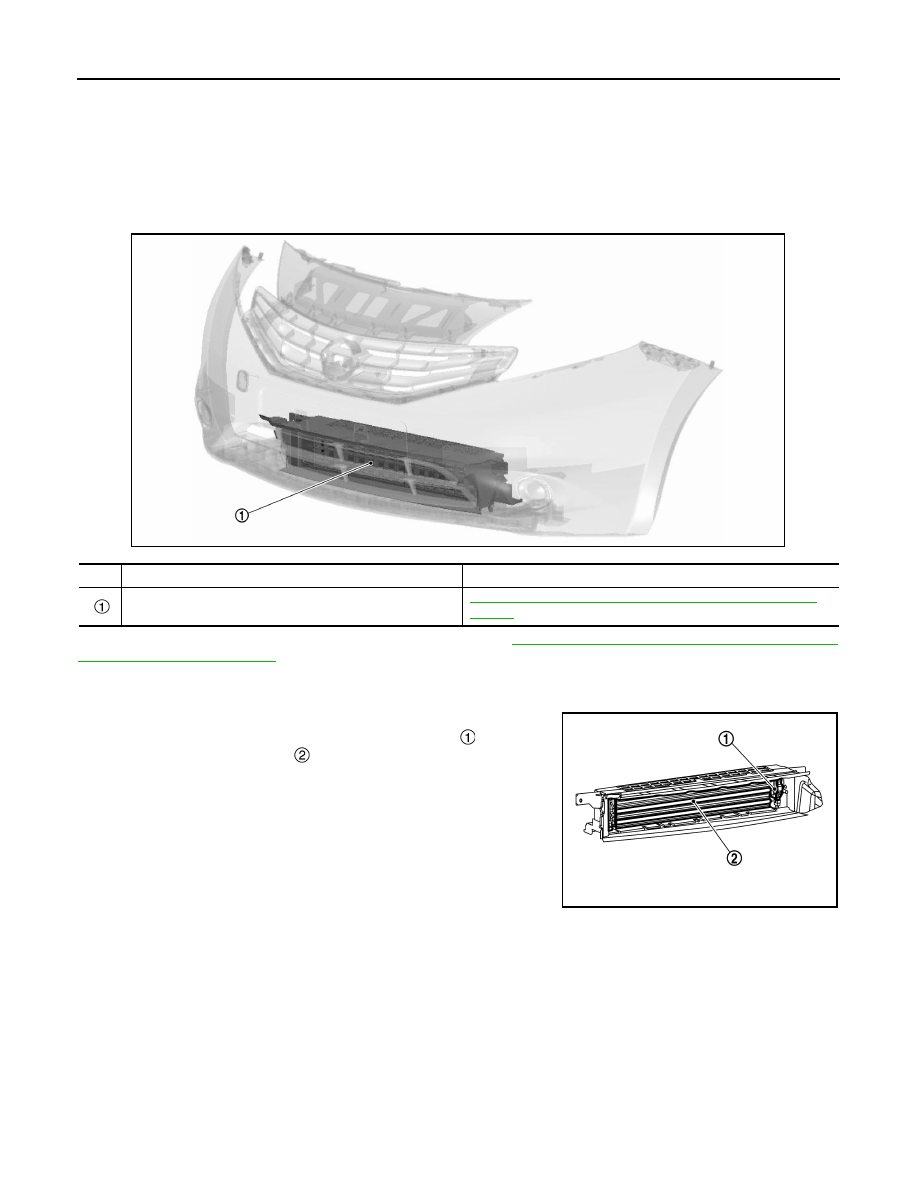

ACTIVE GRILLE SHUTTER SYSTEM : Component Parts Location

INFOID:0000000009759581

For the engine related component parts, refer to

EC-14, "ENGINE CONTROL SYSTEM :

Component Parts Location"

.

ACTIVE GRILLE SHUTTER SYSTEM : Active grille shutter

INFOID:0000000009759580

Active grille shutter is located at front bumper lower opening, and
according to the signal from ECM it operates actuator   to perform
open/close movement of flap   to control the amount of air flow

taken into engine compartment.

JSKIA3360ZZ

No.

Component

Reference

Active grille shutter

EXT-10, "ACTIVE GRILLE SHUTTER SYSTEM : Active grille
shutter"

JSBIA3648ZZ

SYSTEM

EXT-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SYSTEM

ACTIVE GRILLE SHUTTER SYSTEM

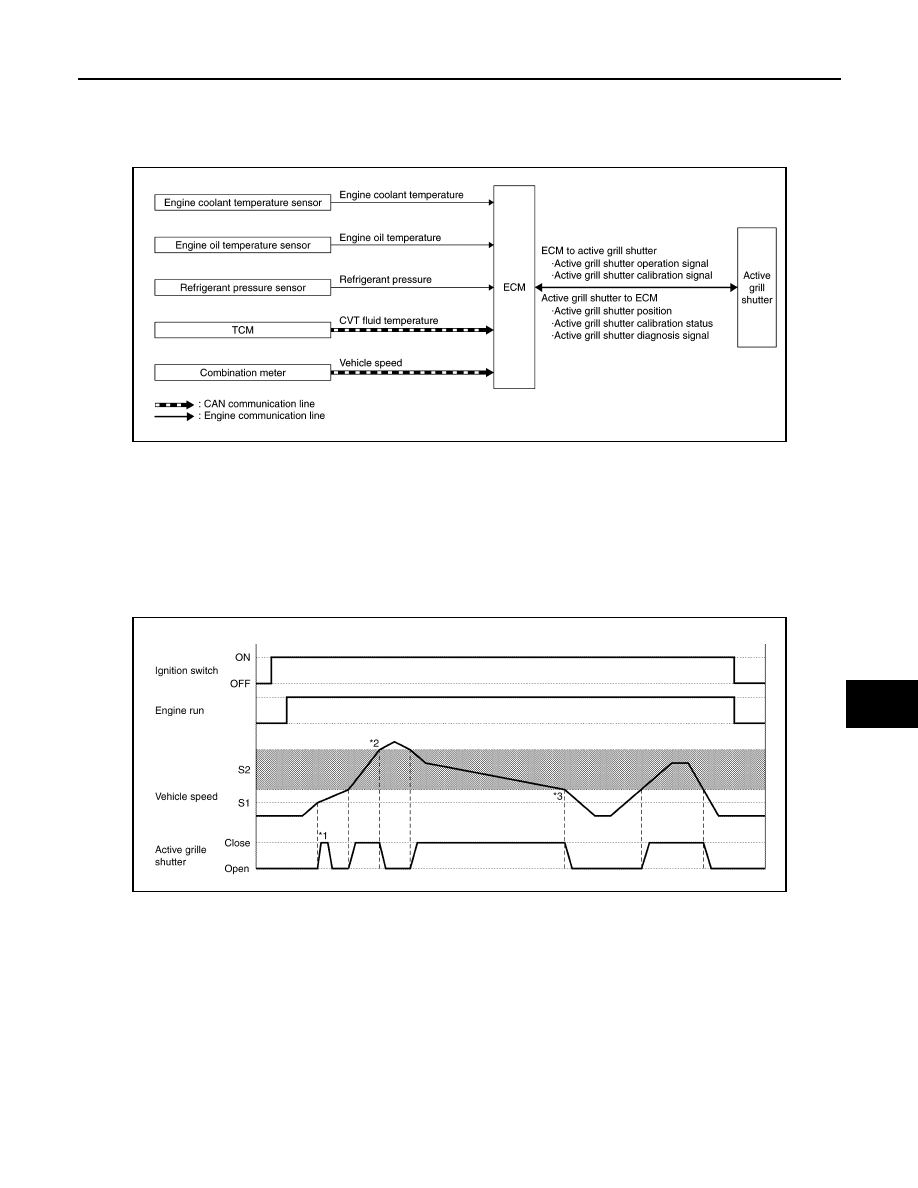

ACTIVE GRILLE SHUTTER SYSTEM : System Diagram

INFOID:0000000009759578

ACTIVE GRILLE SHUTTER SYSTEM : System Description

INFOID:0000000009759579

While driving, the active grille shutter system closes shutter to reduce air flow to engine compartment for the

purpose of reducing aerodynamic drag, and as a result, improves the vehicle's fuel efficiency.

ECM controls active grille shutter system by detecting vehicle status through respective modules and sensors.

Active grille shutter actuator is equipped with self-diagnosis function. When it detects malfunction, transmits

diagnosis signal to ECM and ECM records active grille shutter malfunction.

BASIC MOVEMENTS

• S1: 6 km/h (4 MPH)

• S2: Approx. 30 - 140 km/h (19 - 88 MPH)

• *1: Shutter initial position learning.

• *2: Judgement of high vehicle speed.

• *3: Judgement of low vehicle speed.

DESCRIPTION OF MOVEMENTS

Active grille shutter is fully open when the vehicle stops or the ignition switch is turned OFF.

ECM operates the shutter to close position in order to perform shutter's initial position learning when the igni-

tion switch is turned ON and the vehicle reaches the specified speed for the first time. At the end of initial posi-

tion leaning ECM operates shutter to open position. (The initial position learning is performed every time when

ignition switch is turned OFF

→ ON.)

While driving, after the initial position learning ends, ECM operates the active grille shutter to close position

when the operational conditions of active grille shutter are met.

JSKIA3359GB

JSKIA3454GB

EXT-12

< SYSTEM DESCRIPTION >

SYSTEM

While driving at high speed, ECM operates the shutter to open position when the vehicle reaches the specified

speed in order to prevent the shutter from shutting up by wind resistance.

When the vehicle speed is reduced below the specified speed ECM operates active grille shutter to open posi-

tion.

ACTIVE GRILLE SHUTTER OPERATIONAL CONDITIONS

ECM operates active grille shutter to close position when following all conditions are met.

ECM operates active grille shutter to open position when one of the following conditions is met.

Item

Status

Active grille shutter initial position learning

Complete

Vehicle speed

Approx. 30 - 140 km/h (19 - 88 MPH)

Engine coolant temperature

Approx. less than 95

°C (203 °F)

Engine oil temperature

Approx. less than 140

°C (284°F)

CVT fluid temperature

Approx. less than 135

°C (275°F)

Cooling fan

OFF

Refrigerant pressure

0.78 MPa (7.95 kg/cm

2

, 113.1 psi) or less

Malfunction of engine coolant temperature sensor system

Not detected

Malfunction of engine oil temperature sensor system

Not detected

Malfunction of vehicle speed sensor system

Not detected

Malfunction of CAN communication system

Not detected

Item

Status

Vehicle speed

• 22 km/h (14 MPH) or less
• 140 km/h (88 MPH) or more

Engine coolant temperature

Approx. 95

°C (203 °F) or more

Engine oil temperature

Approx. 140

°C (284°F) or more

CVT fluid temperature

Approx. 135

°C (275°F) or more

Cooling fan

ON

Refrigerant pressure

1.18 MPa (12.04 kg/cm

2

, 171.1 psi) or more

Malfunction of engine coolant temperature sensor system

Detected

Malfunction of engine oil temperature sensor system

Detected

Malfunction of vehicle speed sensor system

Detected

Malfunction of CAN communication system

Detected
