HEADLAMP SYSTEM

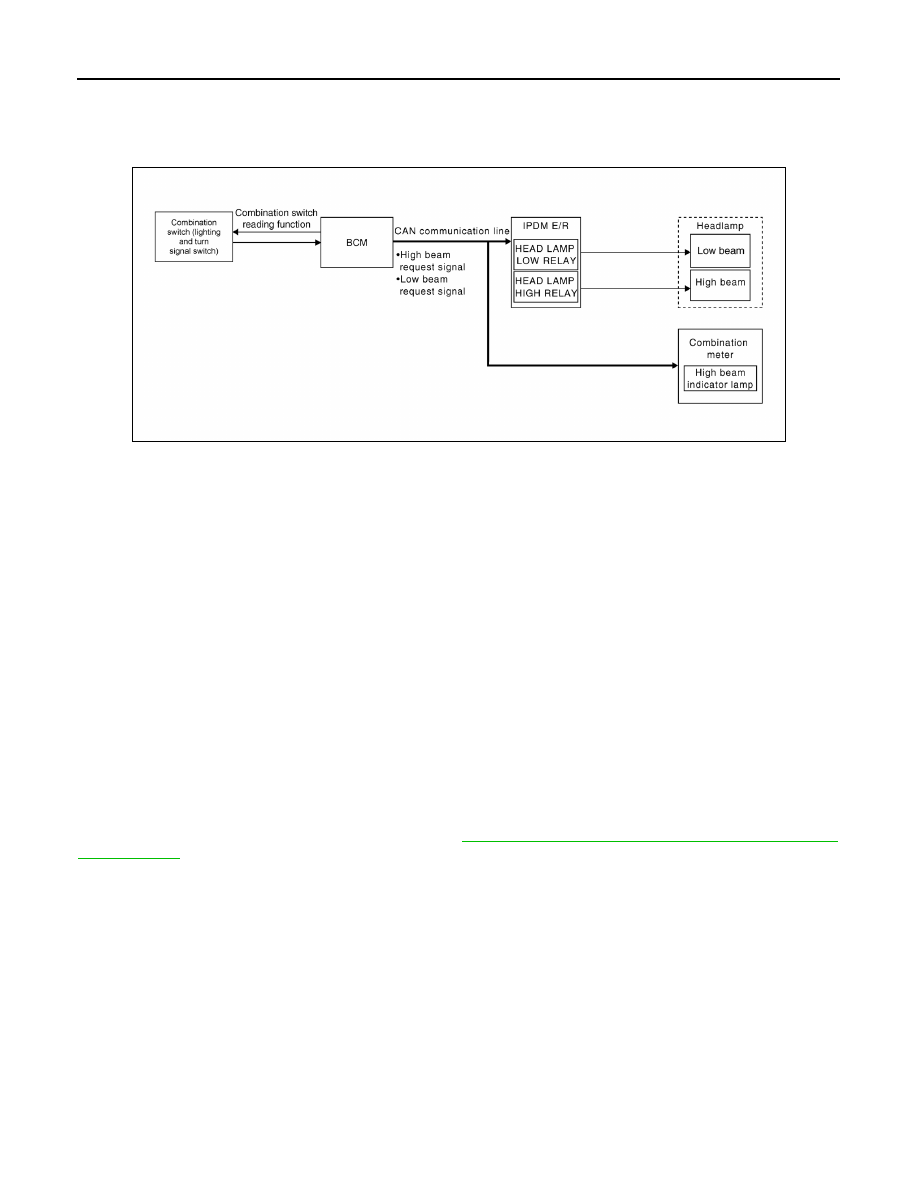

HEADLAMP SYSTEM : System Diagram

INFOID:0000000009694018

HEADLAMP SYSTEM : System Description

INFOID:0000000009694019

LOW BEAM OPERATION

When the lighting switch is in 2nd position, the BCM receives input requesting the headlamps to illuminate.

This input is communicated to the IPDM E/R across the CAN communication lines. The CPU of the IPDM E/R

controls the headlamp low relay coil which supplies power to the low beam headlamps.

HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION

With the lighting switch in the 2nd position and placed in HIGH position, the BCM receives input requesting the

headlamp high beams to illuminate. The flash to pass feature can be used any time and also sends a signal to

the BCM. This input is communicated to the IPDM E/R across the CAN communication lines. The CPU of the

combination meter controls the ON/OFF status off the HIGH BEAM indicator. The CPU of the IPDM E/R con-

trols the headlamp high relay coil which supplies power to the high beam headlamps.

The combination meter receives a high beam request signal (ON) through the CAN communication lines and

turns the high beam indicator lamp ON.

EXTERIOR LAMP BATTERY SAVER CONTROL

With the combination switch (lighting and turn signal switch) in the 2nd position and the ignition switch is

turned from ON or ACC to OFF, the battery saver feature is activated.

Under this condition, the headlamps remain illuminated for 5 minutes unless the lighting switch position is

changed. If the lighting switch position is changed, then the headlamps are turned off.

This setting can be changed by CONSULT. Refer to

BCS-18, "HEADLAMP : CONSULT Function (BCM -

HEAD LAMP)"

.

DAYTIME RUNNING LIGHT SYSTEM

ABLIA2706GB

SYSTEM

EXL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

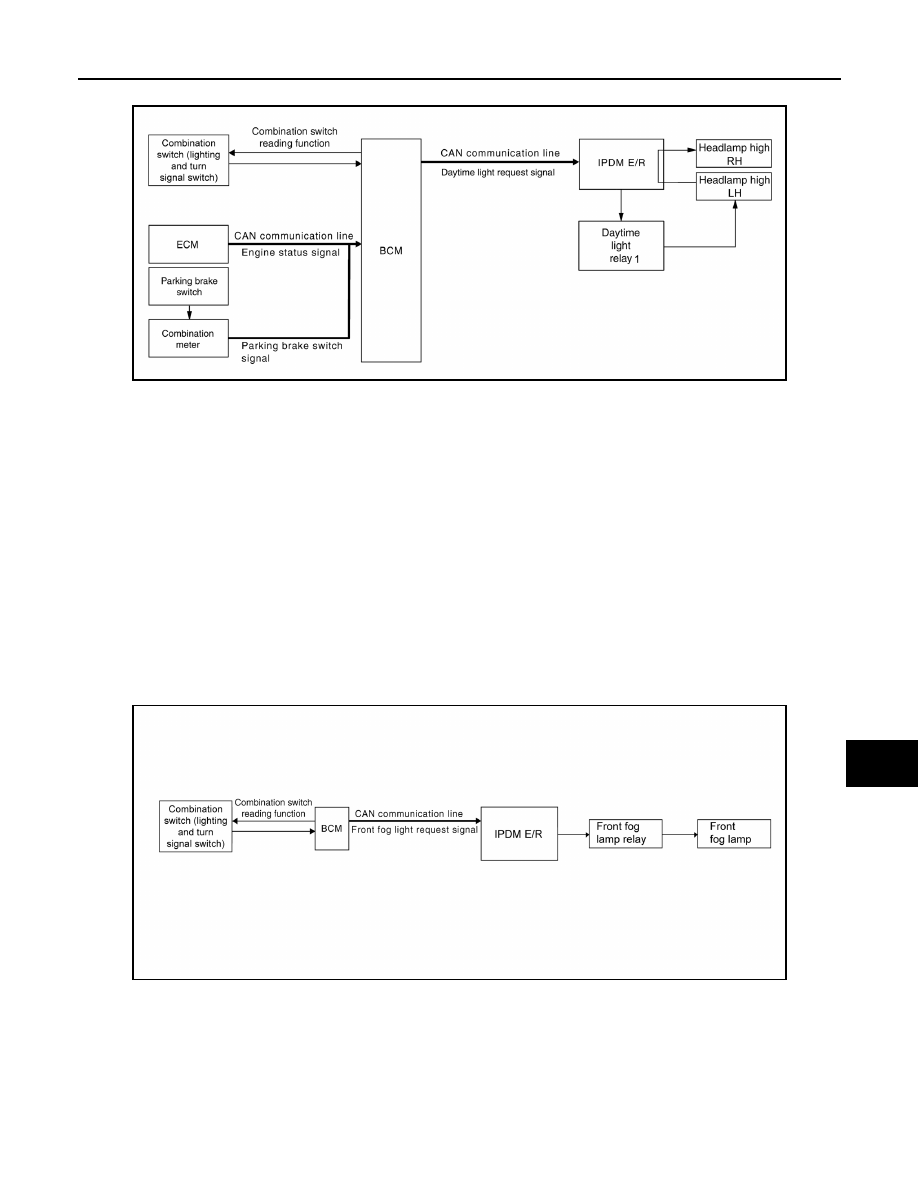

DAYTIME RUNNING LIGHT SYSTEM : System Diagram

INFOID:0000000009694020

DAYTIME RUNNING LIGHT SYSTEM : System Description

INFOID:0000000009694021

The headlamp system for Canada vehicles is equipped with a daytime light relay 1 that activates the high

beam headlamps at approximately half illumination whenever the engine is operating and the lighting switch is

in the OFF position. If the parking brake is applied before the engine is started the daytime lights will not be

illuminated. The daytime lights will illuminate once the parking brake is released. With the lighting switch in the

2nd position the headlamps function the same as conventional light systems.

The BCM monitors inputs from the parking brake switch and the lighting switch to determine when to activate

the daytime light system. The BCM sends a daytime light request to the IPDM E/R via the CAN communica-

tion lines.

The IPDM E/R grounds the daytime light relay 1 which in turn, provides power to the ground side of the LH

high beam lamp. Power flows backward through the LH high beam lamp to the IPDM E/R, through fuse 35,

fuse 34 and to the RH high beam lamp and on to ground. The high beam lamps are wired in series which

causes them to illuminate at a reduced intensity.

FRONT FOG LAMP SYSTEM
FRONT FOG LAMP SYSTEM : System Diagram

INFOID:0000000009694022

FRONT FOG LAMP SYSTEM : System Description

INFOID:0000000009694023

FRONT FOG LAMP OPERATION

When the combination switch (lighting and turn signal switch) is in front fog lamp ON position and also in 1ST

or 2ND position (headlamp is ON), the BCM detects FR FOG ON and the HEAD LAMP 1 or 2 ON. The BCM

sends a front fog lamp request ON signal through the CAN communication lines to the IPDM E/R. The IPDM

E/R then turns ON the front fog lamp relay sending power to the front fog lamps.

AWLIA1885GB

AWLIA1886GB

EXL-10

< SYSTEM DESCRIPTION >

SYSTEM

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

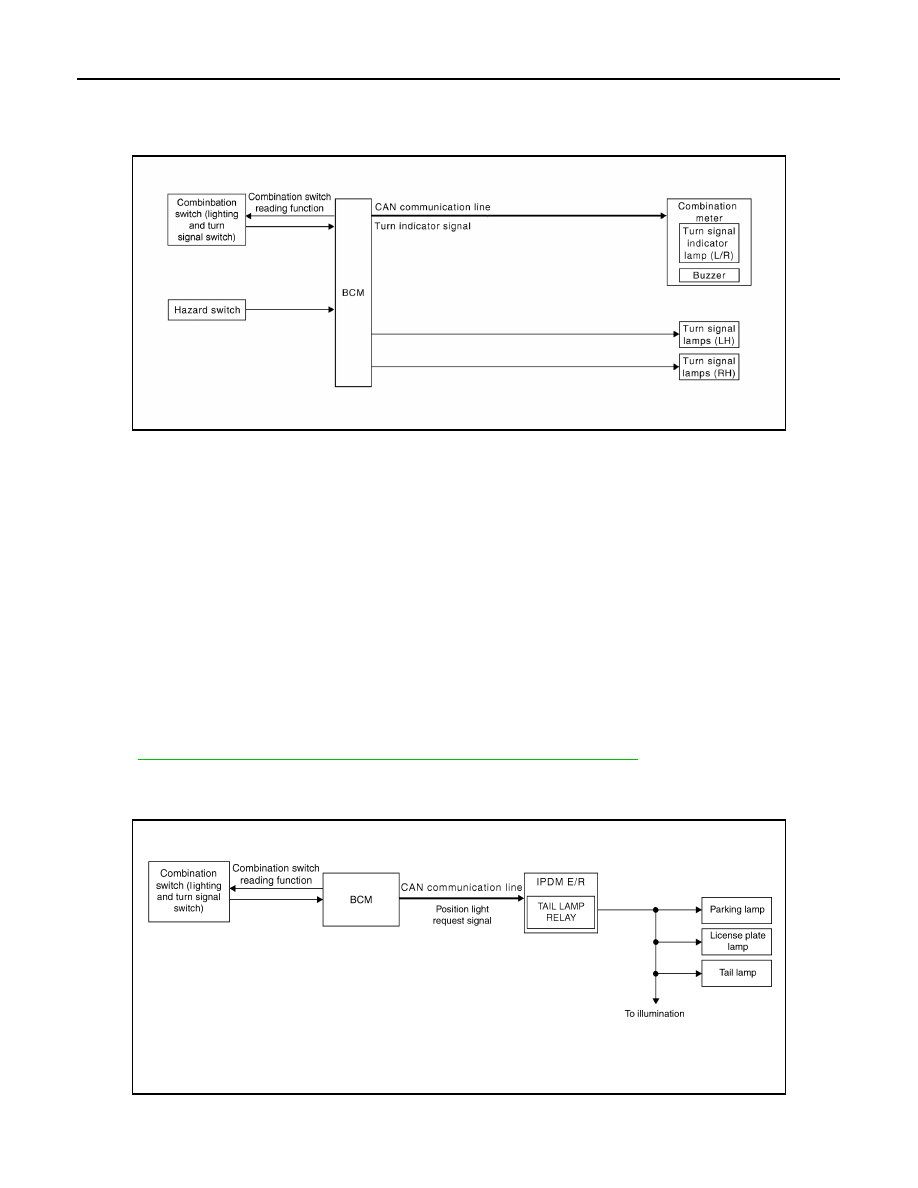

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Diagram

INFOID:0000000009694024

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description

INFOID:0000000009694025

TURN SIGNAL OPERATION

When the turn signal switch is in LH or RH position with the ignition switch in ON position, the BCM detects the

TURN RH or TURN LH ON request. The BCM outputs the flasher output signal to the respective turn signal

lamp. The BCM sends a turn indicator signal ON request through the CAN communication lines to the combi-

nation meter. The combination meter then activates the appropriate turn signal indicator and audible buzzer.

HAZARD LAMP OPERATION

When the hazard switch is in ON position, the BCM detects the hazard switch signal ON. The BCM outputs the

flasher output signal (right and left). The BCM sends a hazard indicator signal ON request through the CAN

communication lines to the combination meter. The combination meter then activates the hazard indicator and

audible buzzer.

REMOTE KEYLESS ENTRY OPERATION

The remote keyless entry receiver transmits hazard lamp signal to BCM, then BCM controls hazard lamps.

Refer to

DLK-193, "REMOTE KEYLESS ENTRY SYSTEM : System Description"

.

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM
PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : System Diagram

INFOID:0000000009694026

ABLIA2705GB

AWLIA1753GB

SYSTEM

EXL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : System Description

INFOID:0000000009694027

PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION

When the combination switch (lighting and turn signal switch) is in 1st position, BCM detects the LIGHTING

SWITCH 1st POSITION ON. The BCM sends a parking light ON request through the CAN communication

lines to the IPDM E/R. The IPDM E/R then activates the tail lamp relay which sends power to the parking and

instrument illumination circuits.

EXTERIOR LAMP BATTERY SAVER CONTROL

With the combination switch (lighting and turn signal switch) in the 2nd position and the ignition switch is

turned from ON or ACC to OFF, the battery saver feature is activated.

Under this condition, the headlamps remain illuminated for 5 minutes unless the lighting switch position is

changed. If the lighting switch position is changed, then the headlamps are turned off.

This setting can be changed by CONSULT. Refer to

BCS-24, "BATTERY SAVER : CONSULT Function (BCM

- BATTERY SAVER)"

 (with I-Key) or

BCS-91, "BATTERY SAVER : CONSULT Function (BCM - BATTERY

SAVER)"

 (without I-Key).
