FUEL INJECTOR AND FUEL TUBE

FUEL INJECTOR AND FUEL TUBE

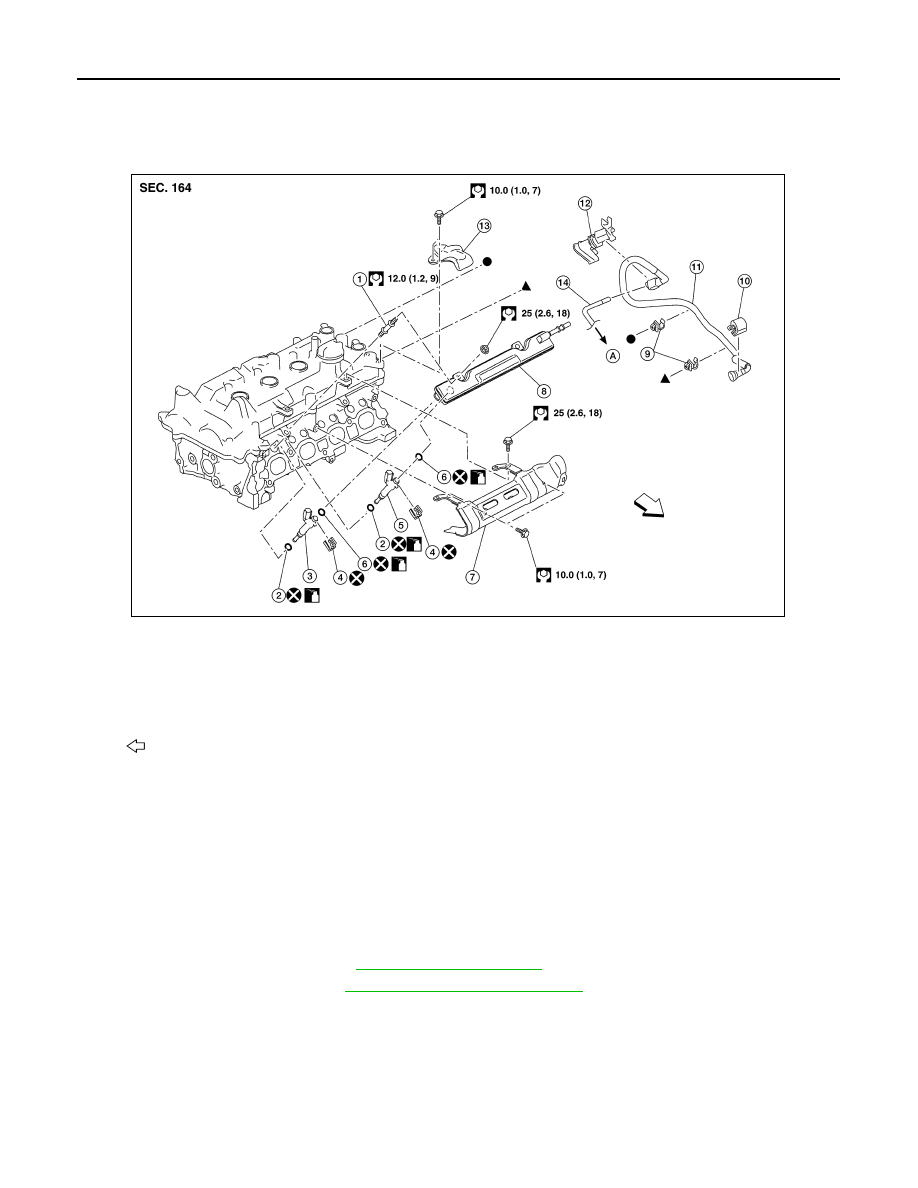

Exploded View

INFOID:0000000009444730

CAUTION:

Do not remove or disassemble parts unless instructed.

Removal and Installation

INFOID:0000000009444731

WARNING:

• Put a “CAUTION: FLAMMABLE” sign in the workshop.

• Be sure to work in a well-ventilated area and furnish workshop with a CO

2

 fire extinguisher.

• Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.

REMOVAL

1. Release the fuel pressure. Refer to

EC-135, "Work Procedure"

.

2. Remove intake manifold. Refer to

EM-28, "Removal and Installation"

.

1.

Stud bolt

2.

O-ring (green)

3.

Fuel injector (front)

4.

Clip

5.

Fuel injector (rear)

6.

O-ring (black)

7.

Fuel tube protector

8.

Fuel tube

9.

Clamp

10. Quick connector cap (engine side)

11. Fuel feed hose

12. Quick connector cap (floor piping-side)

13. Fuel connector protector

14. Fuel pipe

A.

To centralized under-floor piping

Front

AWBIA1579ZZ

FUEL INJECTOR AND FUEL TUBE

EM-41

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

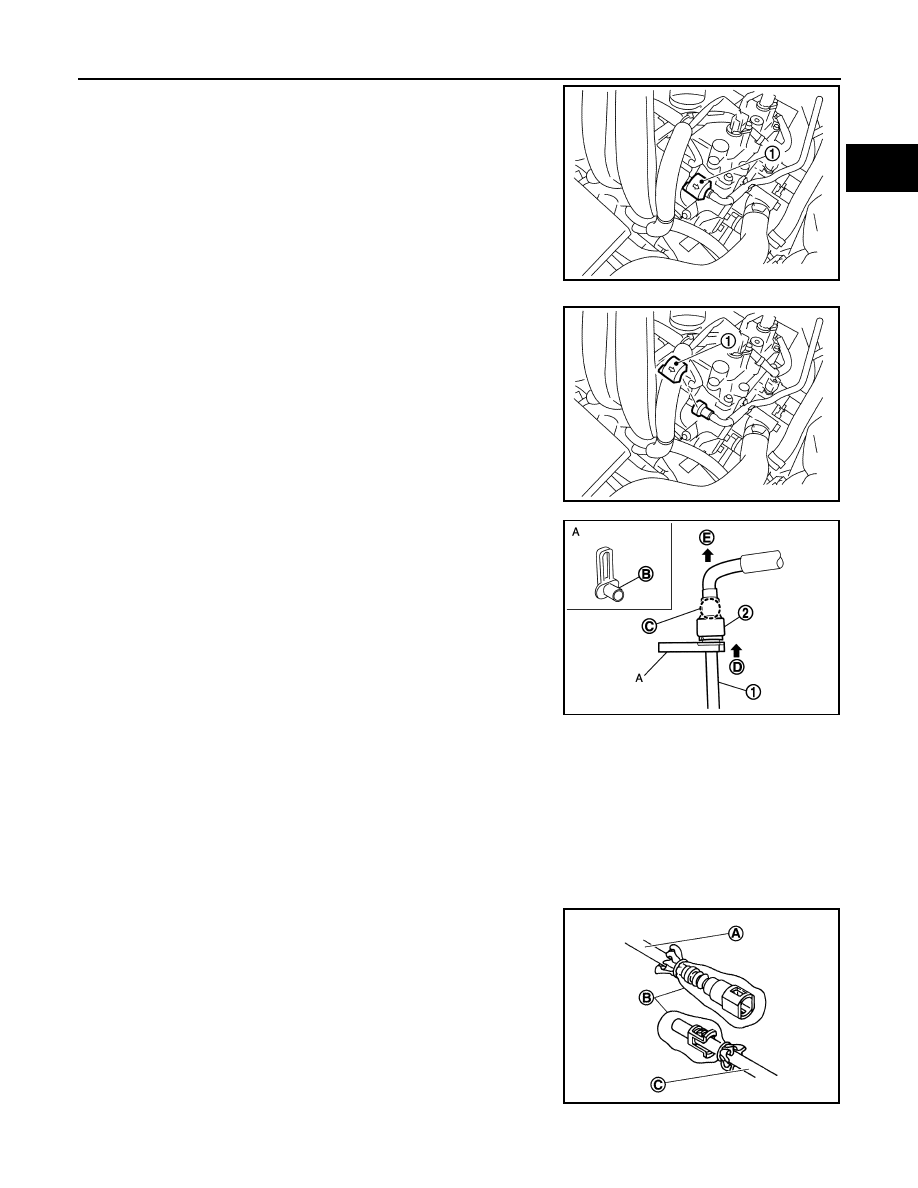

3. Disconnect fuel feed hose from fuel tube. Disconnect quick con-

nector:

NOTE:

There is no fuel return path.

a. Remove quick connector cap (engine side) (1) from quick con-

nector connection.

b. Disconnect fuel feed hose from hose clamp.

c. With the sleeve (B) side of quick connector release (A) facing

quick connector (2), install quick connector release (A) onto fuel

tube (1) as shown.

d. Insert quick connector release (A) into quick connector (2) until

sleeve (B) contacts and goes no further. Hold quick connector

release (A) in that position (D).

CAUTION:

Inserting quick connector release hard will not disconnect

quick connector. Hold quick connector release where it

contacts and goes no further.

e. Draw and pull out quick connector (E) straight up from fuel tube

(1).

CAUTION:

• Pull quick connector up (E) from holding position (C) as shown.

• Do not pull with lateral force applied. O-ring inside quick connector may be damaged.

• Prepare container and cloth beforehand as fuel will leak out.

• Discard O-ring, do not reuse.

• Avoid fire and sparks.

• Keep parts away from heat source. Be especially careful when welding is performed.

• Do not expose parts to battery electrolyte or other acids.

• Do not bend or twist connection between quick connector and fuel feed tube during installation

or removal.

• Be sure to cover openings of disconnected fuel feed hose

(A) and fuel tube (C) with plug or plastic bag (B) to avoid

fuel leaks and entry of foreign material.

4. Disconnect fuel feed hose from fuel pipe as follows:

(1)

: Quick connector cap (engine side)

JPBIA4130ZZ

JPBIA4131ZZ

JPBIA2255ZZ

JSBIA1295ZZ

EM-42

< REMOVAL AND INSTALLATION >

[HR16DE]

FUEL INJECTOR AND FUEL TUBE

NOTE:

There is no fuel return path.

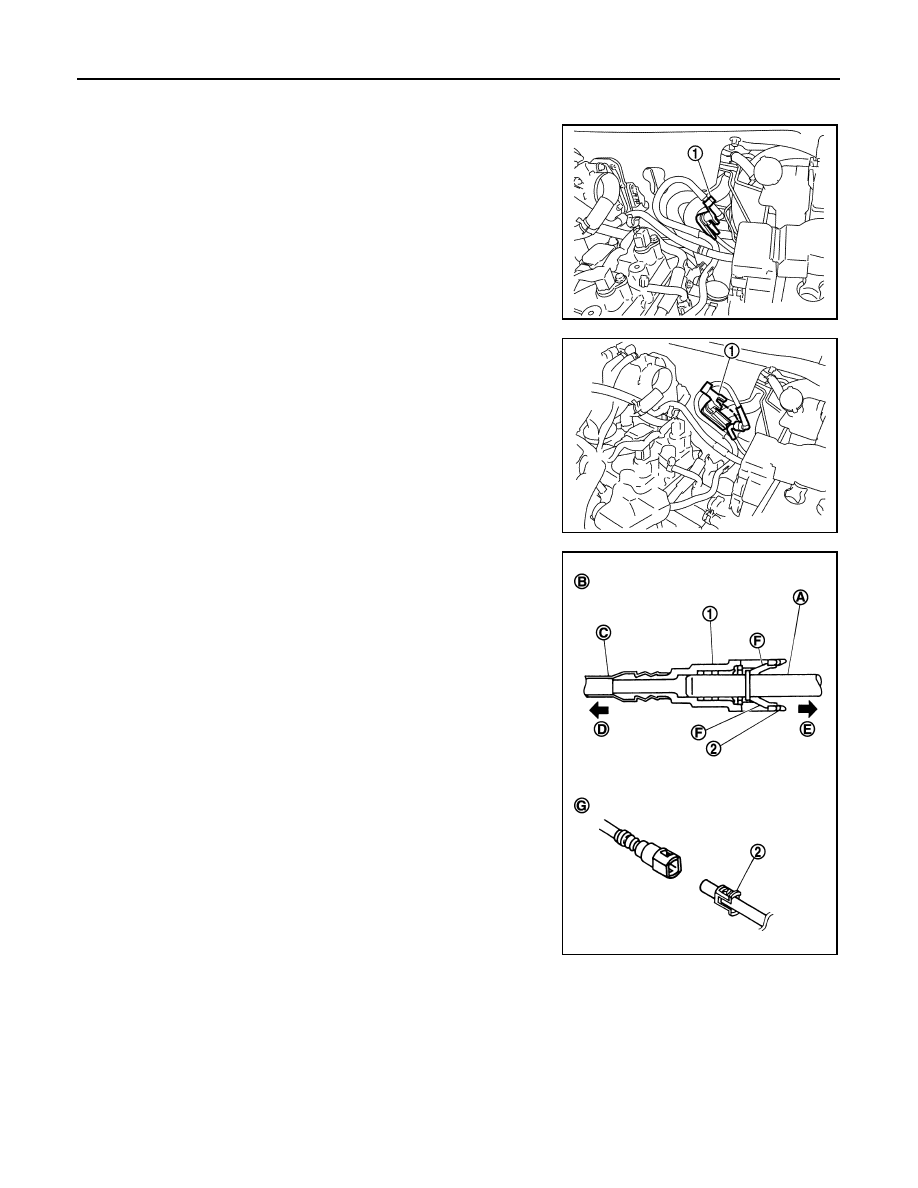

a. Remove quick connector cap (floor piping side) (1) from quick

connector connection.

b. Disconnect fuel feed hose from hose clamp (1).

c.

Hold the quick connector (1) while pushing in tabs (F), and pull

out the hard tube (A).

CAUTION:

• Inserting quick connector release hard will not disconnect

quick connector. Hold quick connector release where it

contacts and goes no further.

• The tube can be removed when the tabs are completely

depressed. Do not twist it more than necessary.

• Do not use any tools to remove the quick connector.

• Keep the resin tube away from heat. Be especially careful

when welding near the tube.

• Prevent acid such as battery electrolyte etc. from getting

on the resin tube.

• Do not bend or twist the tube during installation and

removal.

• Remove the remaining retainer only when the tube is

replaced.

• When the tube is replaced, also replace the retainer.

JSBIA1291ZZ

JSBIA1292ZZ

(2)

: Retainer

(B)

: Connection (cross-section)

(C)

: Resin tube

(D)

: To under floor fuel line

(E)

: To fuel tank

(G)

: Disconnection

JPBIA0130ZZ

FUEL INJECTOR AND FUEL TUBE

EM-43

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Be sure to cover openings of disconnected pipes with

plug or plastic bag (B) to avoid fuel leaks and entry of for-

eign material.

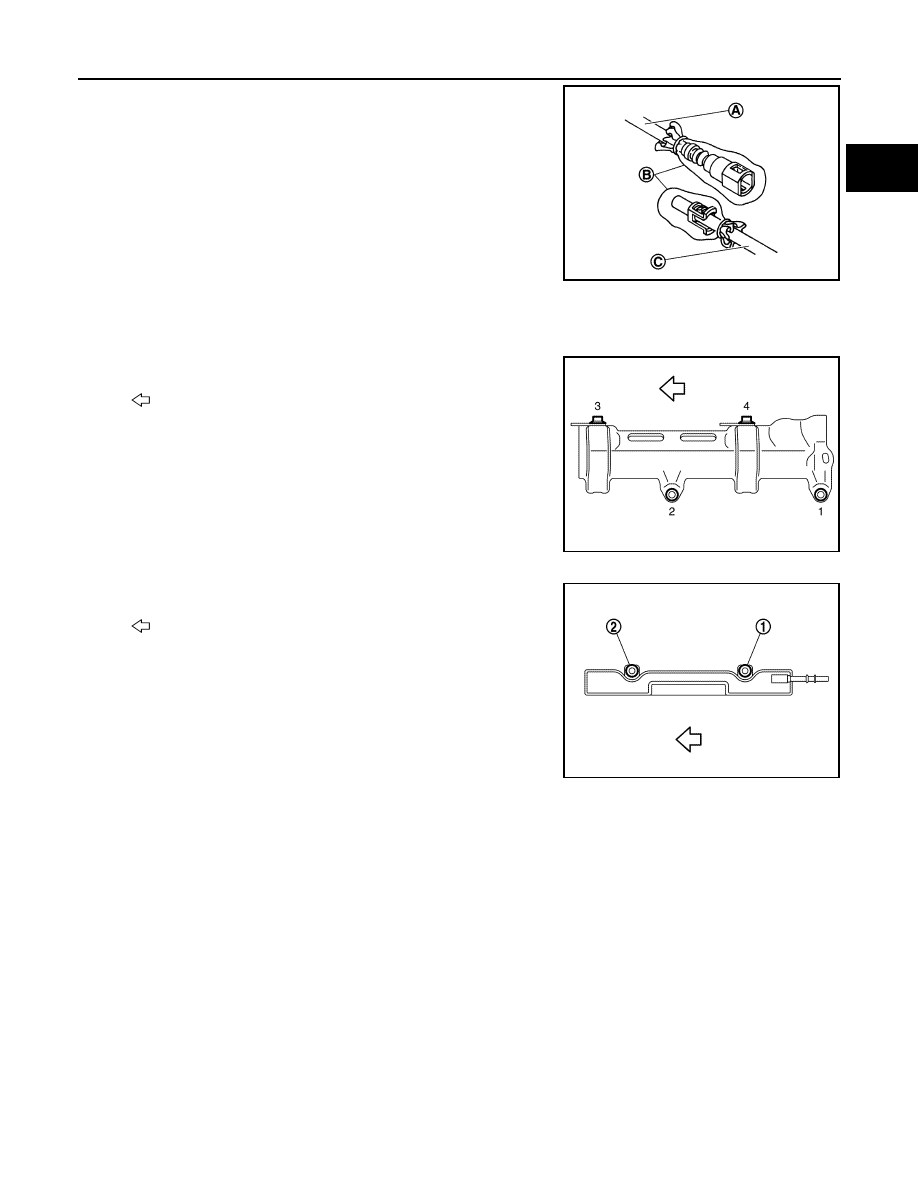

5. Disconnect harness connectors from fuel injectors.
6. Disconnect harness connectors from intake and exhaust valve timing control solenoid valves.
7. Remove fuel tube protector.

• Loosen bolts in reverse order as shown.

8. Remove fuel injector and fuel tube assembly:

a. Loosen two nuts in reverse order as shown.
b. Pull the fuel tube straight out until injector lower O-rings are

clear.

c. Remove the nuts and the fuel tube.

CAUTION:

• When removing, be careful to avoid interference with fuel

injectors.

• Use a shop cloth to absorb any fuel leaks from fuel tube.

9. Remove fuel injector from fuel tube:
a. Open and remove clip (1).
b. Remove fuel injectors (3) and (4) from fuel tube (2) by pulling straight out.

CAUTION:

• Be careful with remaining fuel that may leak from fuel tube.

• Be careful not to damage fuel injector nozzle during removal.

• Do not bump or drop fuel injector.

• Do not disassemble fuel injector.

• Do not reuse O-rings.

INSTALLATION

CAUTION:

Do not reuse O-rings.
1. Install O-rings on the fuel injector.

CAUTION:

• Upper and lower O-rings are different. Be careful not to interchange them.

(A) :Fuel feed hose
(C) :Fuel tube

JSBIA1295ZZ

: Engine front

JPBIA4132ZZ

: Engine front

JPBIA4133ZZ
