EM-28

< REMOVAL AND INSTALLATION >

[HR16DE]

INTAKE MANIFOLD

INTAKE MANIFOLD

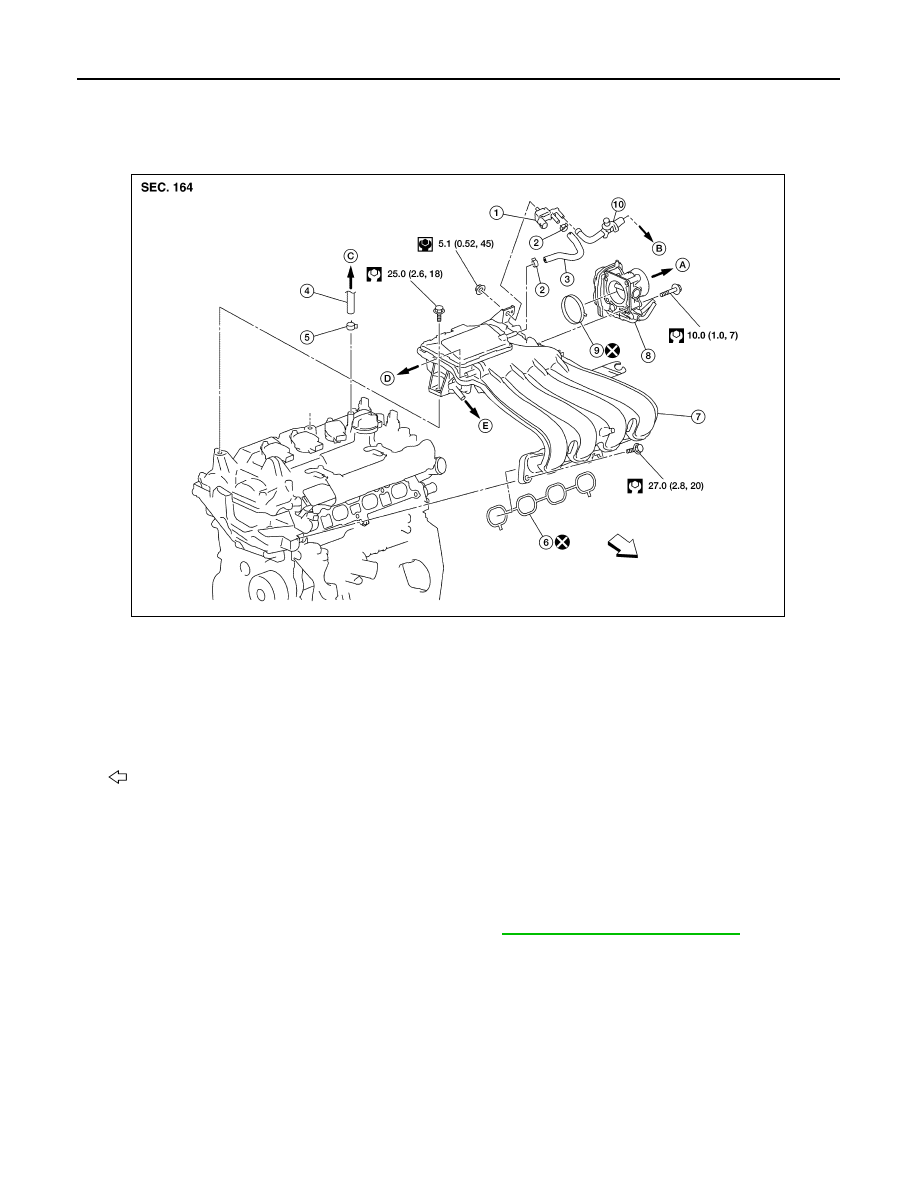

Exploded View

INFOID:0000000009444724

Removal and Installation

INFOID:0000000009444725

REMOVAL

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove air duct (inlet), air duct and air cleaner. Refer to

EM-26, "Removal and Installation"

.

2. Disconnect water hoses from the electric throttle actuator (if necessary).

CAUTION:

• Perform this step when the engine is cold.

• Do not spill engine coolant on the drive belt.

3. Remove electric throttle control actuator.

CAUTION:

• Handle carefully to avoid any shock to electric throttle control actuator.

• Do not disassemble electric throttle control actuator.

4. Disconnect EVAP purge control solenoid valve harness connector and vacuum hose from EVAP purge

control solenoid valve.

CAUTION:

1.

EVAP canister purge volume control
solenoid valve

2.

Hose clamp

3.

Vacuum hose

4.

PCV hose

5.

Hose clamp

6.

Intake manifold gasket

7.

Intake manifold

8.

Electric throttle control actuator

9.

Electric throttle control actuator
gasket

10. EVAP service port

A.

To air duct

B.

To centralized under-floor piping

C.

To air duct

D.

To brake booster

E.

To PCV valve in rocker cover

Engine front

AWBIA1602ZZ

INTAKE MANIFOLD

EM-29

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Handle EVAP canister purge volume control solenoid valve carefully and avoid impacts.

5. Disconnect vacuum hose for brake booster from intake manifold.

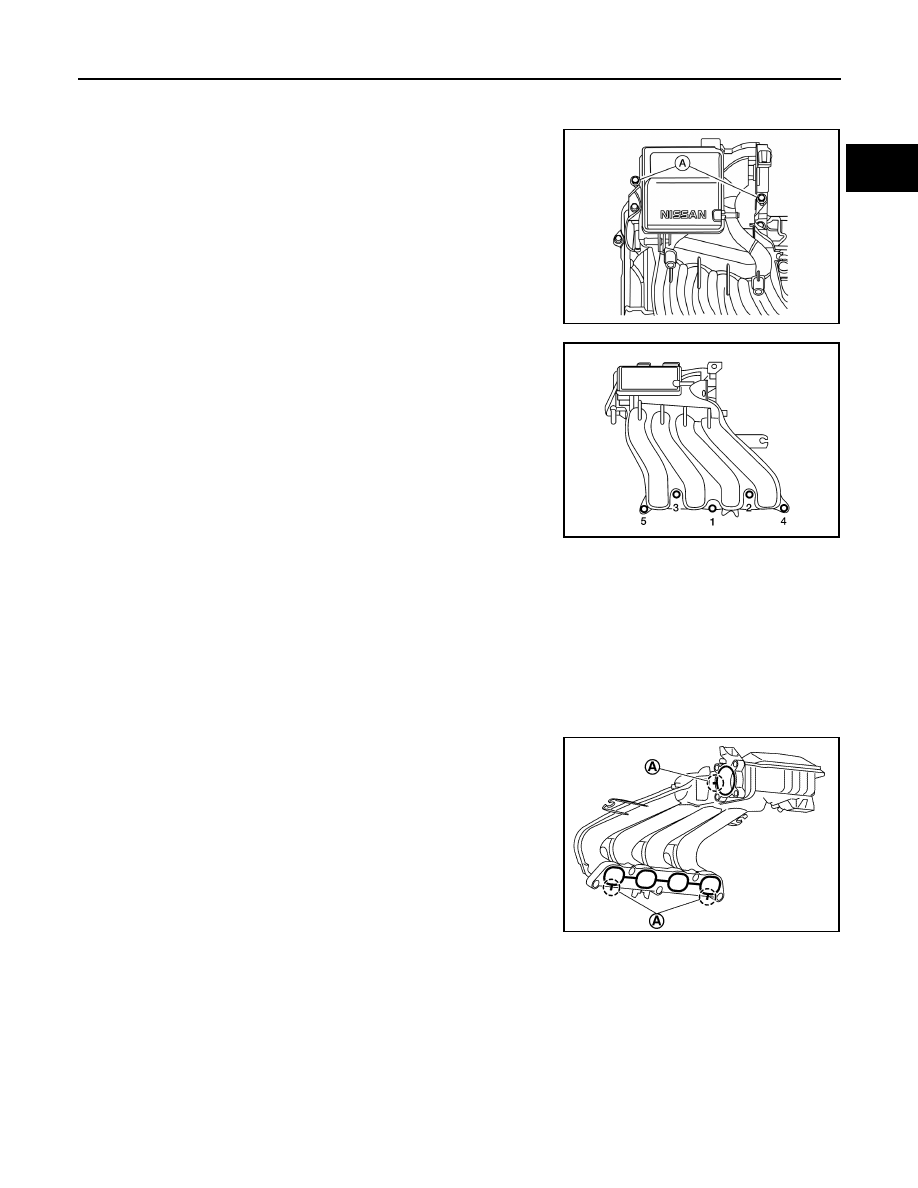

6. Remove intake manifold bolts (A) at the rocker cover.

7. Loosen bolts in reverse order as shown.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

8. Remove intake manifold and intake manifold gasket.
9. Remove EVAP purge control solenoid valve from intake manifold (if necessary).

CAUTION:

Handle EVAP canister purge volume control solenoid valve carefully and avoid impacts.

INSTALLATION

Installation is in the reverse order of removal.

Intake Manifold

1. Install the new intake manifold gasket to the intake manifold.

• Align the protrusions used for checking gasket installation con-

dition with the clearance grooves (A) of the intake manifold

groove.

CAUTION:

Do not reuse the intake manifold gasket.

NOTE:

New gasket for electric throttle control actuator can be installed

when the electric throttle control actuator is installed.

2. Place the intake manifold into position.

CAUTION:

Check that the oil level gauge guide is not detached from the securing clip of the water inlet due to

interference of intake manifold.

AWBIA1620ZZ

AWBIA1576ZZ

JSBIA1220ZZ

EM-30

< REMOVAL AND INSTALLATION >

[HR16DE]

INTAKE MANIFOLD

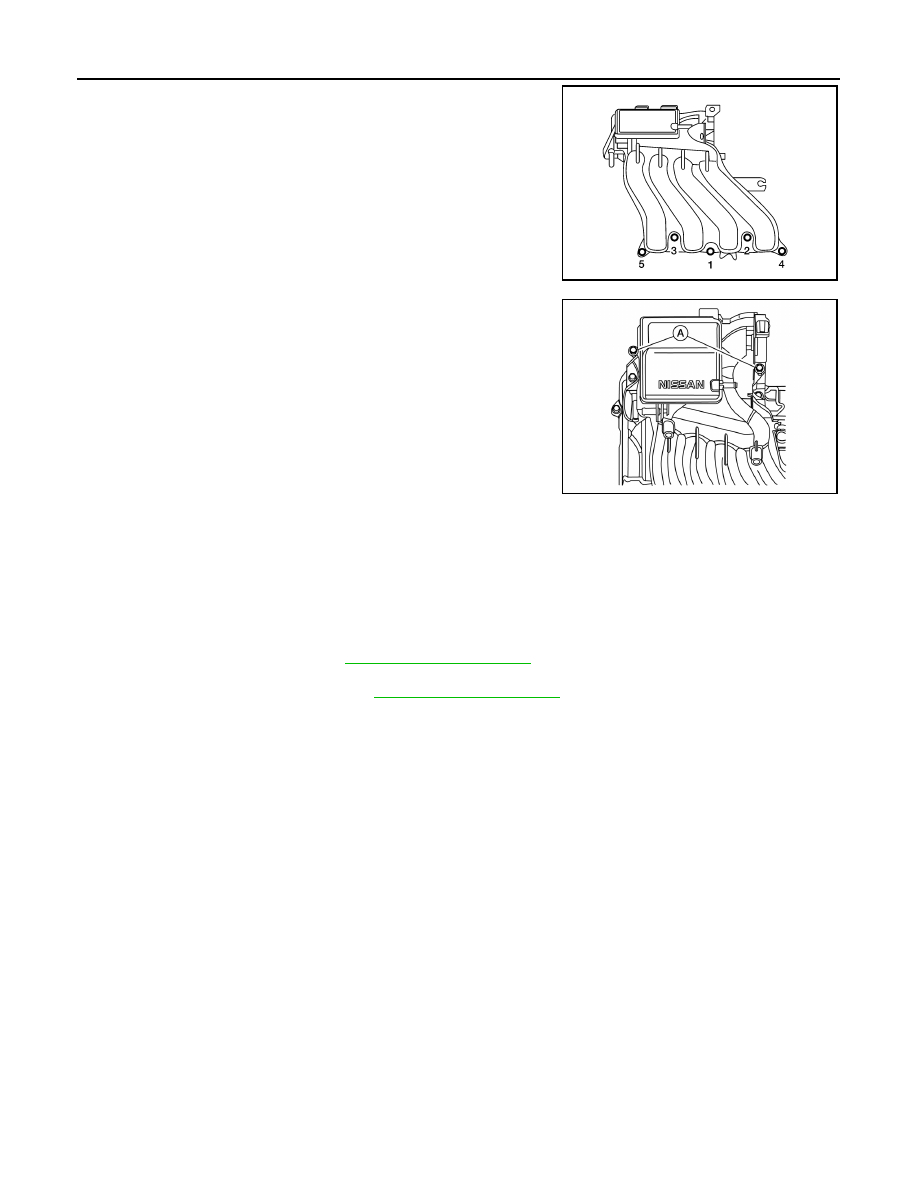

3. Tighten the bolts to specification in the numerical order as

shown.

4. Tighten the intake manifold bolts (A) to specification at the

rocker cover.

Electric Throttle Control Actuator

1. Install electric throttle control actuator gasket to intake manifold.

CAUTION:

Do not reuse electric throttle control actuator gasket.

2. Tighten bolts of electric throttle control actuator equally and diagonally in several steps.

NOTE:

After installation, it is necessary to re-calibrate the electric throttle control actuator as follows:

• Perform “Throttle Valve Closed Position Learning” after repair when removing harness connector of the elec-

tric throttle control actuator. Refer to

EC-127, "Work Procedure"

.

• Perform “Throttle Valve Closed Position Learning” and “Idle Air Volume Learning” after repair when replacing

electric throttle control actuator. Refer to

EC-127, "Work Procedure"

.

AWBIA1576ZZ

Intake manifold bolts (A)

25.0 N·m (2.6 kg-m, 18 in-lb)

AWBIA1620ZZ

EXHAUST MANIFOLD

EM-31

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

EXHAUST MANIFOLD

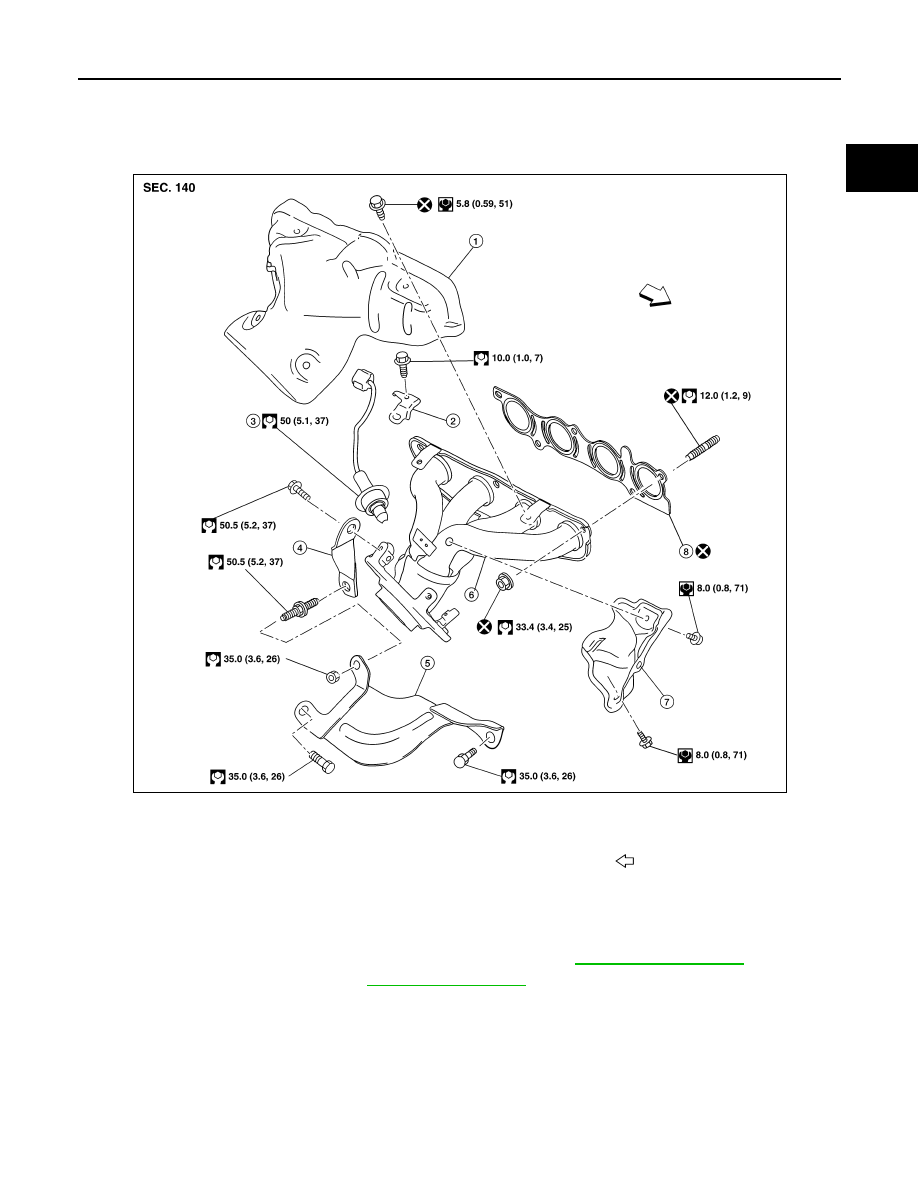

Exploded View

INFOID:0000000009444726

Removal and Installation

INFOID:0000000009444727

REMOVAL

1. Remove air duct (inlet), air duct and air cleaner assembly. Refer to

EM-26, "Exploded View"

.

2. Remove exhaust front tube. Refer to

EX-5, "Exploded View"

.

3. Remove harness bracket from the cylinder head on the right rear side.
4. Remove exhaust manifold upper and lower covers.
5. Disconnect air fuel ratio sensor 1 harness connector.
6. Remove exhaust manifold side bolt of exhaust manifold stay.

AWBIA1603ZZ

1.

Exhaust manifold cover (upper)

2.

Harness bracket

3.

Air-fuel ratio sensor 1

4.

Exhaust manifold stay

5.

Heat insulator

6.

Exhaust manifold

7.

Exhaust manifold cover (lower)

8.

Exhaust maifold gasket

Engine front
