FUEL INJECTOR

FUEL INJECTOR

Component Function Check

INFOID:0000000009020926

1.

INSPECTION START

Turn ignition switch to START.
Is any cylinder ignited?

YES

>> GO TO 2.

NO

>> Go to

EC-434, "Diagnosis Procedure"

.

2.

CHECK FUEL INJECTOR FUNCTION

With CONSULT

1. Start engine.

2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT.

3. Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT

1. Let engine idle.

2. Listen to each fuel injector operating sound.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-434, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009020927

1.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect fuel injector harness connector.

3. Turn ignition switch ON.

4. Check the voltage between fuel injector harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.

• IPDM E/R connector F42

Clicking noise should be heard.

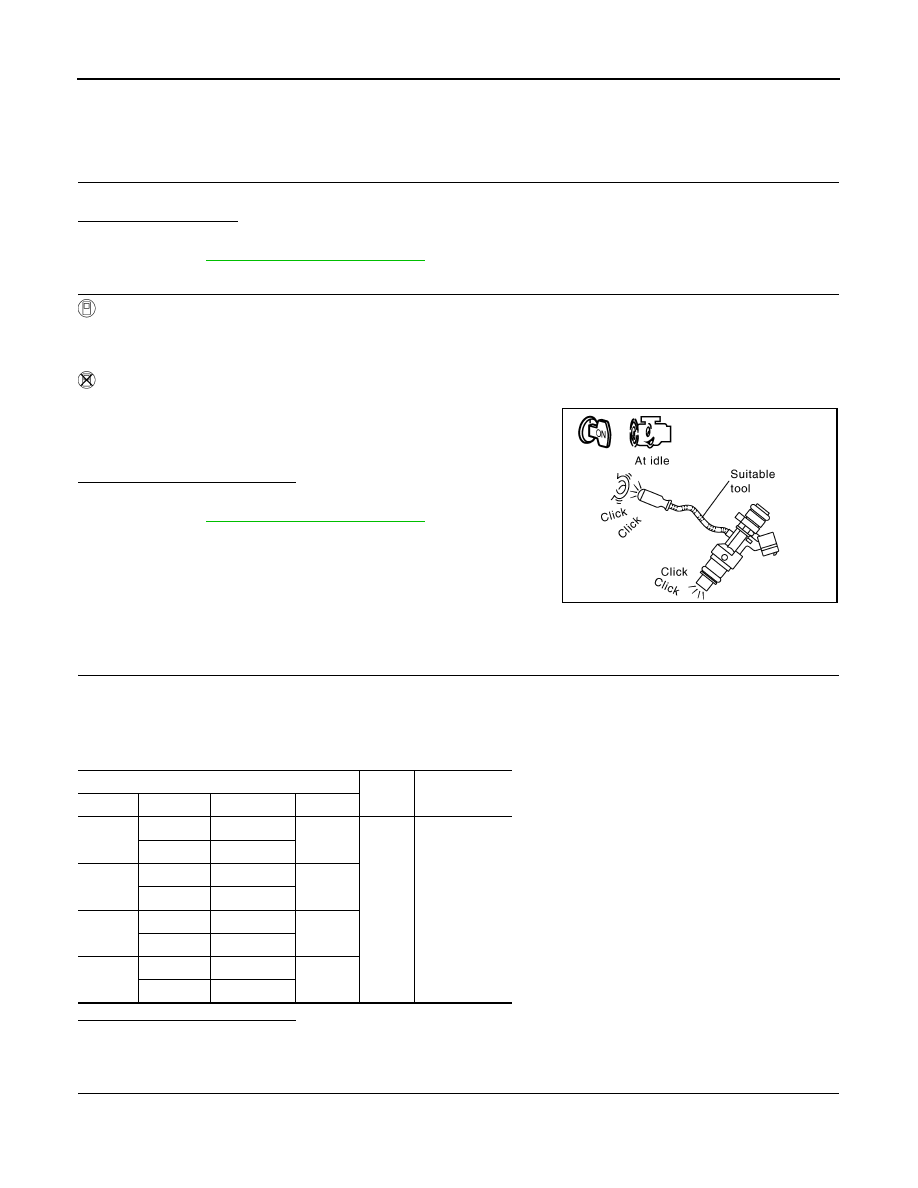

PBIB3332E

Fuel injector

Ground

Voltage

Cylinder Connector

Front / Rear

Terminal

1

F17

Front

1

Ground Battery voltage

F53

Rear

2

F18

Front

1

F54

Rear

3

F19

Front

1

F29

Rear

4

F20

Front

1

F30

Rear

FUEL INJECTOR

EC-435

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• 10 A fuse (No. 55)

• Harness for open or short between fuel injector and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between fuel injector harness connector and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK FUEL INJECTOR

Refer to

EC-435, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning fuel injector. Refer to

EM-40, "Removal and Installation"

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-31, "Removal and Installation"

.

NO

>> Repair or replace harness or connectors.

Component Inspection

INFOID:0000000009020928

1.

CHECK FUEL INJECTOR

1. Turn ignition switch OFF.

2. Disconnect fuel injector harness connector.

3. Check resistance between fuel injector terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning fuel injector. Refer to

EM-40, "Removal and Installation"

.

Fuel injector

ECM

Continuity

Cylinder Connector

Front / Rear

Terminal

Connector

Terminal

1

F17

Front

2

F10

31

Existed

F53

Rear

12

2

F18

Front

2

30

F54

Rear

20

3

F19

Front

2

29

F29

Rear

16

4

F20

Front

2

25

F30

Rear

24

Terminals

Resistance

1 and 2

11.1 - 14.5

Ω [at 10 - 60°C (50 - 140°F)]

EC-436

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

FUEL PUMP

FUEL PUMP

Component Function Check

INFOID:0000000009020929

1.

CHECK FUEL PUMP FUNCTION

1. Turn ignition switch ON.

2. Pinch fuel feed hose (1) with two fingers.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>>

EC-436, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009020930

1.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Turn ignition switch ON.

4. Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Check the continuity between IPDM E/R harness connector and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Disconnect “fuel level sensor unit and fuel pump” harness connector.

4. Turn ignition switch ON.

5. Check the voltage between “fuel level sensor unit and fuel pump” harness connector and ground.

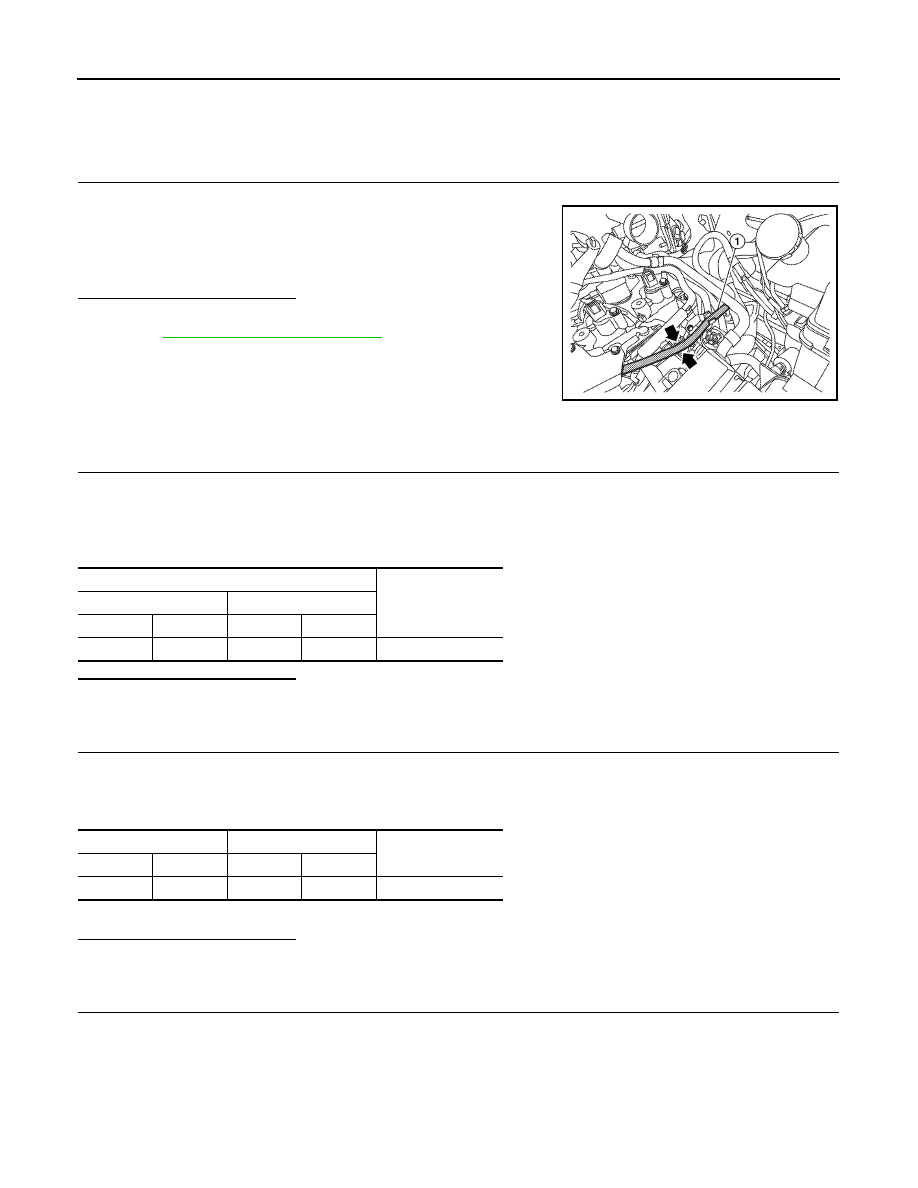

Fuel pressure pulsation should be felt on the fuel feed
hose for 1 second after ignition switch is turned ON.

ALBIA1074ZZ

ECM

Voltage

+

−

Connector

Terminal

Connector

Terminal

F10

23

E16

108

Battery voltage

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector

Terminal

F43

43

F10

23

Existed

FUEL PUMP

EC-437

< DTC/CIRCUIT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 4.

4.

CHECK FUSE

1. Turn ignition switch OFF.

2. Disconnect 15 A fuse (No. 48) from IPDM E/R.

3. Check 15 A fuse.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace 15 A fuse.

5.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-IV

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Check the continuity between IPDM E/R harness connector and “fuel level sensor unit and fuel pump”

harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

6.

CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Check the continuity between “fuel level sensor unit and fuel pump” harness connector and ground.

3. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair open circuit or short to power in harness or connectors.

7.

CHECK FUEL PUMP

Refer to

EC-438, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace “fuel level sensor unit and fuel pump”.Refer to

FL-6, "Exploded View"

.

8.

CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

Fuel level sensor unit

and fuel pump

Ground

Voltage

Connector

Terminal

B44

1

Ground

Battery voltage should for exist 1 second
after ignition switch is turn ON.

IPDM E/R

Fuel level sensor unit

and fuel pump

Continuity

Connector

Terminal

Connector

Terminal

E44

9

B44

1

Existed

Fuel level sensor unit and fuel pump

Ground

Continuity

Connector

Terminal

B44

3

Ground

Existed
