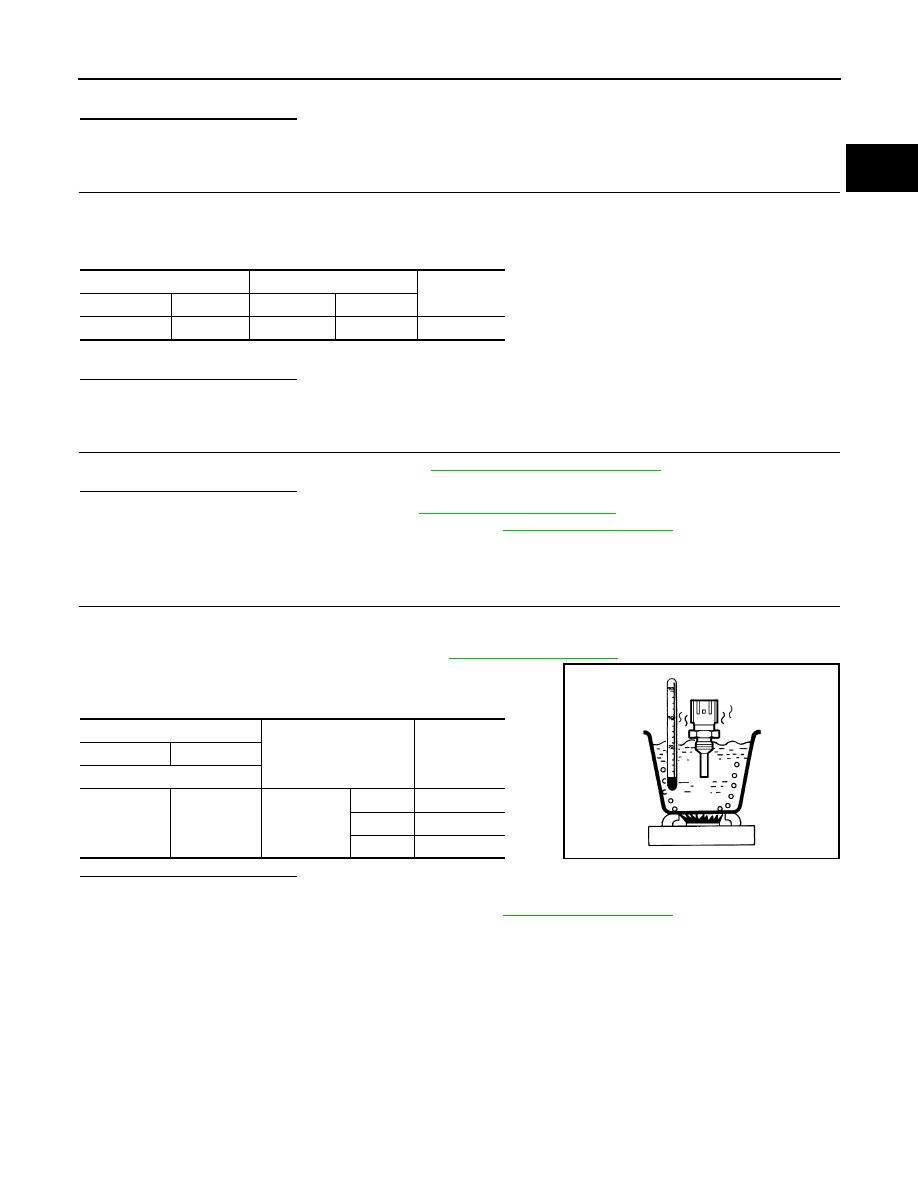

EC-262 < DTC/CIRCUIT DIAGNOSIS > [HR16DE] P0197, P0198 EOT SENSOR P0197, P0198 EOT SENSOR DTC Logic INFOID:0000000009020764 DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1. PRECONDITIONING If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test. 1. Turn ignition switch OFF and wait at least 10 seconds. 2. Turn ignition switch ON. 3. Turn ignition switch OFF and wait at least 10 seconds. >> GO TO 2. 2. PERFORM DTC CONFIRMATION PROCEDURE 1. Start engine and wait at least 5 seconds. 2. Check 1st trip DTC. YES >> Proceed to . NO >> INSPECTION END Diagnosis Procedure INFOID:0000000009020765 1. CHECK ENGINE OIL TEMPERATURE SENSOR POWER SUPPLY 1. Turn ignition switch OFF. 2. Disconnect engine oil temperature (EOT) sensor harness connector. 3. Turn ignition switch ON. 4. Check the voltage between EOT sensor harness connector and ground. Is the inspection result normal? YES >> GO TO 3. NO >> GO TO 2. 2. CHECK ENGINE OIL TEMPERATURE SENSOR POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check the continuity between EOT sensor harness connector and ECM harness connector. DTC No. CONSULT screen terms (Trouble diagnosis content) DTC Detecting Condition Possible Cause P0197 EOT SEN/CIRC An excessively low voltage from the engine • Harness or connectors (EOT sensor circuit is open or shorted.) • Engine oil temperature sensor P0198 EOT SEN/CIRC An excessively high voltage from the engine EOT sensor Ground Voltage (Approx.) Connector Terminal F25 1 Ground 5 V EOT sensor ECM Continuity Connector Terminal Connector Terminal F25 1 F11 57 Existed |
