Nissan Versa Note. Manual - part 290





EC-142

< BASIC INSPECTION >

[HR16DE]

HOW TO SET SRT CODE

WITH CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.

WITHOUT CONSULT

Perform “SRT status” mode with

EC-57, "On Board Diagnosis Function"

.

WITH GST

Select Service $01 with GST.
Is SRT(s) set?

YES

>> GO TO 12.

NO

>> Call TECH LINE or take appropriate action.

12.

CHECK PERMANENT DTC

NOTE:

Permanent DTC cannot be checked with a tool other than CONSULT or GST.

WITH CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.

WITH GST

Select Service $01 with GST.
Is permanent DTC(s) detected?

YES

>> Proceed to

EC-149, "Description"

.

NO

>> END

HOW TO ERASE PERMANENT DTC

EC-143

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

HOW TO ERASE PERMANENT DTC

Description

INFOID:0000000009020665

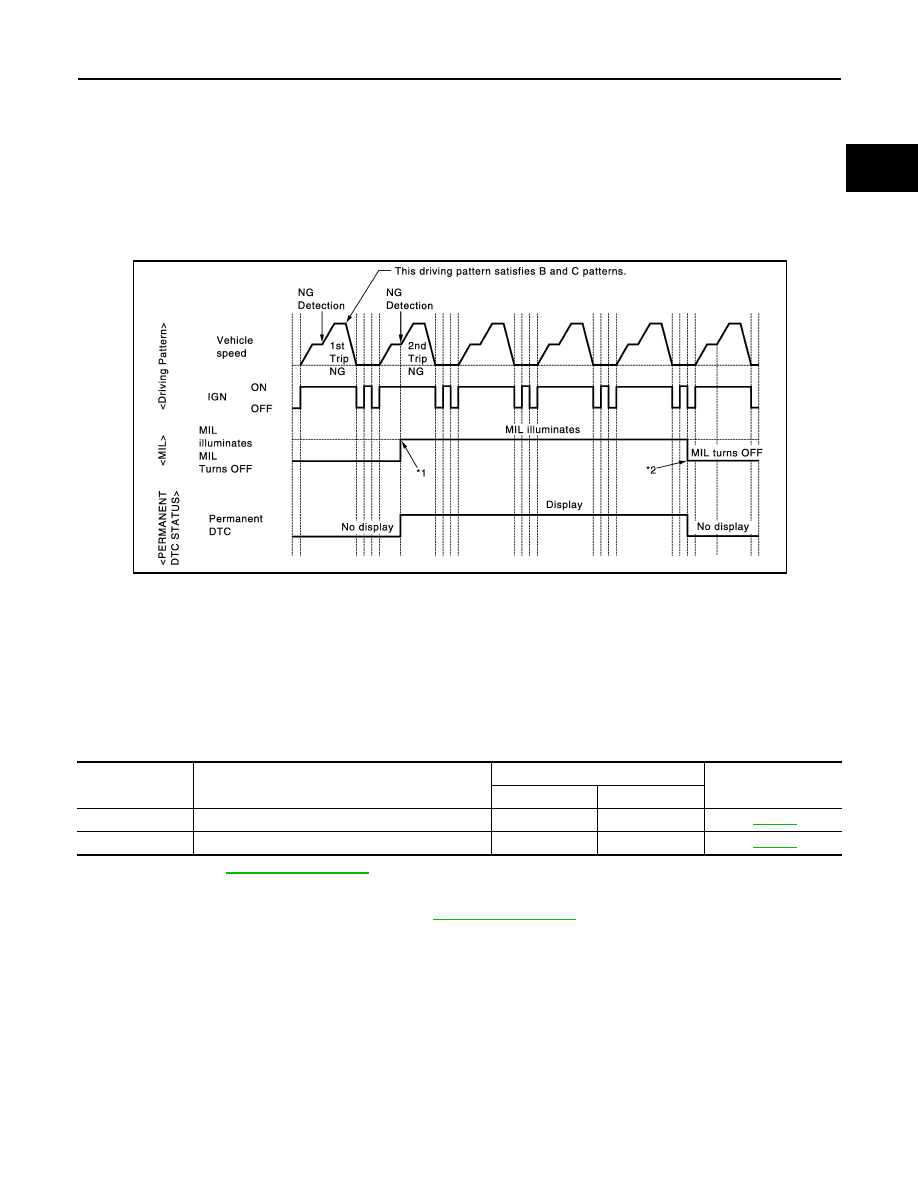

OUTLINE

When a DTC is stored in ECM

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same mal-

function is not detected after performing the driving pattern for MIL shutoff three times in a raw.

When a DTC is not stored in ECM

The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.

NOTE:

If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the per-

manent DTC is not erased, perform the procedure of Group A.

×: Applicable —: Not applicable

*: For group, refer to

EC-86, "DTC Index"

.

PERMANENT DTC ITEM

For permanent DTC items, MIL turns ON. Refer to

EC-86, "DTC Index"

.

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (driving pattern B) without
any malfunctions.

JSBIA0063GB

Group

*

Perform “DTC CONFIRMATION PROCEDURE” for

applicable DTCs.

Driving pattern

Reference

B

D

A

×

EC-144

B

×

×

EC-146

EC-144

< BASIC INSPECTION >

[HR16DE]

HOW TO ERASE PERMANENT DTC

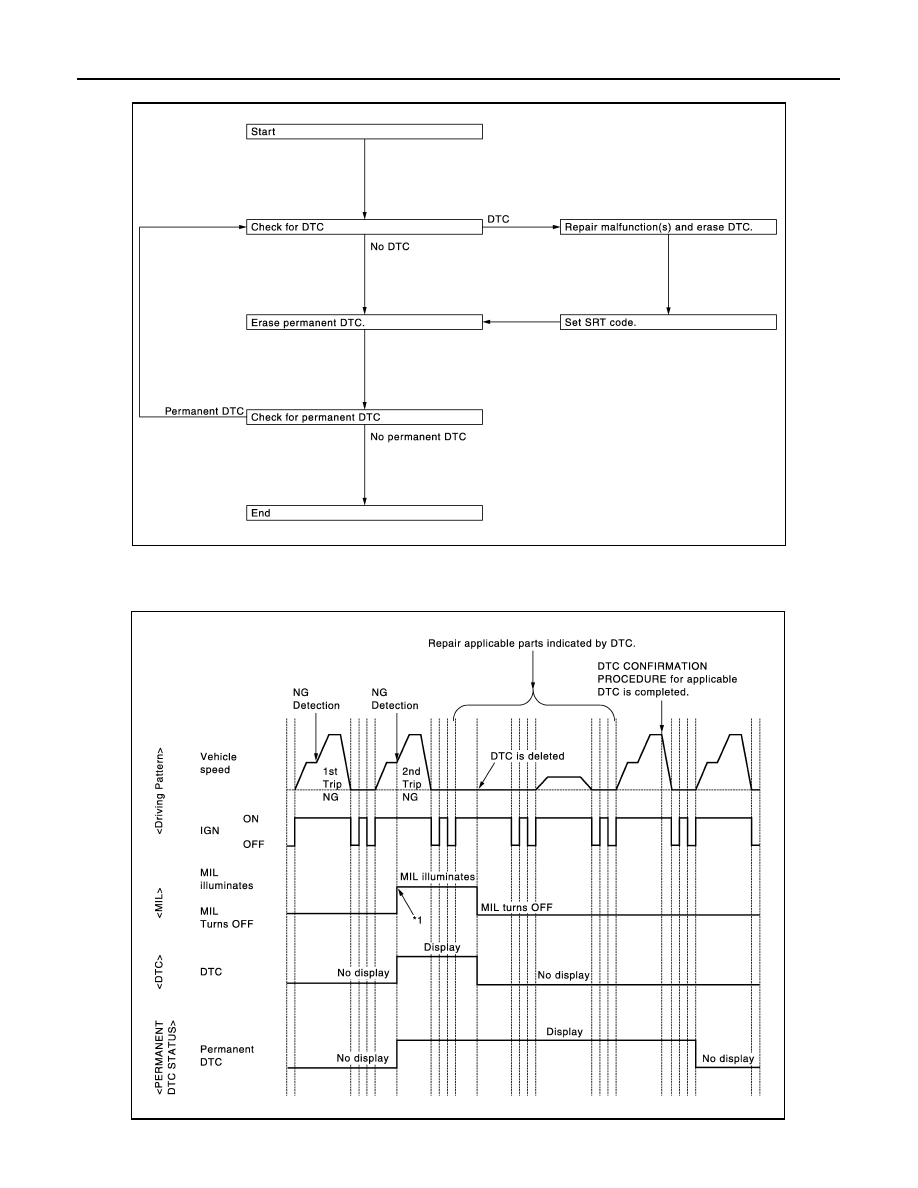

PERMANENT DTC SERVICE PROCEDURE

Work Procedure (Group A)

INFOID:0000000009020666

JSBIA0401GB

JSBIA0064GB

HOW TO ERASE PERMANENT DTC

EC-145

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-57, "On Board Diagnosis Function"

EC-60,

"CONSULT Function"

.

NO

>> GO TO 2.

2.

CHECK PERMANENT DTC

With CONSULT

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select “PERMANENT DTC STATUS” mode with CONSULT.

With GST

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select Service $0A with GST.
Is any permanent DTC detected?

YES

>> GO TO 3.

NO

>> END

3.

PERFORM DTC CONFIRMATION PROCEDURE

Perform “DTC CONFIRMATION PROCEDURE” for DTCs which are the same as permanent DTCs stored in

ECM. Refer to

EC-86, "DTC Index"

.

>> GO TO 4.

4.

CHECK PERMANENT DTC

With CONSULT

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select “PERMANENT DTC STATUS” mode with CONSULT.

With GST

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select Service $0A with GST.
Is any permanent DTC detected?

YES

>> GO TO 1.

NO

>> END

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.
