HOW TO SET SRT CODE

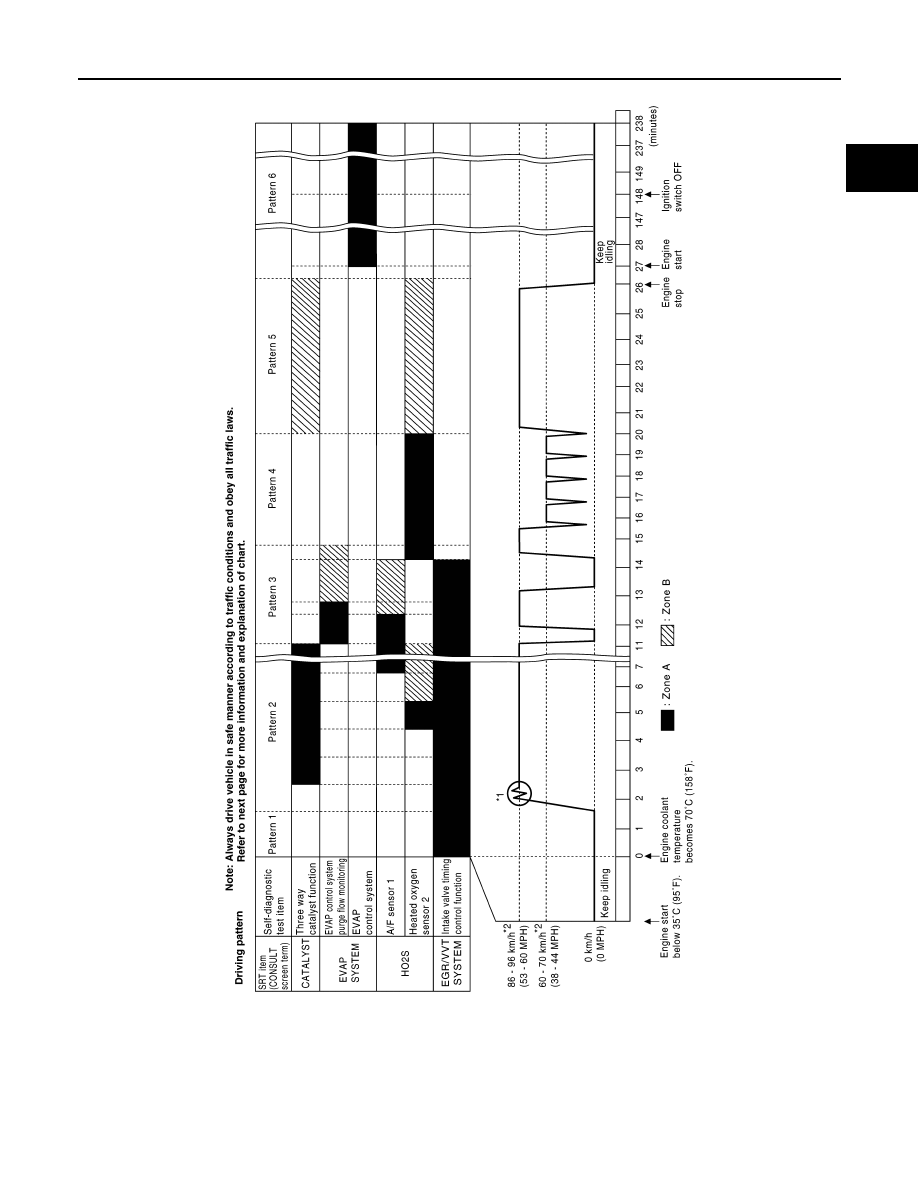

SRT Set Driving Pattern

INFOID:0000000009020663

CAUTION:

JSBIA0400GB

HOW TO SET SRT CODE

EC-139

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal

and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h

(56 MPH) again.

*2: Checking the vehicle speed with GST is advised.

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

• “Zone A” is the fastest time where required for the diagnosis under normal conditions*. If the diagnosis is not

completed within “Zone A”, the diagnosis can still be performed within “Zone B”.

JSBIA3647GB

EC-140

< BASIC INSPECTION >

[HR16DE]

HOW TO SET SRT CODE

*: Normal conditions

- Sea level

- Flat road

- Ambient air temperature: 20 – 30

°C (68 – 86°F)

NOTE:

Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,

diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30

°C (68 – 86°F)]

Work Procedure

INFOID:0000000009020664

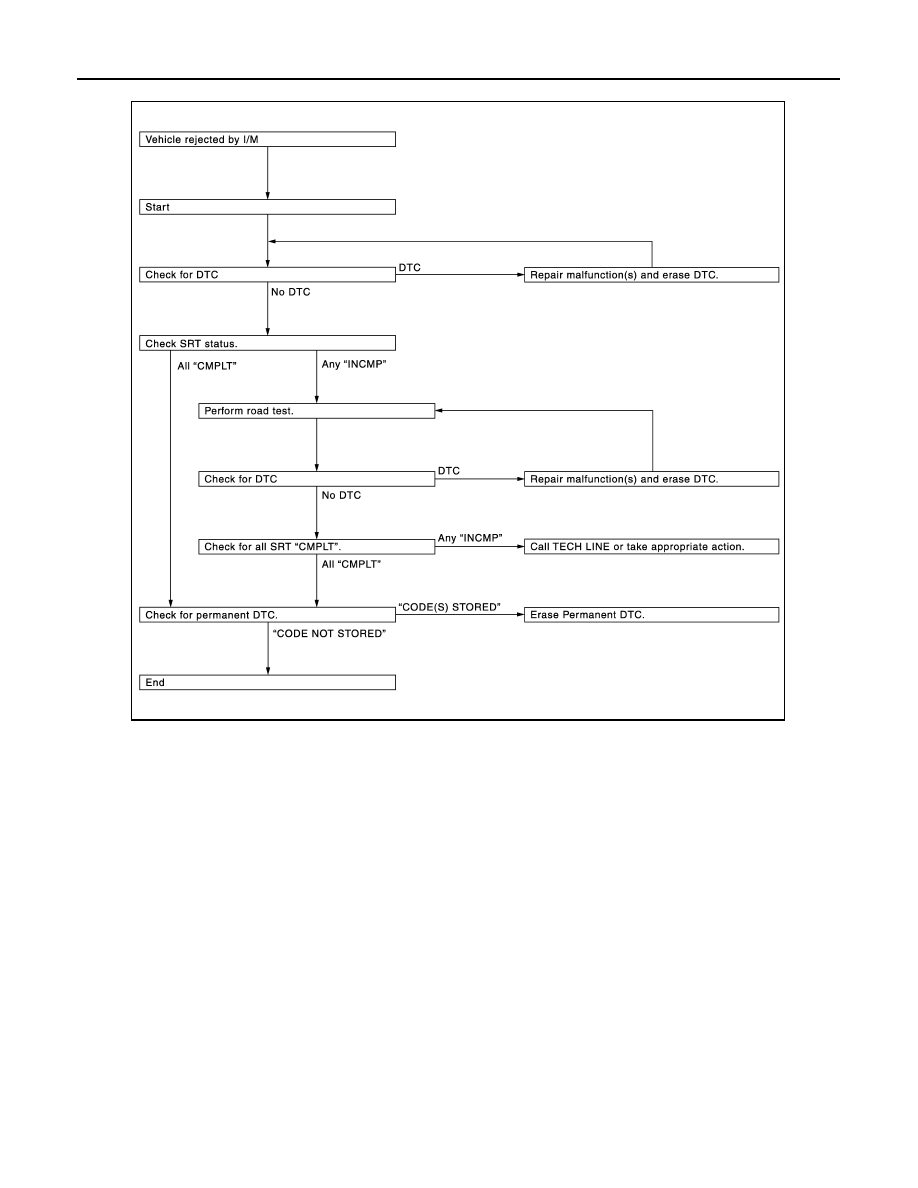

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-86, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK SRT STATUS

WITH CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.

WITHOUT CONSULT

Perform “SRT status” mode with

EC-57, "On Board Diagnosis Function"

.

WITH GST

Select Service $01 with GST.
Is SRT code(s) set?

YES

>> GO TO 12.

NO-1 >> With CONSULT: GO TO 3.

NO-2 >> Without CONSULT: GO TO 4.

3.

DTC CONFIRMATION PROCEDURE

1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.

2. For SRT(s) that is not set, perform the corresponding “DTC CONFIRMATION PROCEDURE” according to

the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-55, "DIAGNOSIS DESCRIPTION : Sys-

tem Readiness Test (SRT) Code"

.

3. Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-86, "DTC Index"

.

NO

>> GO TO 11.

4.

PERFORM ROAD TEST

• Check the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-55, "DIAGNOSIS DESCRIPTION :

System Readiness Test (SRT) Code"

.

• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to

EC-138, "SRT Set Driv-

ing Pattern"

.

In order to set all SRTs, the SRT set driving pattern must be performed at least once.

>> GO TO 5.

5.

PATTERN 1

1. Check the vehicle condition;

-

Engine coolant temperature is

−10 to 35°C (14 to 95°F).

-

Fuel tank temperature is more than 0

°C (32°F).

2. Start the engine.

3. Keep engine idling until the engine coolant temperature is greater than 70

°C (158°F)

NOTE:

ECM terminal voltage is follows;

• Engine coolant temperature

-

−10 to 35°C (14 to 95°F): 3.0 - 4.3 V

- 70

°(158°F): Less than 1.4 V

HOW TO SET SRT CODE

EC-141

< BASIC INSPECTION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• Fuel tank temperature: Less than 4.1 V

Refer to

EC-70, "Reference Value"

.

>> GO TO 6.

6.

PATTERN 2

1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then

release the accelerator pedal and keep it released for more than 10 seconds.

2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again

NOTE:

• Checking the vehicle speed with GST is advised.

• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

>> GO TO 7.

7.

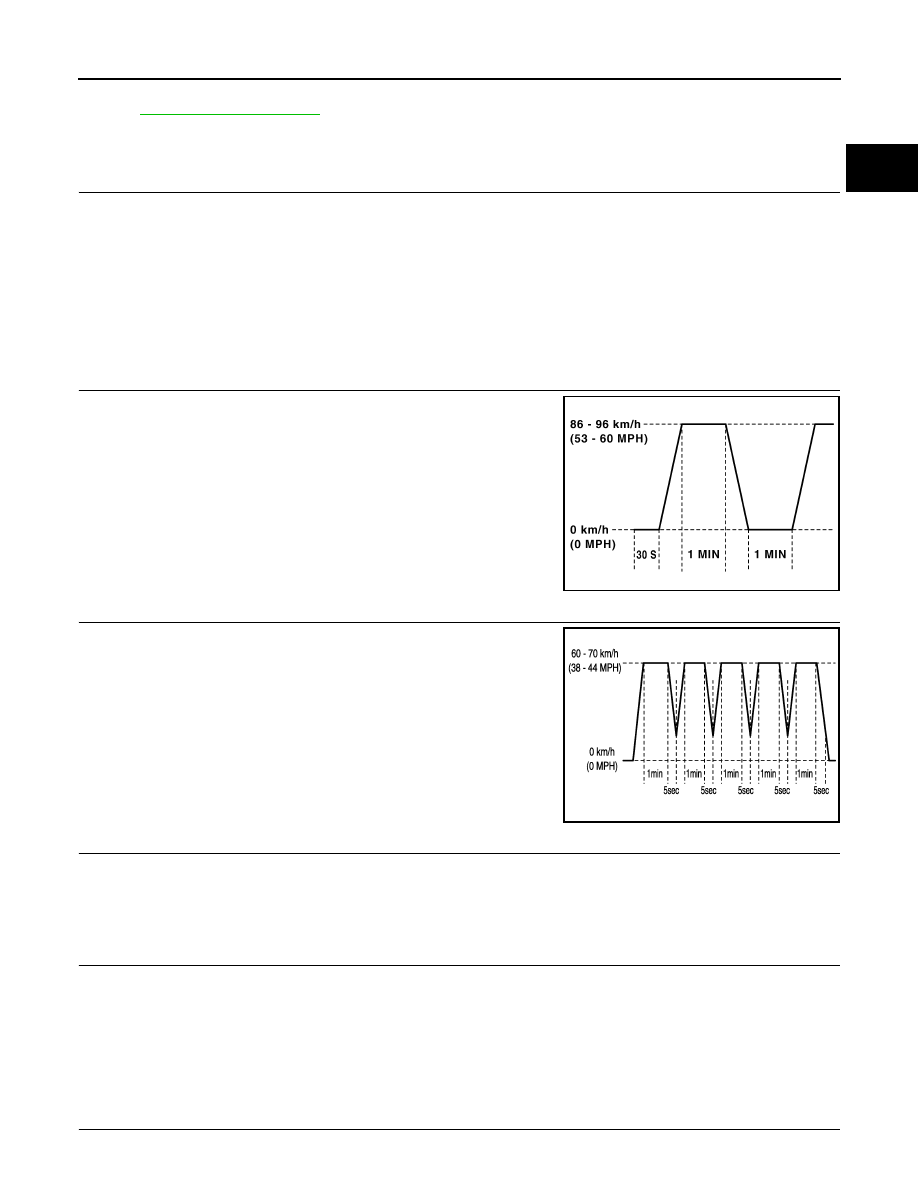

PATTERN 3

• Operate vehicle following the driving pattern shown in the figure.

- Release the accelerator pedal during deceleration of vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

>> GO TO 8.

8.

PATTERN 4

• Operate vehicle following the driving pattern shown in the figure.

- Drive the vehicle in a proper gear at 60 km/h (38 MPH) and main-

tain the speed.

- Release the accelerator pedal fully at least 5 seconds.

- Repeat the above two steps at least 5 times.

>> GO TO 9.

9.

PATTERN 5

• The accelerator pedal must be held very steady during steady-state driving.

• If the accelerator pedal is moved, the test must be conducted again.

>> GO TO 10.

10.

PATTERN 6

• Cool down the engine so that the engine coolant temperature lowers between 15 – 35

°C (59 – 95°F).

CAUTION:

Never turn the ignition switch ON while cooling down the engine.

• Engine coolant temperature at engine start is between 15 – 35

°C (59 – 95°F) and has lowered 45°C (113°F)

or more since the latest engine stop.

>> GO TO 11.

11.

CHECK SRT STATUS

PBIB2244E

JSBIA0160GB
