Nissan Versa Note. Manual

EC-6

P1212 TCS COMMUNICATION LINE .............

366

Description .............................................................

366

DTC Logic ..............................................................

366

Diagnosis Procedure .............................................

366

P1217 ENGINE OVER TEMPERATURE .........

367

DTC Logic ..............................................................

367

Component Function Check ..................................

367

Diagnosis Procedure .............................................

368

P1225 TP SENSOR .........................................

370

DTC Logic ..............................................................

370

Diagnosis Procedure .............................................

370

P1226 TP SENSOR .........................................

371

DTC Logic ..............................................................

371

Diagnosis Procedure .............................................

371

P1550 BATTERY CURRENT SENSOR ..........

372

DTC Logic ..............................................................

372

Diagnosis Procedure .............................................

372

Component Inspection ...........................................

373

P1551, P1552 BATTERY CURRENT SEN-
SOR ..................................................................

374

DTC Logic ..............................................................

374

Diagnosis Procedure .............................................

374

Component Inspection ...........................................

375

P1553 BATTERY CURRENT SENSOR ..........

376

DTC Logic ..............................................................

376

Diagnosis Procedure .............................................

376

Component Inspection ...........................................

377

P1554 BATTERY CURRENT SENSOR ..........

378

DTC Logic ..............................................................

378

Component Function Check ..................................

378

Diagnosis Procedure .............................................

379

Component Inspection ...........................................

380

P1564 ASCD STEERING SWITCH .................

381

DTC Logic ..............................................................

381

Diagnosis Procedure .............................................

381

Component Inspection ...........................................

383

P1572 ASCD BRAKE SWITCH .......................

384

DTC Logic ..............................................................

384

Diagnosis Procedure .............................................

385

Component Inspection (ASCD Brake Switch) .......

387

Component Inspection (Stop Lamp Switch) ..........

387

P1574 ASCD VEHICLE SPEED SENSOR ......

389

Description .............................................................

389

DTC Logic ..............................................................

389

Diagnosis Procedure .............................................

389

P1715 INPUT SPEED SENSOR ......................

391

Description .............................................................

391

DTC Logic ..............................................................

391

Diagnosis Procedure .............................................

391

P1720 VSS .......................................................

393

Description ............................................................

393

DTC Logic .............................................................

393

Diagnosis Procedure .............................................

393

P1805 BRAKE SWITCH ...................................

395

DTC Logic .............................................................

395

Diagnosis Procedure .............................................

395

Component Inspection ..........................................

396

P2096, P2097 A/F SENSOR 1 .........................

397

DTC Logic .............................................................

397

Diagnosis Procedure .............................................

397

P2100, P2103 THROTTLE CONTROL MO-
TOR RELAY .....................................................

401

DTC Logic .............................................................

401

Diagnosis Procedure .............................................

401

P2101 ELECTRIC THROTTLE CONTROL
FUNCTION ........................................................

404

DTC Logic .............................................................

404

Diagnosis Procedure .............................................

404

Component Inspection ..........................................

407

P2118 THROTTLE CONTROL MOTOR ..........

408

DTC Logic .............................................................

408

Diagnosis Procedure .............................................

408

Component Inspection ..........................................

409

P2119 ELECTRIC THROTTLE CONTROL
ACTUATOR ......................................................

410

DTC Logic .............................................................

410

Diagnosis Procedure .............................................

410

P2122, P2123 APP SENSOR ...........................

412

DTC Logic .............................................................

412

Diagnosis Procedure .............................................

412

Component Inspection ..........................................

413

P2127, P2128 APP SENSOR ...........................

415

DTC Logic .............................................................

415

Diagnosis Procedure .............................................

415

Component Inspection ..........................................

417

P2135 TP SENSOR ..........................................

418

DTC Logic .............................................................

418

Diagnosis Procedure .............................................

418

Component Inspection ..........................................

419

P2138 APP SENSOR .......................................

421

DTC Logic .............................................................

421

Diagnosis Procedure .............................................

421

Component Inspection ..........................................

423

ASCD BRAKE SWITCH ...................................

425

Component Function Check .................................

425

Diagnosis Procedure .............................................

425

Component Inspection (ASCD Brake Switch) .......

426

CLUTCH PEDAL POSITION SWITCH .............

427

Component Function Check .................................

427

EC-8

< PRECAUTION >

[HR16DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009760534

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

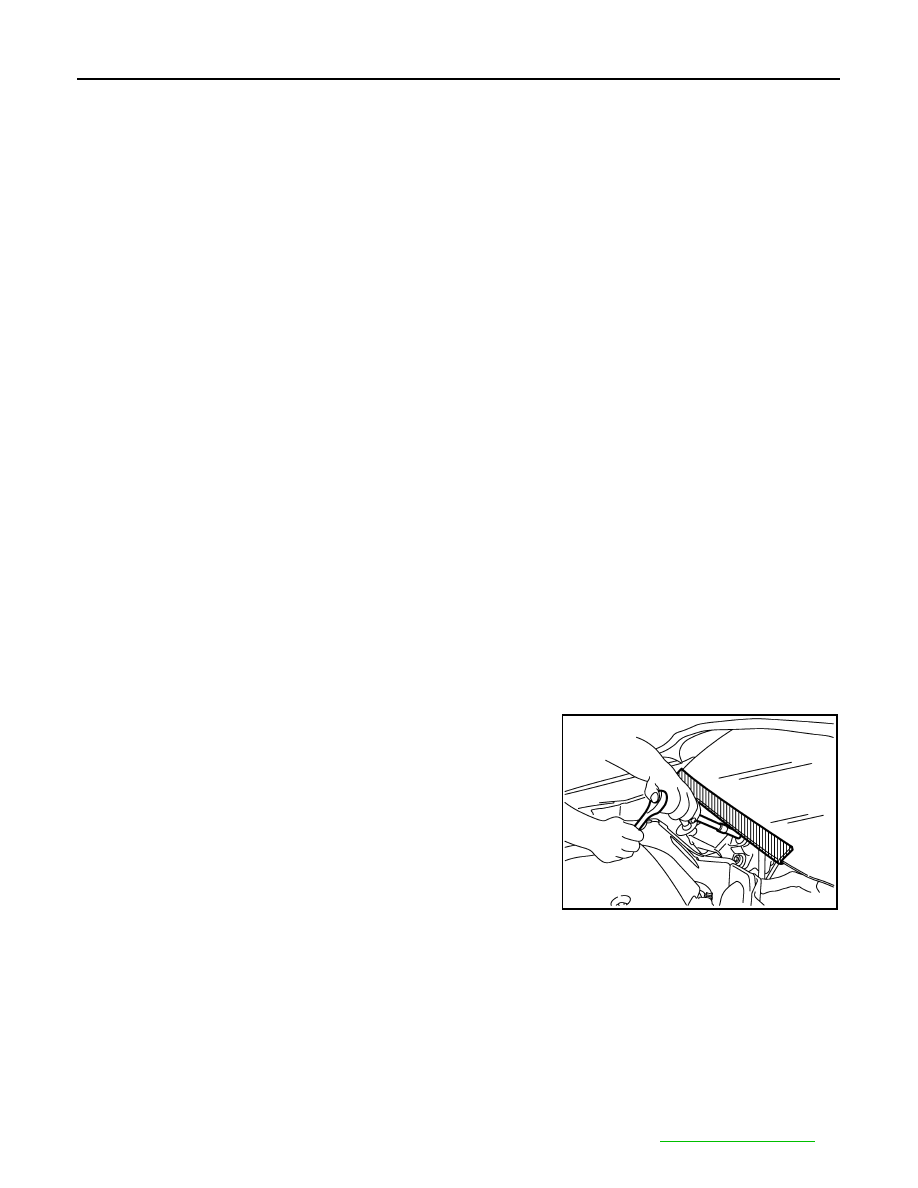

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009020566

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

On Board Diagnostic (OBD) System of Engine and CVT

INFOID:0000000009020567

The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of

a malfunction causing emission deterioration.

CAUTION:

• Be sure to turn the ignition switch OFF and disconnect the negative battery cable before any repair

or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will

cause the MI to light up.

• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,

dirt, bent terminals, etc.)

• Certain systems and components, especially those related to OBD, may use a new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

PG-53, "Description"

PIIB3706J

PRECAUTIONS

EC-9

< PRECAUTION >

[HR16DE]

• Be sure to route and secure the harnesses properly after work. The interference of the harness with

a bracket, etc. may cause the MI to light up due to the short circuit.

• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube

may cause the MI to light up due to the malfunction of the fuel injection system, etc.

• Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and

TCM (Transmission control module) before returning the vehicle to the customer.

General Precautions

INFOID:0000000009020568

• Always use a 12 volt battery as power source.

• Do not attempt to disconnect battery cables while engine is

running.

• Before connecting or disconnecting the ECM harness con-

nector, turn ignition switch OFF and disconnect negative bat-

tery cable. Failure to do so may damage the ECM because

battery voltage is applied to ECM even if ignition switch is

turned OFF.

• Before removing parts, turn ignition switch OFF and then dis-

connect battery ground cable.

• Do not disassemble ECM.

• If a battery cable is disconnected, the memory will return to

the ECM value.

The ECM will now start to self-control at its initial value. So,

engine operation can vary slightly in this case. However, this

is not an indication of a malfunction. Do not replace parts

because of a slight variation.

• If the battery is disconnected, the following emission-related

diagnostic information will be lost within 24 hours.

- Diagnostic trouble codes

- 1st trip diagnostic trouble codes

- Freeze frame data

- 1st trip freeze frame data

- System readiness test (SRT) codes

- Test values

• When connecting or disconnecting pin connectors into or

from ECM, take care not to damage pin terminals (bend or

break).

Make sure that there are not any bends or breaks on ECM pin

terminal, when connecting pin connectors.

• Securely connect ECM harness connectors.

A poor connection can cause an extremely high (surge) volt-

age to develop in coil and condenser, thus resulting in dam-

age to ICs.

• Keep engine control system harness at least 10 cm (4 in) away

from adjacent harness, to prevent engine control system mal-

functions due to receiving external noise, degraded operation

of ICs, etc.

• Keep engine control system parts and harness dry.

SEF289H

PBIA9222J

PBIB0090E

Nissan Versa Note. Manual - part 256
