Nissan Versa Note. Manual - part 241





KEYFOB ID SET UP WITH CONSULT

DLK-249

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB ID SET UP WITH CONSULT

ID Code Entry Procedure

INFOID:0000000009645413

KEYFOB ID SET UP WITH CONSULT

NOTE:

• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A spe-

cific ID code can be erased with CONSULT. However, when the ID code of a lost keyfob is not known,

all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining

and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If

five ID codes are stored in memory when an additional code is registered, only the oldest code is

erased. If less than five codes are stored in memory when an additional code is registered, the new

ID code is added and no ID codes are erased.

• Entry of a maximum of five ID codes is allowed. When more than five codes are entered, the oldest ID

code will be erased.

• Even if the same ID code that is already in memory is input, the same ID code can be entered. The

code is counted as an additional code.

1. Turn ignition switch ON.
2. Select BCM.
3. Select MULTI REMOTE ENT.
4. Select WORK SUPPORT.
5. You can register, erase or confirm a keyfob ID code. To register a new code, select the following option

and follow CONSULT instructions:

• REMO CONT ID REGIST

Use this mode to register a keyfob ID code.

NOTE:

Register the ID code when keyfob or BCM is replaced, or when additional keyfob is required.

• REMO CONT ID ERASUR

Use this mode to erase a keyfob ID code.

• REMO CONT ID CONFIR

Use this mode to confirm if a keyfob ID code is registered or not.

DLK-250

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

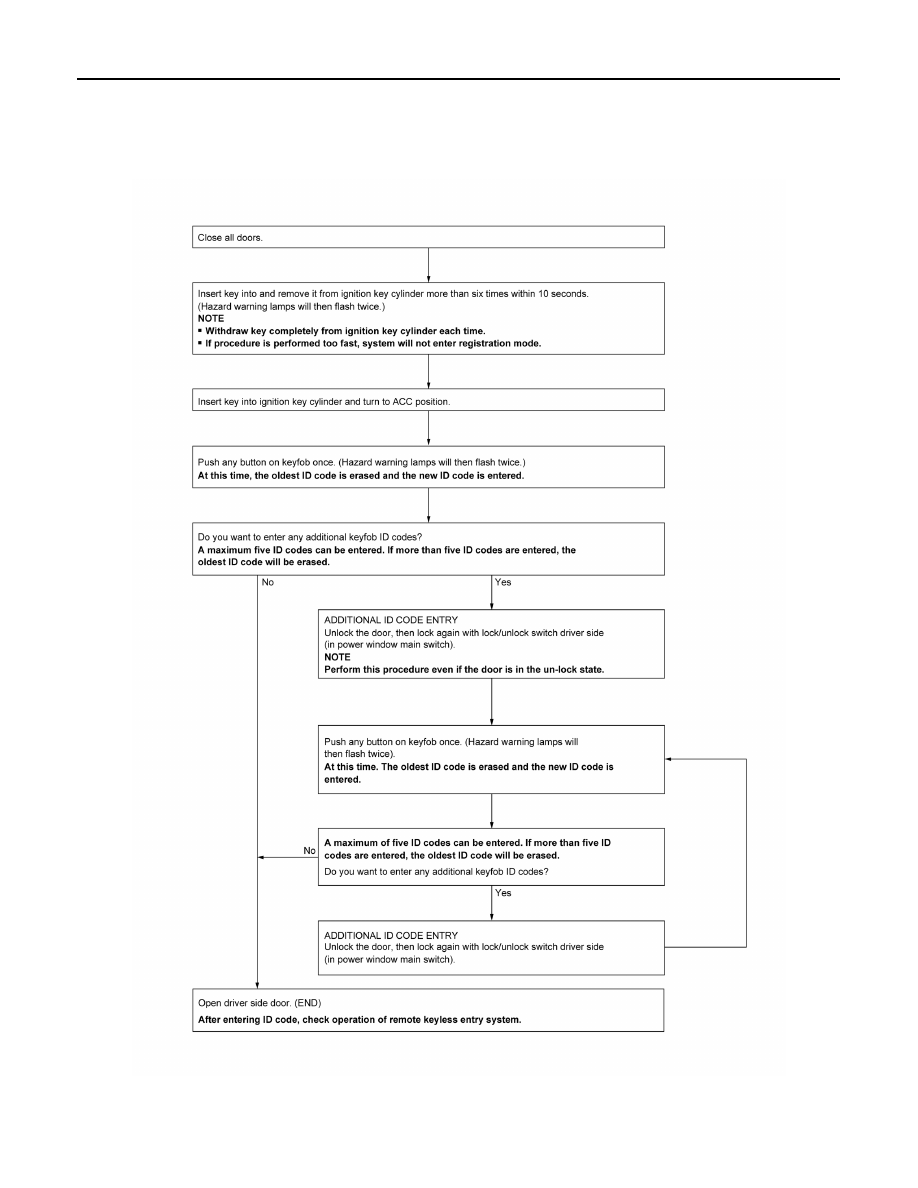

KEYFOB ID SET UP WITHOUT CONSULT

KEYFOB ID SET UP WITHOUT CONSULT

ID Code Entry Procedure

INFOID:0000000009645414

KEYFOB ID SET UP WITHOUT CONSULT

NOTE:

• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID

code can be erased with CONSULT. However, when the ID code of a lost keyfob is not known, all controller

ALKIA2029GB

KEYFOB ID SET UP WITHOUT CONSULT

DLK-251

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs

must be re-registered.

To erase all ID codes in memory, register one ID code (keyfob) five times. After all ID codes are erased, the

ID codes of all remaining and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five ID

codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less

than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added

and no ID codes are erased.

• If you need to activate more than two additional new keyfobs, repeat the procedure “Additional ID code

entry” for each new keyfob

DLK-249, "ID Code Entry Procedure"

 (with CONSULT),

DLK-250, "ID Code Entry

Procedure"

 (without CONSULT).

• A maximum amount of five ID codes is allowed. When more than five ID codes are entered, the oldest ID

code will be erased.

• Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is

counted as an additional code.

DLK-252

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

POWER DOOR LOCK SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

POWER DOOR LOCK SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009645343

DOOR LOCK/UNLOCK FUNCTION MALFUNCTION

NOTE:

• Before performing the diagnosis in the following table, check “WORK FLOW”. Refer to

DLK-218, "Work

Flow"

.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

• If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Symptom

Diagnosis/service procedure

Reference page

Key reminder door function does not operate
properly.

1.

Check door switch.

DLK-225

2.

Check key switch.

DLK-234

3.

Check Intermittent Incident.

GI-41

Power door lock does not operate with door
lock and unlock switch on main power window
and door lock/unlock switch or power window
and door lock/unlock switch RH.

1.

Check BCM Power supply and ground circuit.

BCS-120

2.

Check main power window and door lock and unlock switch.

DLK-228

3.

Check power window and door lock and unlock switch RH.

DLK-229

4.

Check Intermittent Incident.

GI-41

Specific door lock actuator does not operate.

1.

Check door lock actuator.

Driver side

DLK-235

Passenger side

DLK-236

Rear LH

DLK-237

Rear RH

DLK-238

2.

Check Intermittent Incident.

GI-41

Power door locks do not operate with front
door lock key cylinder switch LH.

1.

Check key cylinder switch.

DLK-232

2.

Replace BCM.

BCS-127

Vehicle speed sensing auto door LOCK oper-
ation does not operate.

1.

Ensure automatic door lock/unlock function (lock operation)
is enabled.

DLK-190

2.

Check combination meter vehicle speed signal.

MWI-39

3.

Check intermittent incident.

GI-41

Ignition OFF interlock auto door UNLOCK
function does not operate.

1.

Ensure automatic door lock/unlock function (unlock opera-
tion) is enabled.

DLK-190

2.

Check BCM for DTCs.

BCS-109

3.

Check intermittent incident.

GI-41
